Voron Stealthburner Kit Revision C

This guide uses the official StealthBurner Assembly Manual VERSION 2023-07-07 The kits supported are the Voron V2.4 and Trident Revision C which include the 2 piece Stealthburner PCBs based on the Hartk design

1. Introduction

1

-

Step 1 of 2 in this section

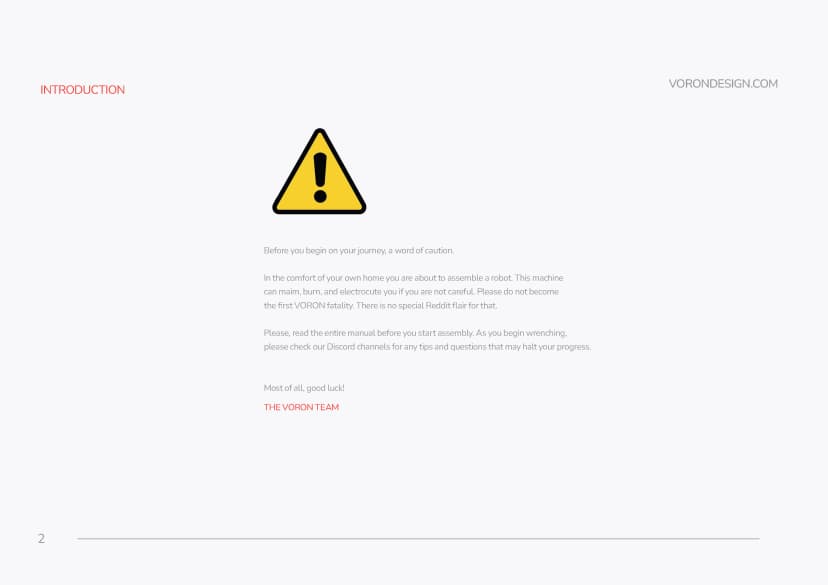

Before you begin on your journey, a word of caution. In the comfort of your own home you are about to assemble a robot. This machine can maim, burn, and electrocute you if you are not careful. Please do not become the first VORON fatality. There is no special Reddit flair for that. Please, read the entire manual before you start assembly. As you begin wrenching, please check our Discord channels for any tips and questions that may halt your progress. Most of all, good luck! THE VORON TEAM

1 image(s) - Click to view

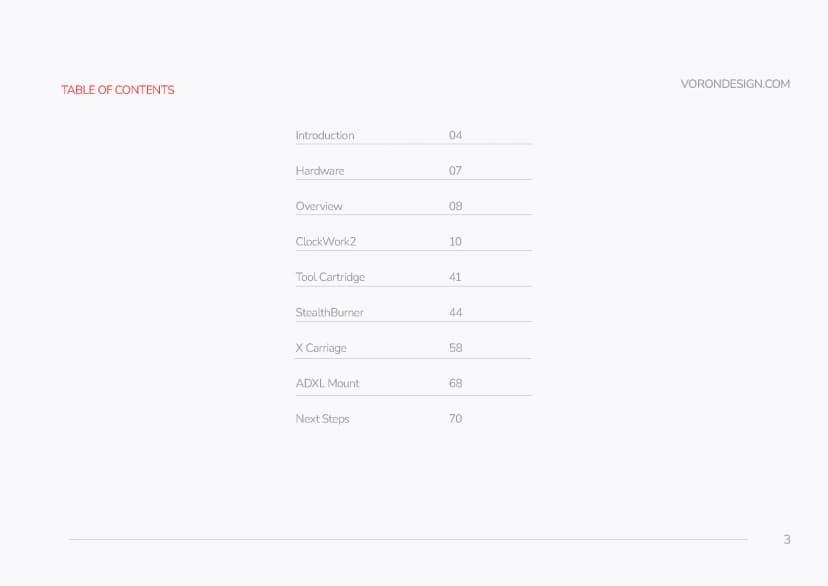

Table of Contents

1 image(s) - Click to view

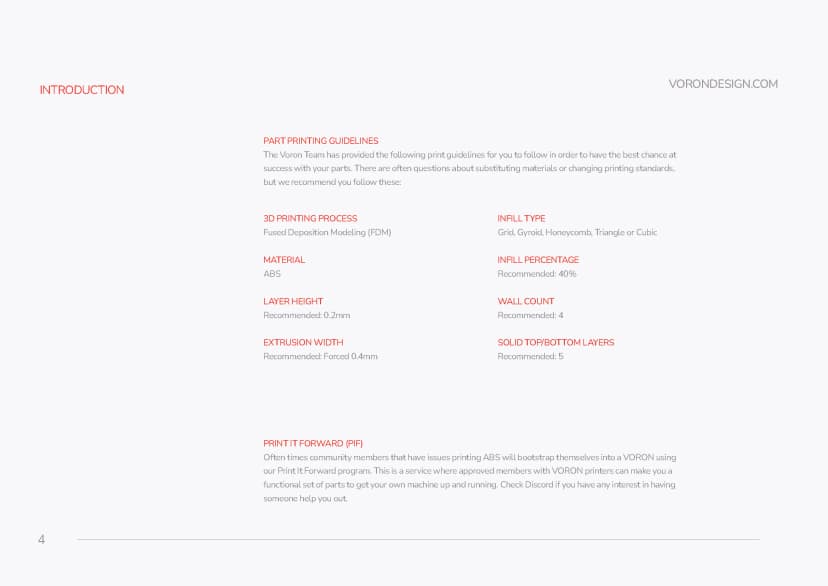

Printing Guidelines Print It Forward (PIF)

1 image(s) - Click to view

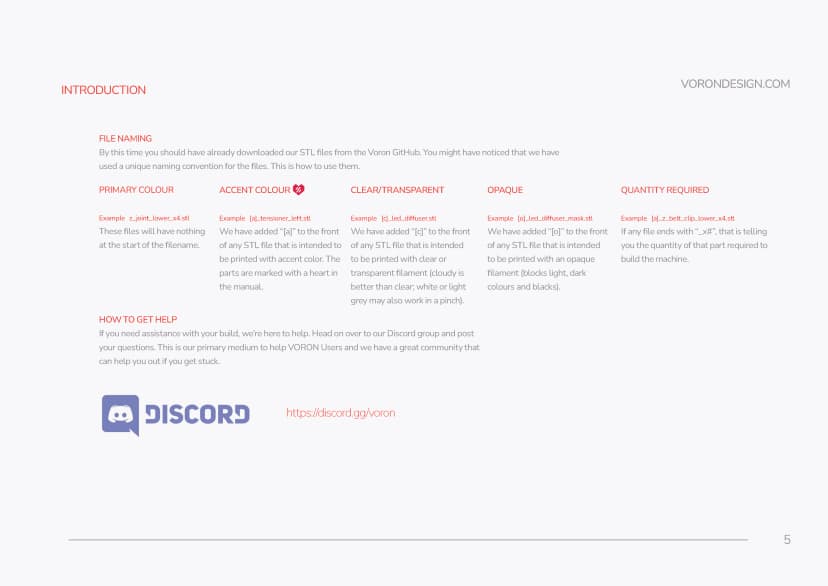

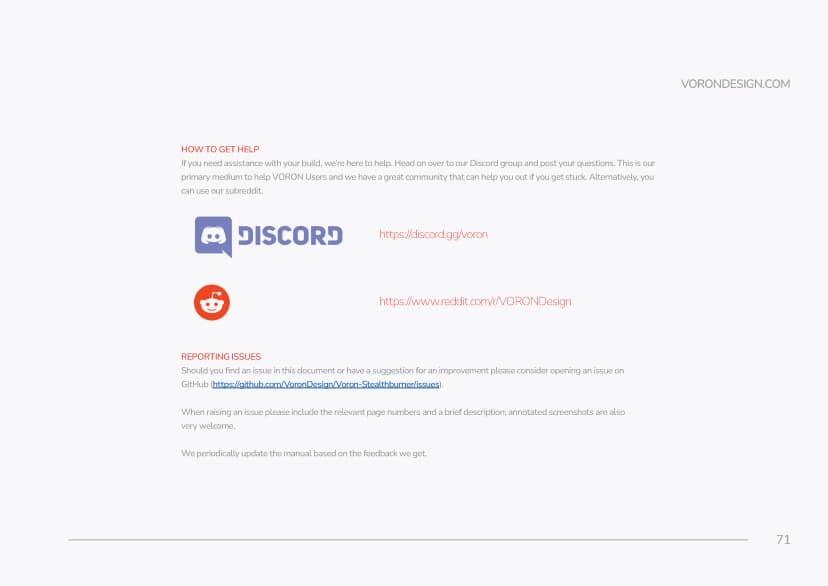

File naming How to get help

1 image(s) - Click to view

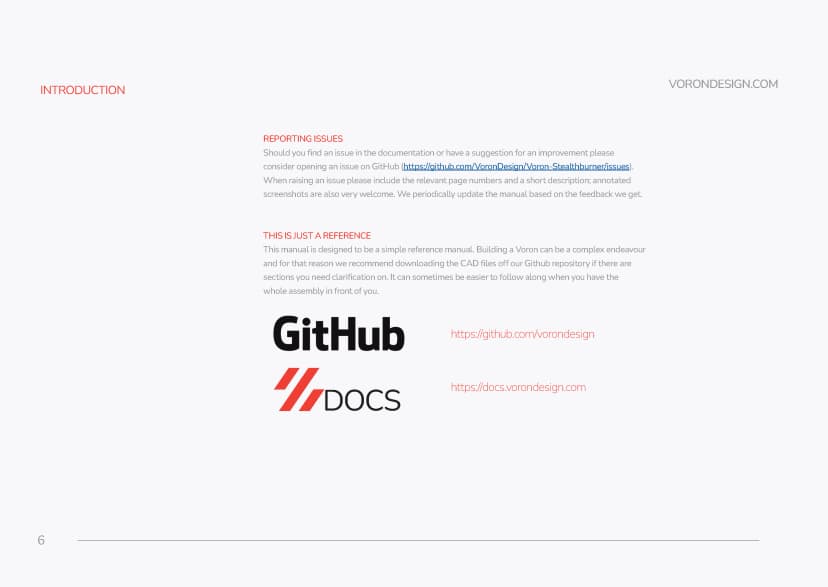

Reporting Issues This is just a reference

1 image(s) - Click to view

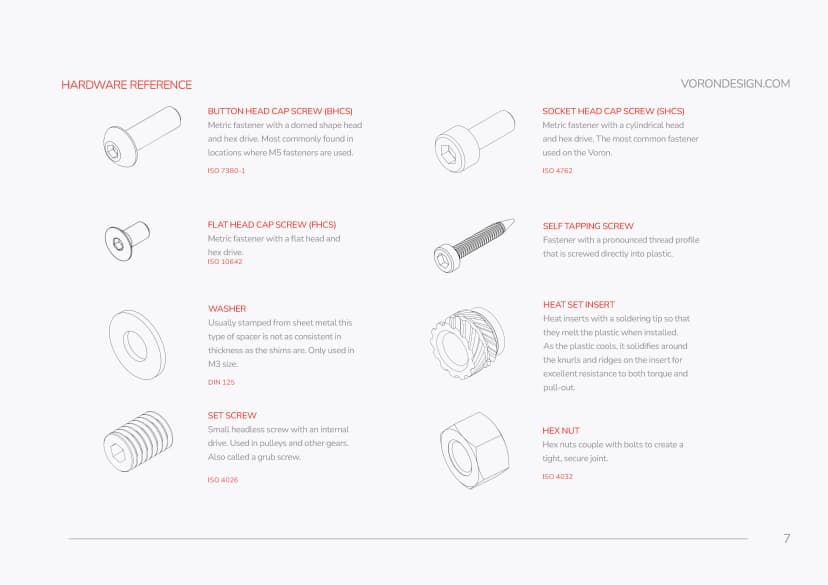

Hardware Reference

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3


Referenced by step 4


Referenced by step 5


Referenced by step 6

2

Overview

Step 2 of 2 in this section

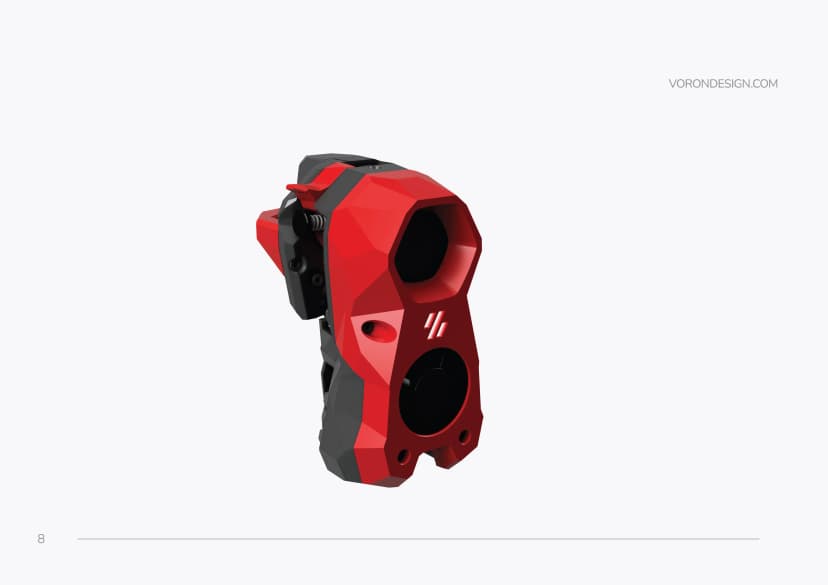

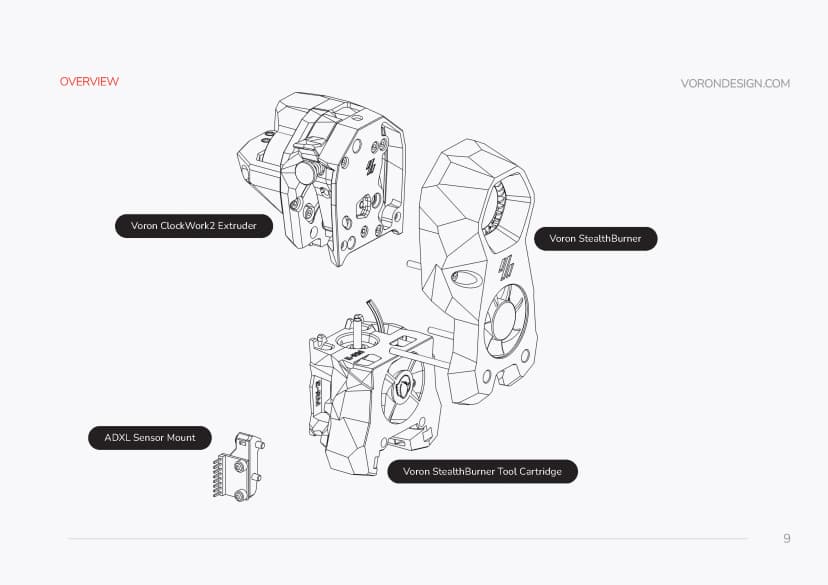

Preview of Completed Assembly

1 image(s) - Click to view

Completed Sub-Assemblies

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

2. ClockWork2

3

Overview

Step 1 of 13 in this section

Step Images

4

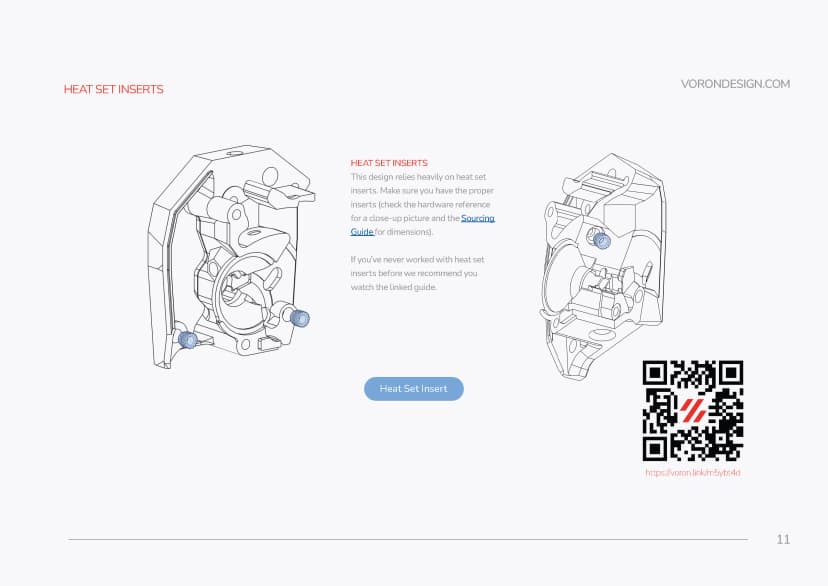

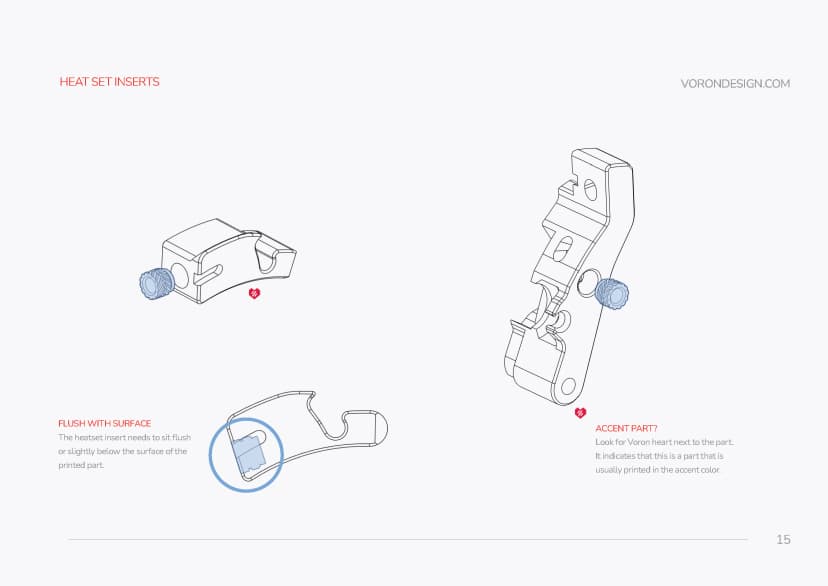

Heat Set Inserts

Step 2 of 13 in this section

Heatset Insert In A Minute #Shorts

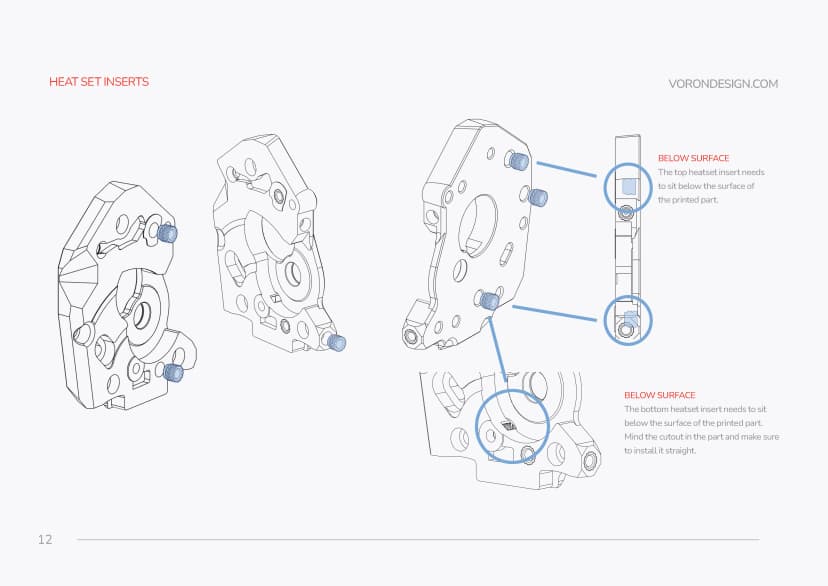

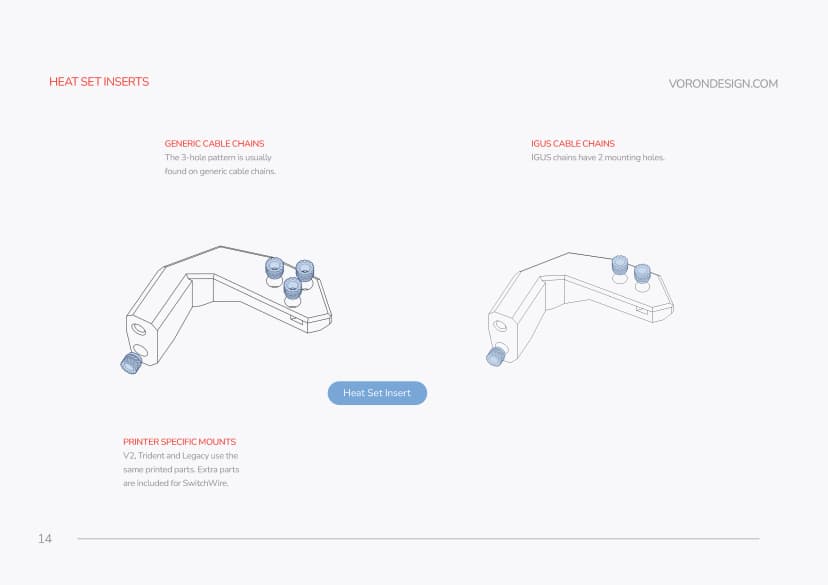

LDO - Heat set for Toolhead PCB is Required

1 image(s) - Click to view

LDO chains has 2 mounting holes like IGUS chains

1 image(s) - Click to view

Step Images


Referenced by step 2


Referenced by step 3

5

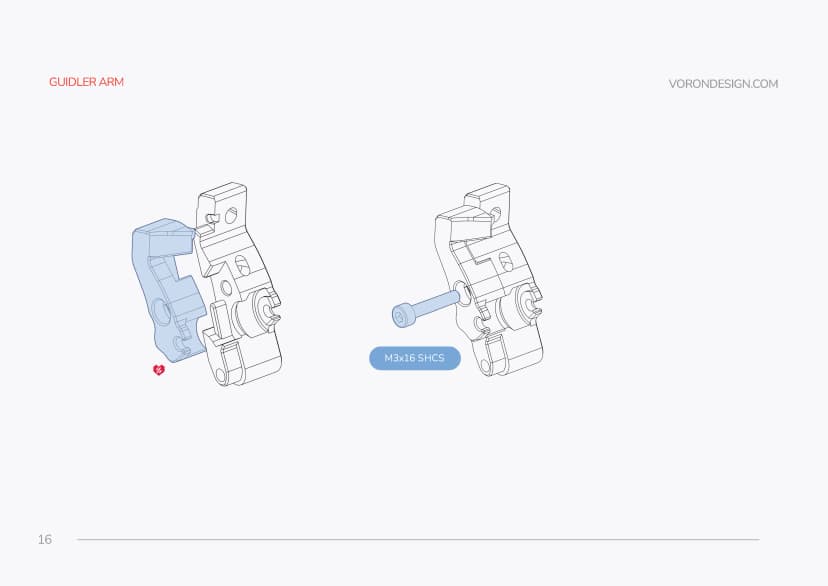

Guidler Arm

Step 3 of 13 in this section

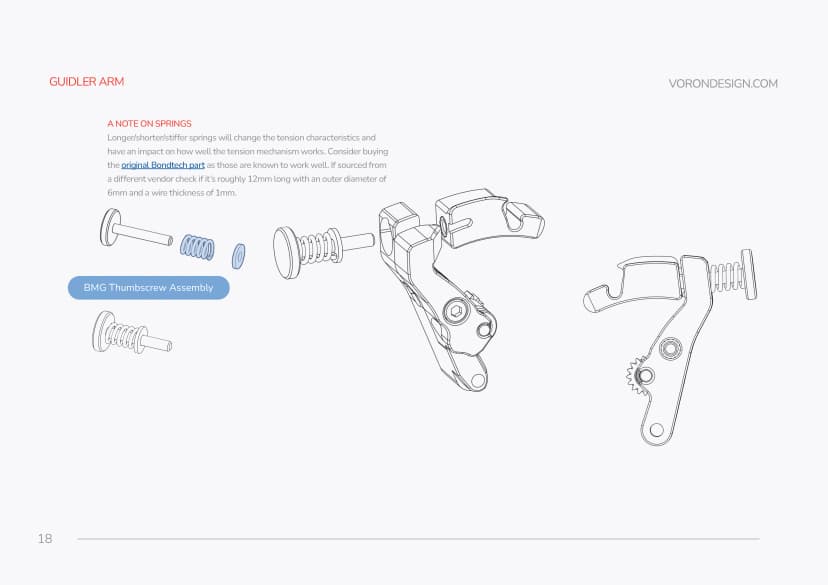

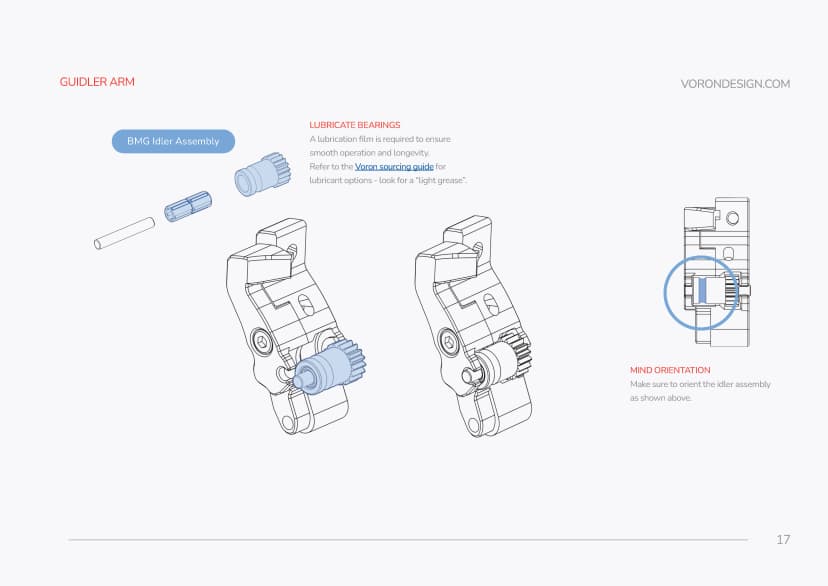

The kit does not include any lubricant. What lube should I use?

1 image(s) - Click to view

The LDO kit may come with two spring with different tensions. Use the one already assembled, keep the other in case there are issues.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

6

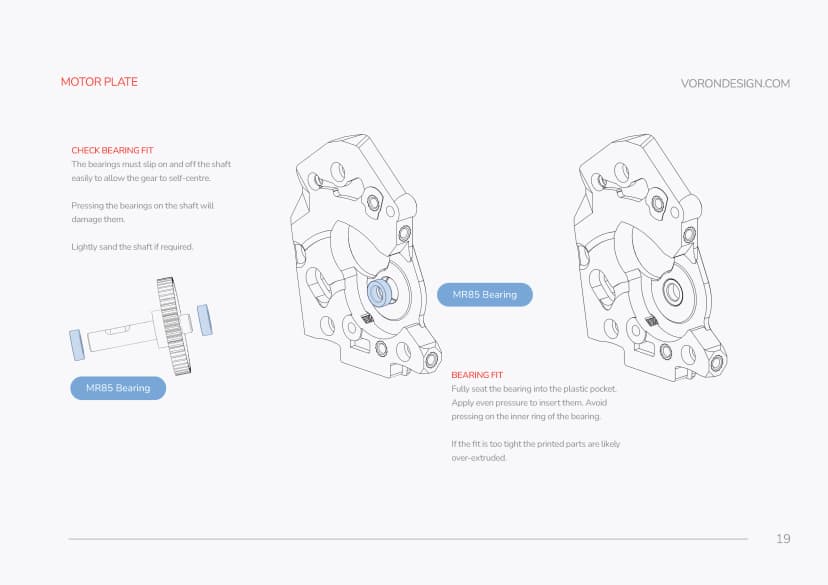

Motor Plate

Step 4 of 13 in this section

Step Images

7

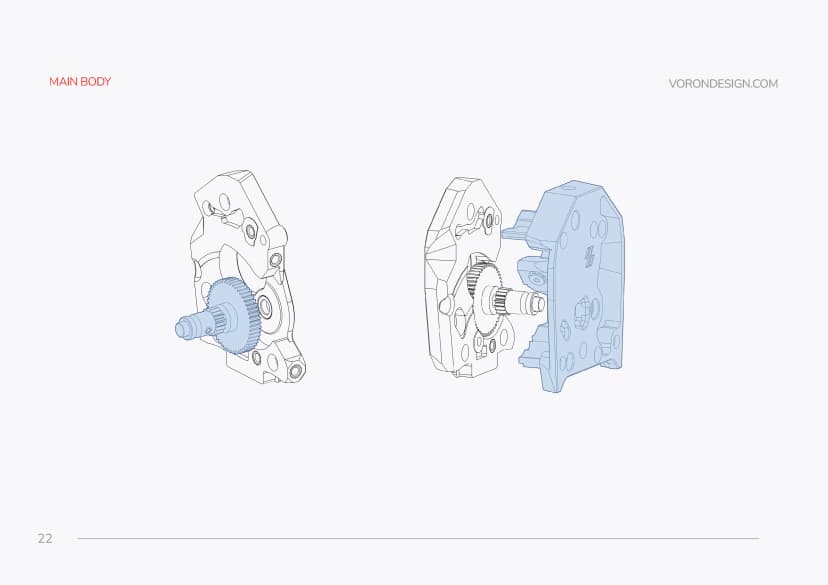

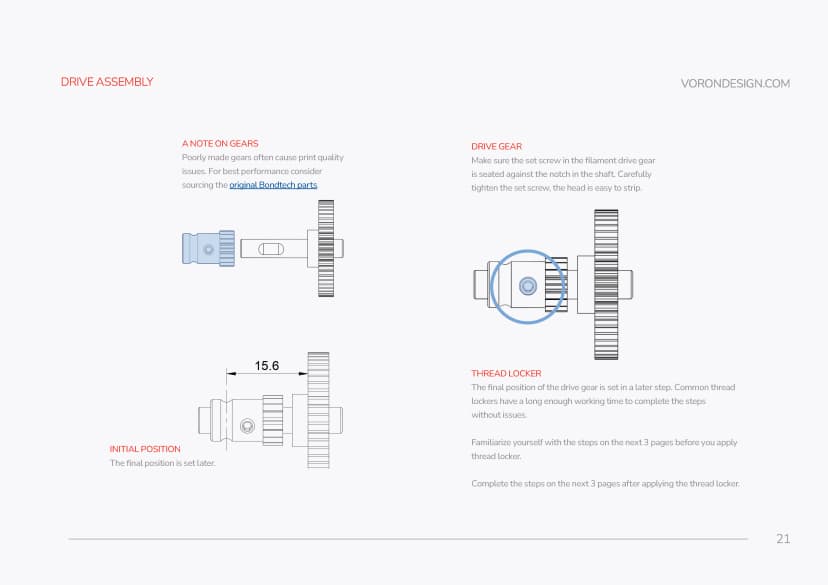

Main Body

Step 5 of 13 in this section

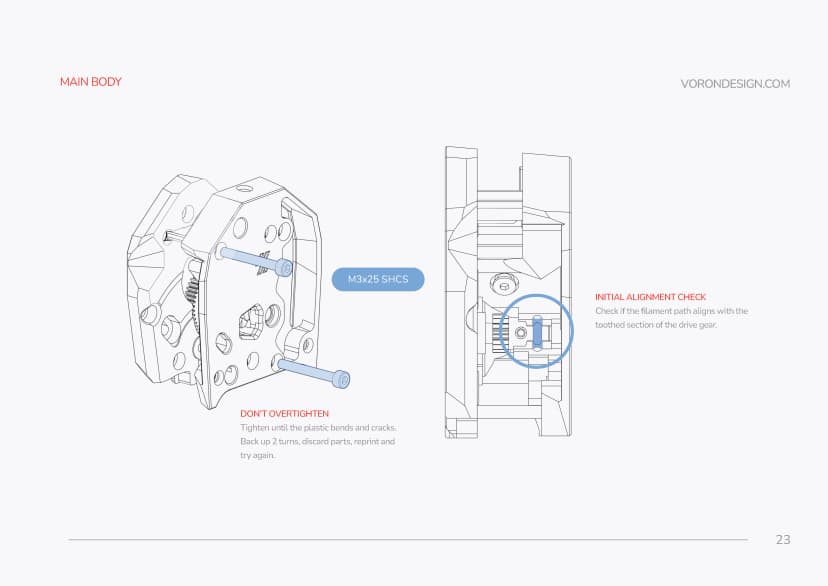

Set screws already has thread locker pre-applied.

1 image(s) - Click to view

Step Images


Referenced by step 1

8

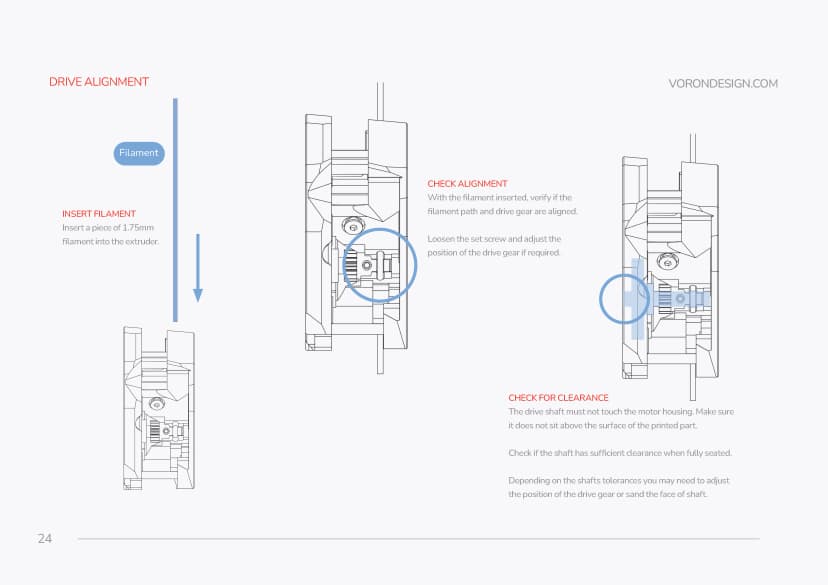

Drive Alignment

Step 6 of 13 in this section

Step Images

9

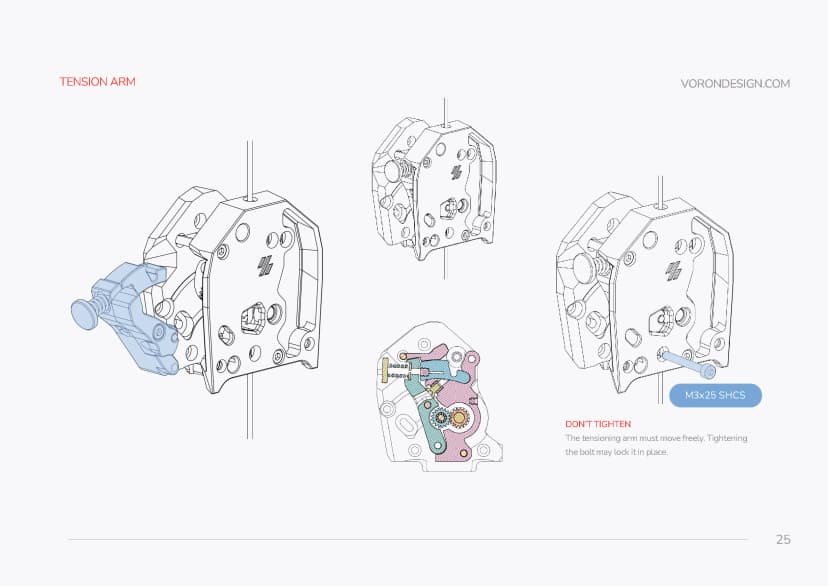

Tension Arm

Step 7 of 13 in this section

Step Images

10

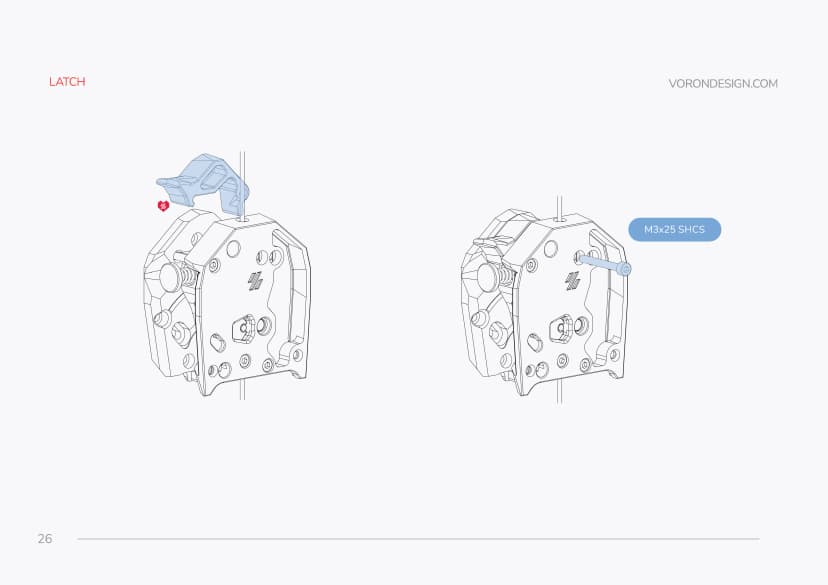

Latch

Step 8 of 13 in this section

Step Images

11

Tension Mechanism

Step 9 of 13 in this section

Step Images

12

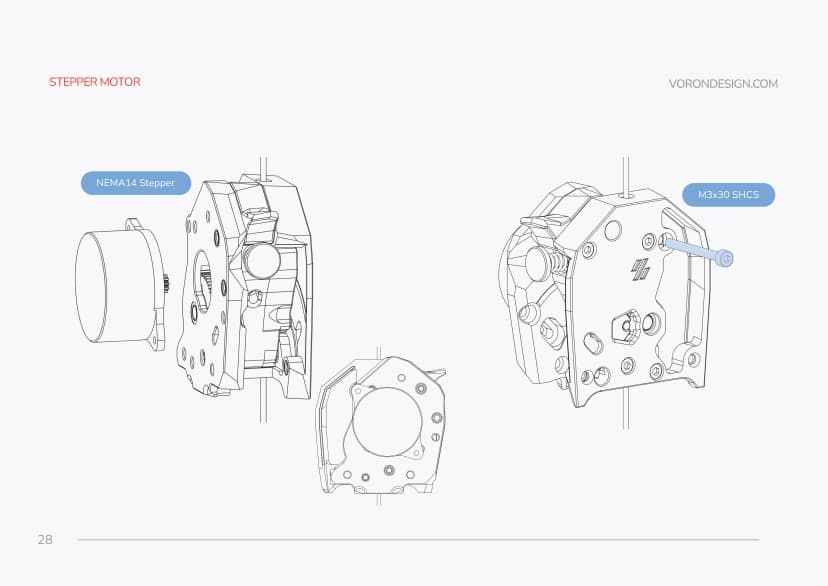

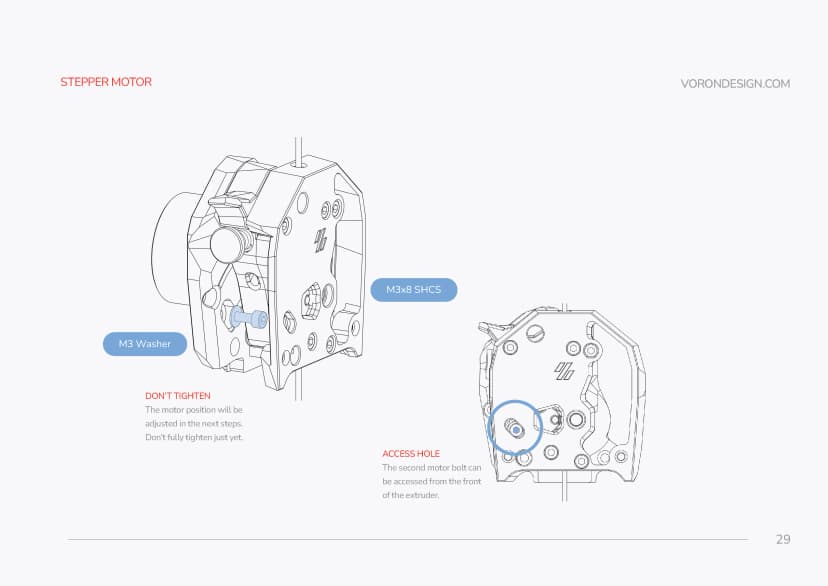

Stepper Motor

Step 10 of 13 in this section

How to set the gear mesh in a Voron Clockwork 2 Extruder

1 image(s) - Click to view

Step Images


Referenced by step 1

13

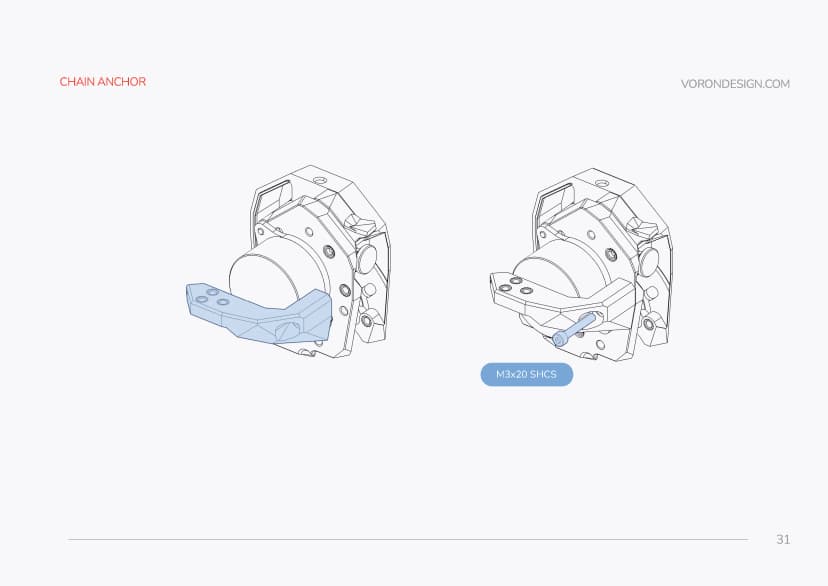

Chain Anchor

Step 11 of 13 in this section

Ignore that graphics show 3 holes chain anchor version, we are using the 2 holes version.

1 image(s) - Click to view

Step Images


Referenced by step 1

14

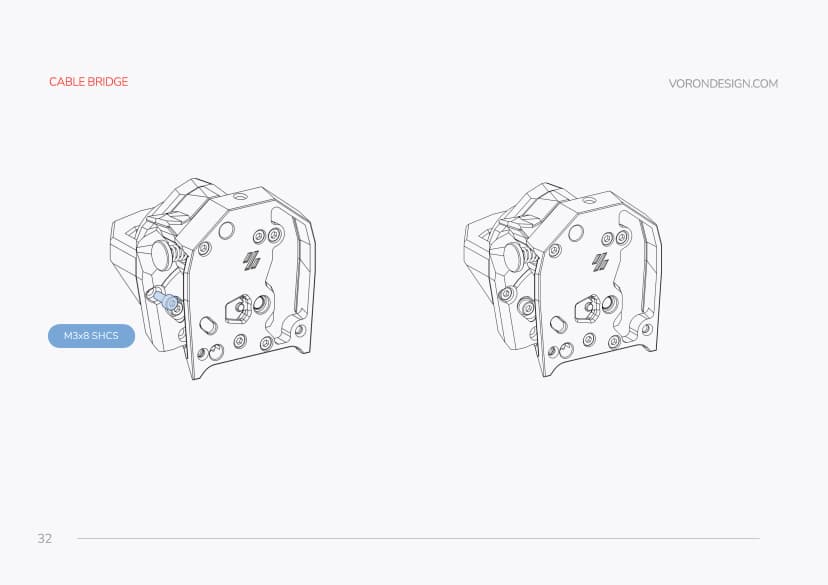

Cable Cover

Step 12 of 13 in this section

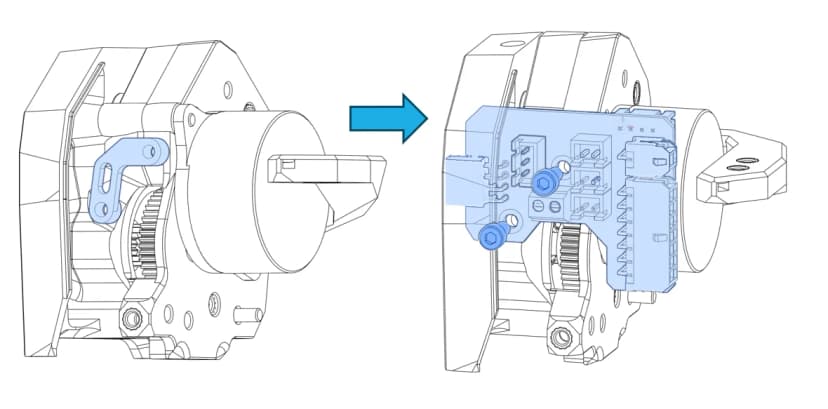

Attach the LDO Toolhead PCB with the printed PCB Spacer and two M3x8 SHCS. Flip the PCB spacer if the PCB version doesn't sit flat.

1 image(s) - Click to view

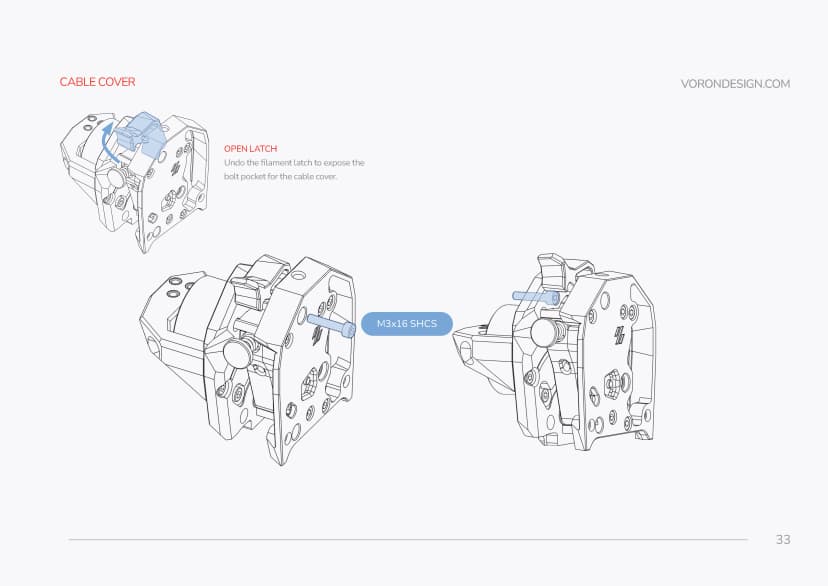

Use this cable door designed for an external chamber thermistor instead of the standard cable_door .

1 image(s) - Click to view

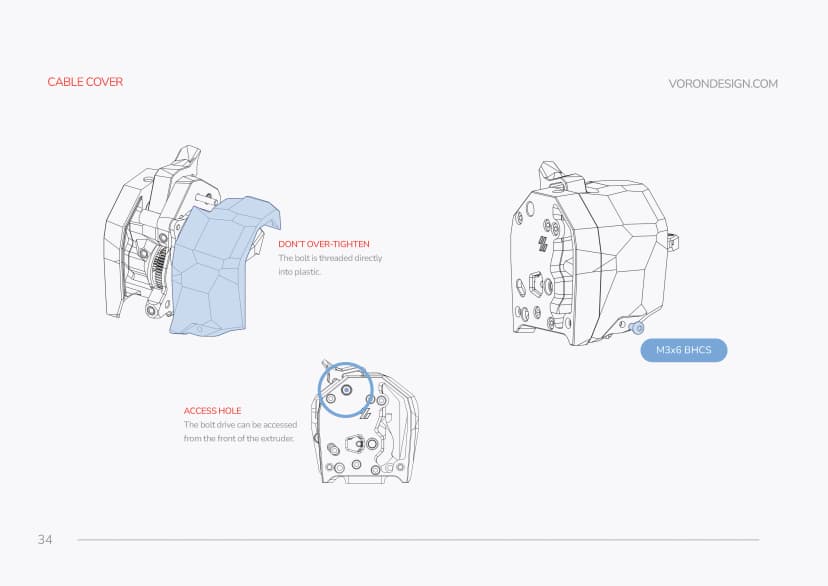

LDO includes a M3x6 captive screw for the cable cover rather than a normal M3x6 BHCS screw

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2, 3

15

Note from the Voron Team

Step 13 of 13 in this section

Step Images


3. Tool Cartridge

16

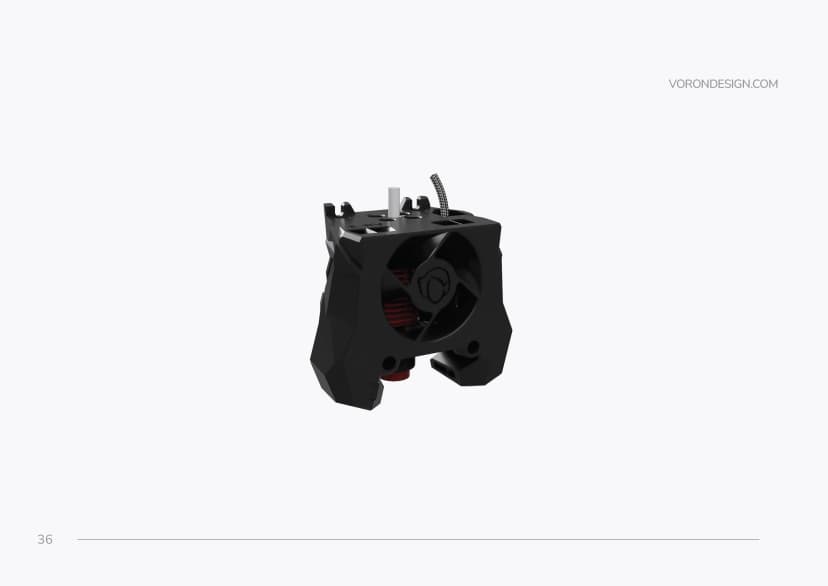

Overview

Step 1 of 3 in this section

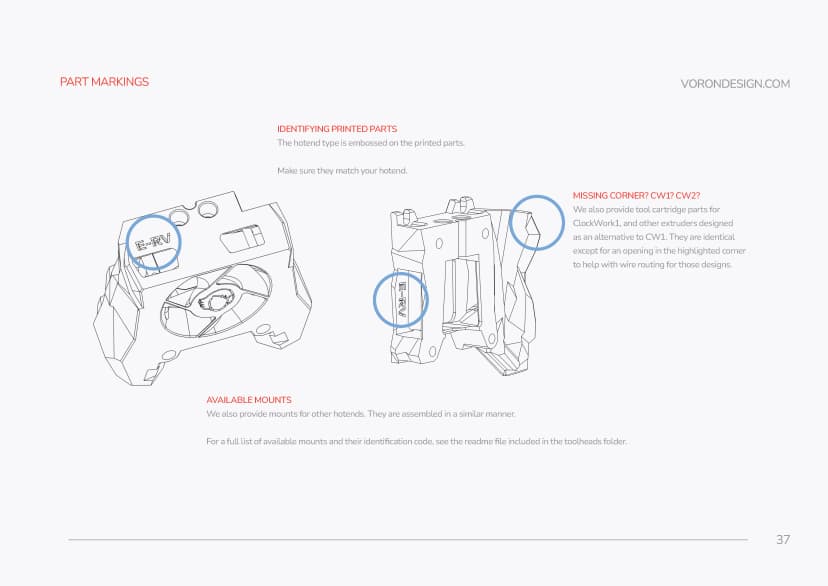

Kits come standard with E3D Revo Hotend LDO Edition, with 0.4/0.6mm, 2 nozzles Note: Some resellers may offer other options

1 image(s) - Click to view

Step Images


Referenced by step 1

17

Part Prep

Step 2 of 3 in this section

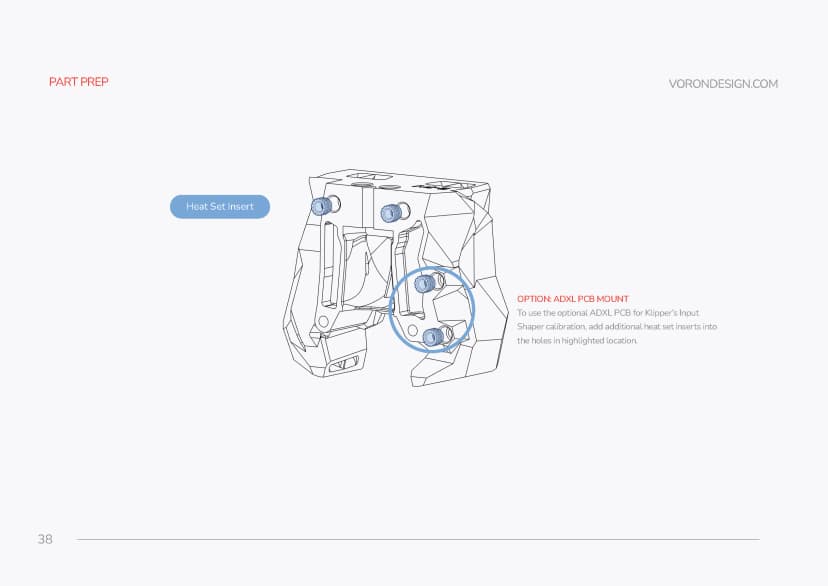

The kit comes with an ADXL, so use all 4 heat sets

1 image(s) - Click to view

The standard hotend for LDO kits is the E3D Revo Voron, however resellers may provide other options

1 image(s) - Click to view

Step Images


Referenced by step 2


Referenced by step 1

18

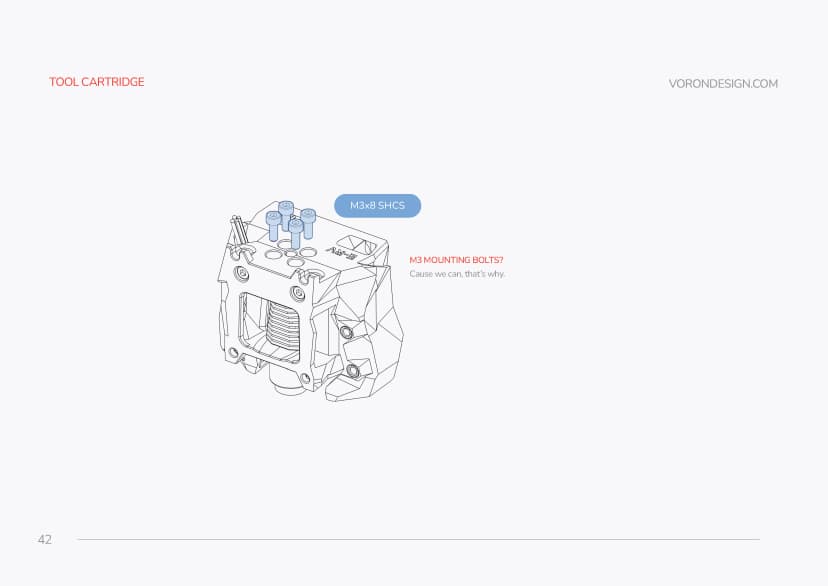

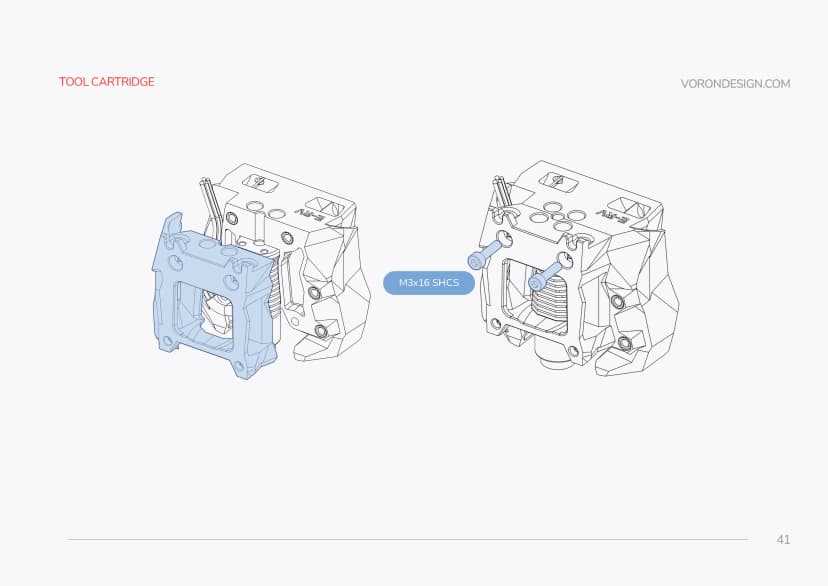

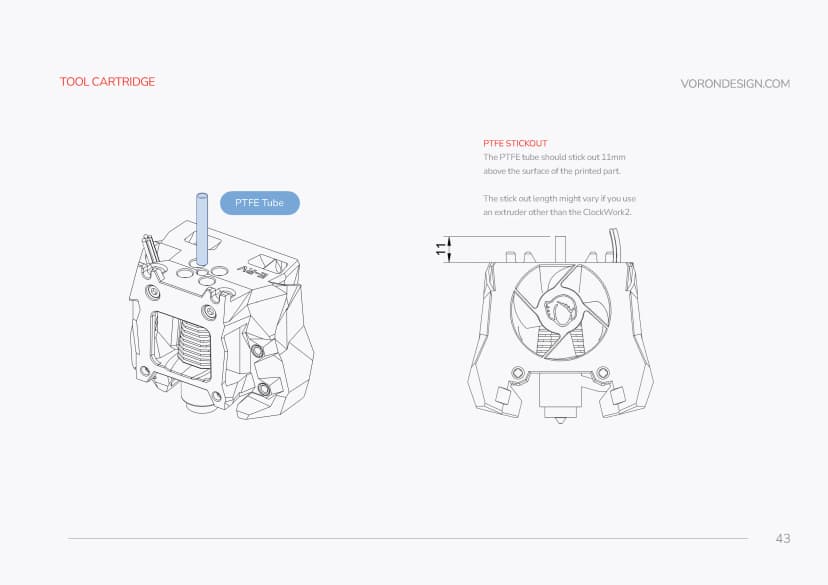

Tool Cartridge

Step 3 of 3 in this section

Step Images


4. StealthBurner

19

-

Step 1 of 8 in this section

Step Images

20

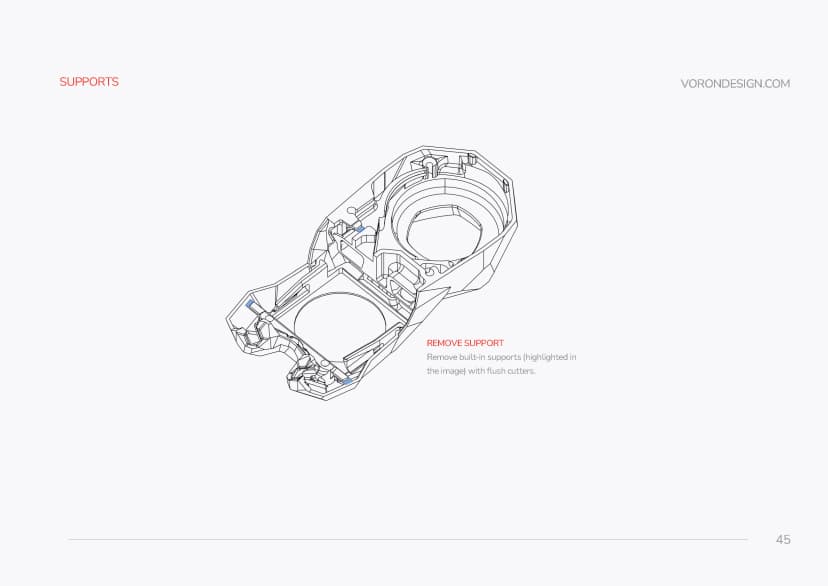

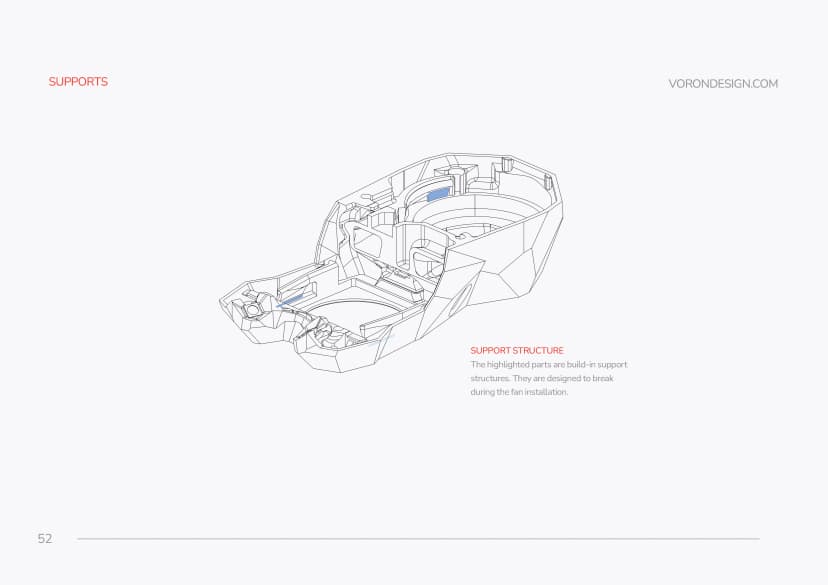

Supports

Step 2 of 8 in this section

Step Images

21

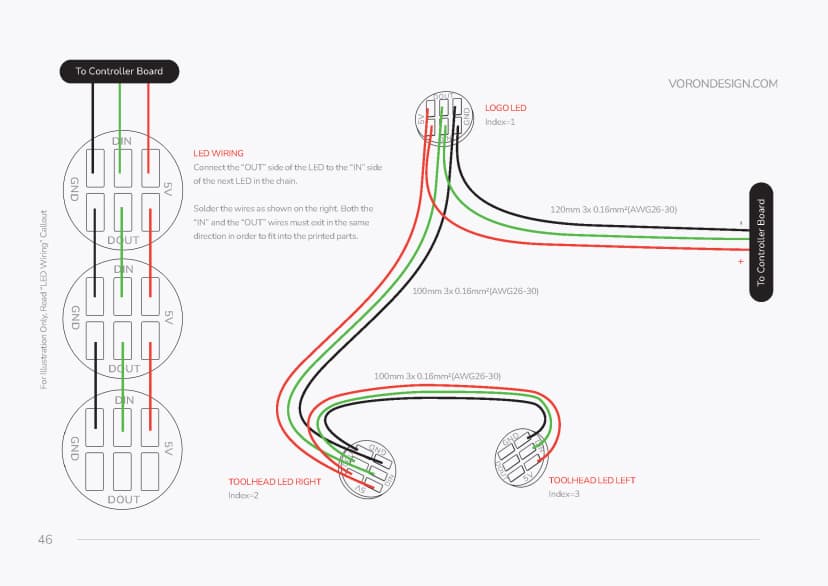

LEDS

Step 3 of 8 in this section

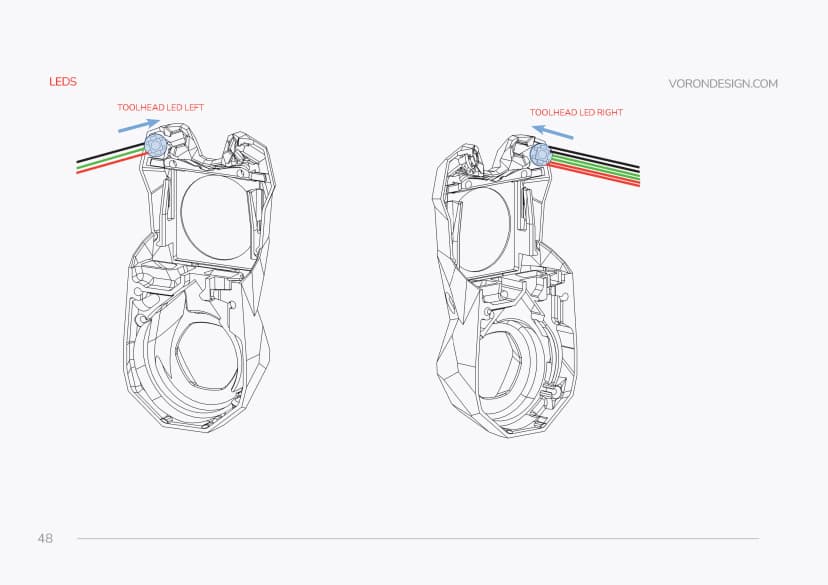

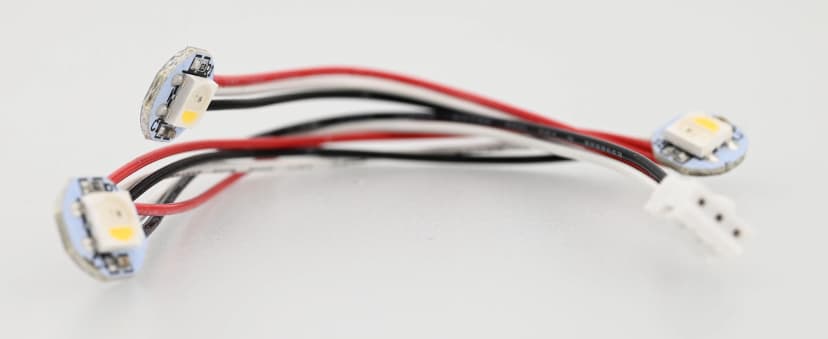

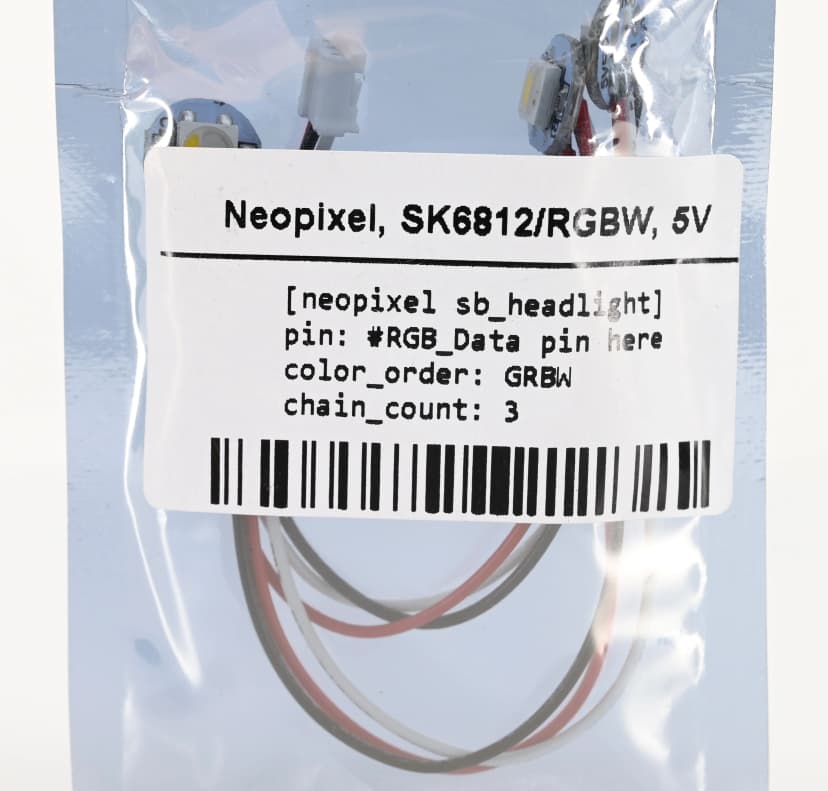

The LEDs pre-soldered and can be found in the Cable Box

1 image(s) - Click to view

The kit comes with clear filament to print an LED diffuser

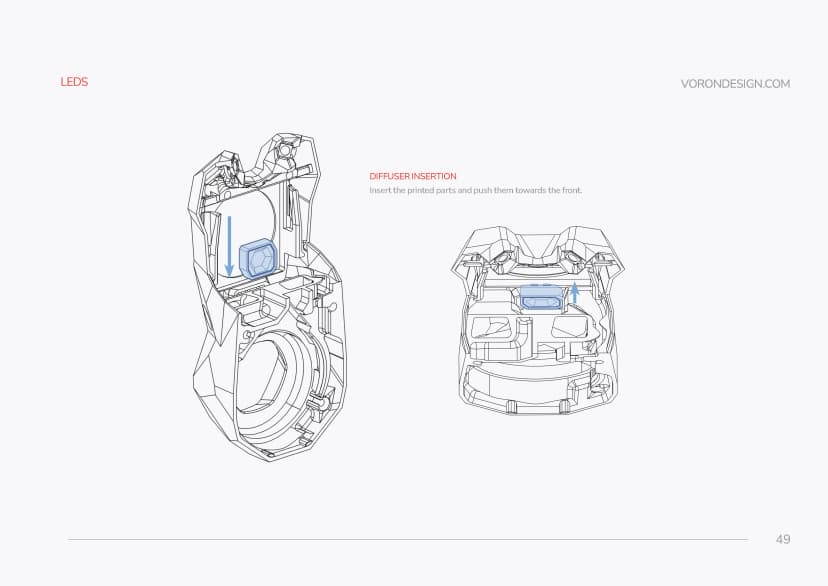

1 image(s) - Click to view

Step Images

Neopixel, SKR6812 RGBW, 5V Bag.JPG

Referenced by step 1

Neopixel, SKR6812 RGBW, 5V.JPG

Referenced by step 2

22

Supports - Fans

Step 4 of 8 in this section

Step Images

23

Hotend Fan

Step 5 of 8 in this section

Step Images

24

Part Cooling Fan

Step 6 of 8 in this section

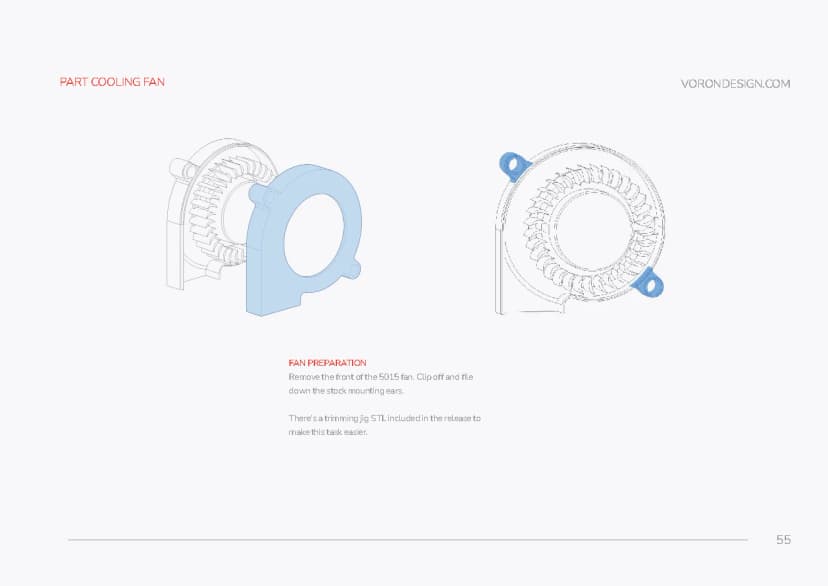

The kit includes sandpaper to smooth the plastic after snipping off the mounting ears

1 image(s) - Click to view

Skip screwing in the fan as shown on Page 56 since we will be attaching the StealthBurner fan PCB first

1 image(s) - Click to view

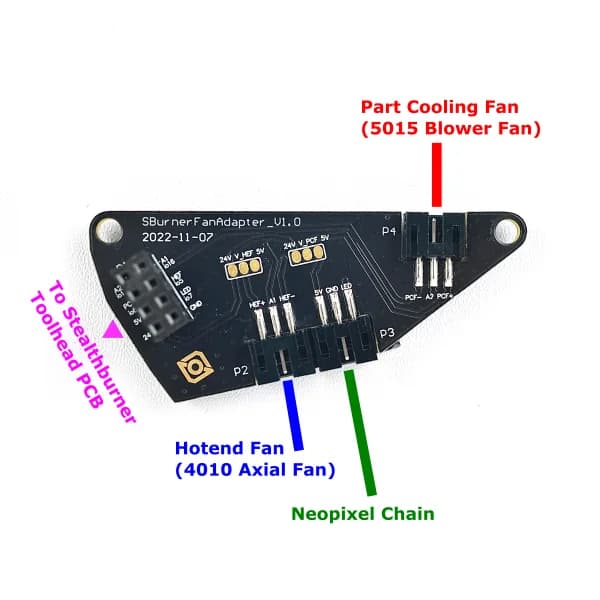

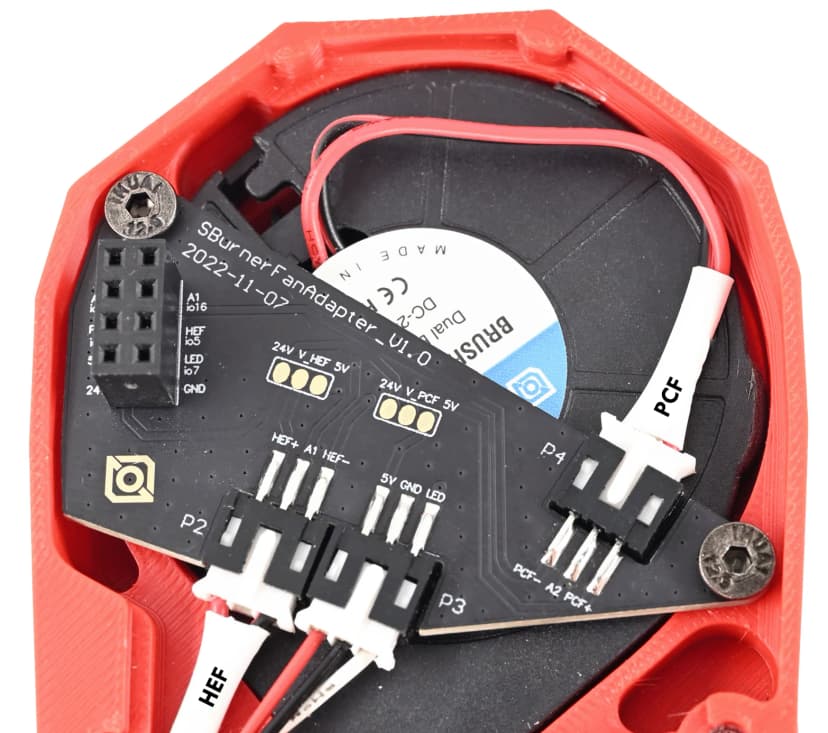

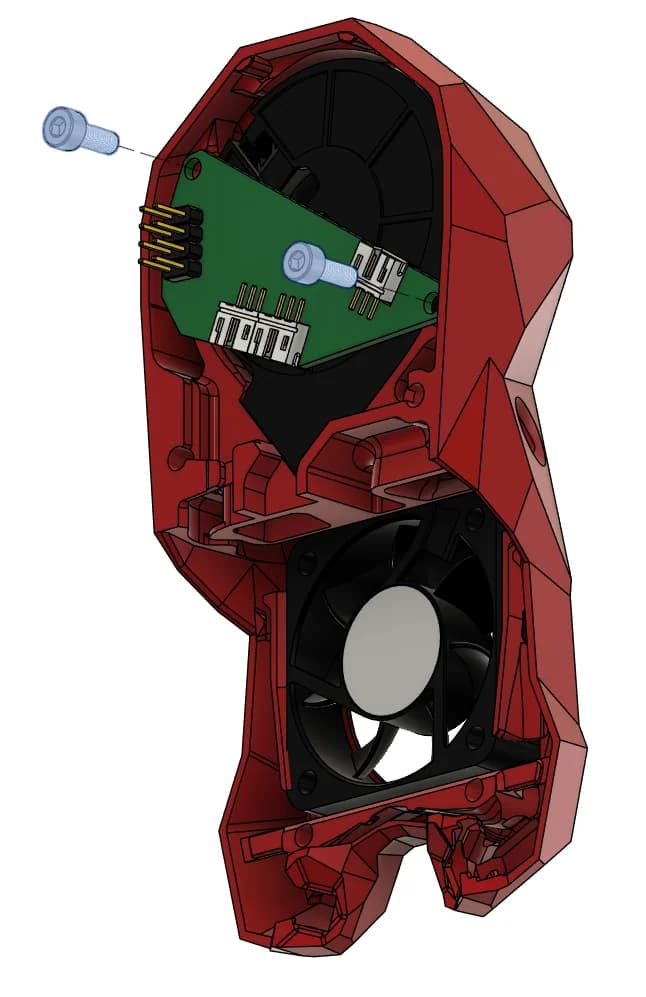

Place the StealthBurner fan PCB and secure the Fan Adapter PCB, use two M3x8 SHCS screws (FHCS, BHCS, and screw lengths up to 10mm can also be used

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3

25

Wiring the StealthBurner

Step 7 of 8 in this section

Attach the PCF wire to the PCF connector on the PCB

Attach the HEF wire to the HEF connector on the PCB

Attach the neopixel (LED) wire to the LED connector on the PCB

Step Images

35

Note from the Voron Team

Step 8 of 8 in this section

Step Images


5. X Carriage

26

-

Step 1 of 4 in this section

Step Images

27

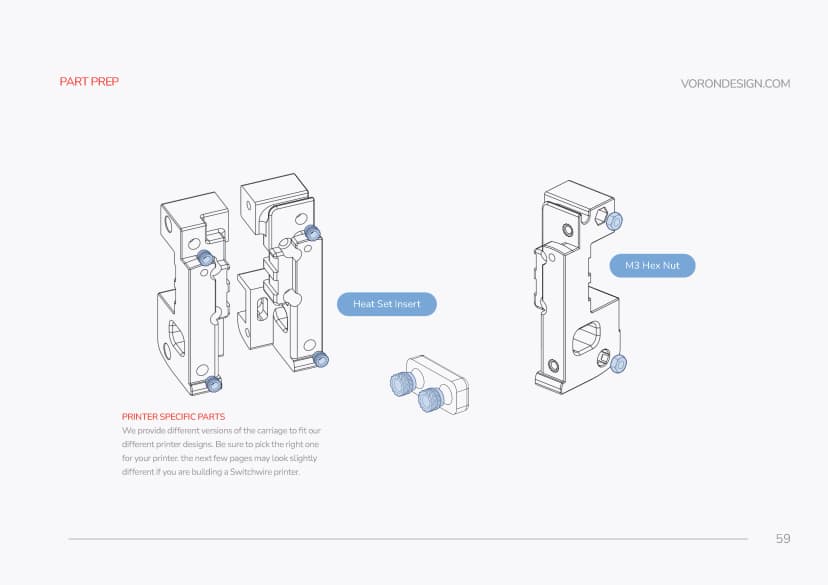

Part Prep

Step 2 of 4 in this section

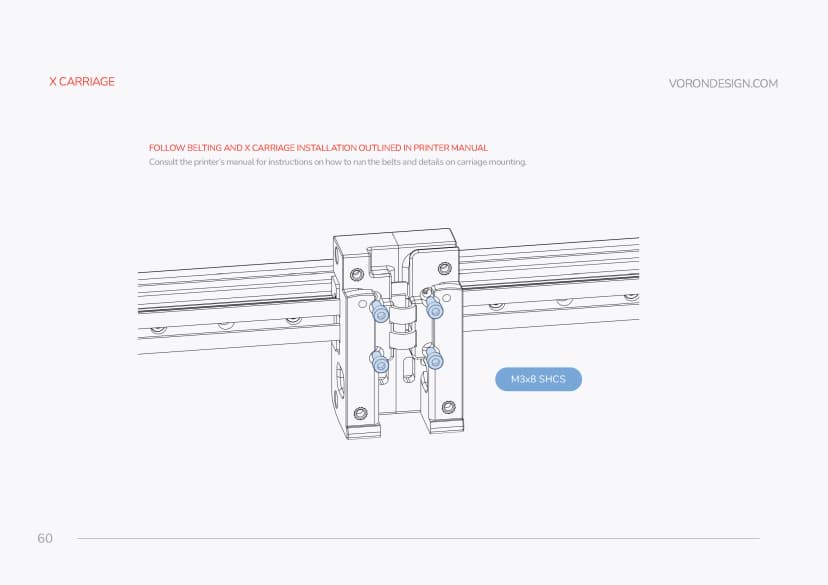

Step Images

28

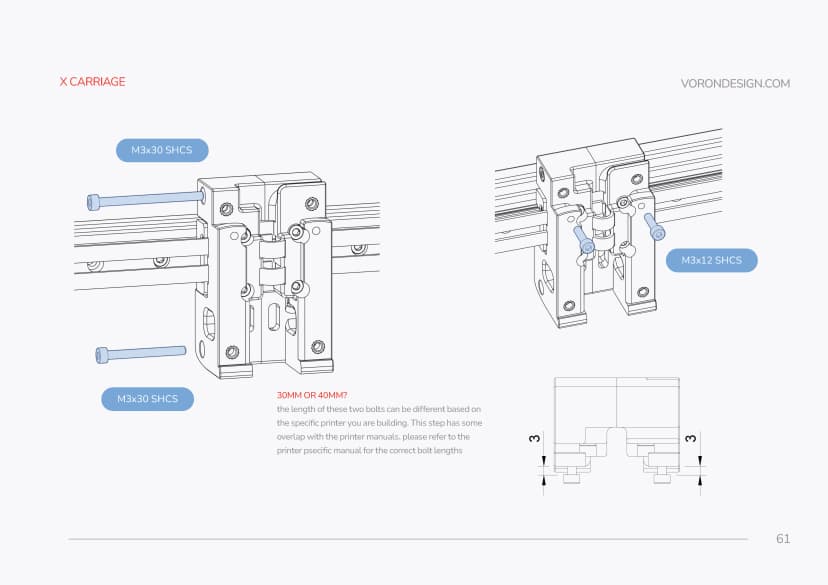

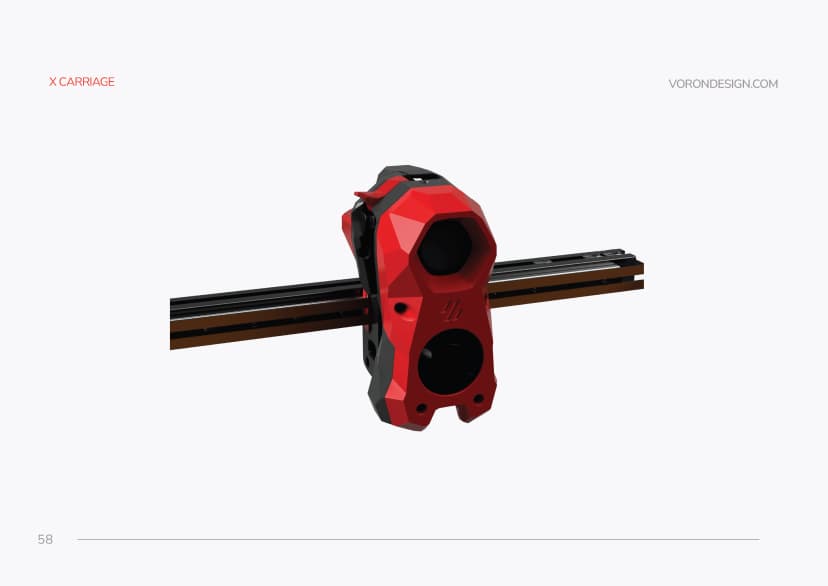

X Carriage

Step 3 of 4 in this section

Step Images

29

X Carriage - Probe

Step 4 of 4 in this section

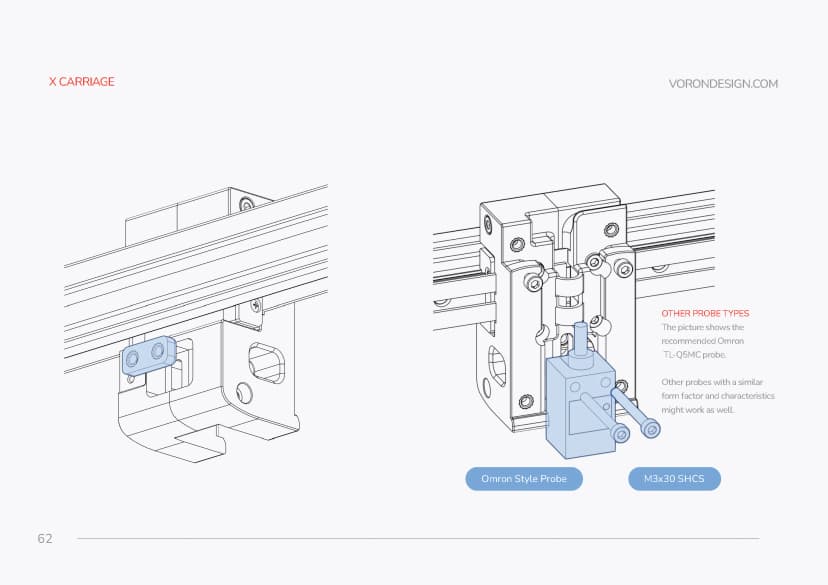

Included with this kit is as a Klicky Probe Kit as an alternative to the Inductive Probe

Step Images


6. Mounting

30

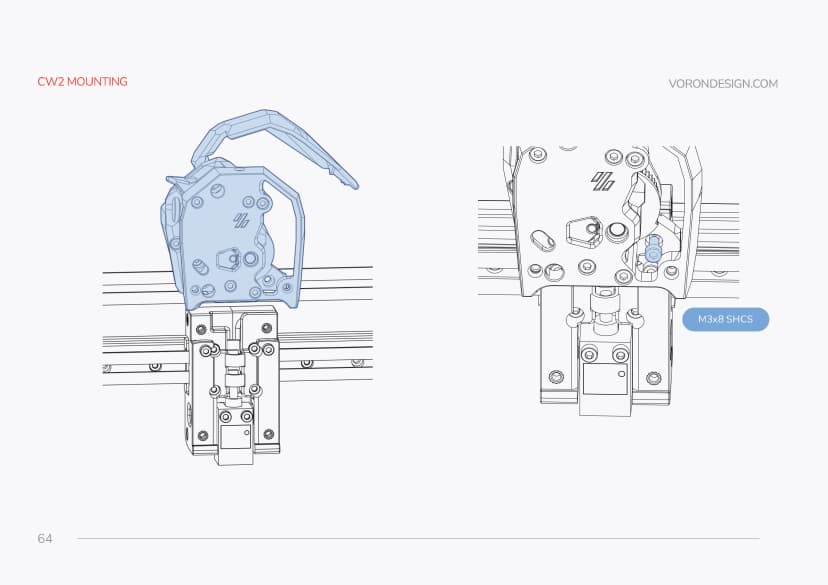

CW2 Mounting

Step 1 of 5 in this section

Step Images

31

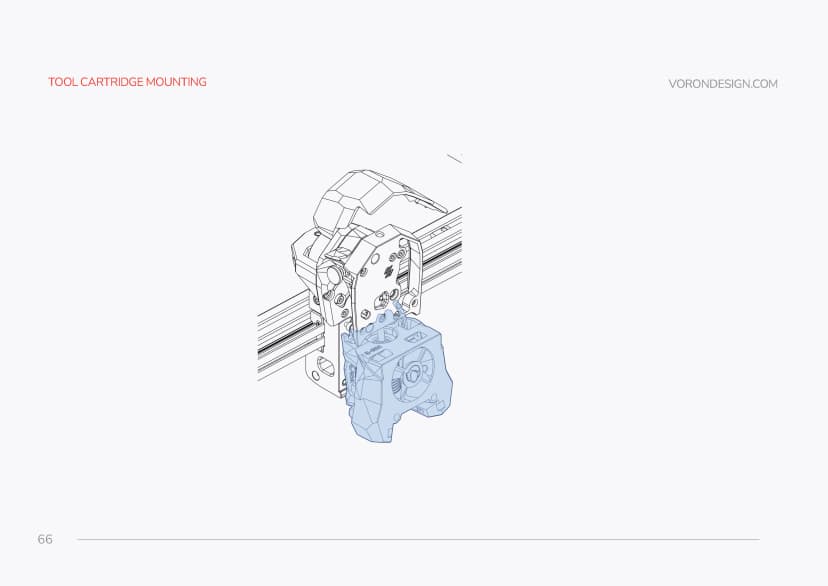

Tool Cartridge Mounting

Step 2 of 5 in this section

Step Images

32

SB Mounting

Step 3 of 5 in this section

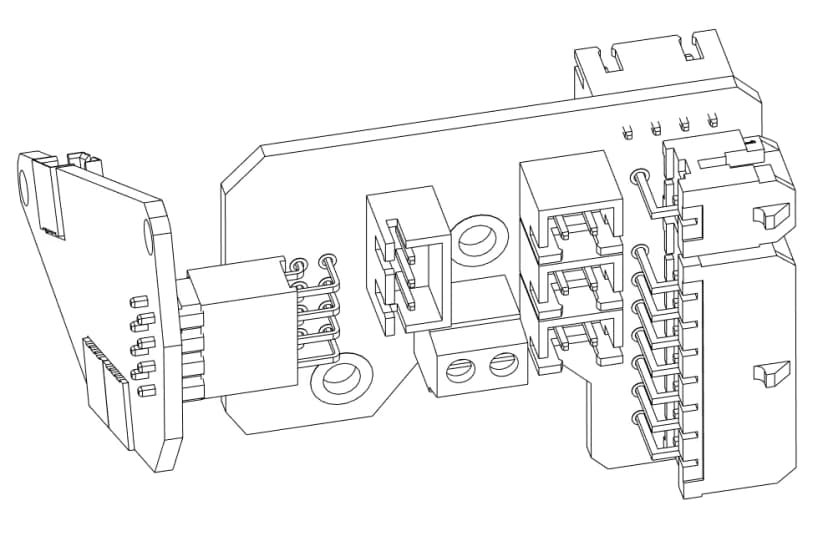

When mounting the StealthBurner on to the Clockwork2 be sure the PCBs align correctly as shown.

1 image(s) - Click to view

Step Images


Referenced by step 1

33

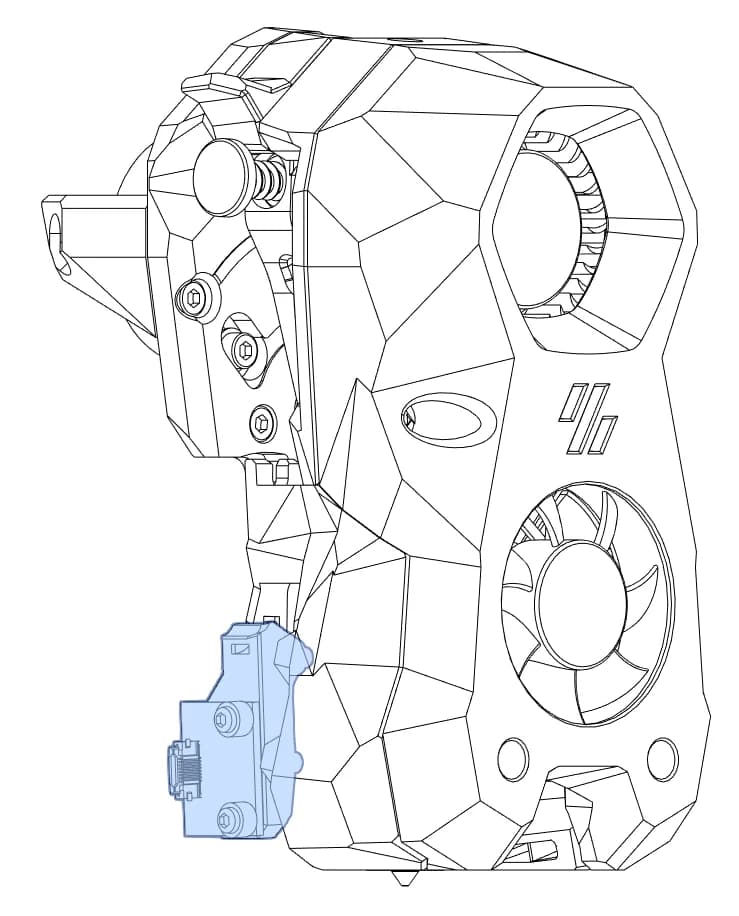

ADXL345 Mount

Step 4 of 5 in this section

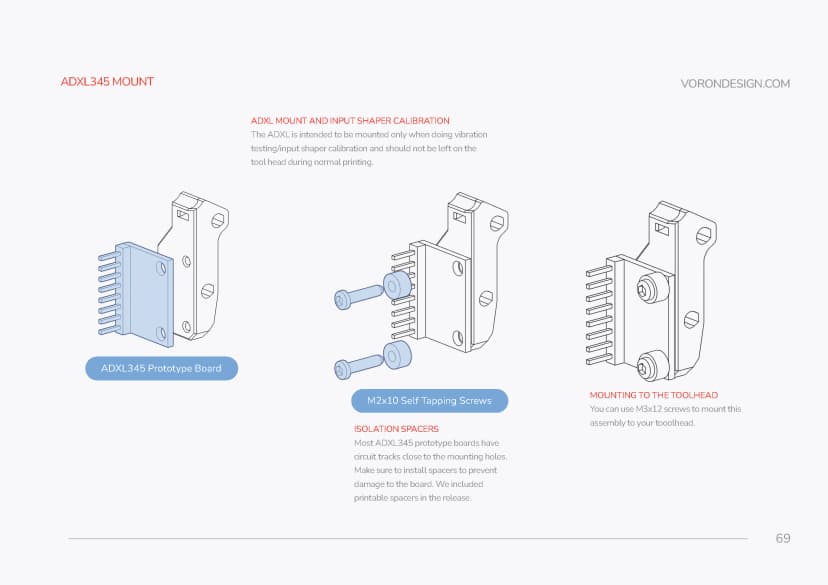

The ADXL345 PCB is included with the Input Shaper Kit which looks different than the PCB shown on page 69.

1 image(s) - Click to view

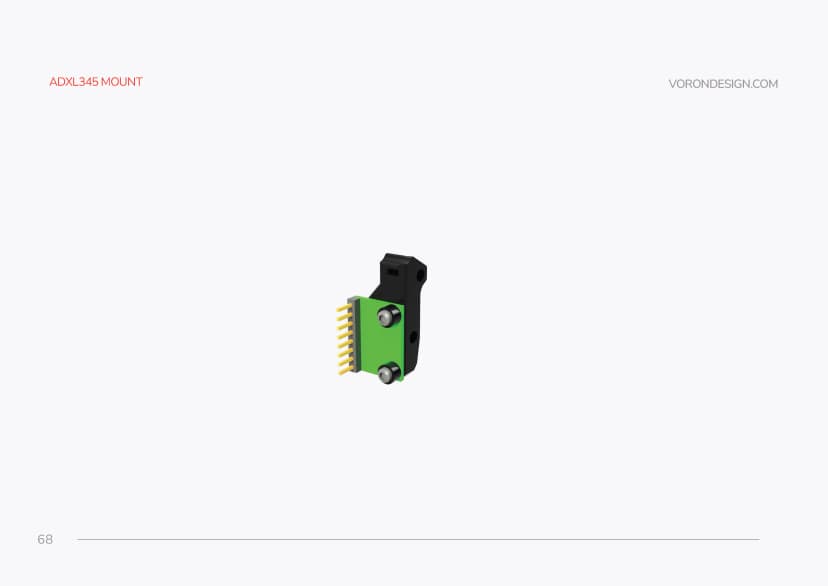

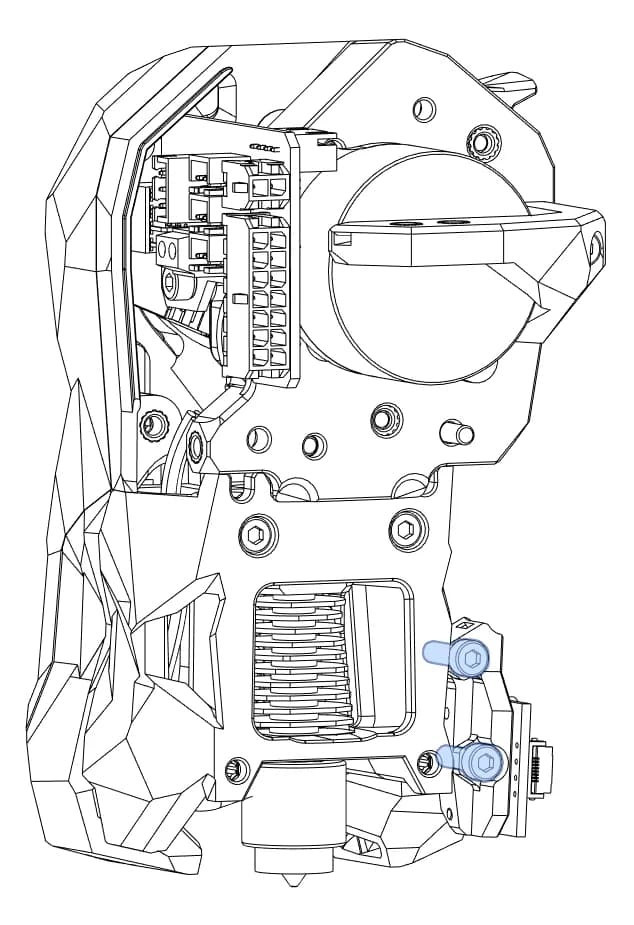

Attach the ADXL345 to the Tool Cartridge with two M3x12 SHCS

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

36

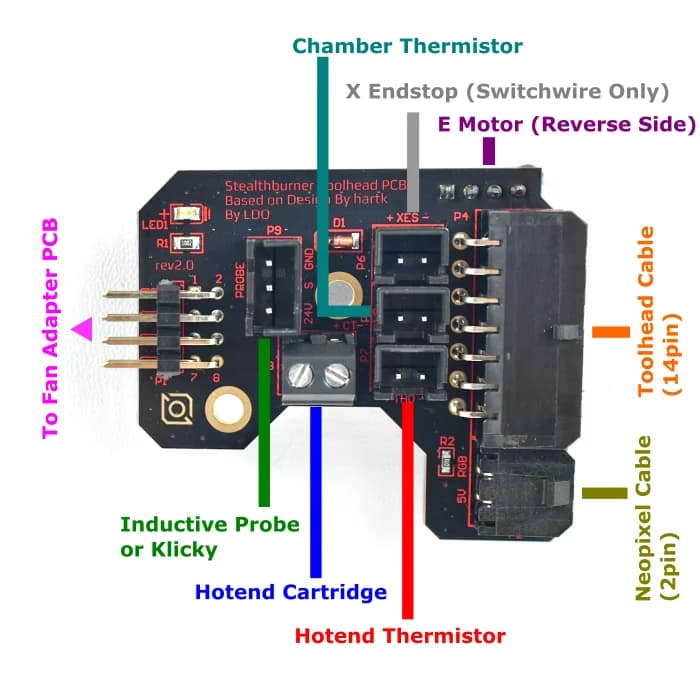

Wiring the Toolhead

Step 5 of 5 in this section

Follow the LDO Toolhead Wiring Kit on our docs website

1 image(s) - Click to view

Step Images


Referenced by step 1

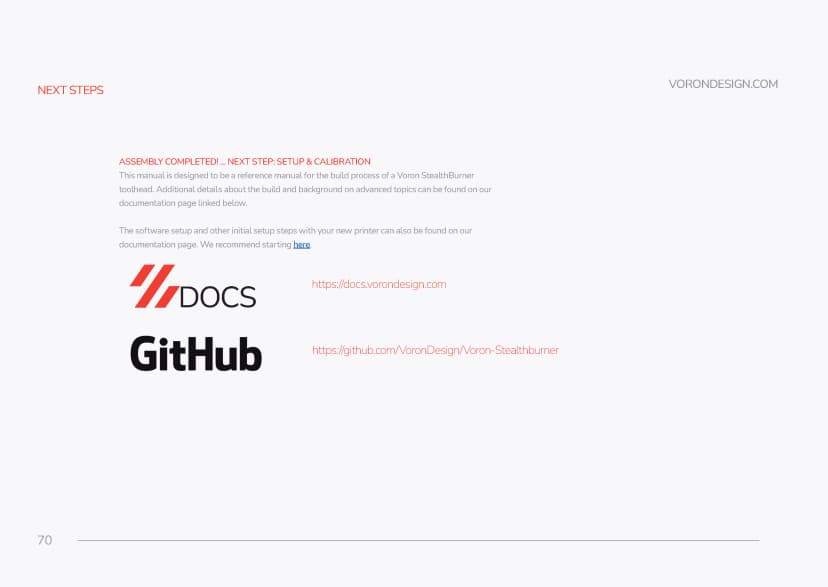

7. Conclusion

34

-

Step 1 of 1 in this section

Step Images
