Positron V3.2 - Touch Panel

This guide will contain instructions for building the touch panel for the Positron V3.2.

1. Parts to Print

Before you start to assemble the touch panel, please make sure you have these parts printed.

Printed Parts

Step 1 of 1 in this section

ABS filament is recommended for printing these parts.

Touch Enclosure x1

1 image(s) - Click to view

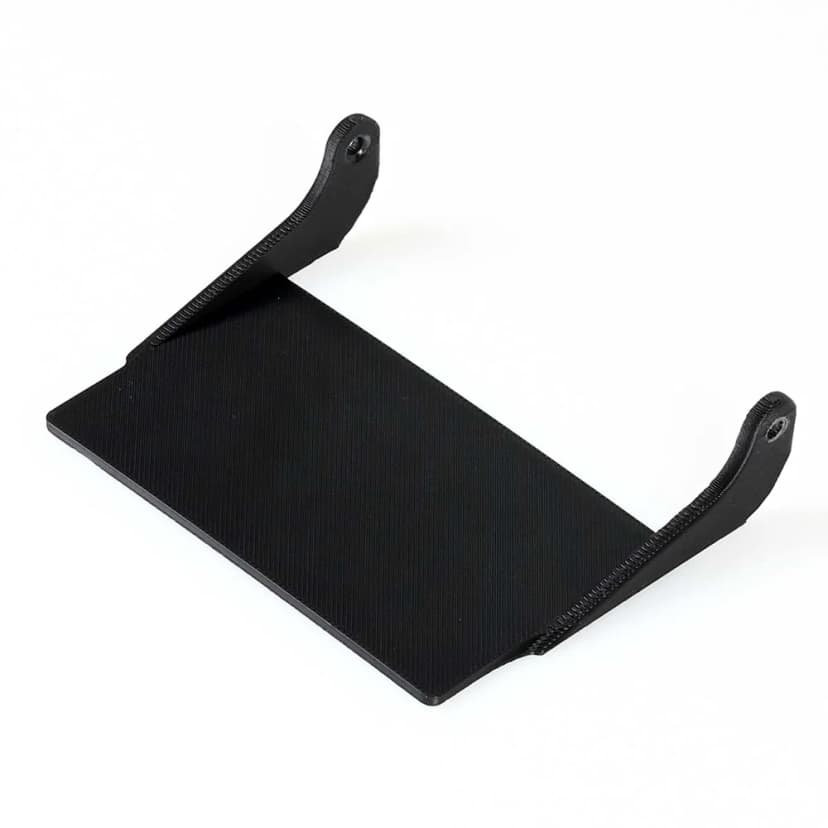

Cover Stand x1

1 image(s) - Click to view

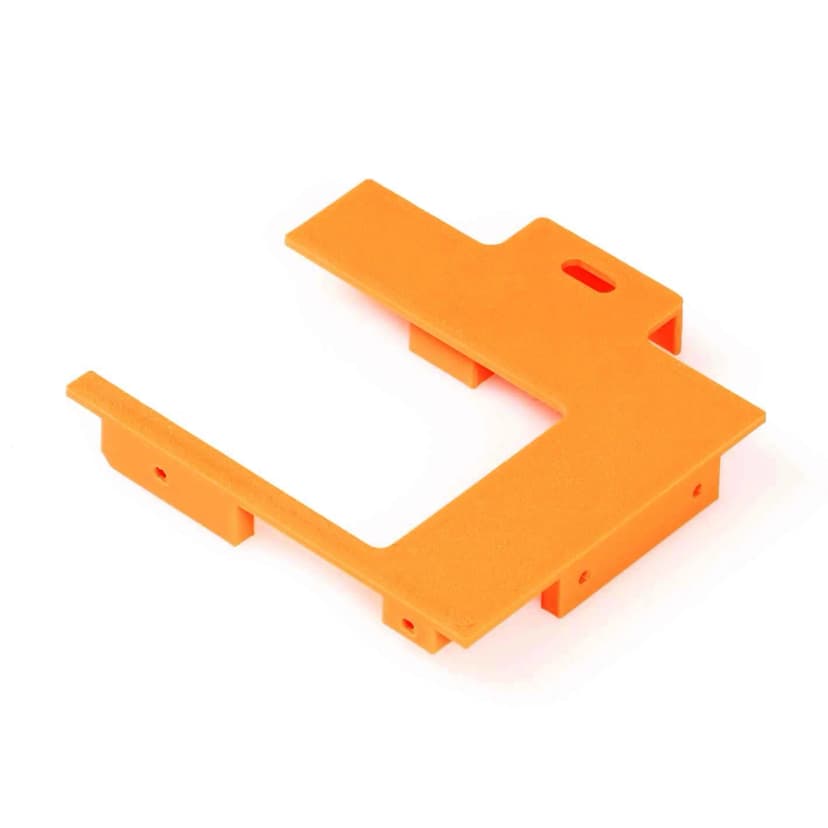

Back Plate x1

1 image(s) - Click to view

Step Images

Referenced by step 2

Referenced by step 3

Referenced by step 4

2. Installation

Assemble the Touch Panel Enclosure

Step 1 of 6 in this section

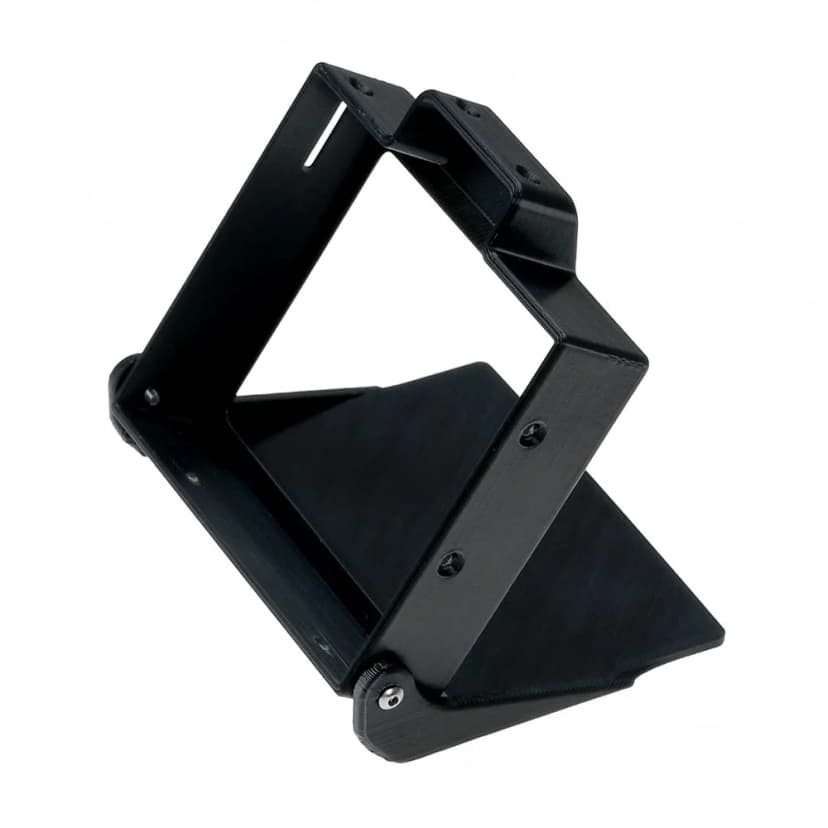

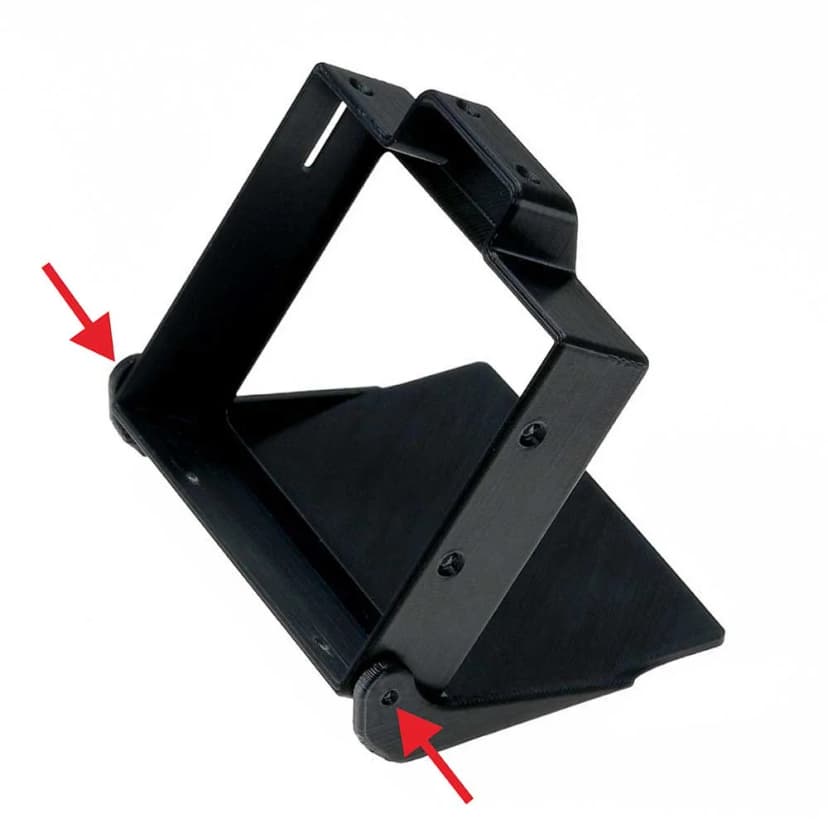

Attach the printed touch enclosure and cover stand together and then secure with M2.5x10 BHCS screws.

1 image(s) - Click to view

Step Images

Referenced by step 1

Remove SD Card

Step 2 of 6 in this section

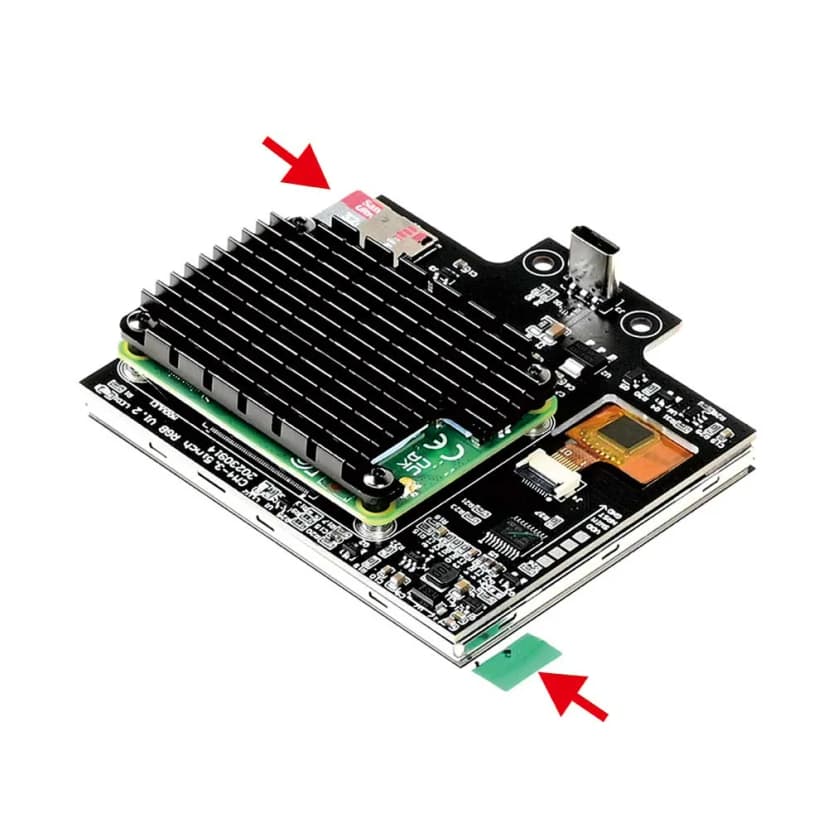

Remove the SD card before continuing. Otherwise it may be damaged in the following steps. We will put the SD card back in at the end of this guide.

1 image(s) - Click to view

Remove the film on the screen.

Step Images

Referenced by step 1

Install the Wifi Antenna

Step 3 of 6 in this section

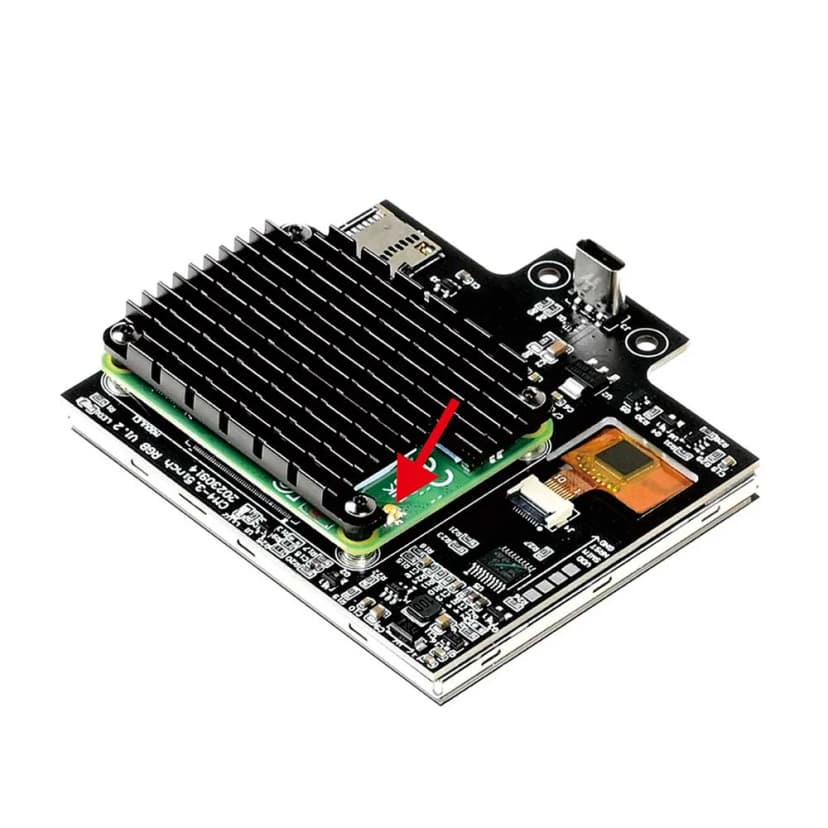

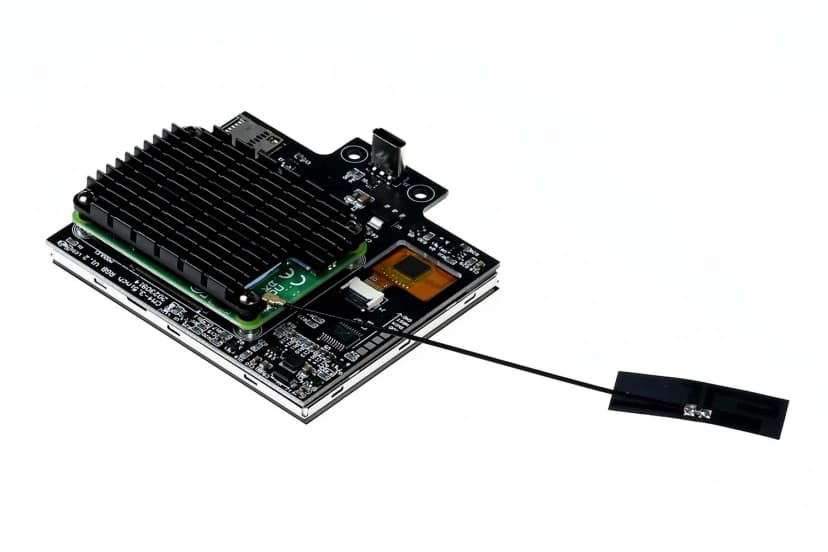

Press the female pin of the wifi antenna into the yellow male pin on the touch control.

1 image(s) - Click to view

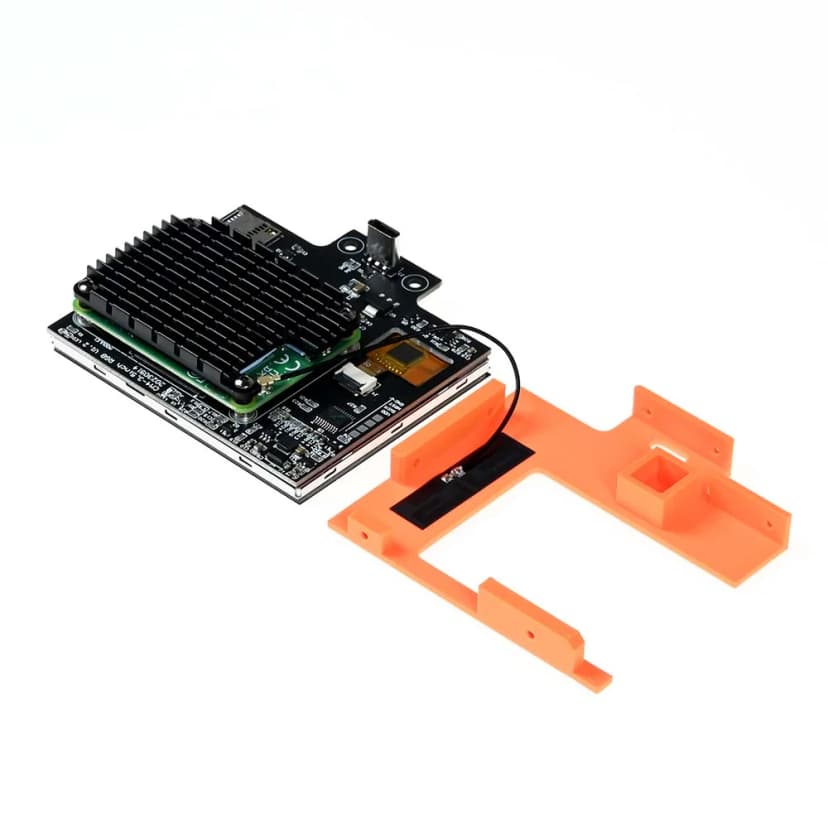

Remove the adhesive on the surface of the wifi antenna and stick it to the printed back plate.

1 image(s) - Click to view

Step Images

Referenced by step 1

Referenced by step 2

Install the Cover

Step 4 of 6 in this section

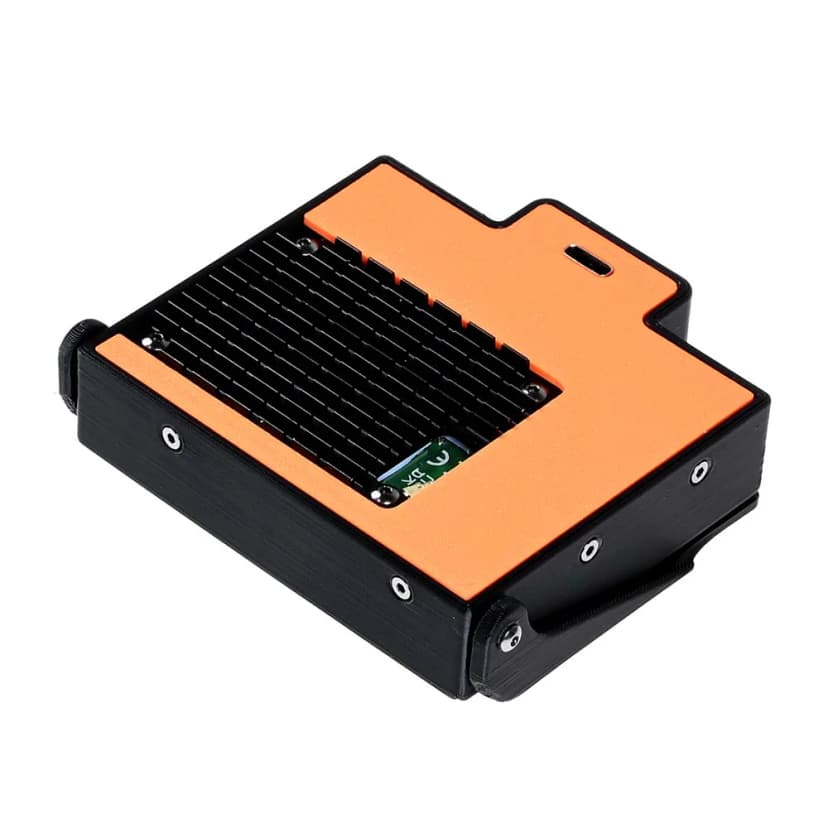

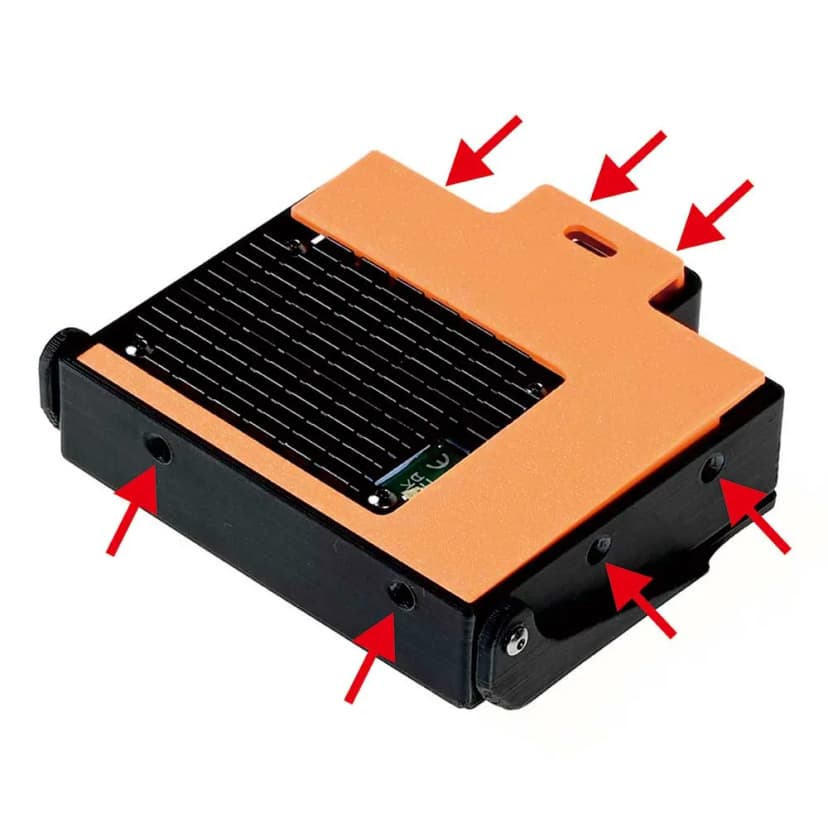

Put the touch panel into the touch enclosure and secure the cover with M2.5x6 FHCS screws.

1 image(s) - Click to view

Step Images

Referenced by step 1

Put SD Card Back

Step 5 of 6 in this section

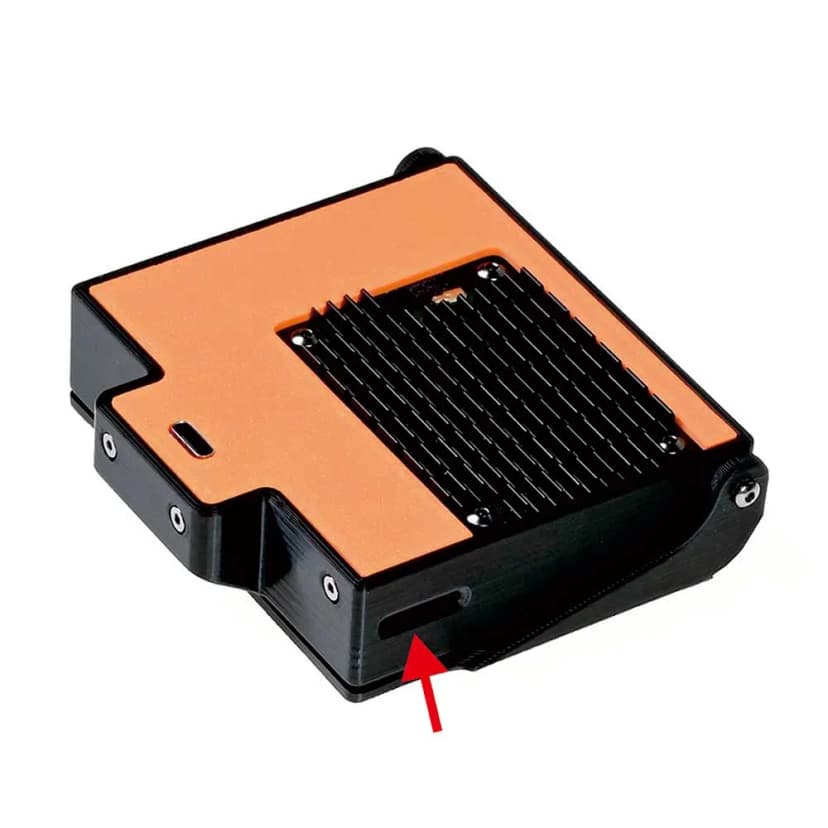

Now you can put the SD card back into the touch panel.

1 image(s) - Click to view

Step Images

Referenced by step 1

Assembly Complete

Step 6 of 6 in this section

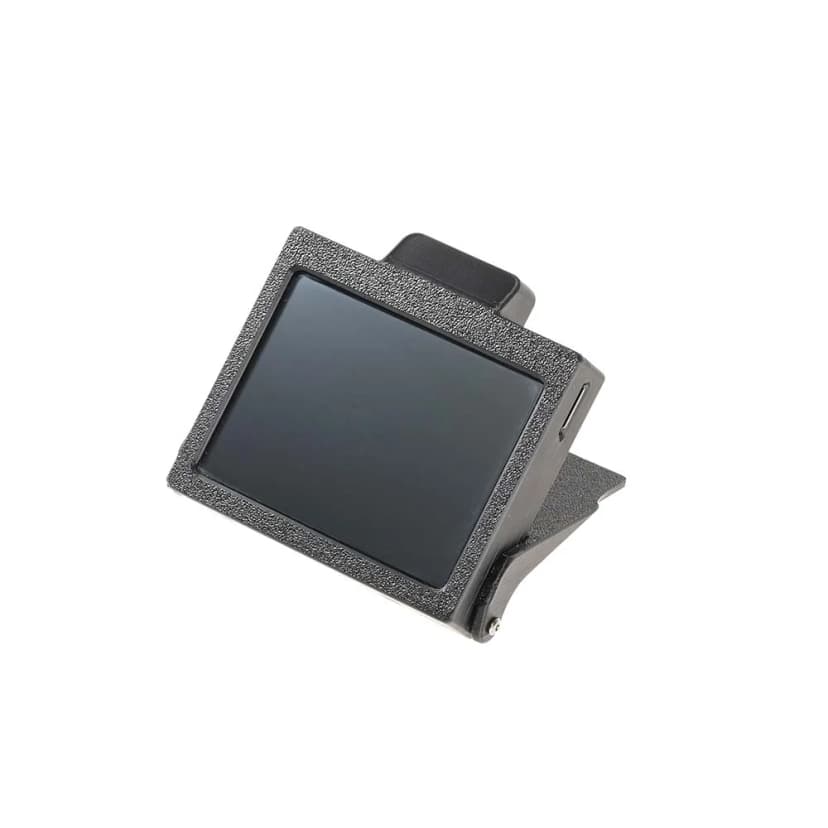

Now you have completed the assembly of the touch panel.
