Positron V3.2 - Spool Holder
This guide will contain instructions for building the spool holder for the Positron V3.2.
1. Parts to Print
Before you start to assemble, please make sure you have these parts printed.
3
Printed Parts
Step 1 of 1 in this section
ABS filament is recommended for printing these parts.

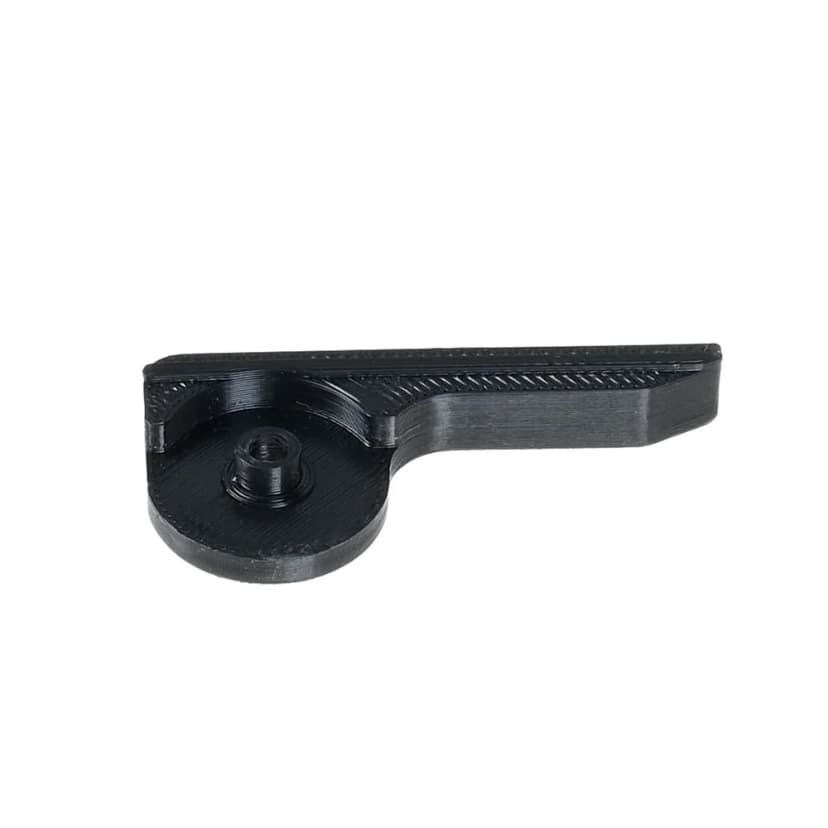

Spool Holder Part A x2
1 image(s) - Click to view

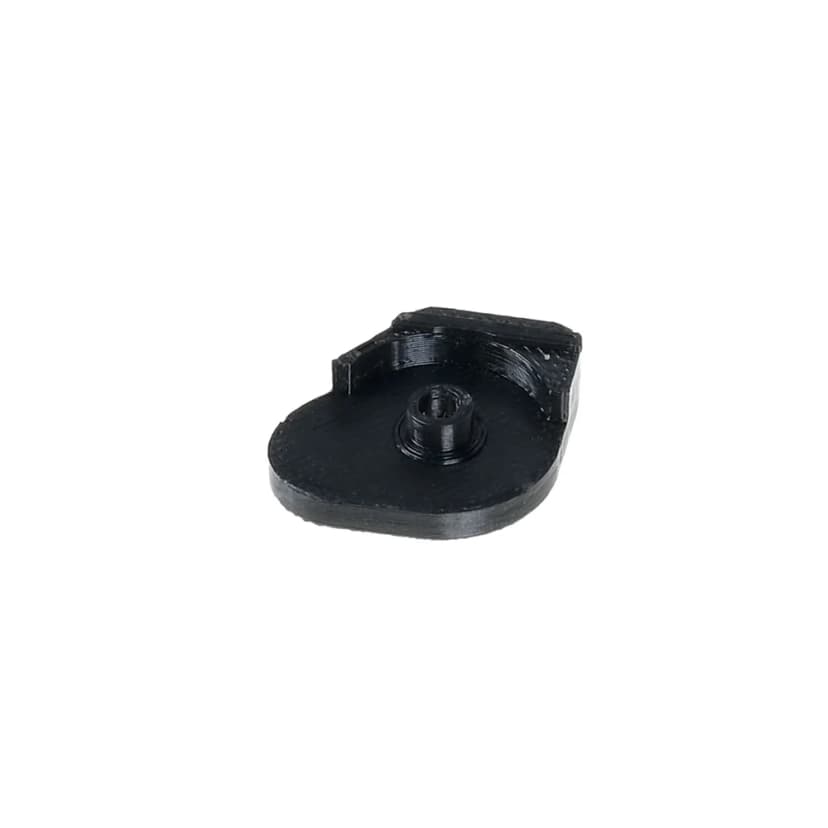

Spool Holder Part B x2
1 image(s) - Click to view

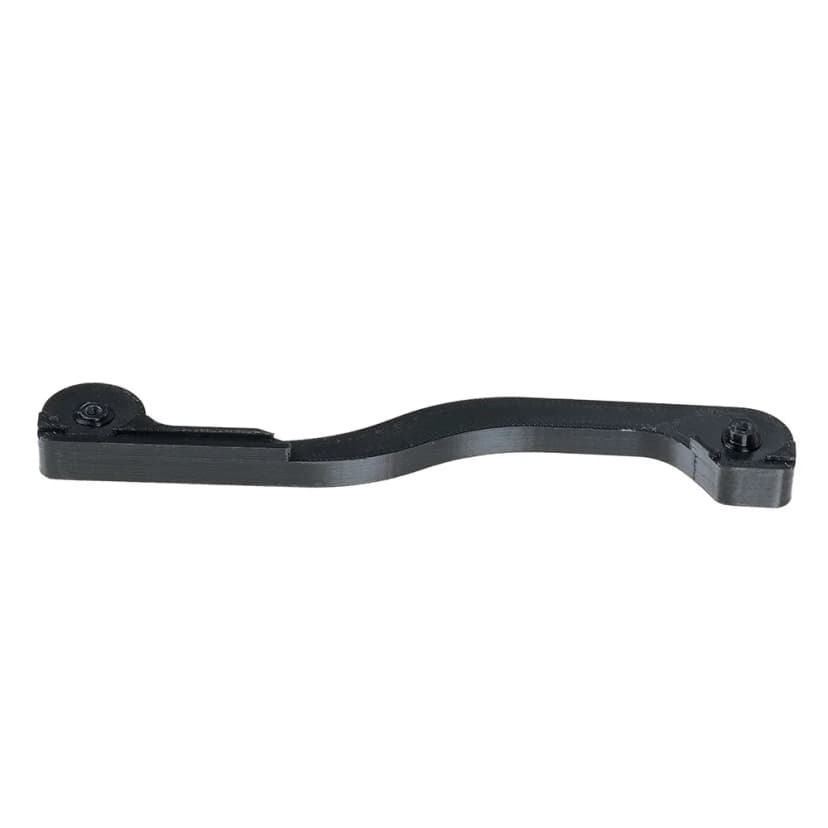

Spool Holder Part C x2
1 image(s) - Click to view
Step Images
Referenced by step 2
Referenced by step 3
Referenced by step 4
2. Installation
2
Assemble the Spool Holder
Step 1 of 2 in this section

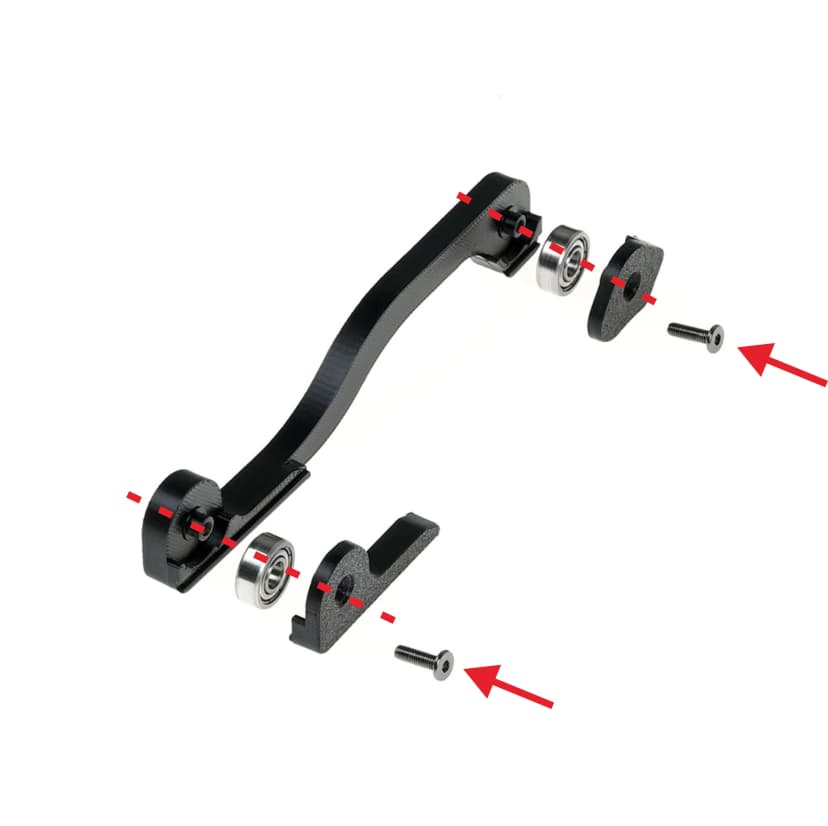

Position 605ZZ bearings between the spool holder part A, B and C as shown in the picture. Secure with M3x10 wafer head screws.
1 image(s) - Click to view

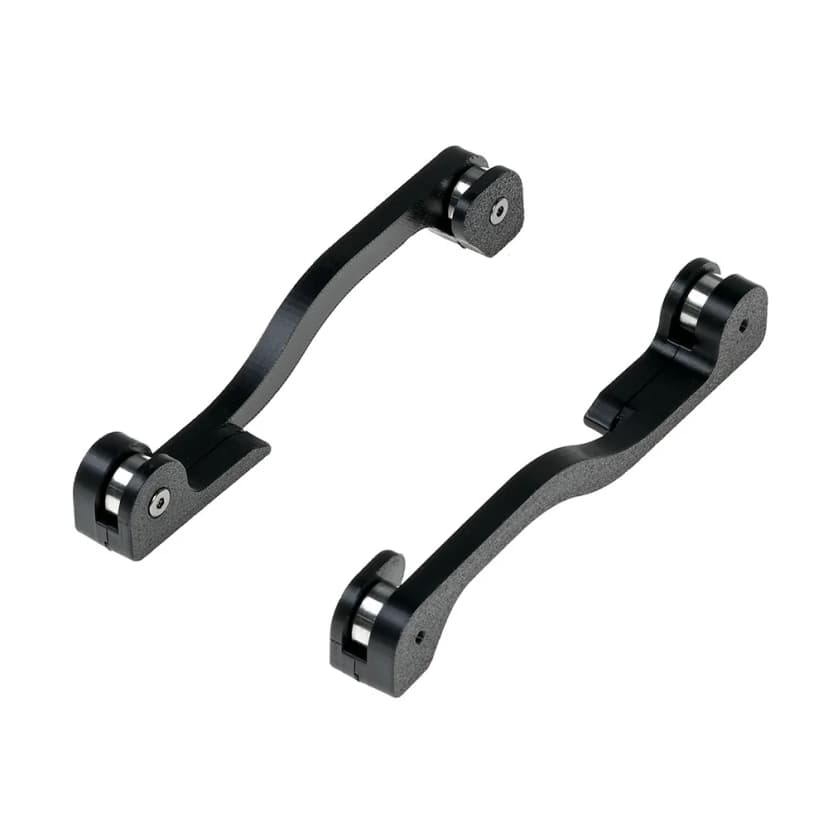

Prepare two sets.
1 image(s) - Click to view
Step Images
Referenced by step 1
Referenced by step 2
4
Assembly Complete
Step 2 of 2 in this section
You now have completed the assembly of the spool hoder.
Step Images
