Positron V3.2 - How to Fold

This guide will contain instructions for folding the Positron V3.2.

1. Instructions

Remove the Glass Bed

Step 1 of 10 in this section

Remove the glass bed by pulling it outwards.

1 image(s) - Click to view

Step Images

Referenced by step 1

Remove the Bed V Holder

Step 2 of 10 in this section

Unscrew the thumb screw.

1 image(s) - Click to view

Remove the bed V holder.

1 image(s) - Click to view

Step Images

Referenced by step 1

Referenced by step 2

Position the Tensioning Lever

Step 3 of 10 in this section

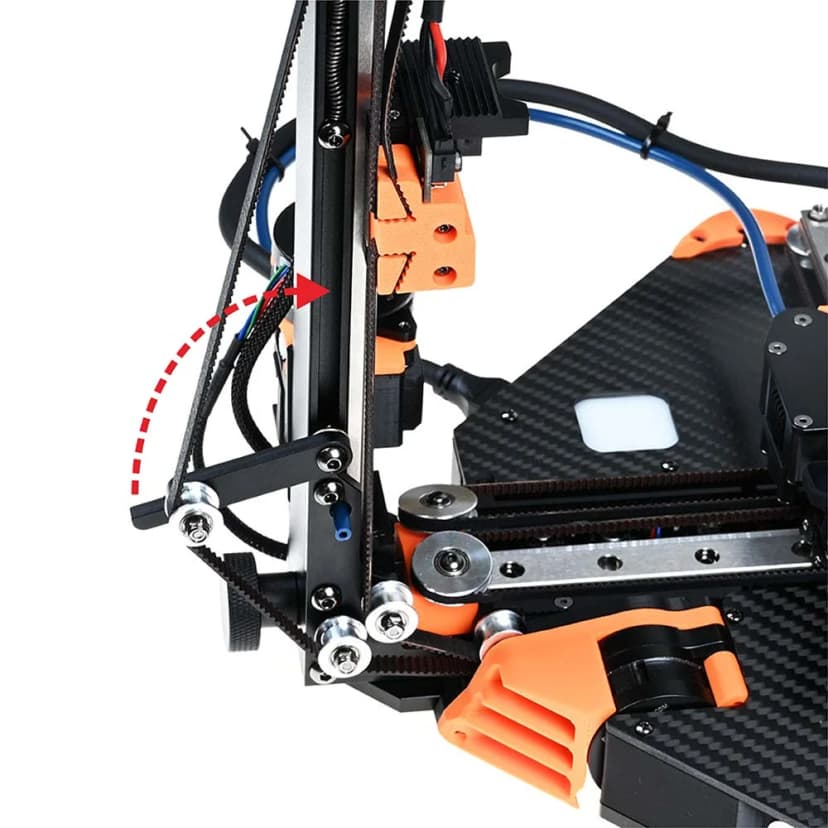

Push the tension lever upward and align it with the linear rail.

Step Images

Remove the Thumb Screw

Step 4 of 10 in this section

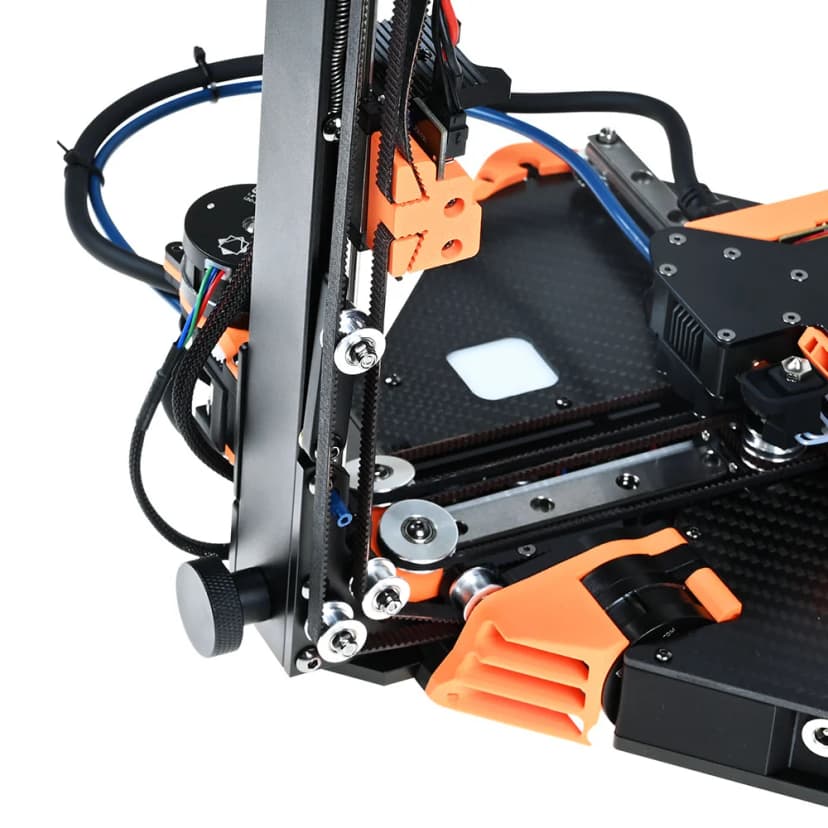

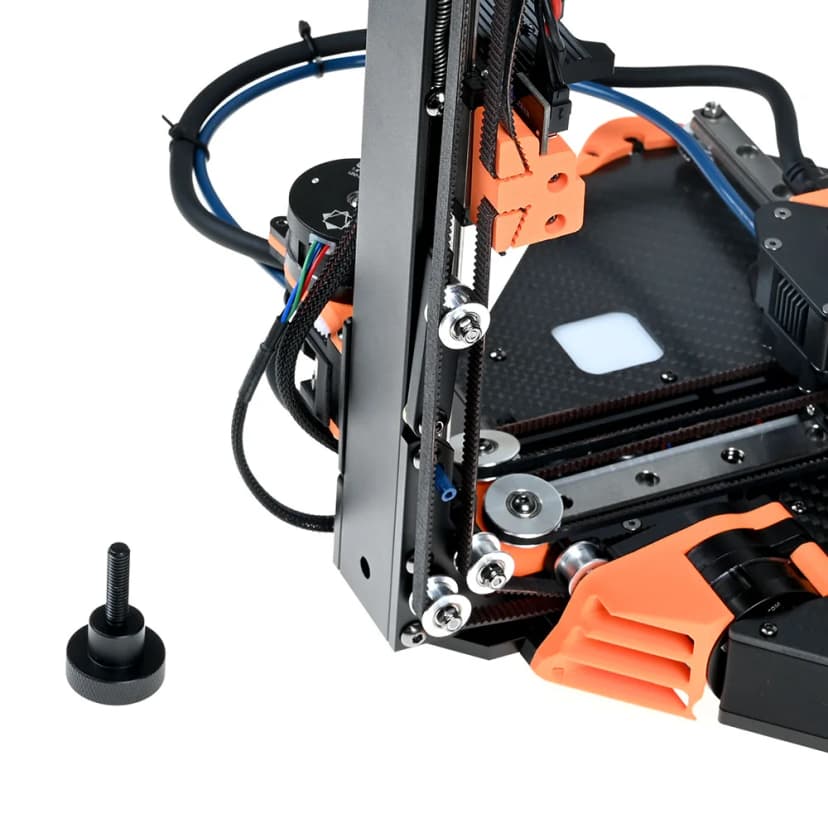

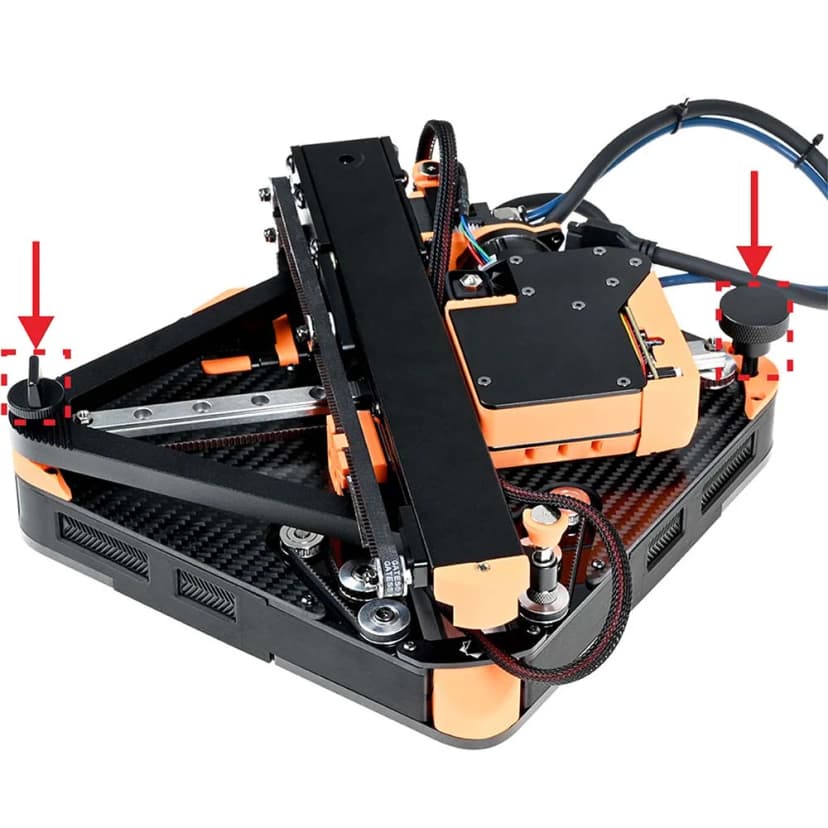

Remove the thumb screw at the bottom of the Z column.

1 image(s) - Click to view

Step Images

Referenced by step 1

Move the Toolhead and Bed Carriage Block

Step 5 of 10 in this section

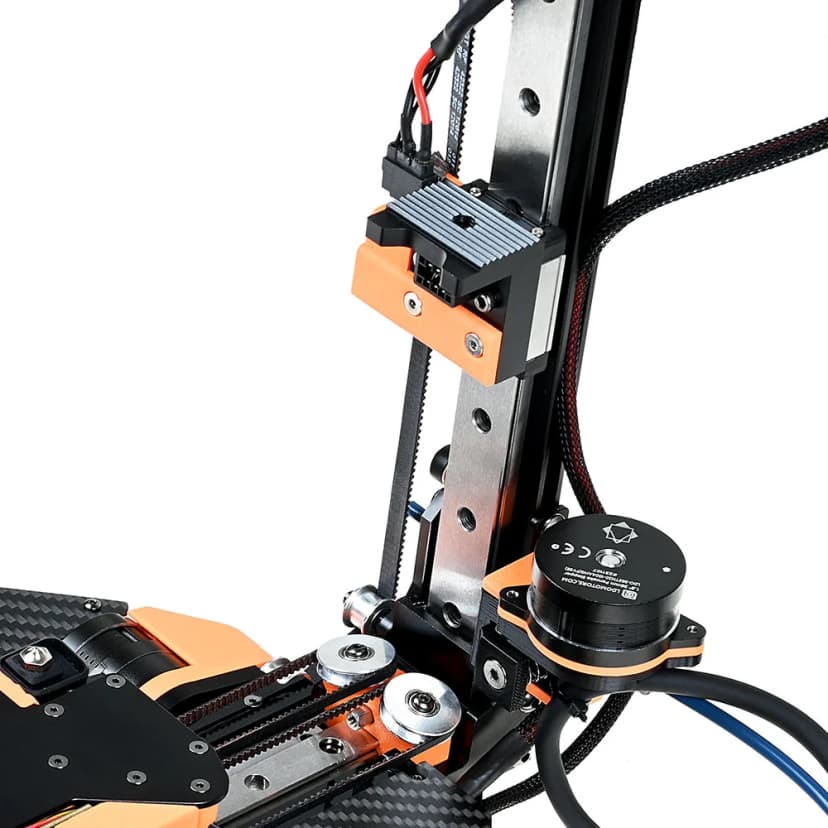

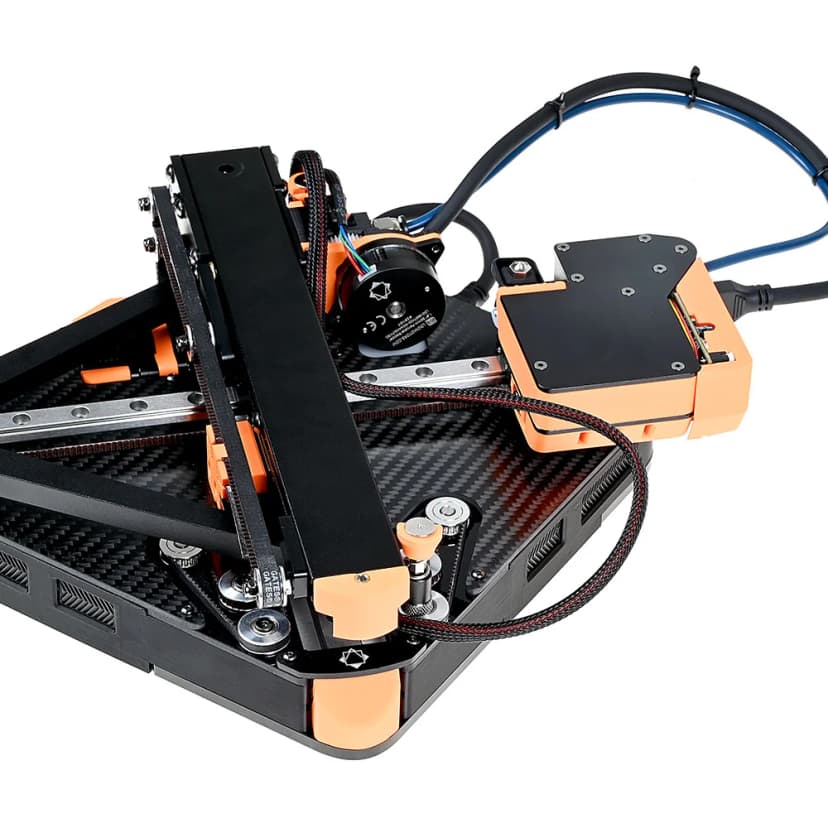

Move the toolhead to the right end of the linear rail and a little upward.

1 image(s) - Click to view

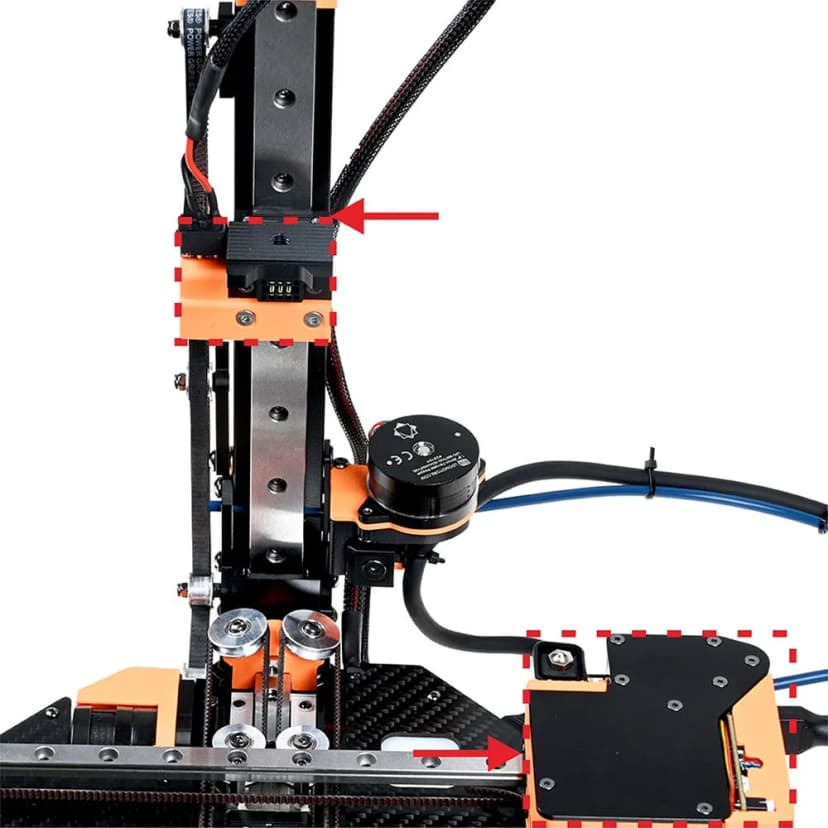

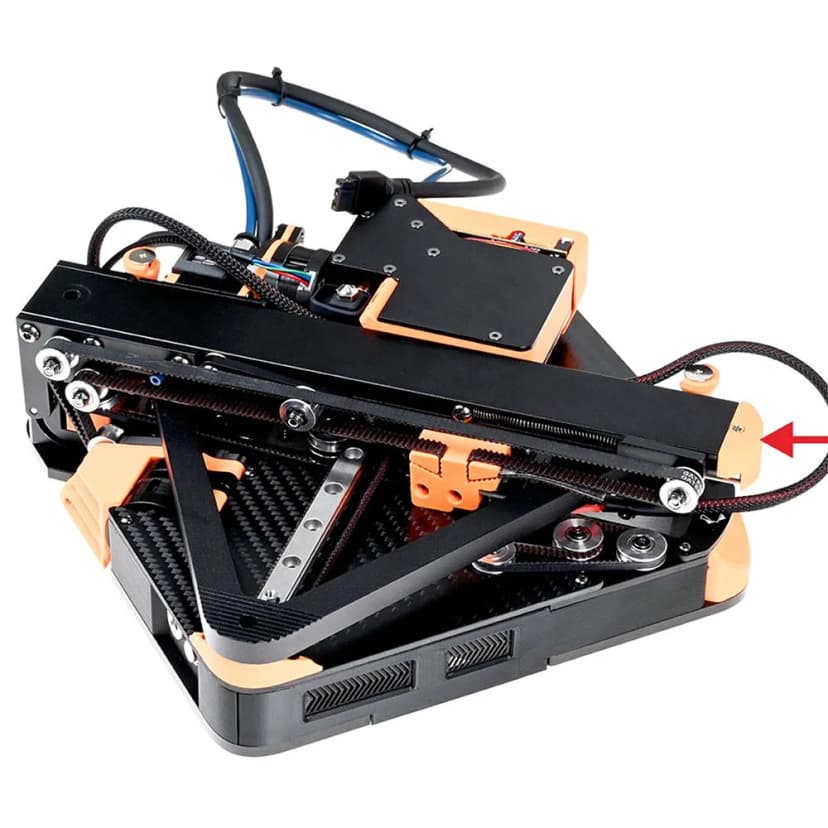

Move the bed carriage block to the postion close to the third screw as shown in the picture.

1 image(s) - Click to view

Step Images

Referenced by step 1, 2

Position Bed V Holder

Step 6 of 10 in this section

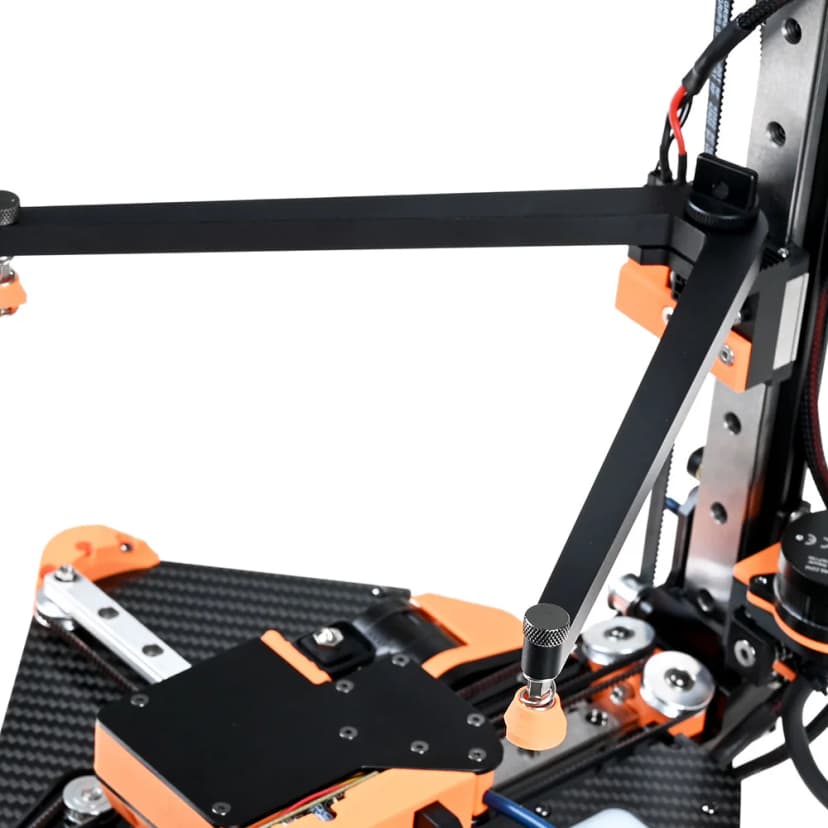

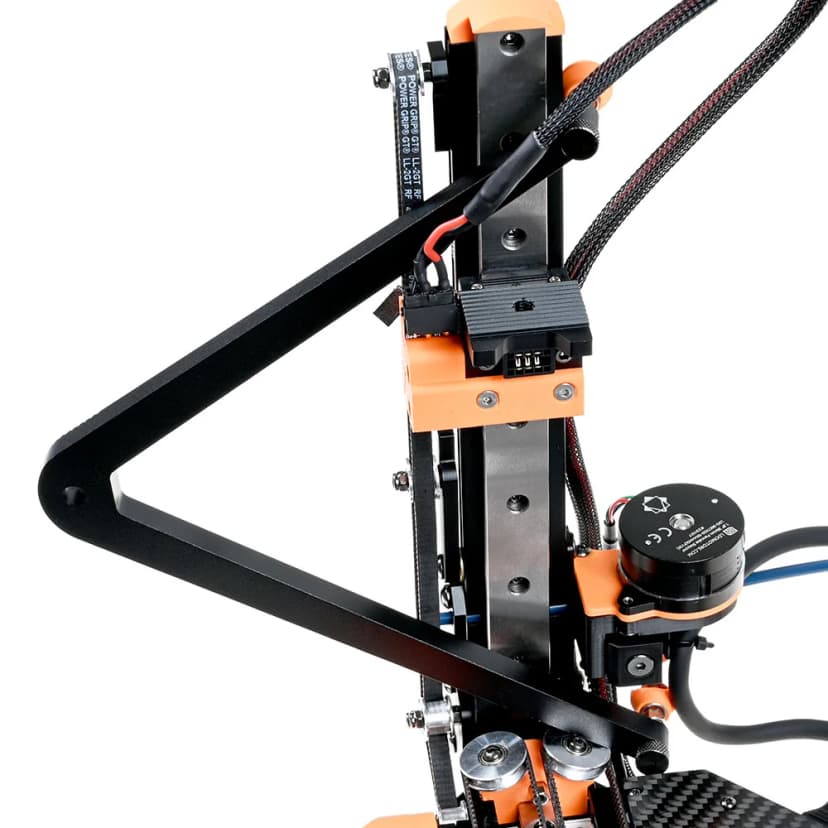

Position the bed V holder as shown in the picture.

1 image(s) - Click to view

Step Images

Referenced by step 1

Fold the Z Column

Step 7 of 10 in this section

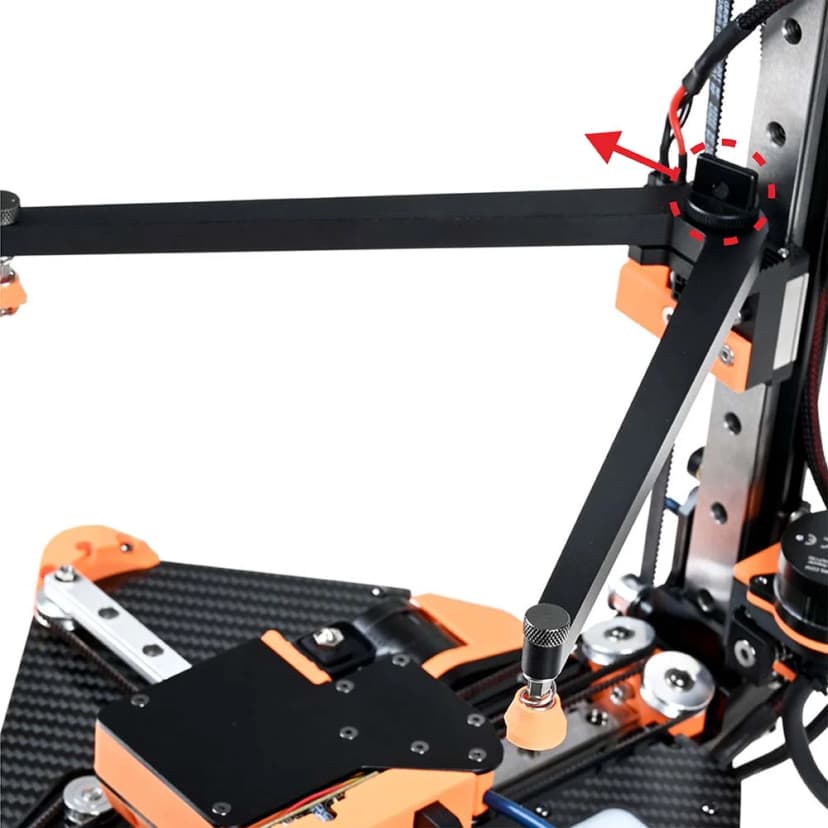

Hold the bed V holder with one hand and fold the Z column with the other at the same time.

Step Images

Move Toolhead to the Z Column

Step 8 of 10 in this section

Move the toolhead back close to the Z column.

Step Images

Position the Screws

Step 9 of 10 in this section

Just put the thumb screws here and don't need to screw them.

Step Images

A Tip

Step 10 of 10 in this section

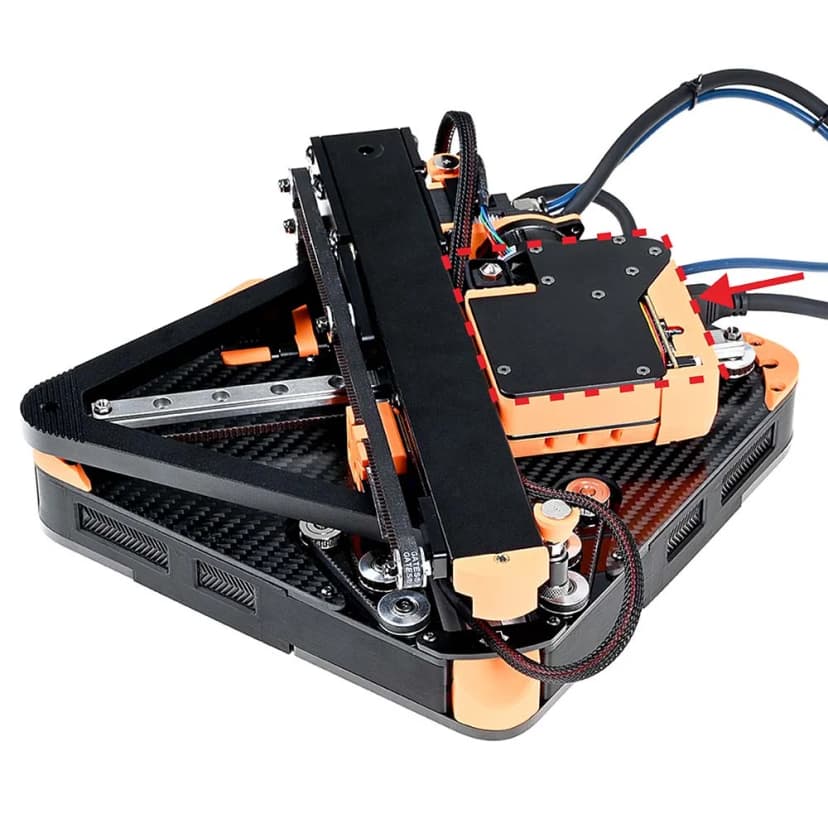

Push ahead a little before you unfold the printer.
