Positron V3.2 - Extruder

This guide will contain instructions for building the extruder for the Positron V3.2.

1. Parts to Print

Before you start to assemble, please make sure you have these parts printed.

2

Printed Parts

Step 1 of 1 in this section

ABS filament is recommended for printing these parts.

Extruder Main Body x1

1 image(s) - Click to view

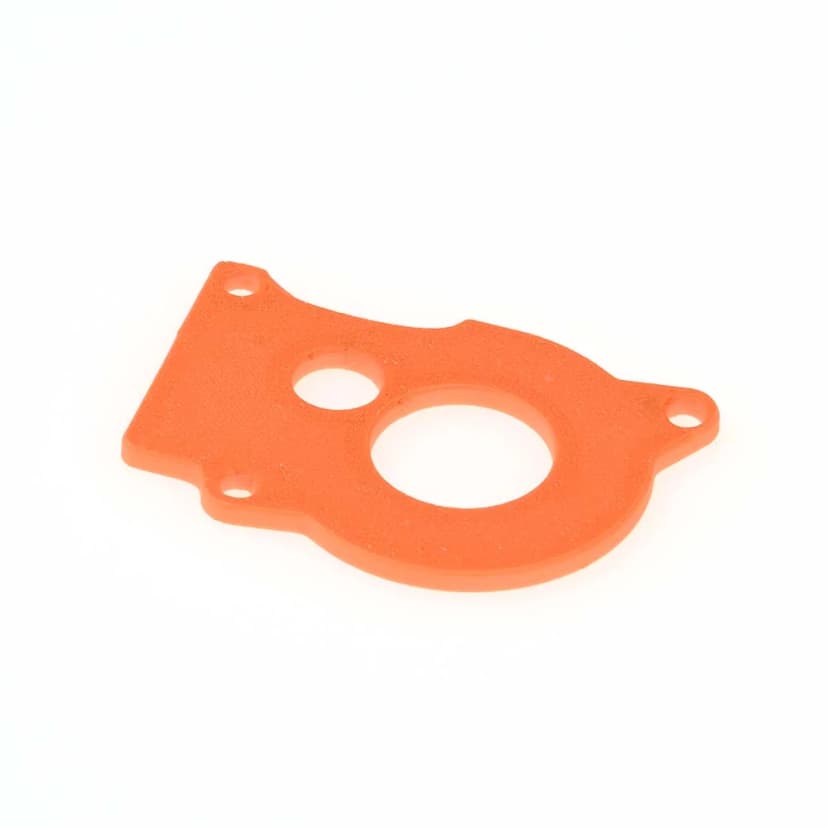

Extruder Motor Plate x1

1 image(s) - Click to view

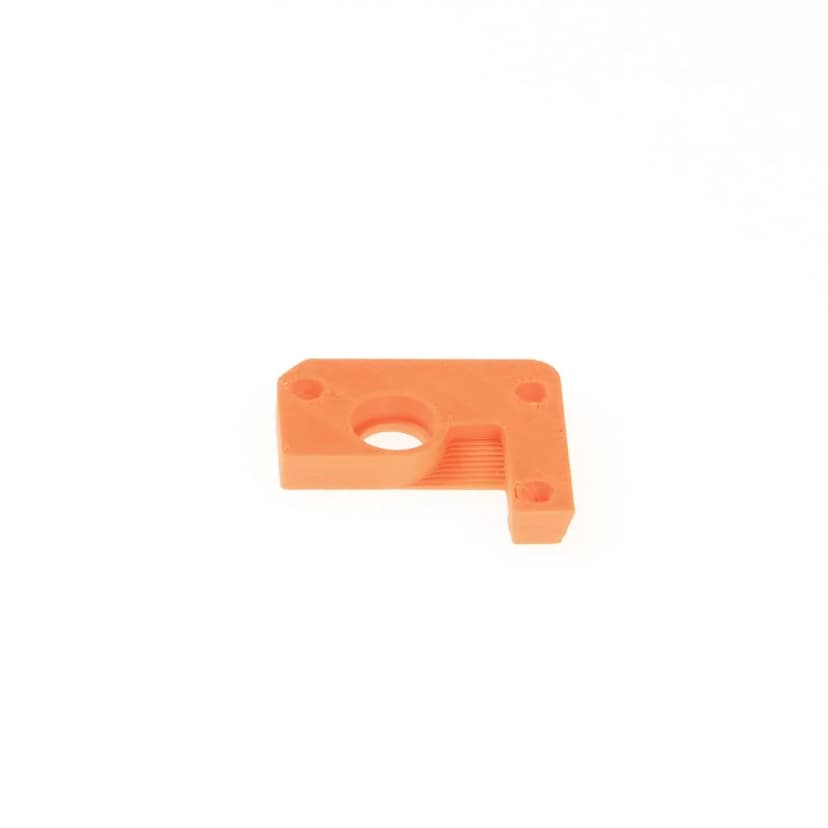

Extruder Bottom Plate x1

1 image(s) - Click to view

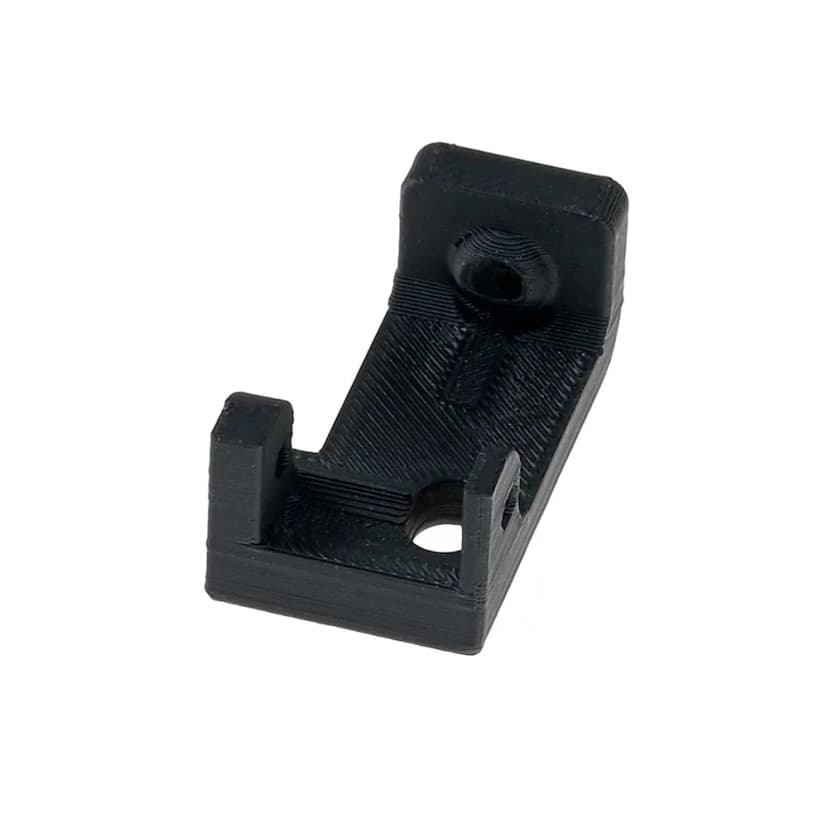

Extruder Guidler x1

1 image(s) - Click to view

Step Images


Referenced by step 2


Referenced by step 3


Referenced by step 4


Referenced by step 5

2. Installation

1

Install the Shaft Assembly

Step 1 of 9 in this section

Put the shaft assembly through the hole from the bottom of the printed extruder main body.

1 image(s) - Click to view

Add an MR85 bearing on top of the shaft assembly.

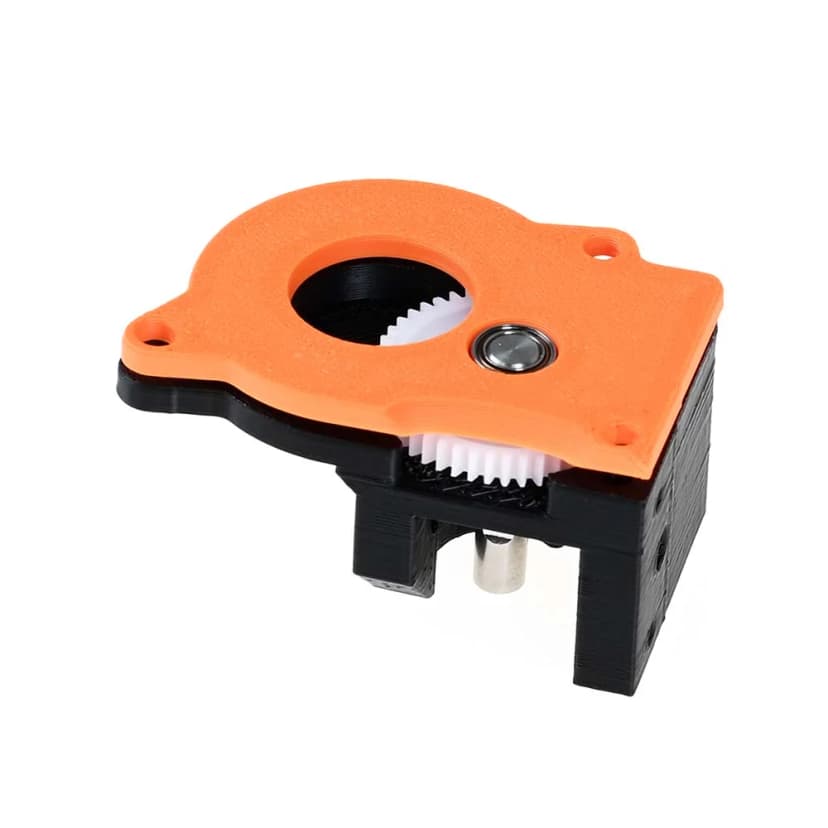

Cover the main body with the printed extruder motor plate.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 3

3

Put Z Motor onto the Plate

Step 2 of 9 in this section

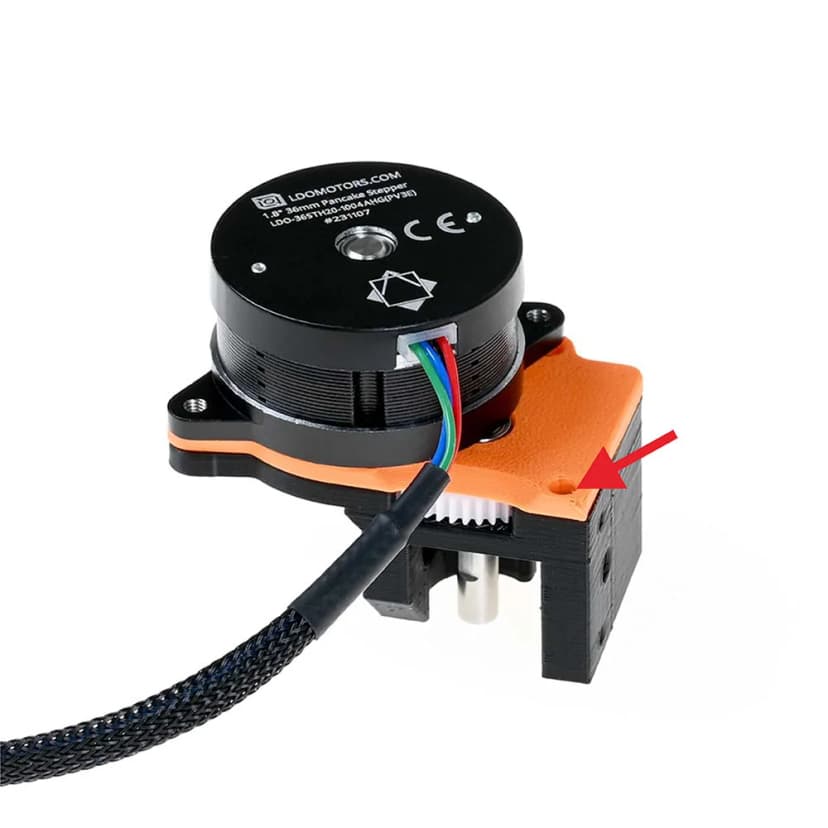

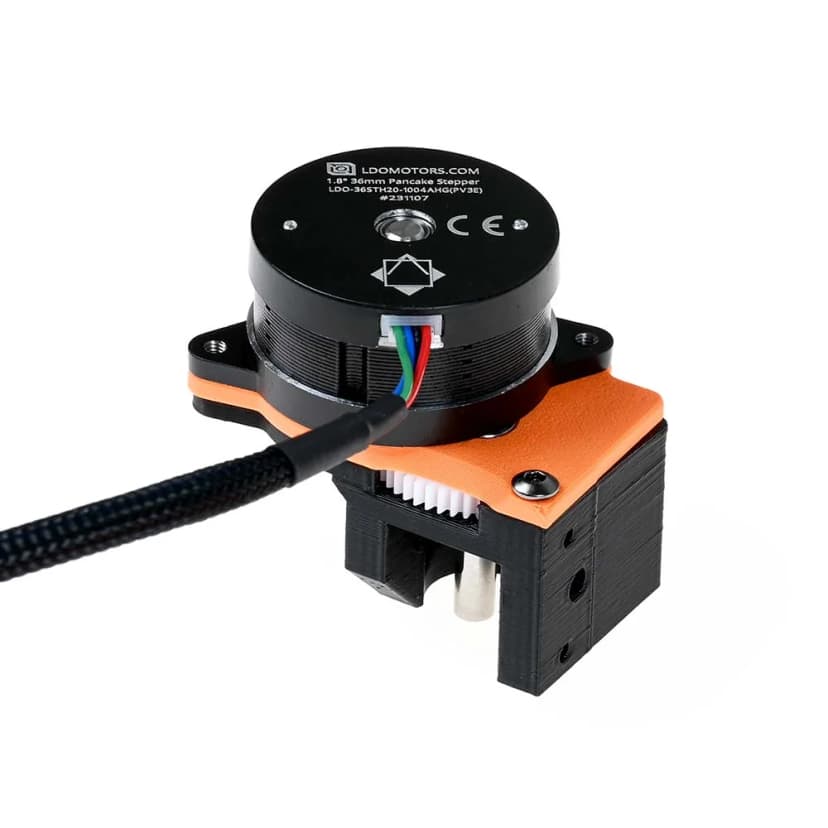

Postion the E motor into the hole of the motor plate as shown in the picture.

1 image(s) - Click to view

Use an M3x8 BHCS screw in the indicated hole.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

4

Install Screws

Step 3 of 9 in this section

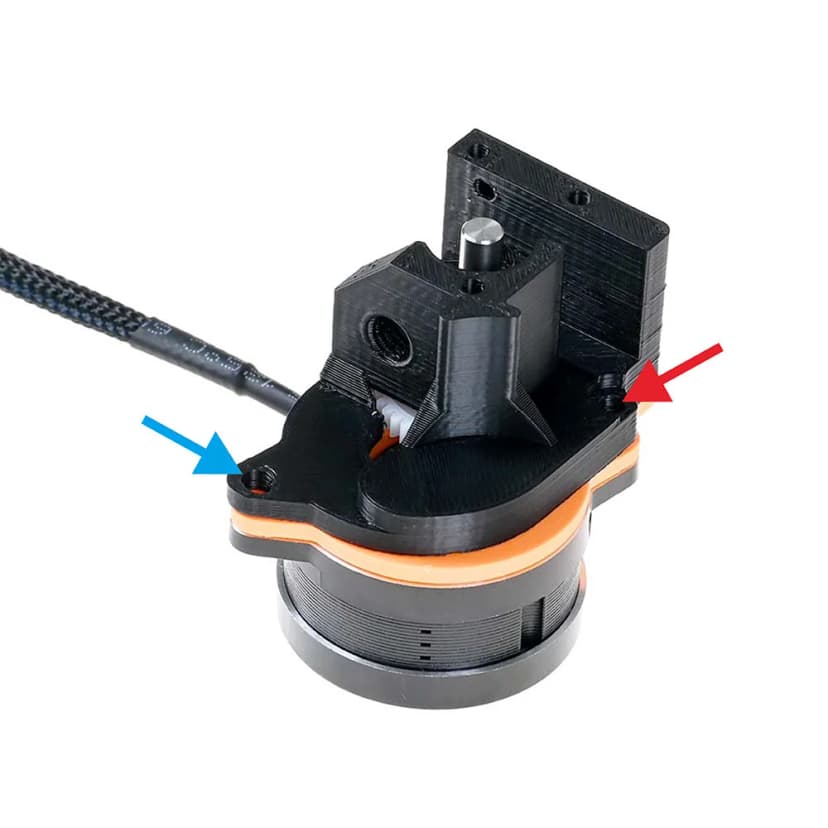

Install an M3x8 BHCS screw in the left hole (blue arrow) and an M3x10 wafer head screw in the right hole (red arrow).

1 image(s) - Click to view

Step Images


Referenced by step 1

5

Install the Primary Gear and the Bowden Coupler

Step 4 of 9 in this section

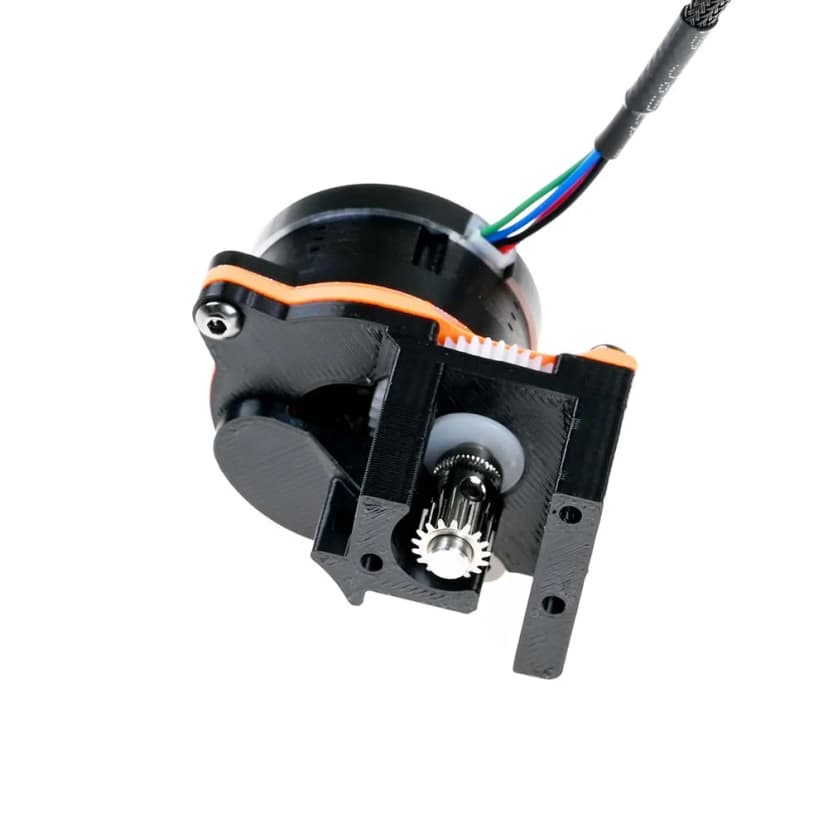

Put the primary gear into the shaft.

1 image(s) - Click to view

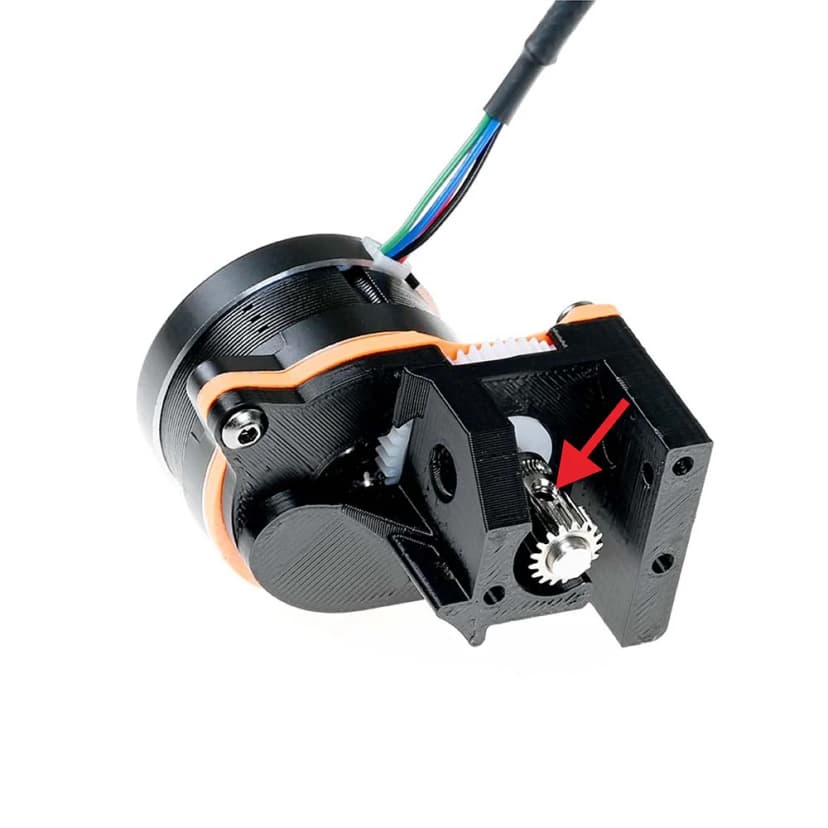

Install the set screw (included in the BMG drive kit) into the primary gear.

1 image(s) - Click to view

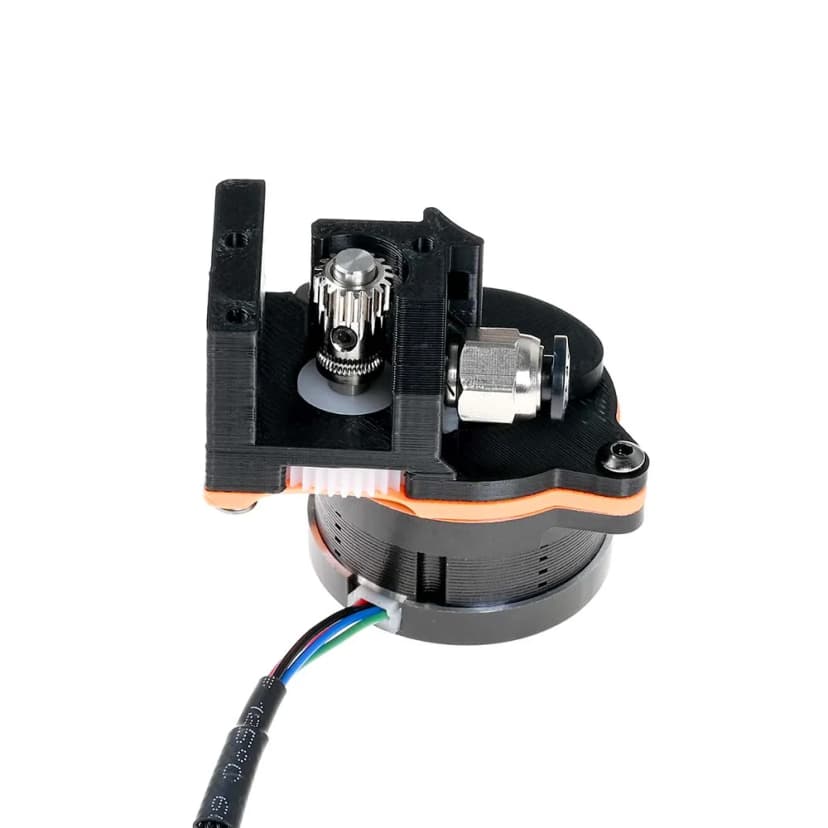

Install the bowden coupler from the direction as shown in the image.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3

6

Prepare the Guidler

Step 5 of 9 in this section

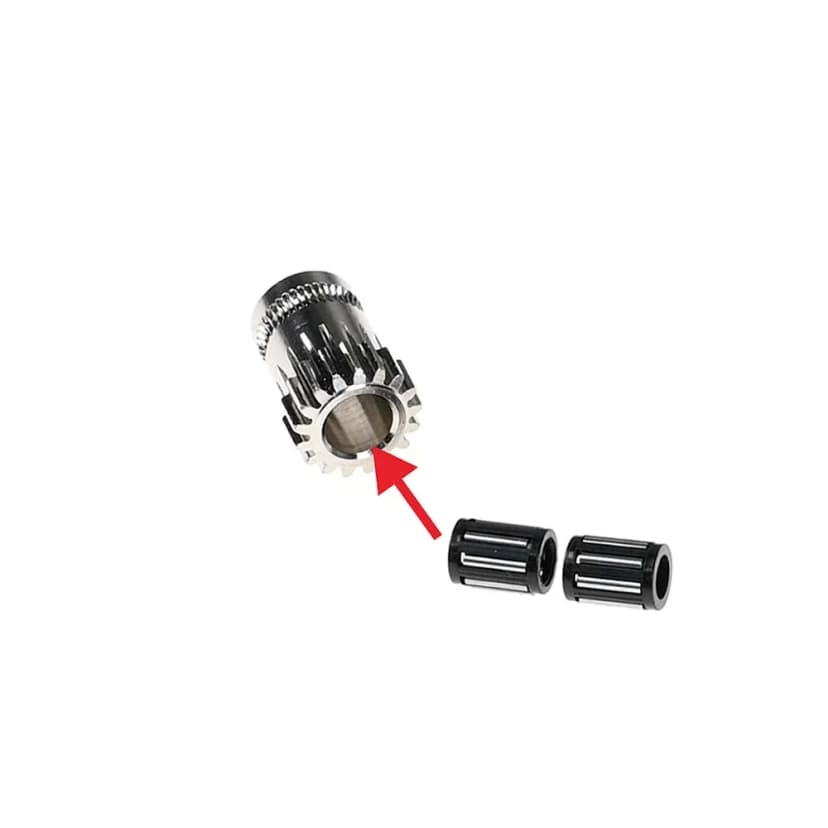

Put the secondary gears into the primary gear as indicated in the picture.

1 image(s) - Click to view

Apply a small amount of grease to the shaft bearings

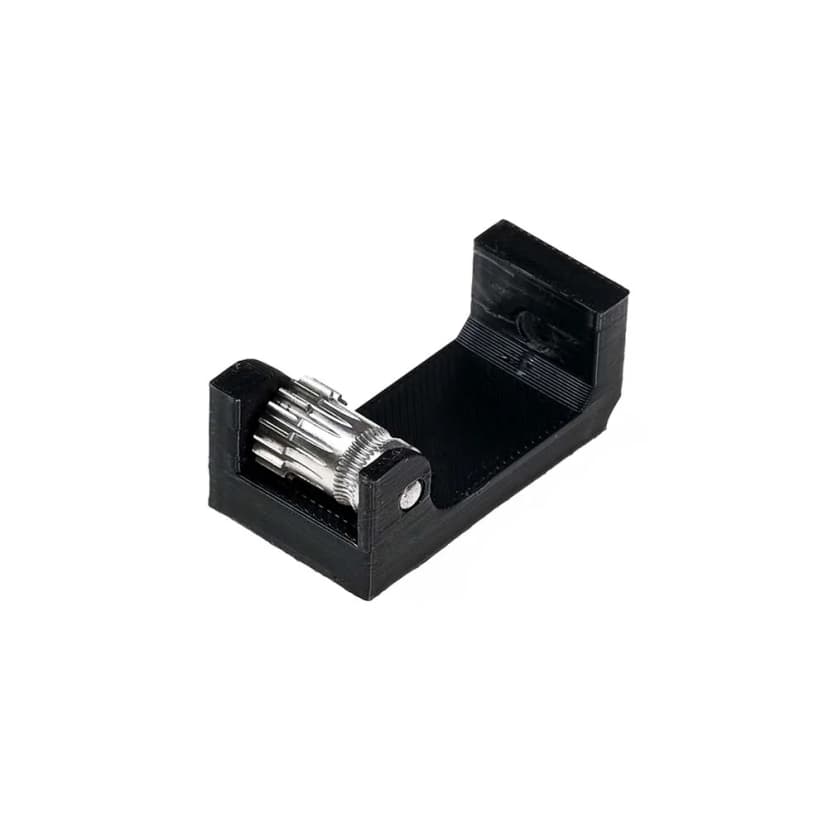

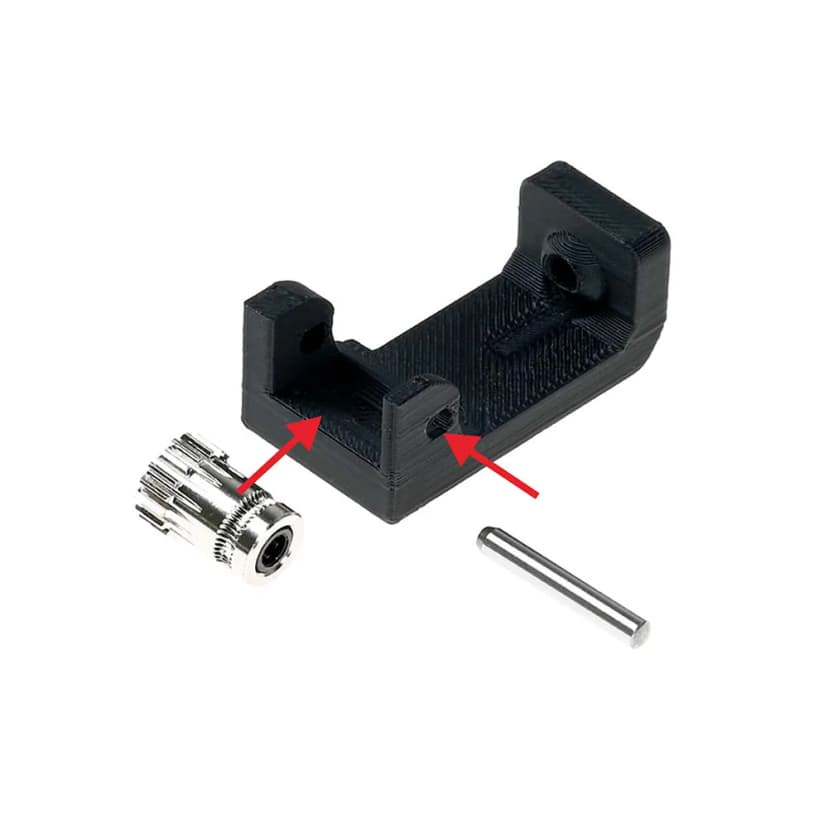

Put the primary gear onto the groove of the printed extruder guidler. Insert the shaft through the hole of the guider and the hole of gear.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 3

7

Install the Guidler

Step 6 of 9 in this section

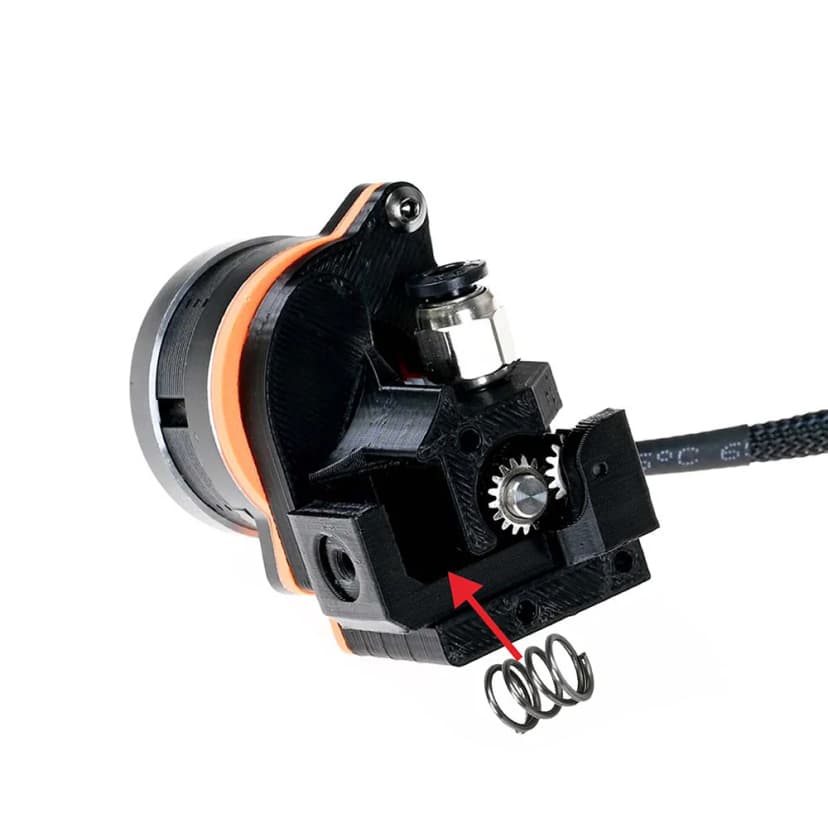

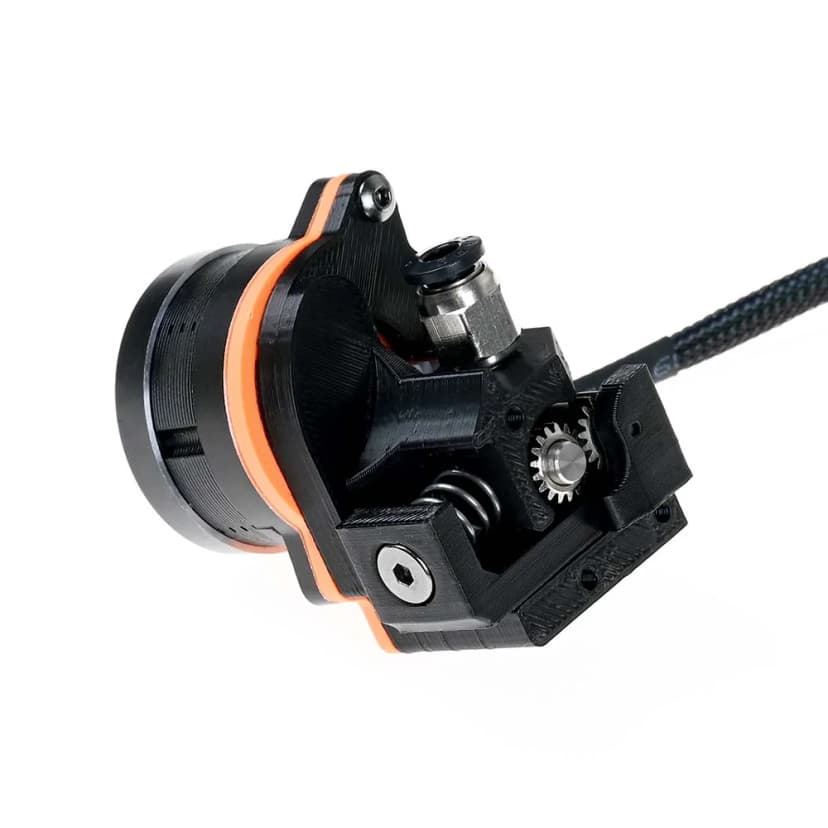

Attach the assembled primary and guidler to the main body and put the spring in the groove.

1 image(s) - Click to view

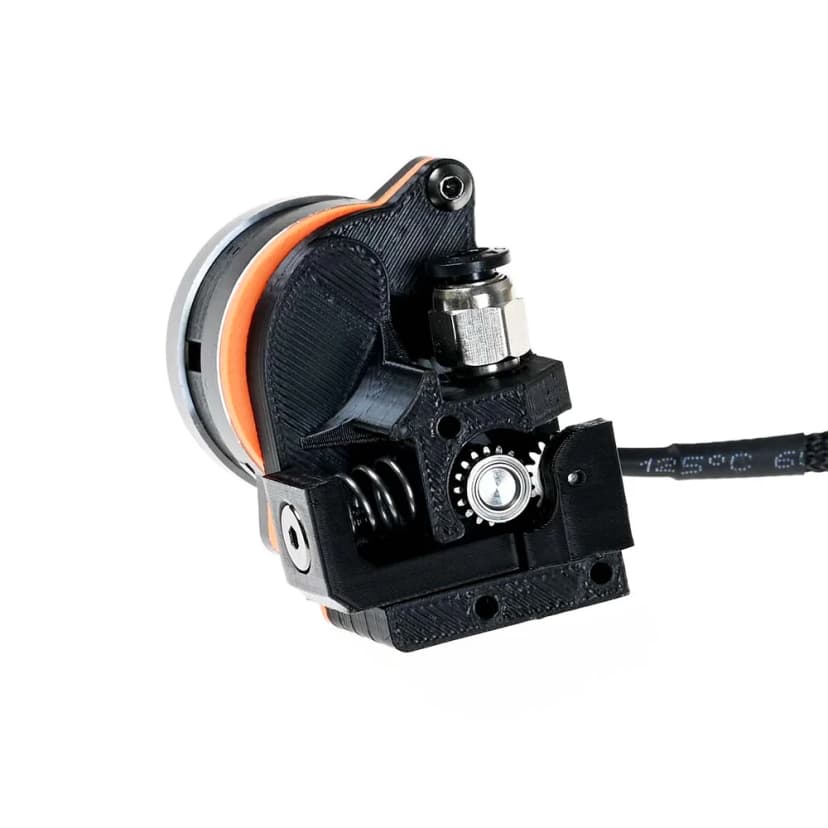

Secure with an M4x8 wafer head screw from the direction as indicated in the picture.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

8

Assemble the Cover

Step 7 of 9 in this section

Install an MR85 bearing on top of the gear.

1 image(s) - Click to view

Put the bottom plate on and secure using M3x8 BHCS screws.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

9

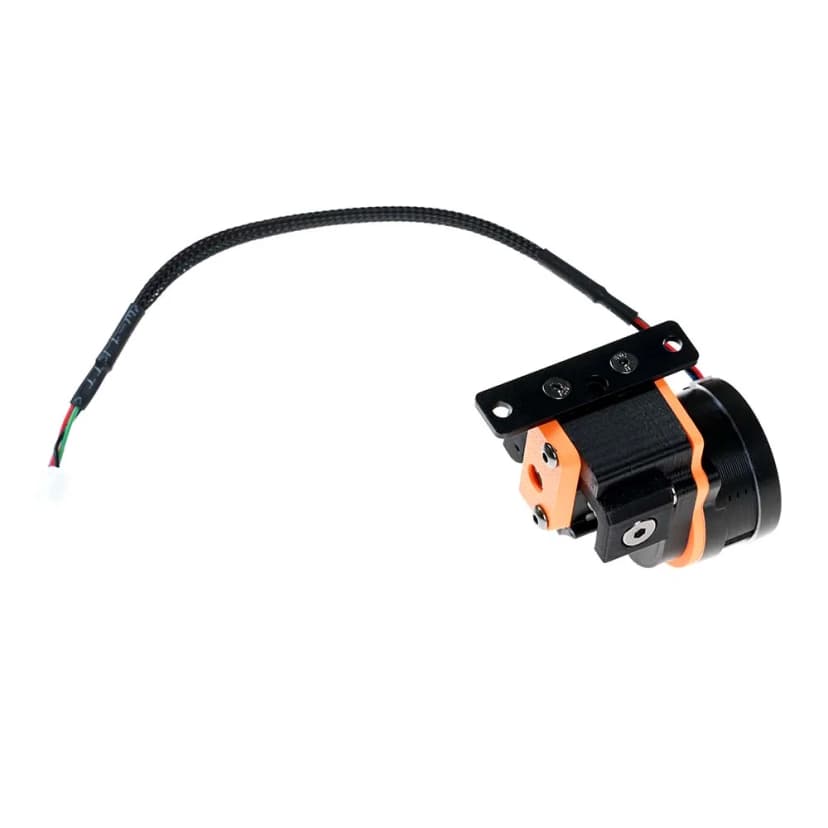

Install the Mounting Bracket

Step 8 of 9 in this section

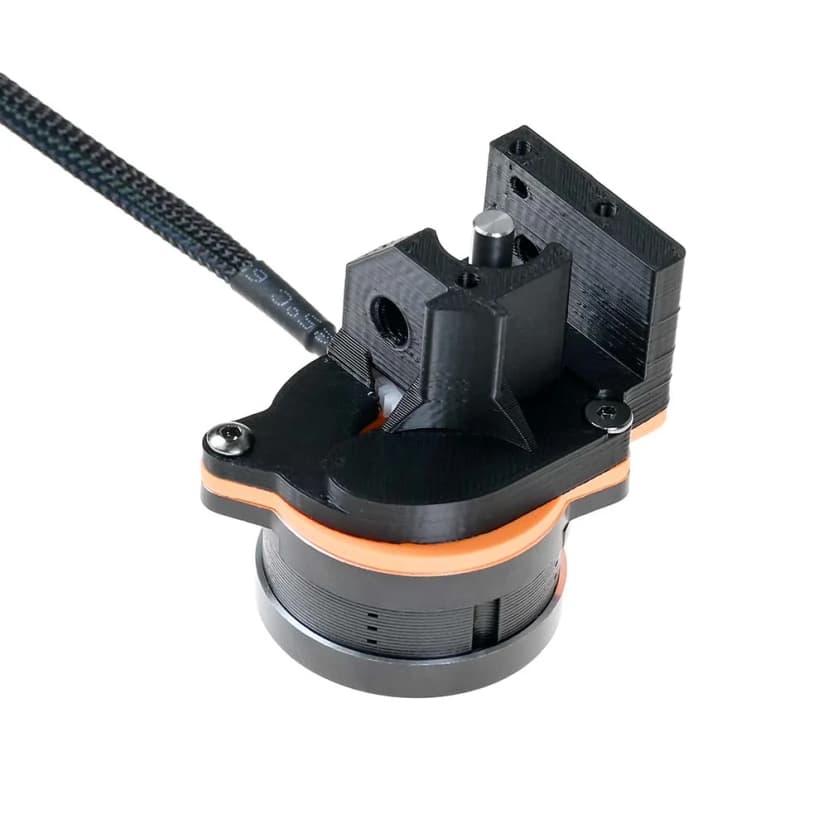

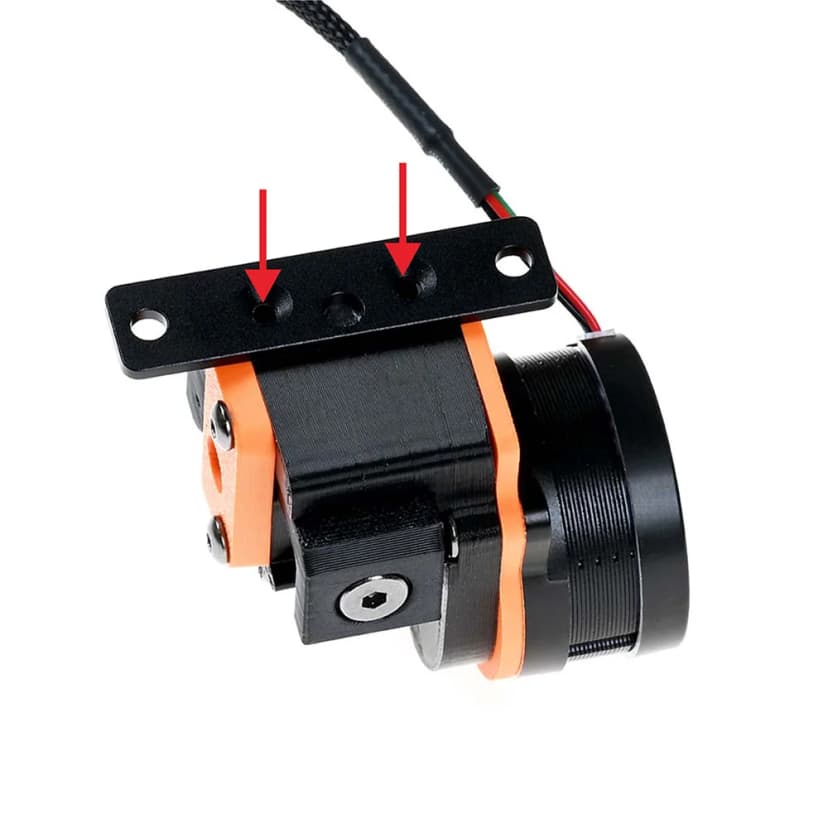

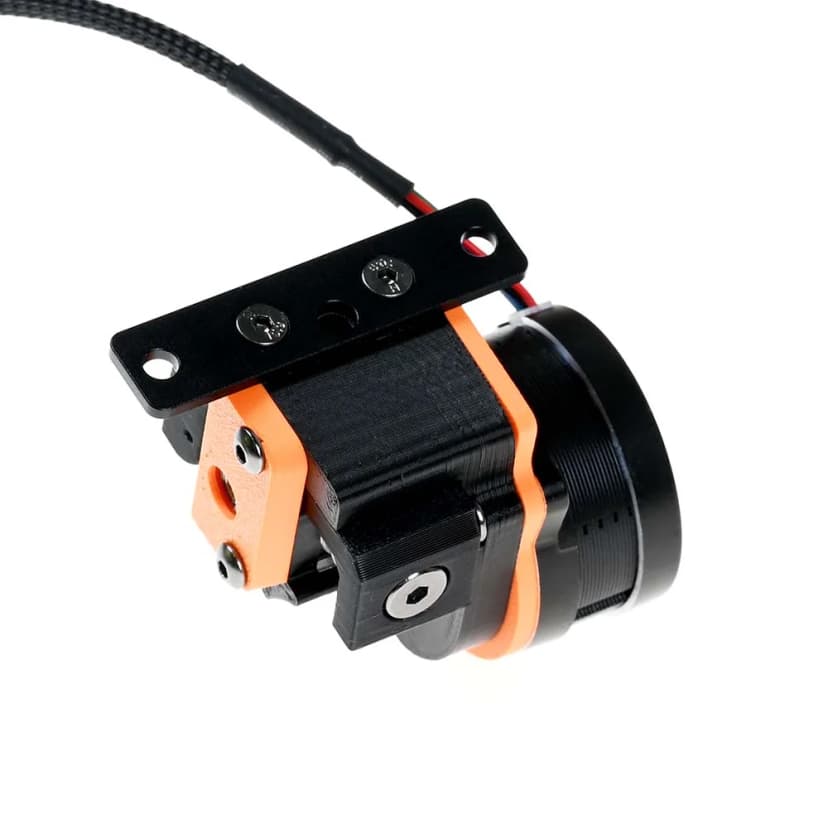

Position the extruder mounting bracket onto the printed extruder main body as shown in the picture.

1 image(s) - Click to view

Secure with M3x8 FHCS screws.

Step Images


Referenced by step 1

10

Assembly Complete

Step 9 of 9 in this section

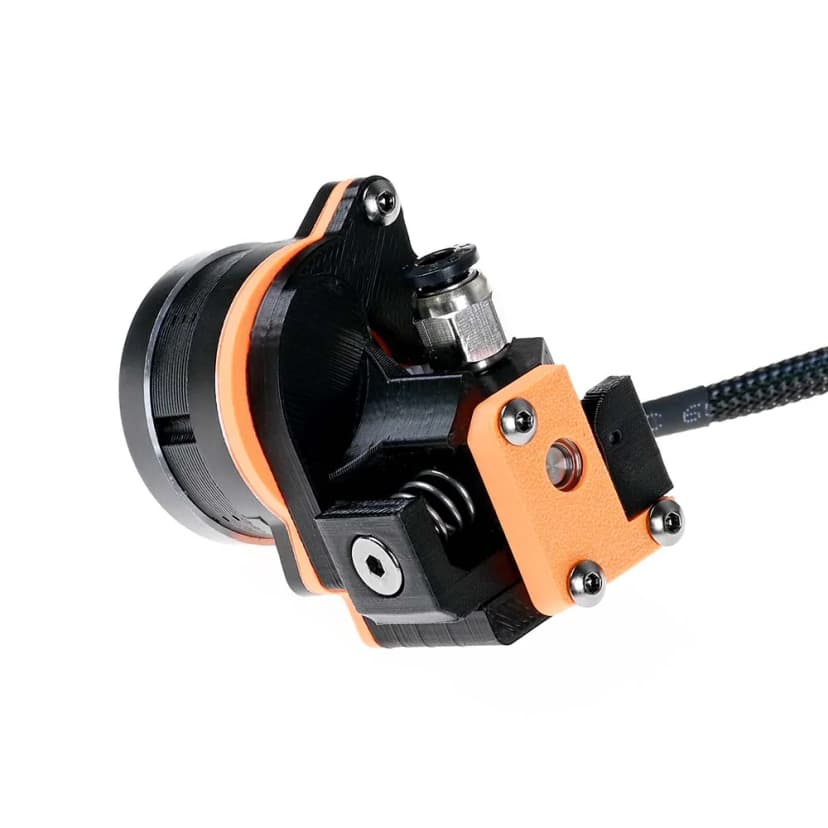

You now have completed the assembly of the extruder.

Step Images
