Positron V3.2 - Bed V Holder

This guide will contain instructions for building the bed V holder for the Positron V3.2.

1. Parts to print

Before you start to assemble, please make sure that you have these parts printed.

Step 1 of 1 in this section

ABS filament is recommended for printing these parts.

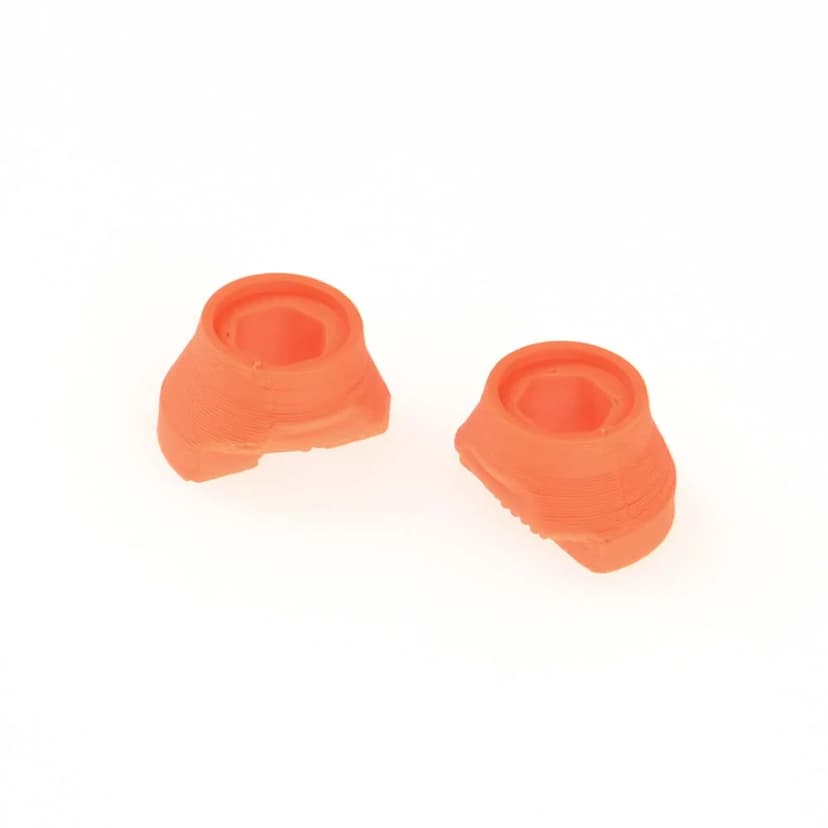

Bed Spring Retainer Ring x2

1 image(s) - Click to view

Referenced by step 2

Step 1 of 4 in this section

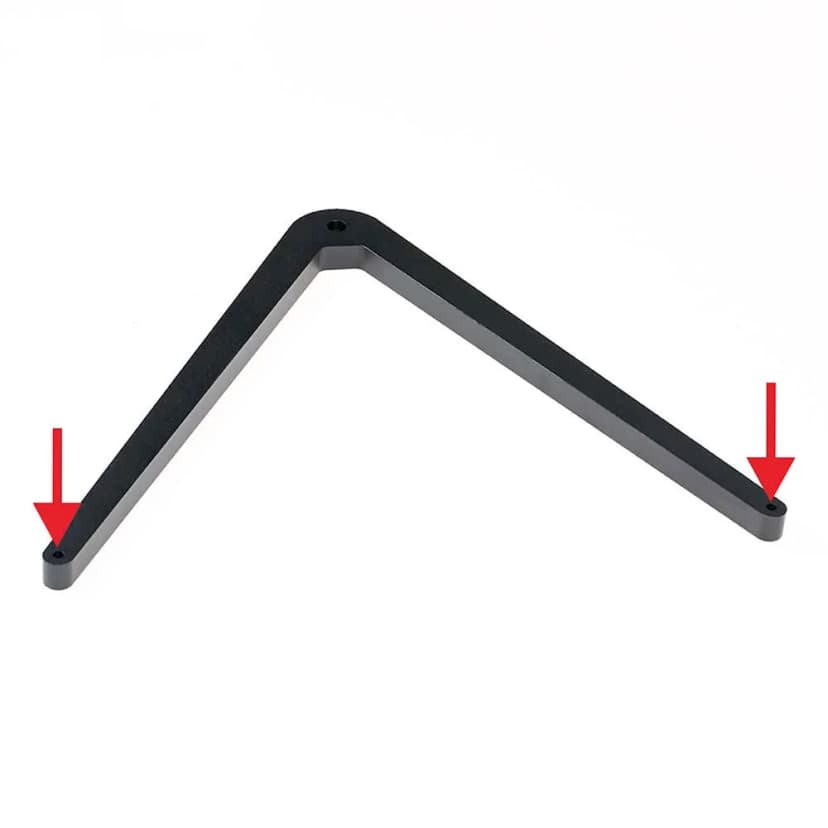

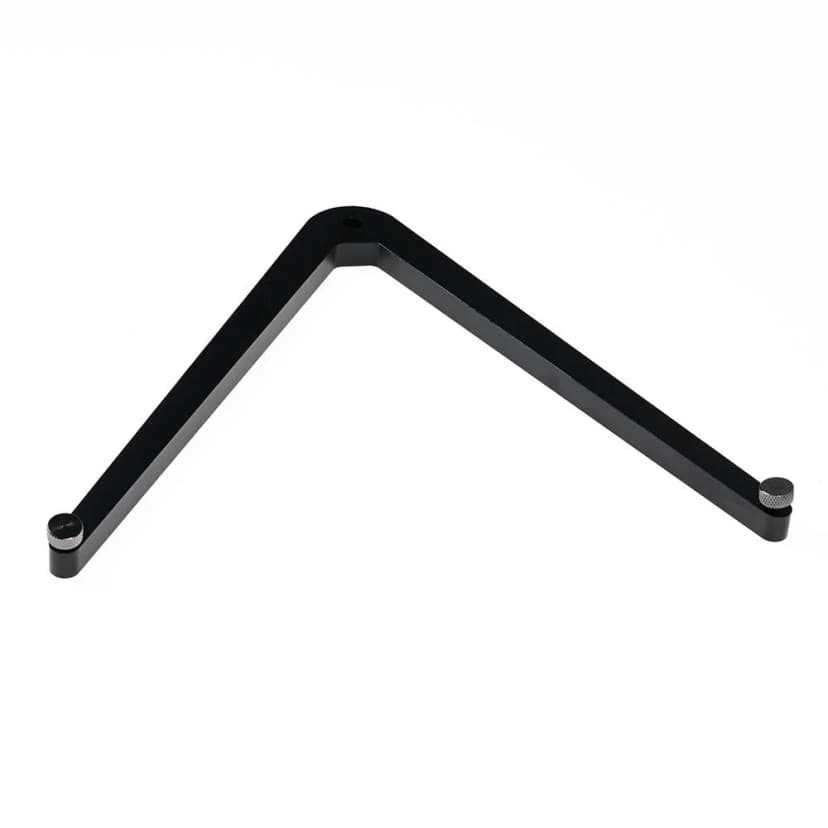

Insert M3x12 thumb screws into the holes of the bed V holder.

1 image(s) - Click to view

Check the orientation of the V holder so that the side with the ridges should face down.

Referenced by step 1

Step 2 of 4 in this section

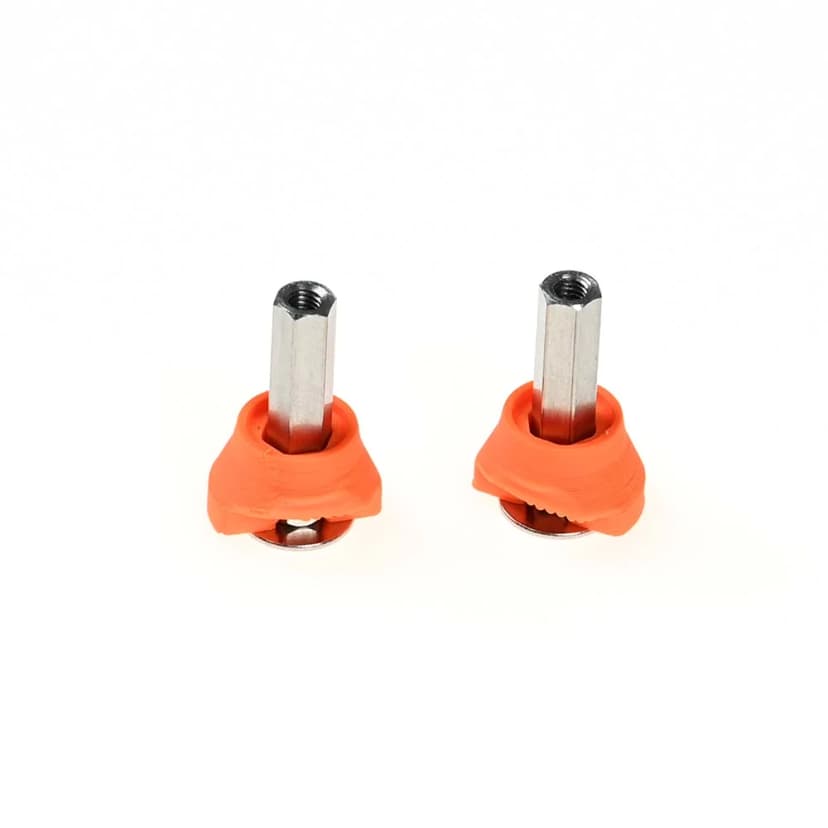

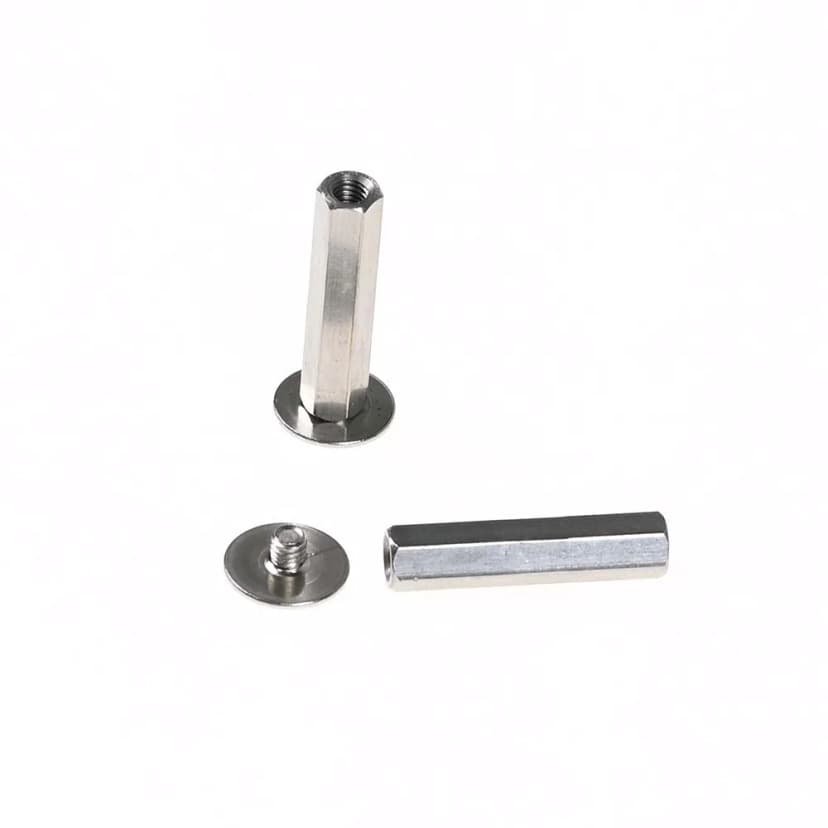

Put the standoff on top of the wafer head screw as in the picture. Two sets are needed.

1 image(s) - Click to view

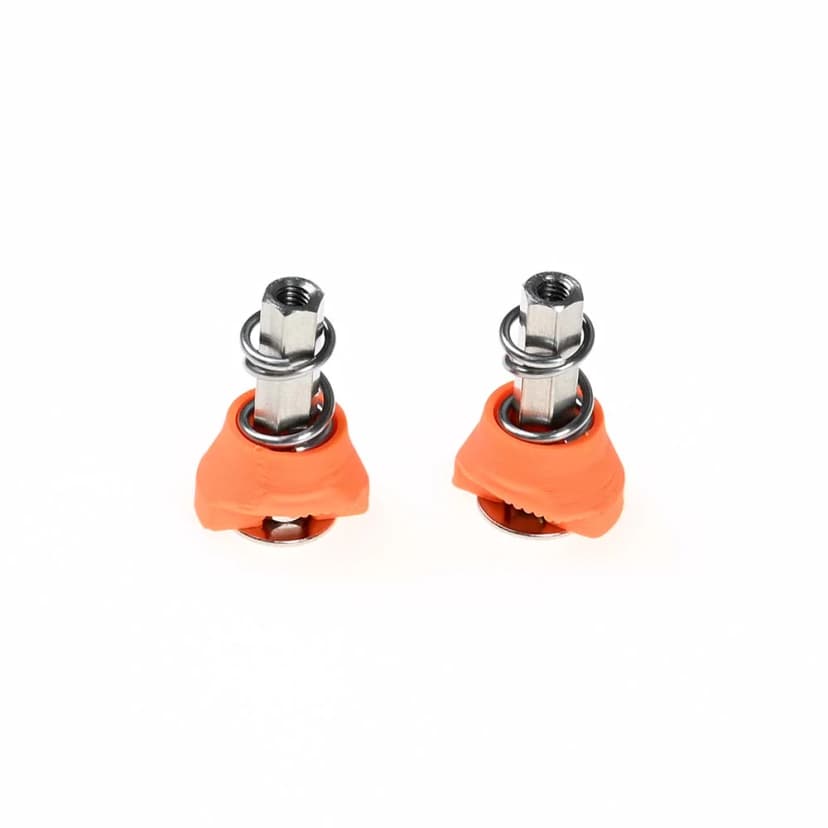

Install the bed spring retainer ring and the spring onto the standoff.

1 image(s) - Click to view

Referenced by step 1

Referenced by step 2

Step 3 of 4 in this section

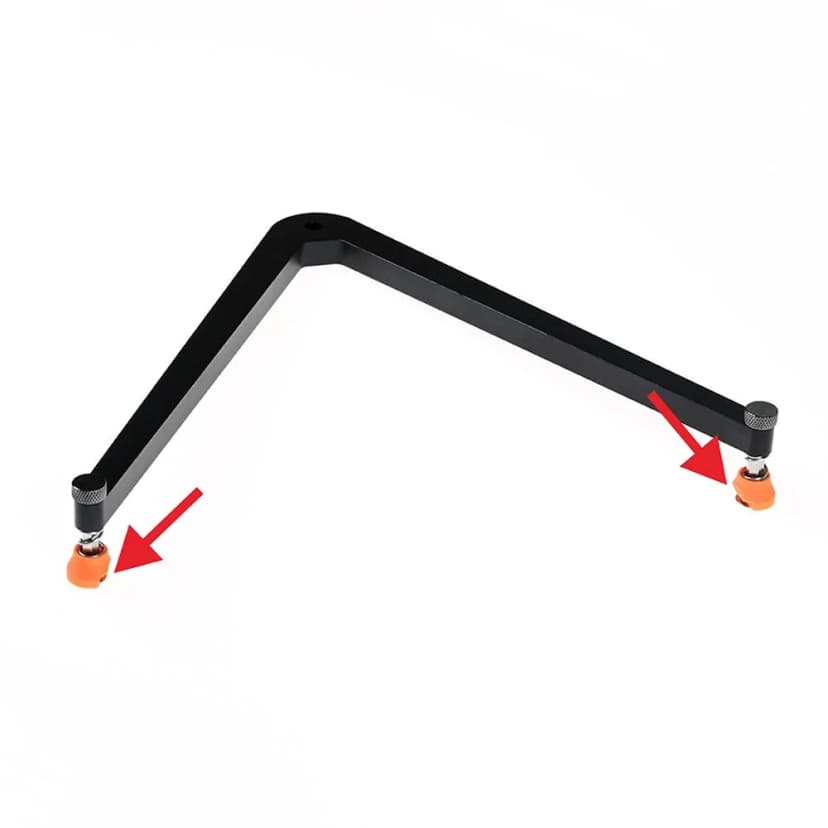

Attach the assembled standoffs to the thumb screws and tighten the thumb screws.

Leave the opening of the retainer ring inward facing each other.

1 image(s) - Click to view

Referenced by step 2

Step 4 of 4 in this section

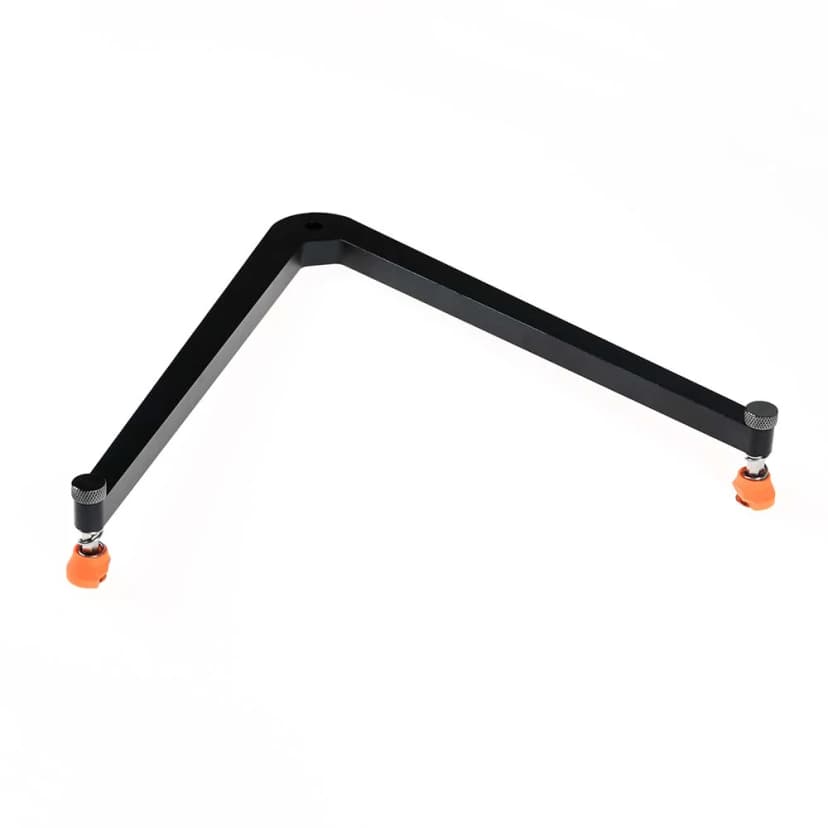

Now you have completed the assembly of the bed V holder.
