Positron V3.2 - Base Plate 1

Rear Idler Tensioner Block x1

Light Bar Bracket Rear x1

Light Bar Bracket Front x1

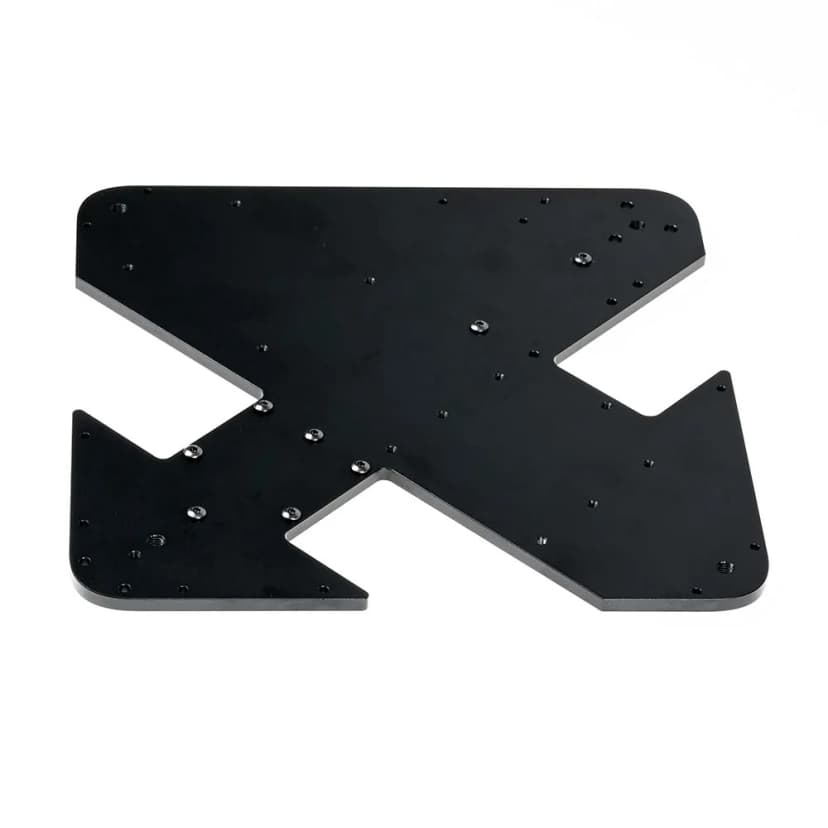

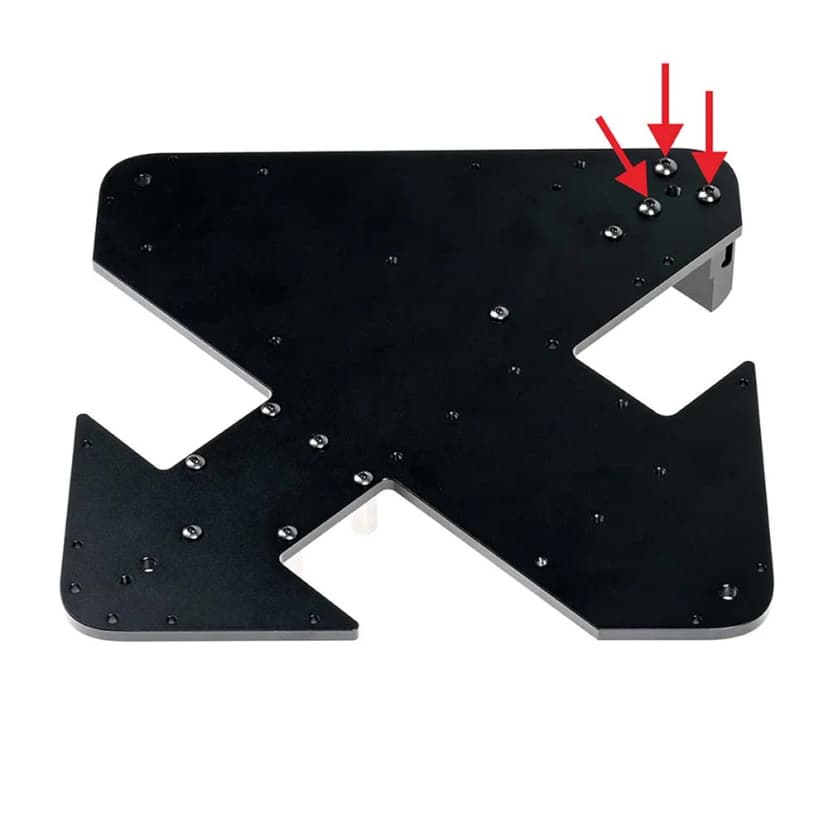

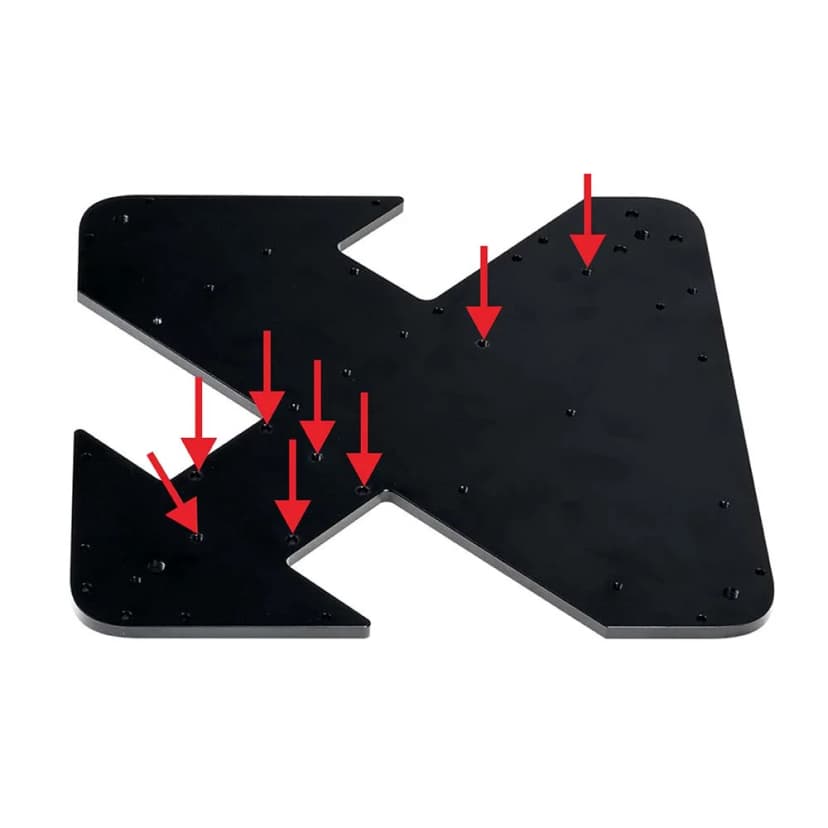

Turn the base plate over and install M3x8 BHCS screws in the indicated holes.

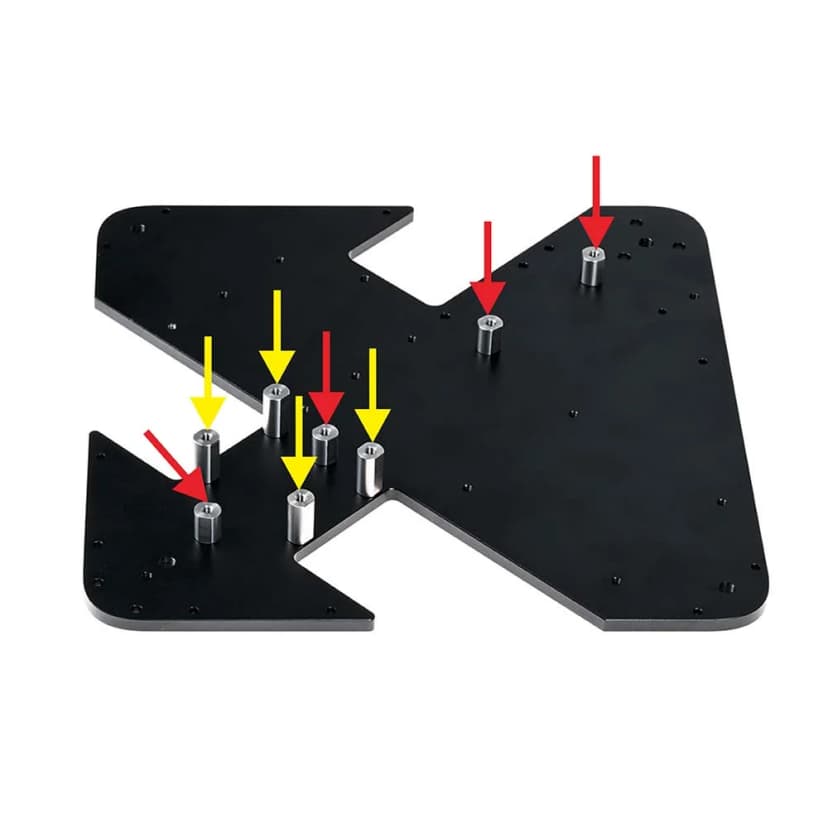

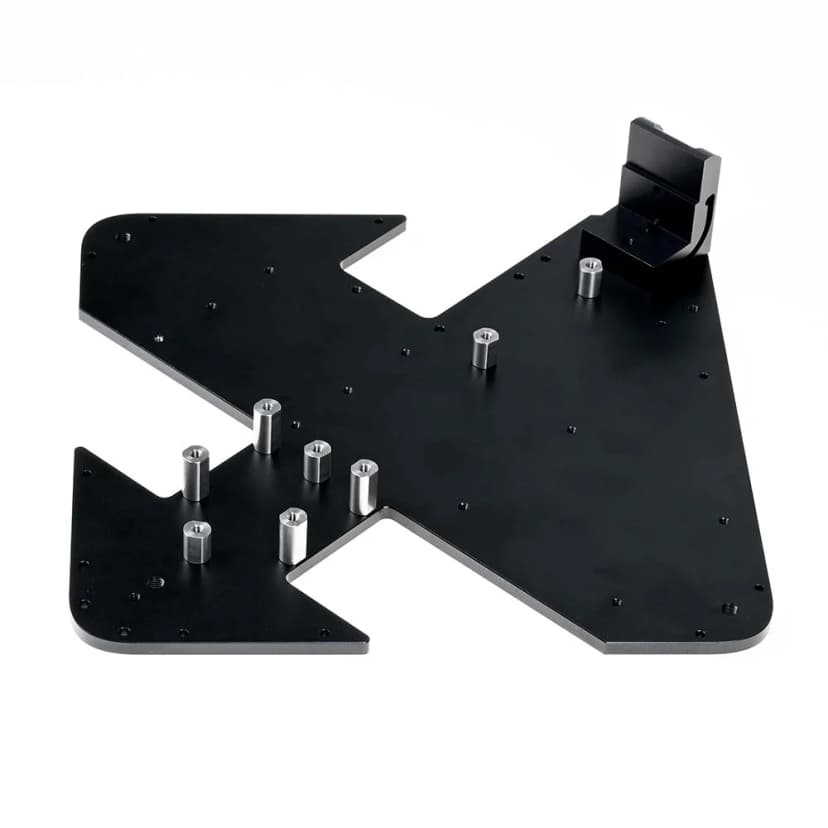

Secure the screws with standoffs. Use M3x8x7x10 standoffs in the holes (red arrows), and use M3x8x7x15 standoffs in the holes (yellow arrows).

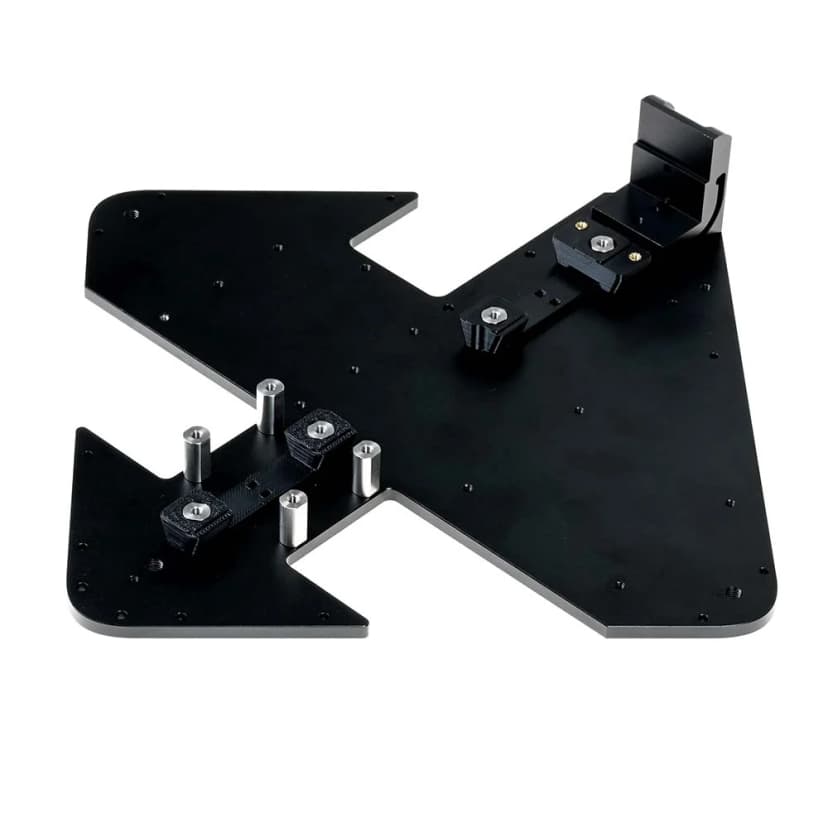

Attach the Z joint base block to the foot of the bae plate.

Secure the with M4x10 BHCS screws.

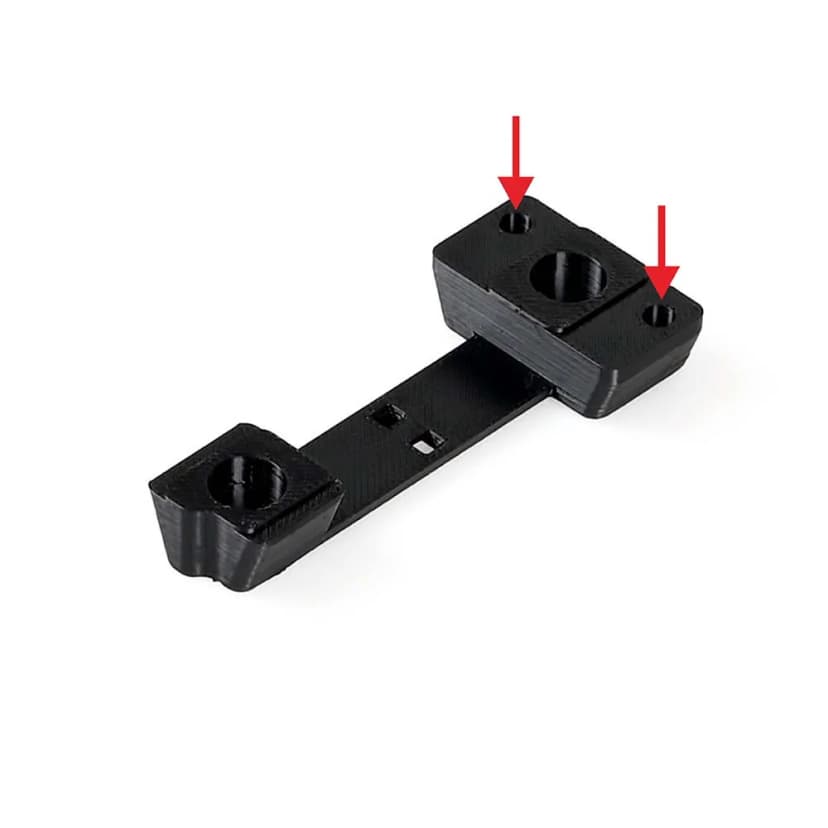

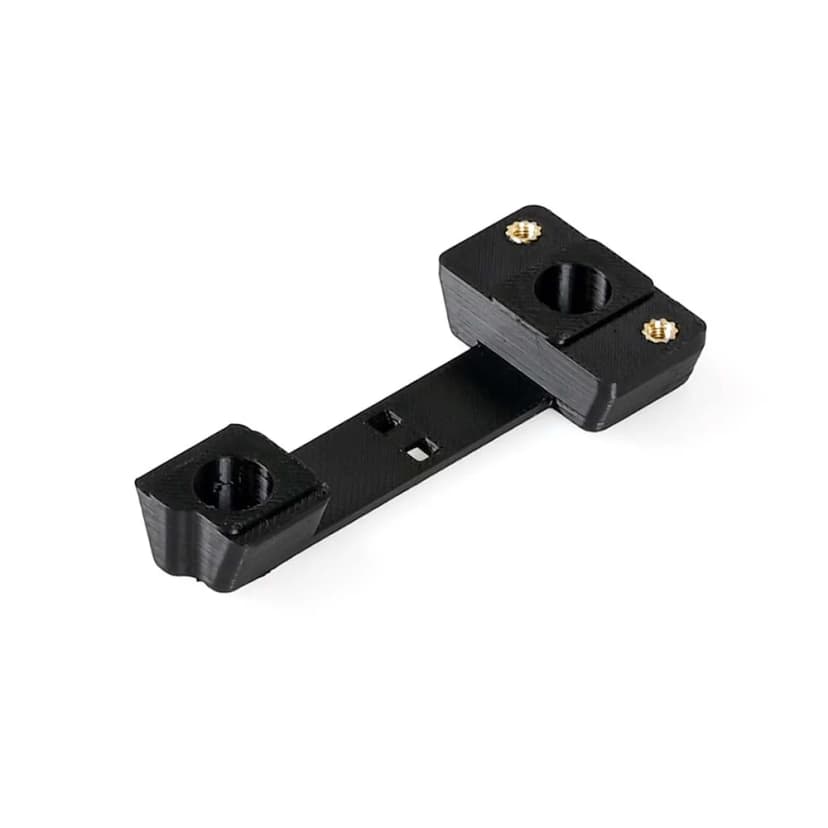

Install M2.5x3x4 heatset inserts into the printed rear light bar bracket.

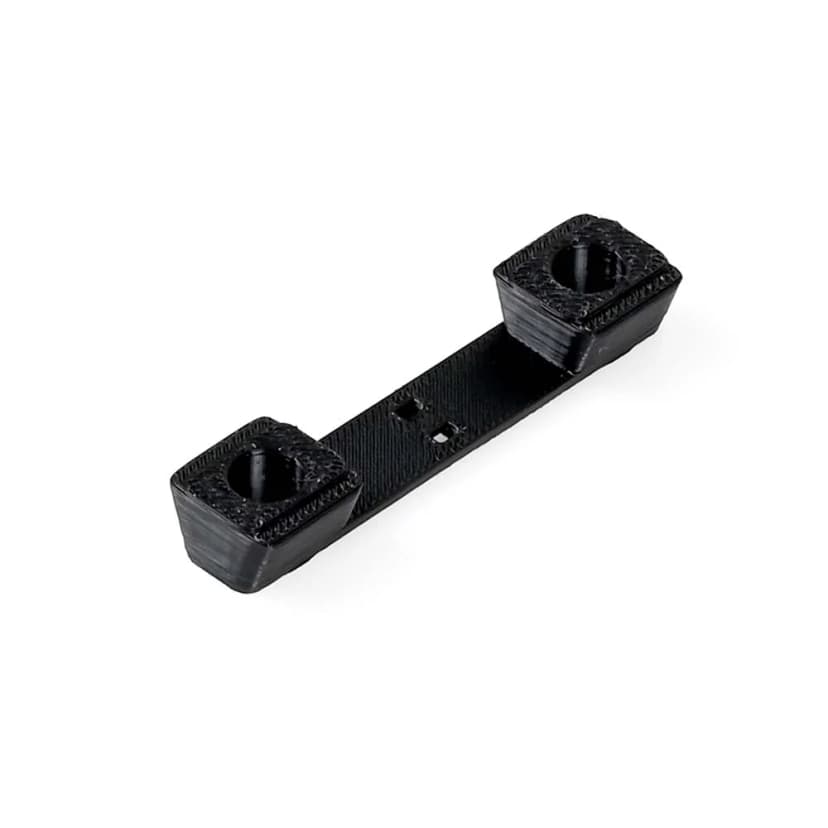

Position the printed front and rear light bar brackets into the middle standoffs as shown in the picture.

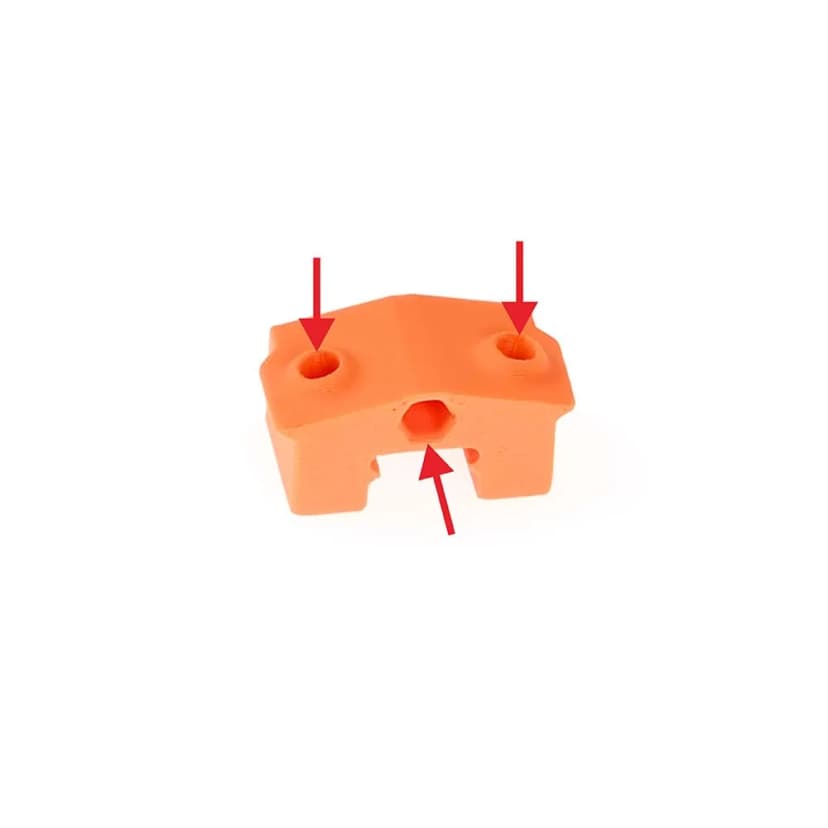

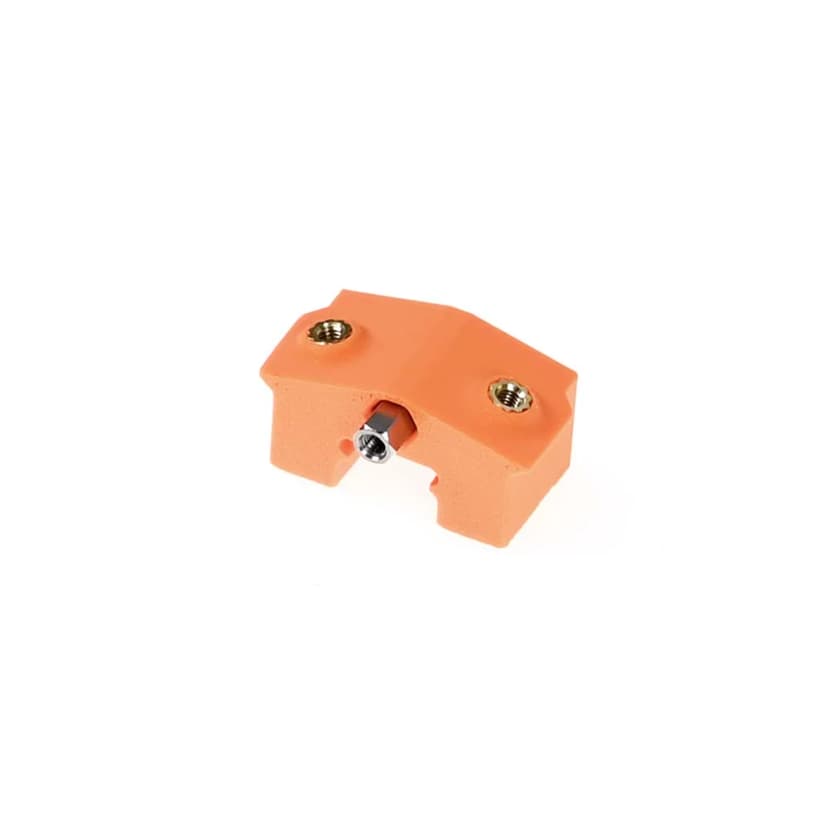

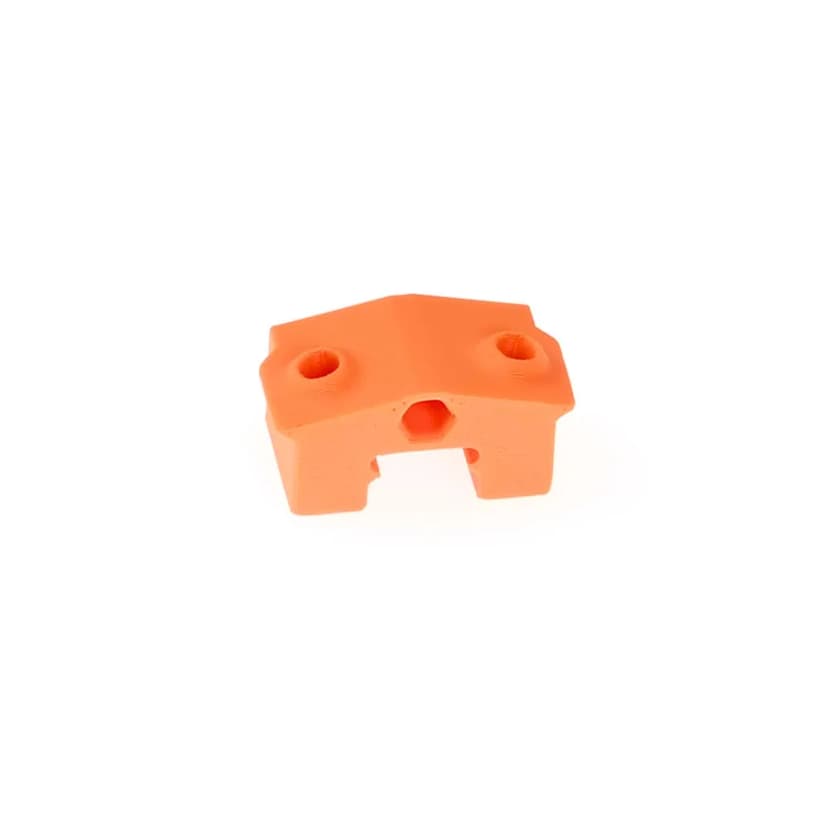

Install M3x6x5 heatset inserts in the top holes of the printed rear idler tensioner block.

Insert an M3x6 hex female standoff into the middle hole.

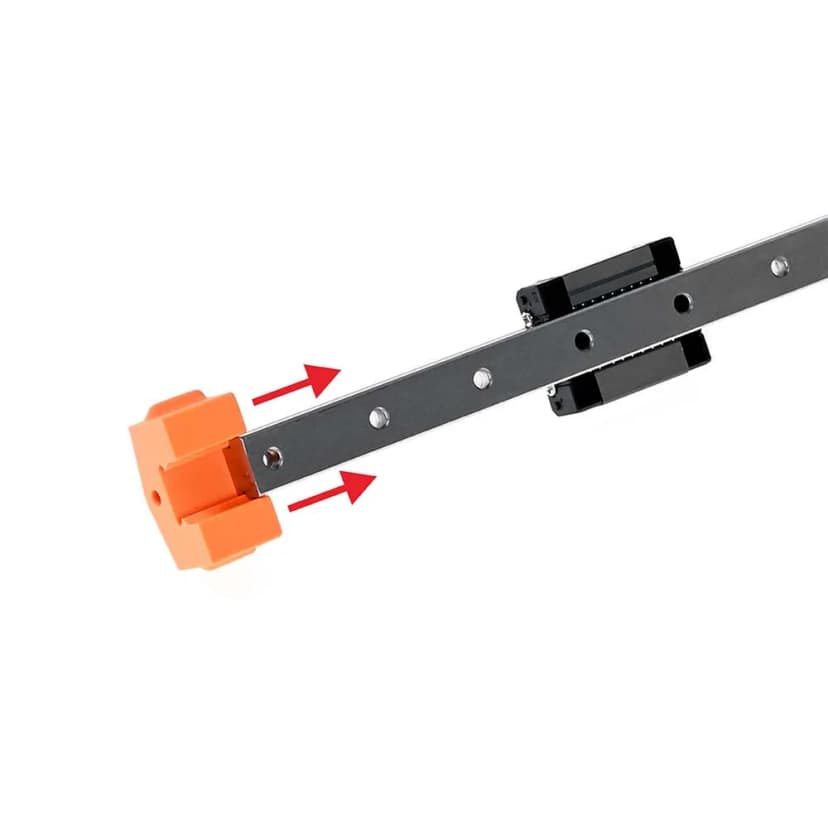

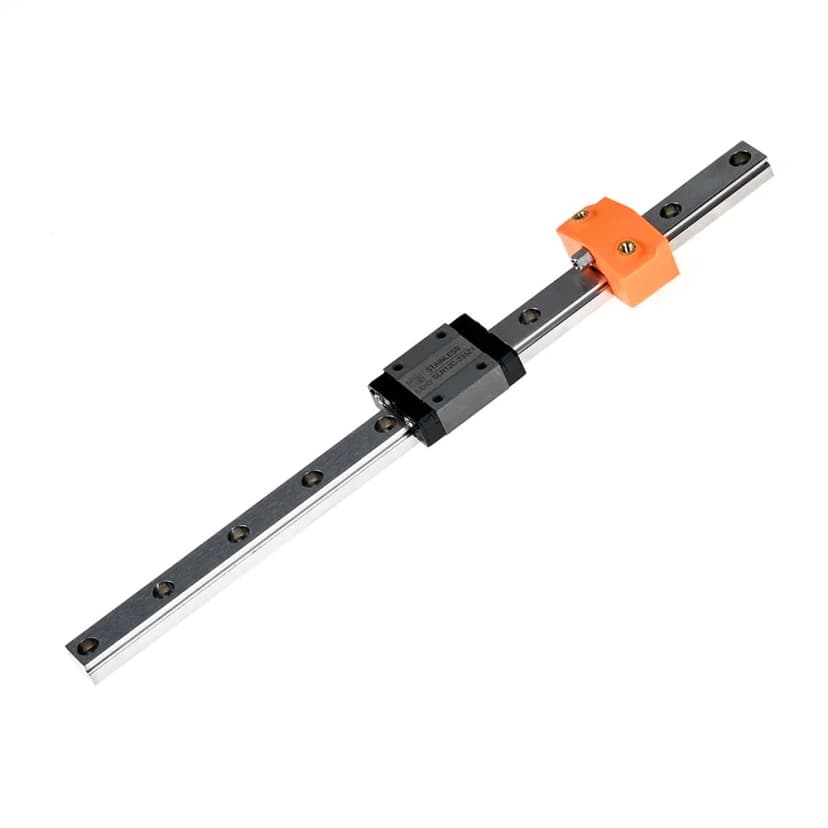

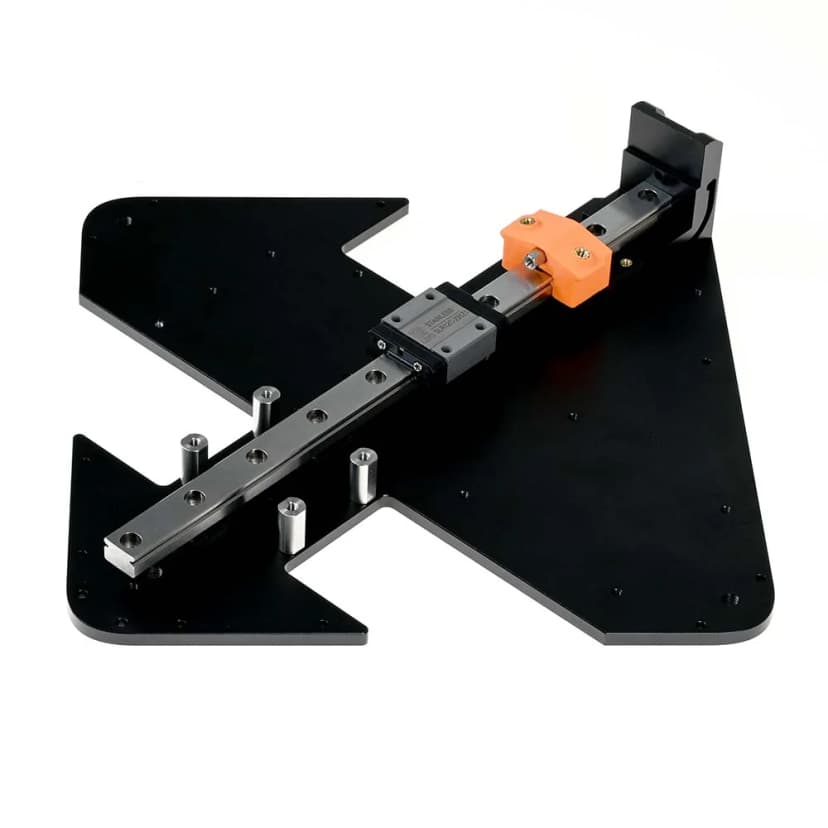

Slide the tensioner block to the linear rail.

Position it on the third hole as shown in the picture.

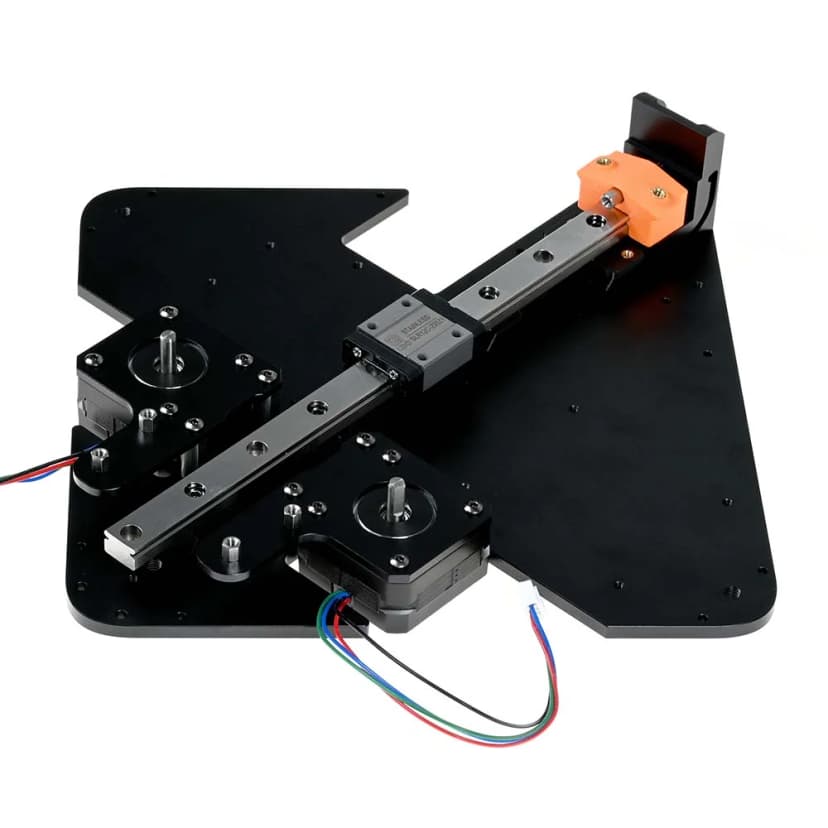

Position the linear to the standoffs and align the holes.

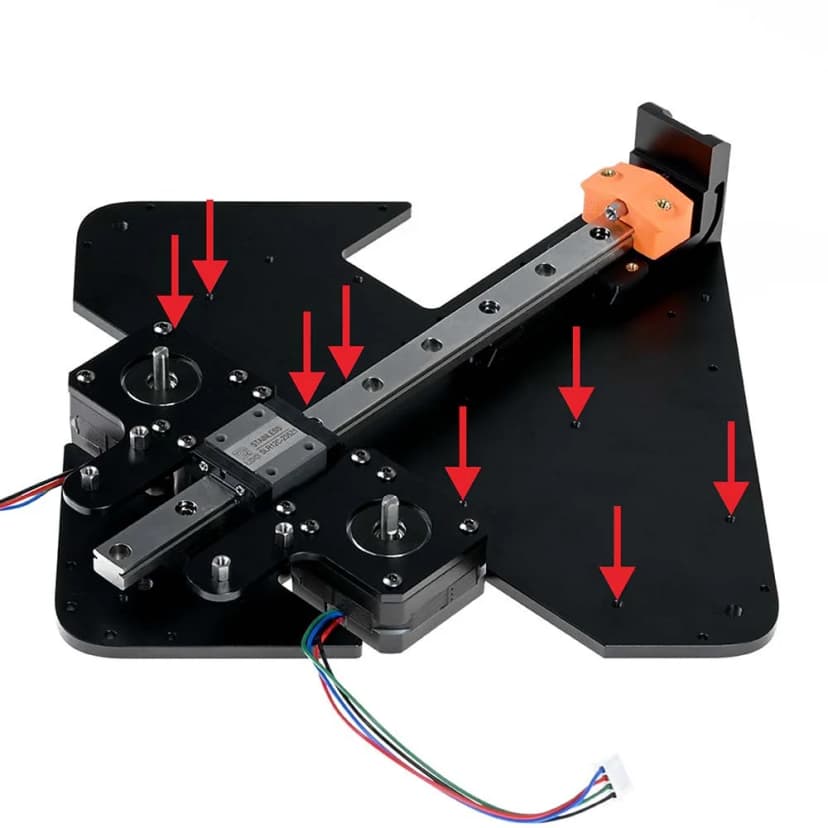

Secure the linear rail with M3x8 SHCS screws as indicated in the picture.

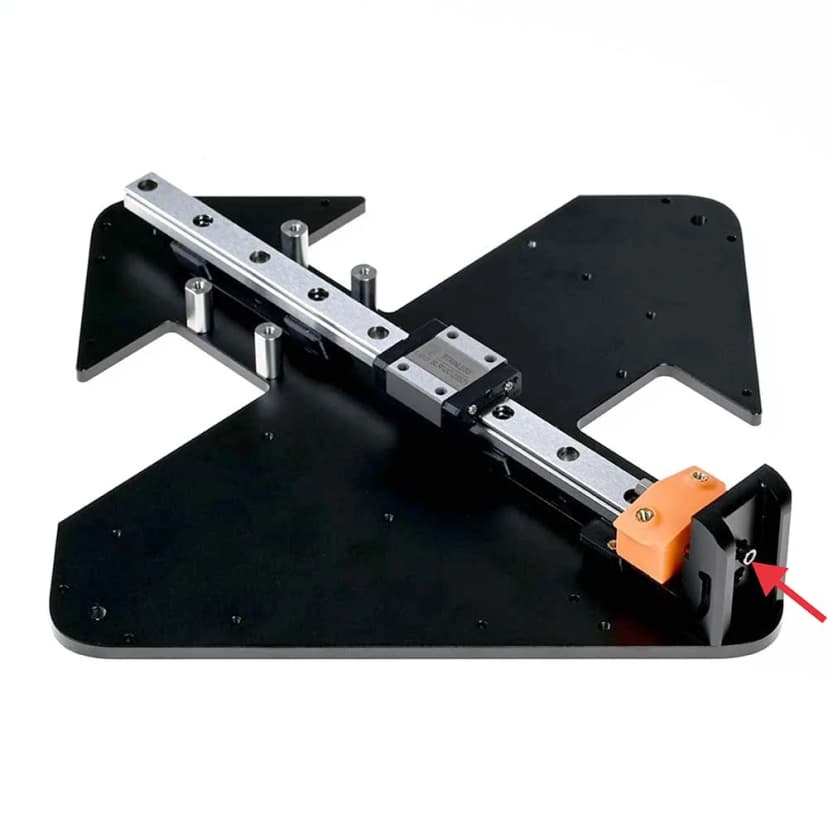

Install an M3x20 SHCS screw in the indicated hole.

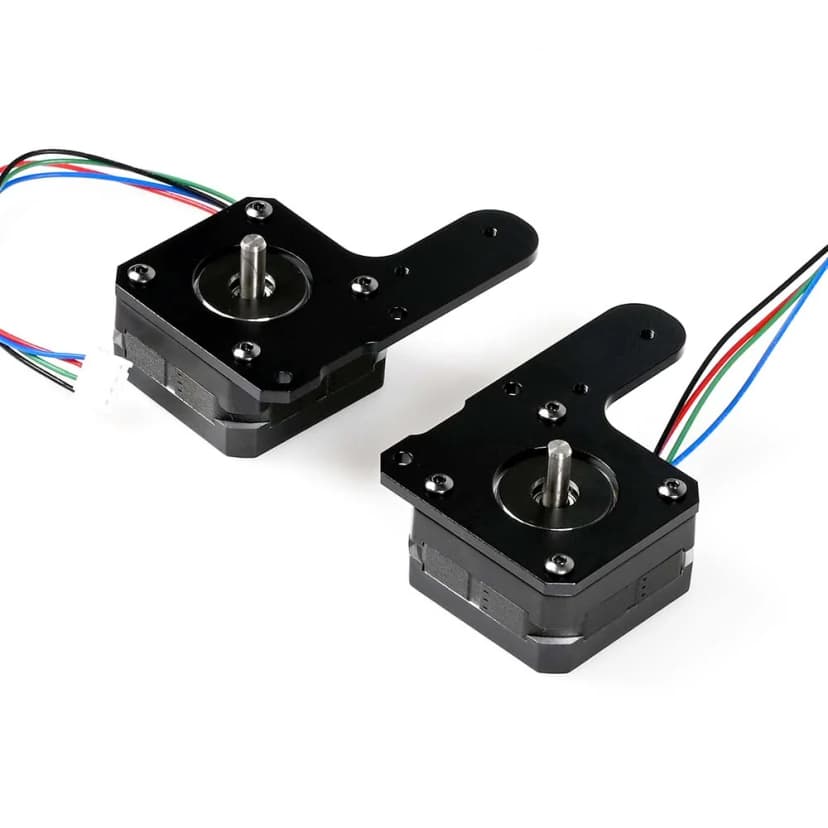

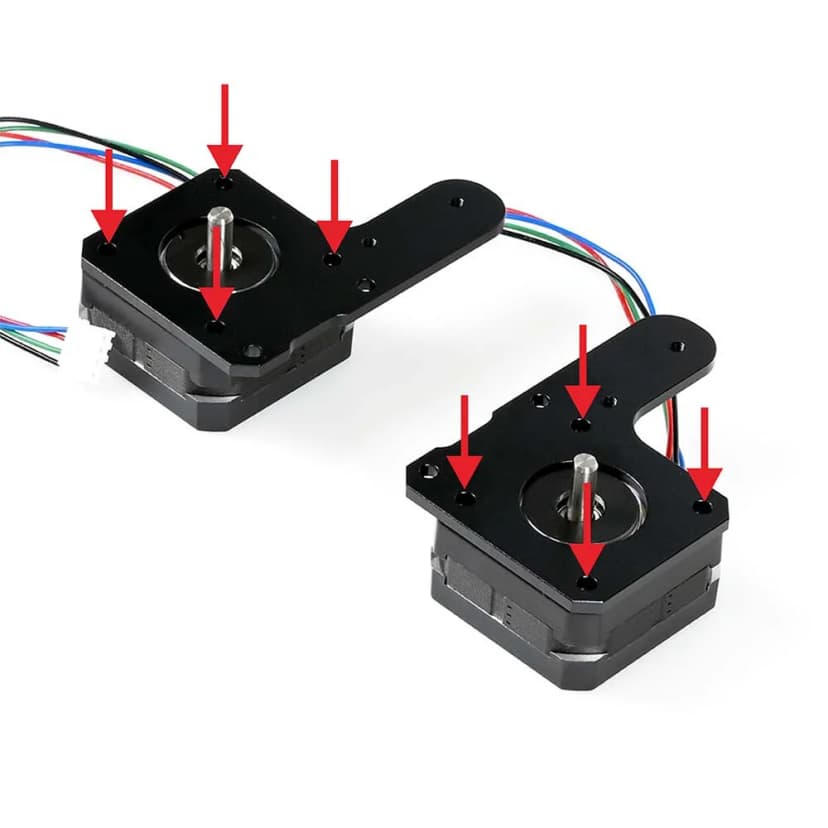

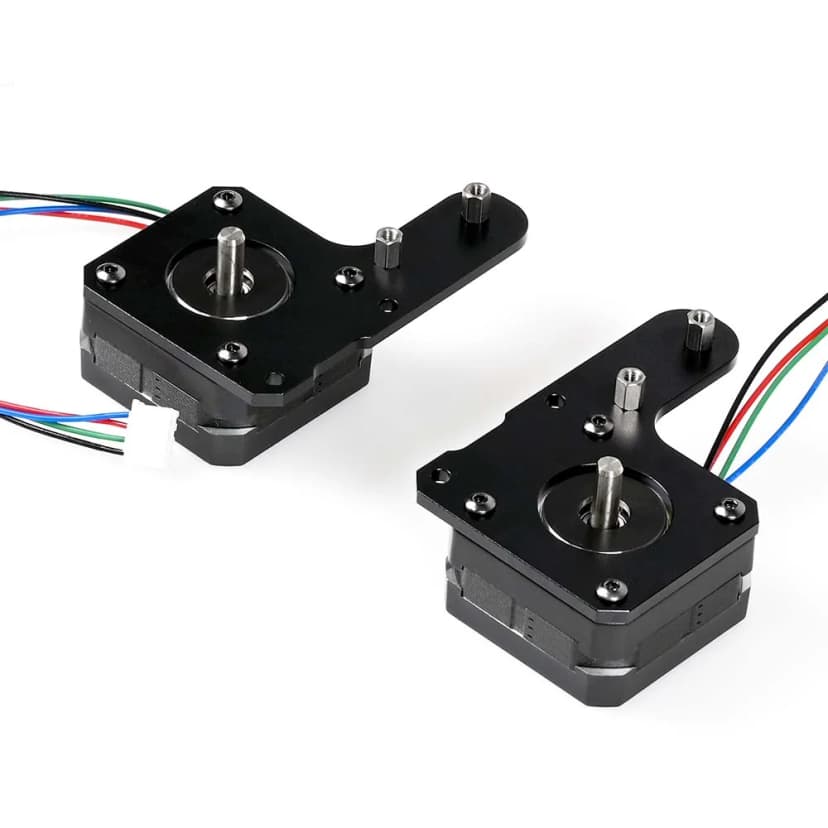

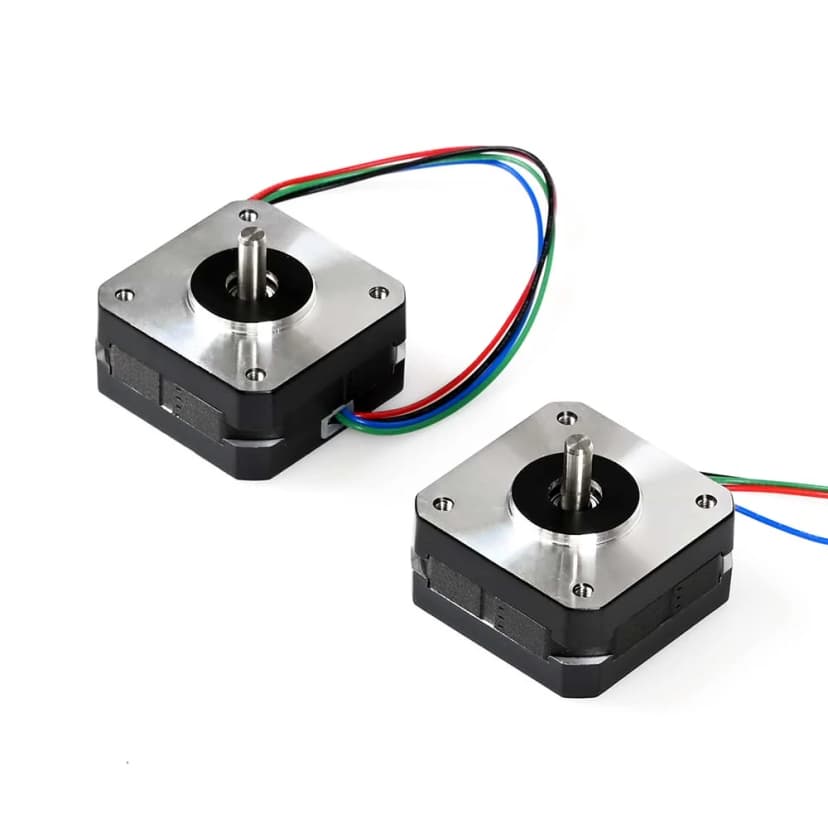

Put the motor plates on top of the motors and secure with M3x6 BHCS screws.

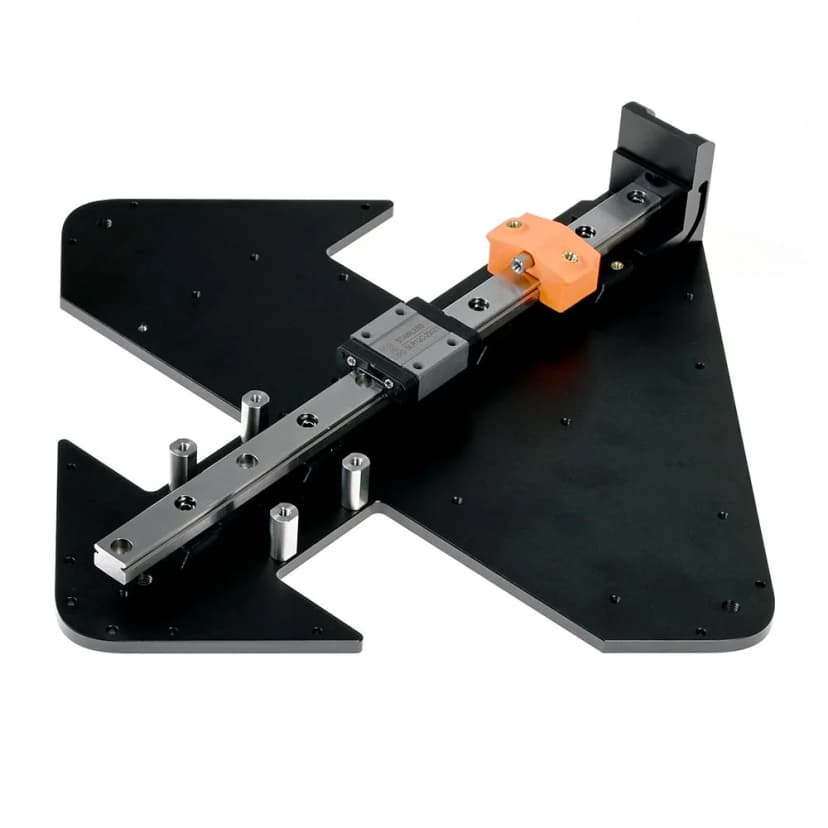

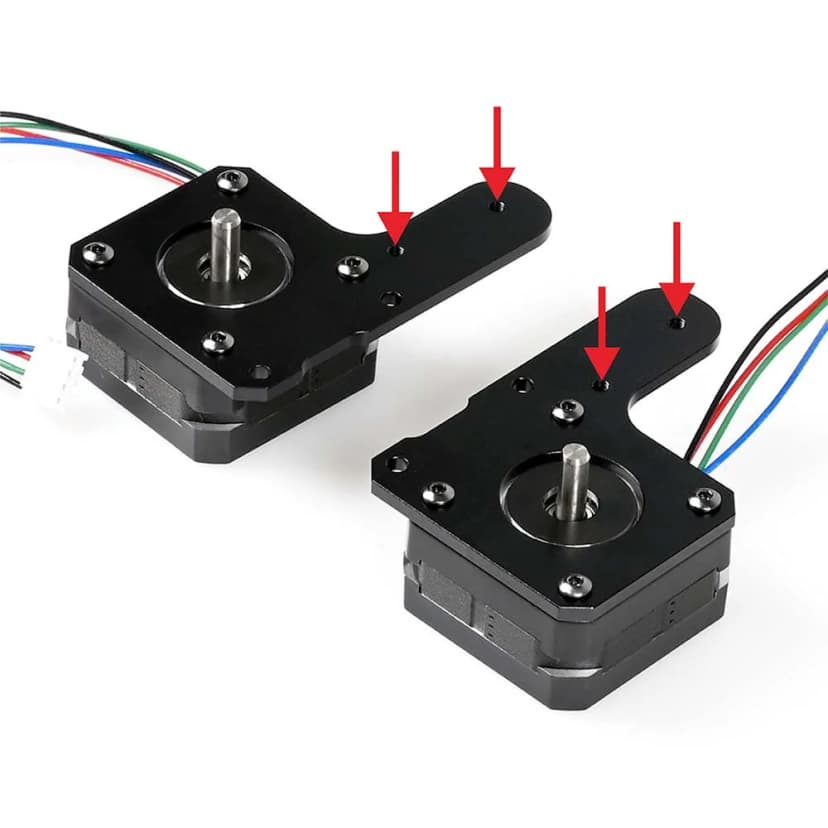

Install the hex standoffs in the indicated holes.

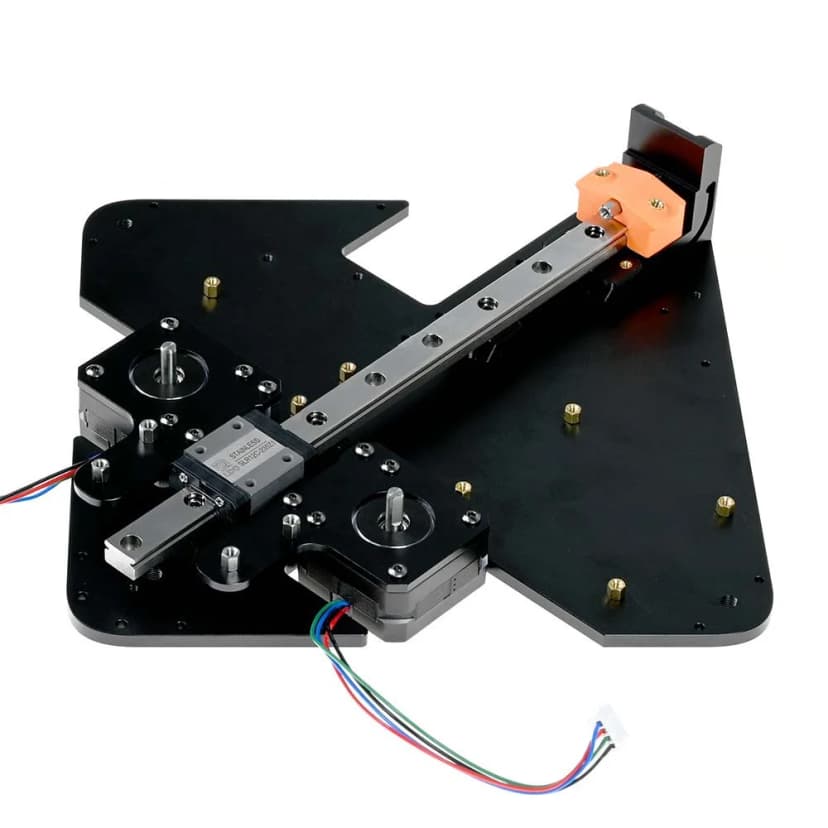

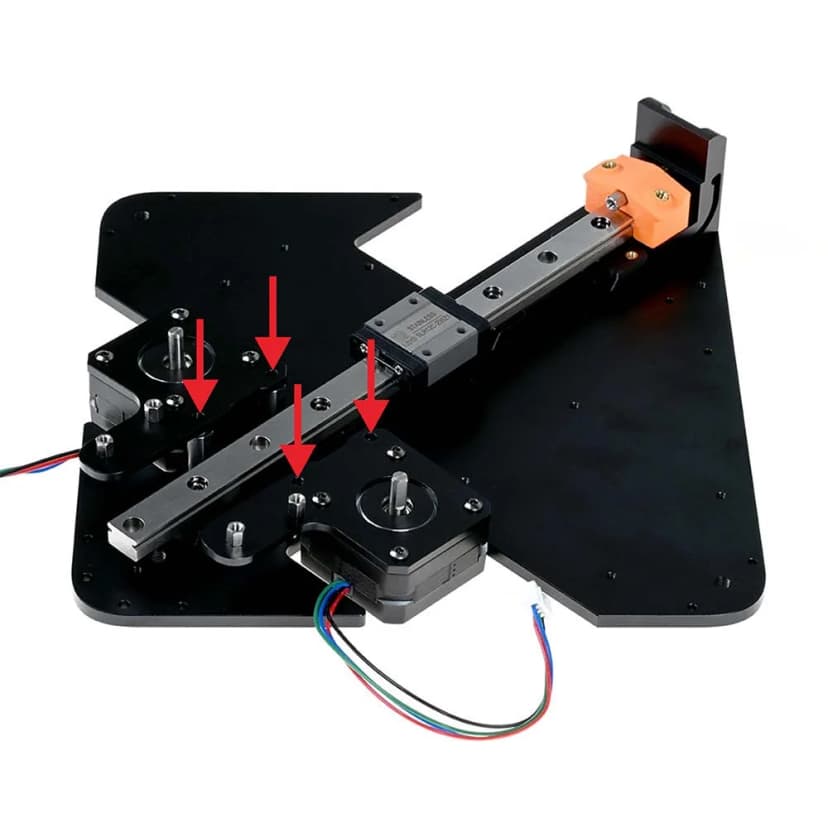

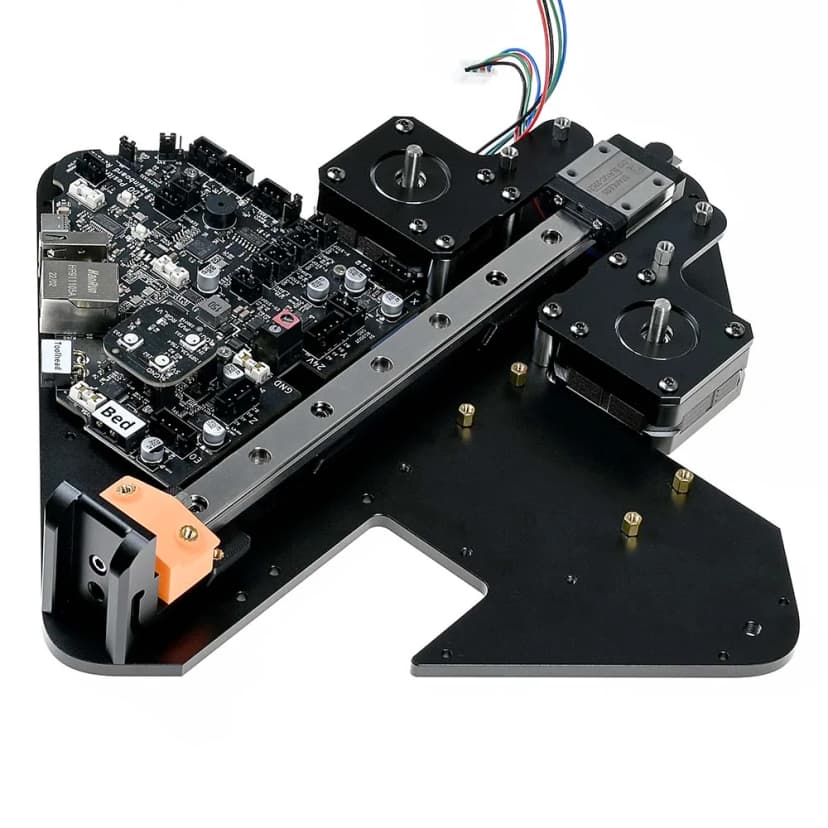

Position the motors to the standoffs and align the holes of the plates with the standoffs. Secure with M3x8 BHCS screws.

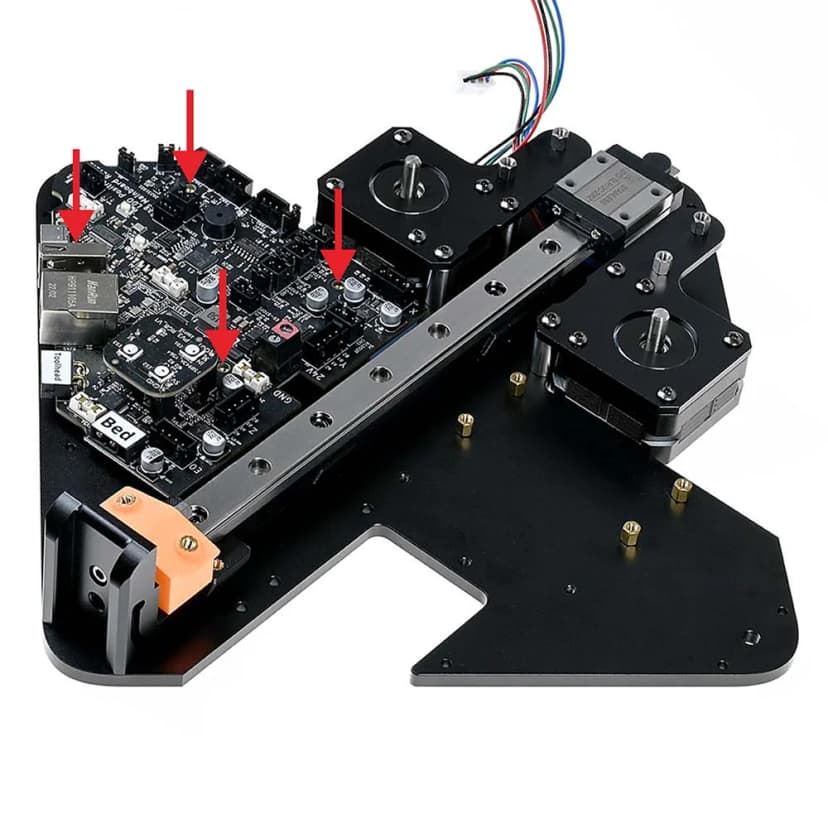

Use M2.5x4+5 standoffs in the indicated holes.

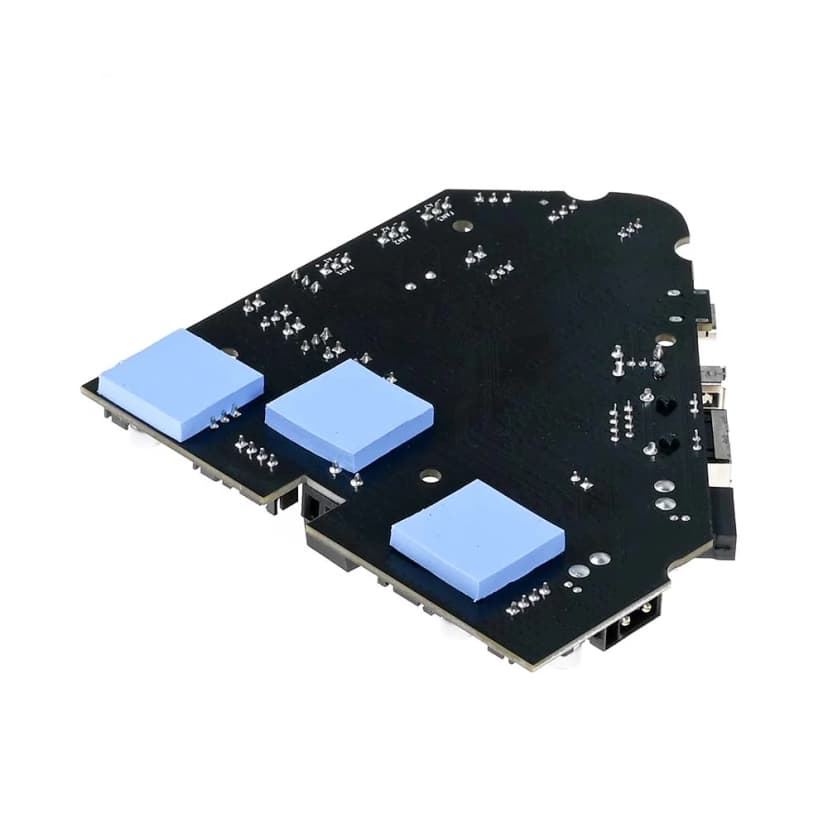

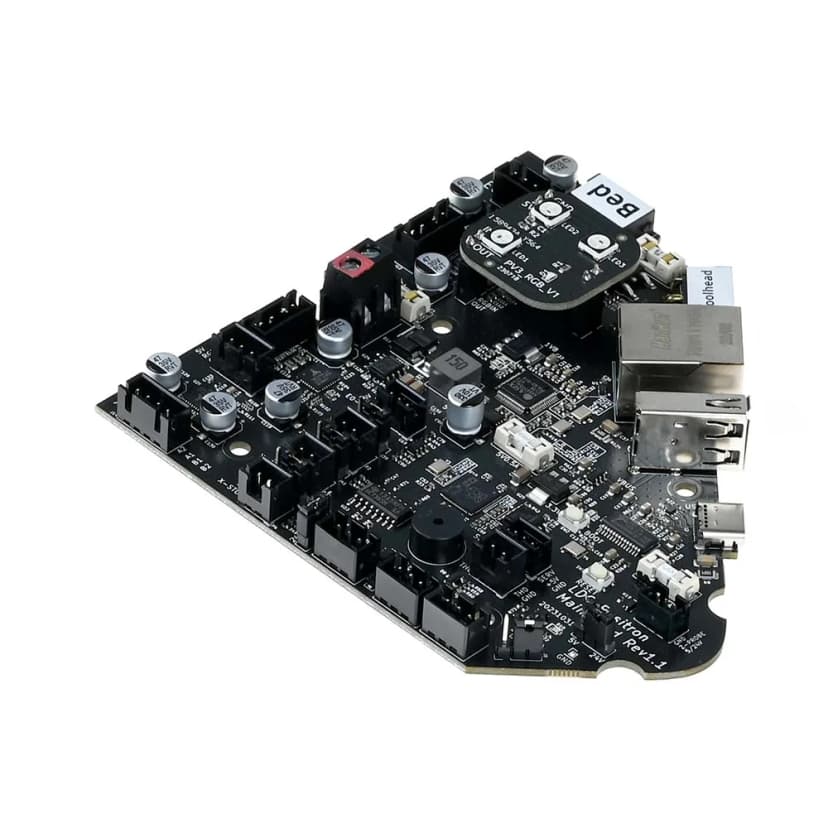

Turn the board over and stick the thermal silicone pads to the spots as shown in the image.

Align the four holes of the Positron board with the holes of the base plate, and secure using M2.5x4 SHCS screws.

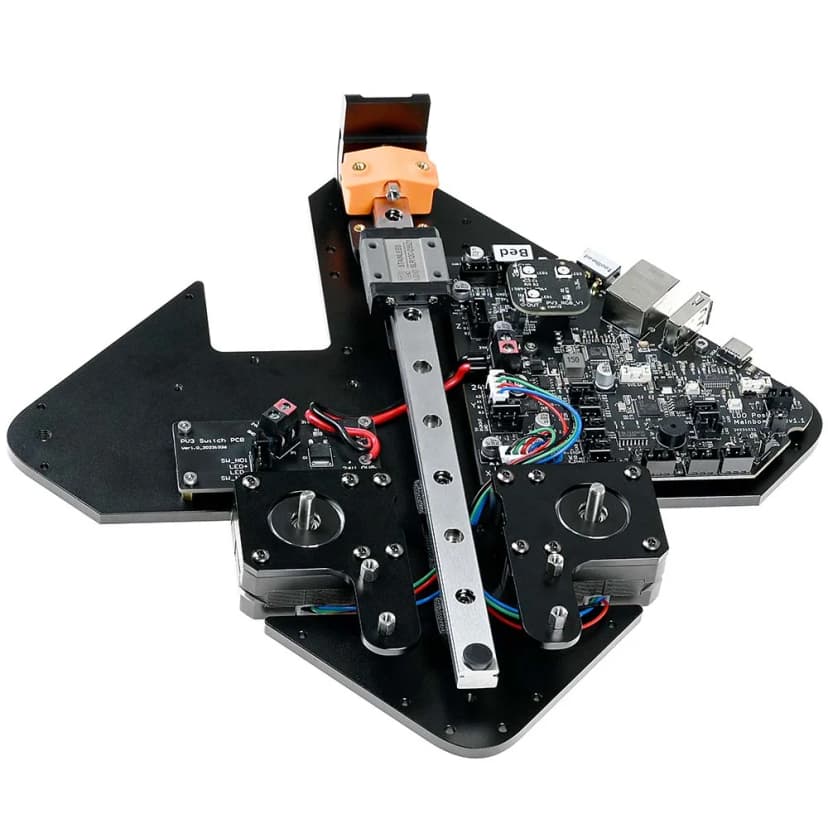

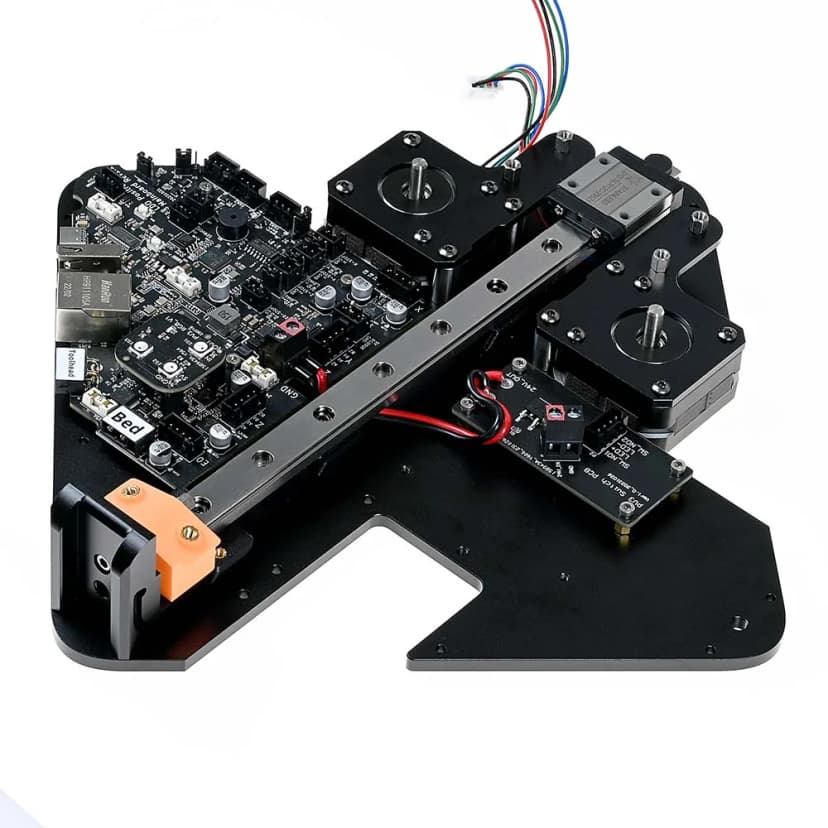

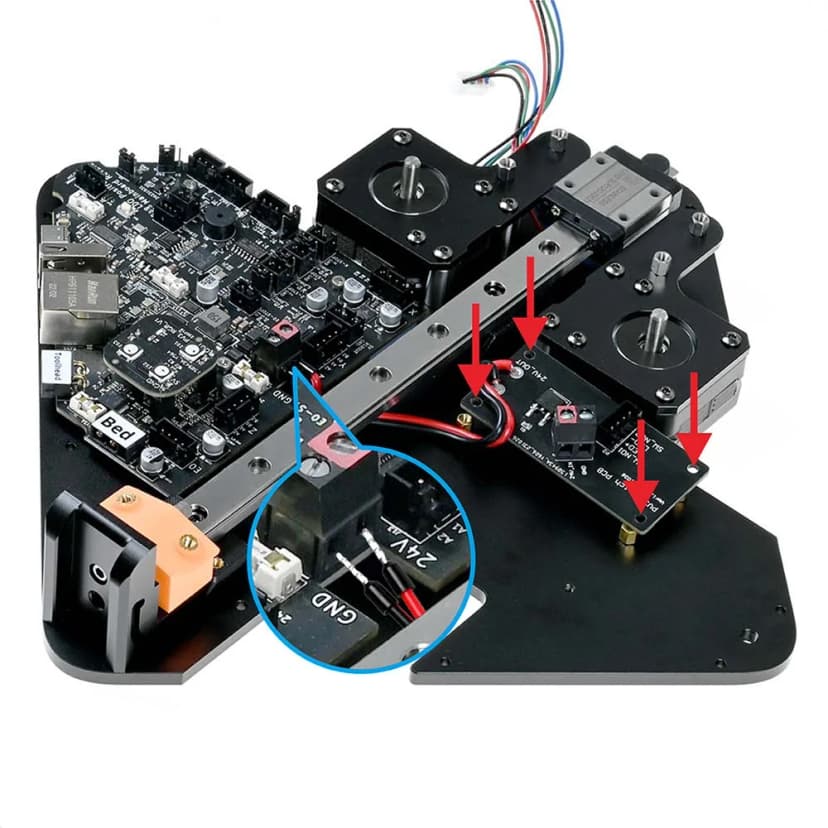

Position the PV3 switch board on the standoffs and secure with M2.5x4 SHCS screws.

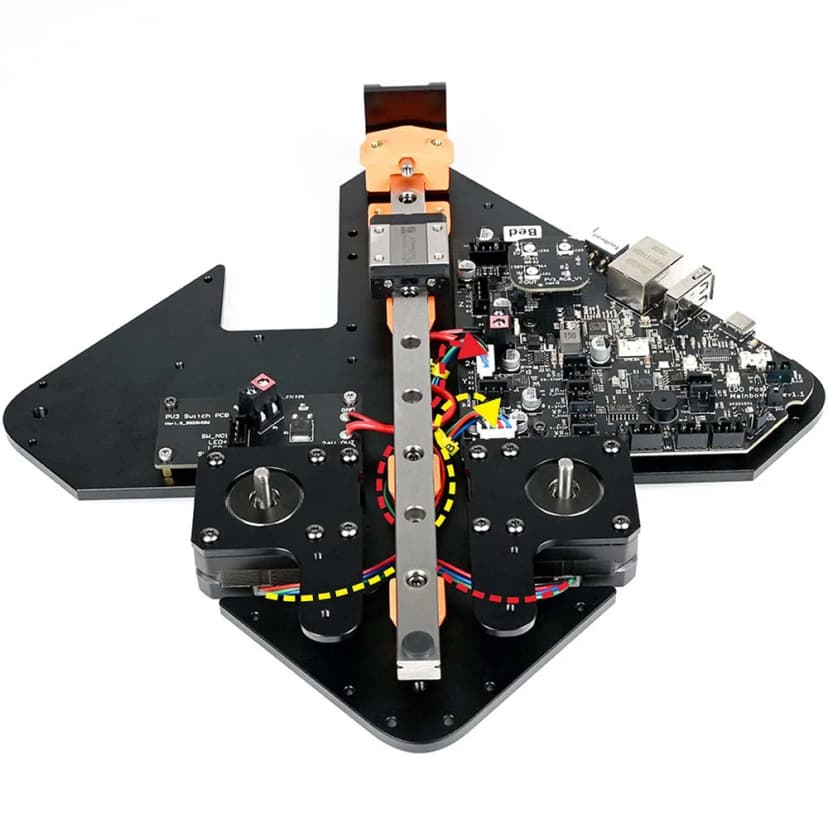

Make sure the black and red wires go to the corresponding colored terminals as shown in the picture.

The wires need to be positioned as close to the bottom of the plate as possible. Don't let them curl up. Otherwise it may affect the following assembly of the front LED PCB.

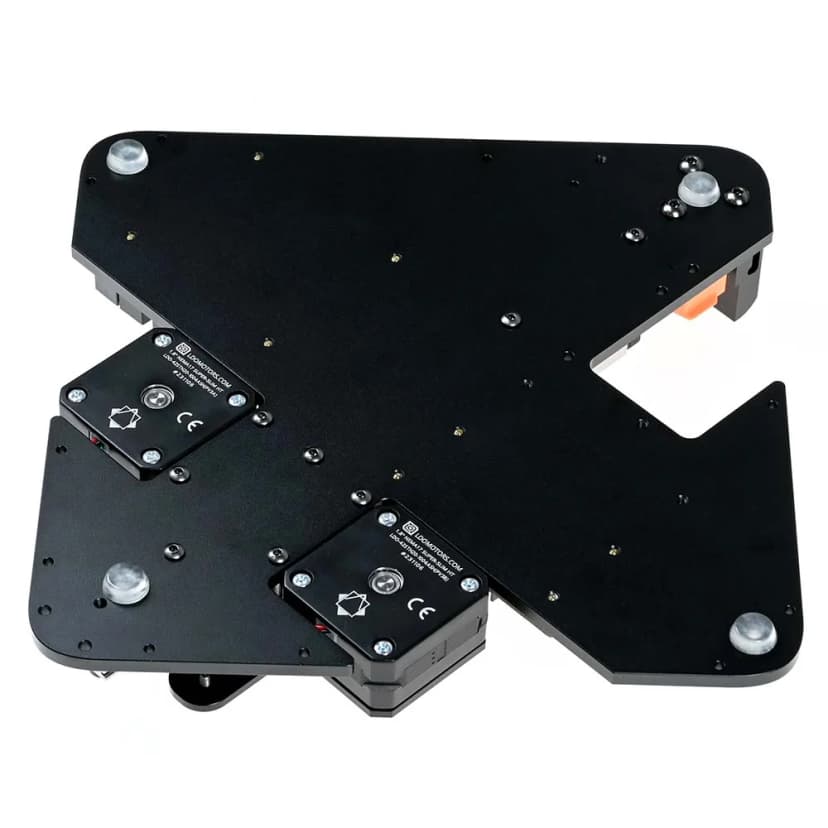

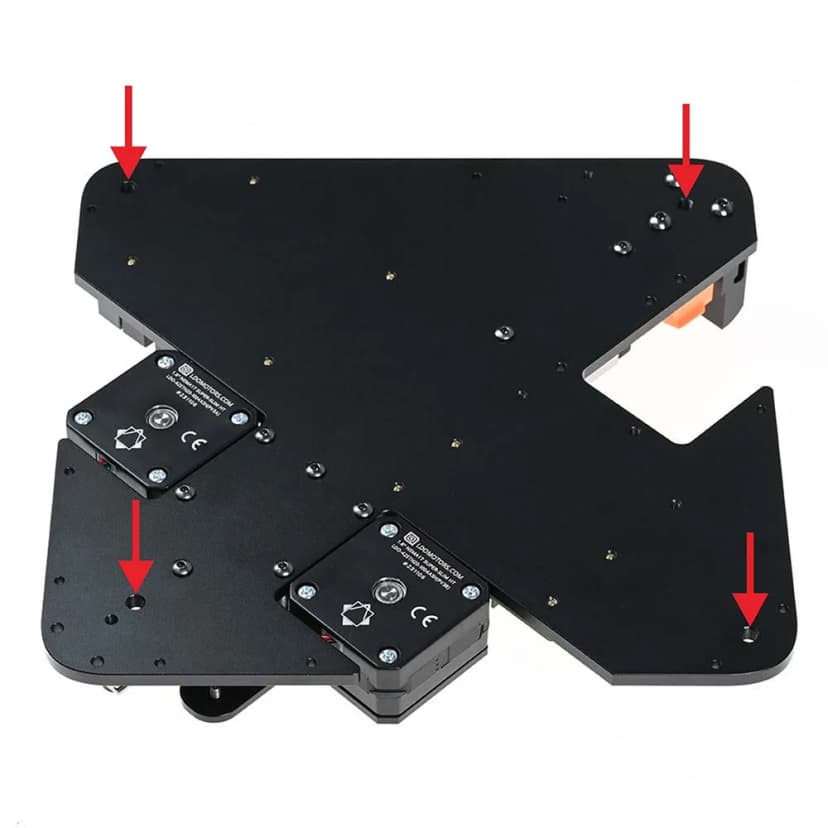

Install the rubber feet into the four corners on the back of the base plate.
