Kirigami Bed for Voron V0.1
This guide will step you through the assembly of the Kirigami Bed. As you work through this guide, you can track your progress as you complete steps by check marking each step in the upper left corner. This progress can be quickly summarized in the "Sections" window to the left. We would thank the Voron Design team for all of their hard work and contributions to the 3D printing community. GPLv3 License Attributions: https://github.com/christophmuellerorg/voron_0_kirigami_bed https://github.com/VoronDesign For more information and support: https://vorondesign.com https://discord.gg/voron https://docs.ldomotors.com
1. Parts to Print
These are the printed parts that are necessary for the Kirigami Bed
Printed Parts
Print the Diffuser with a clear/translucent type of filament for the best effect with Neopixel lighting. If a clear/translucent filament is not available, a white filament with minimum infill will also work.
We recommend using ABS filaments for printed parts. ABS is best suited for applications where there is a need for strength. ductility, machinability, and thermal stability. ABS is more durable than PLA. Regular Printed Parts Clear Printed Part
Step Images
2. Printed Parts Preparation
Install Diffuser into Front End
\N
Make sure that the Diffuser is aligned correctly and press the Diffuser into the Front end.
Step Images

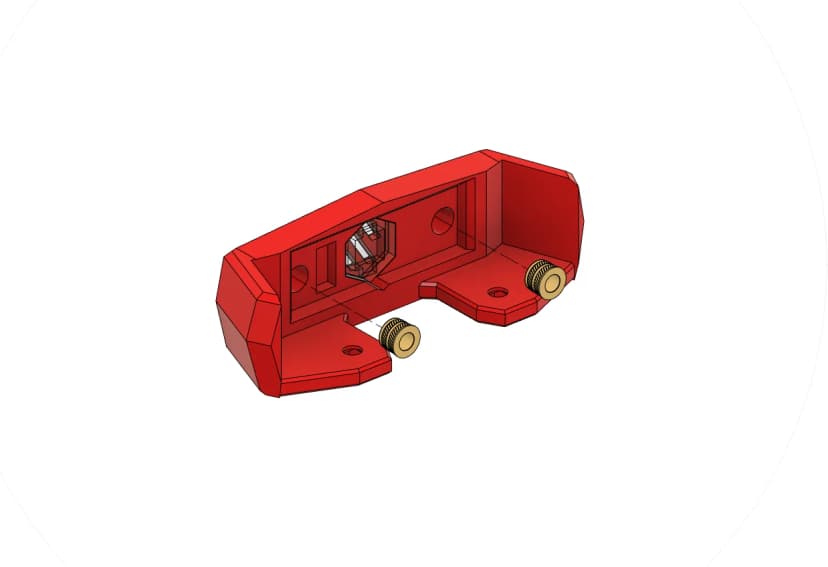

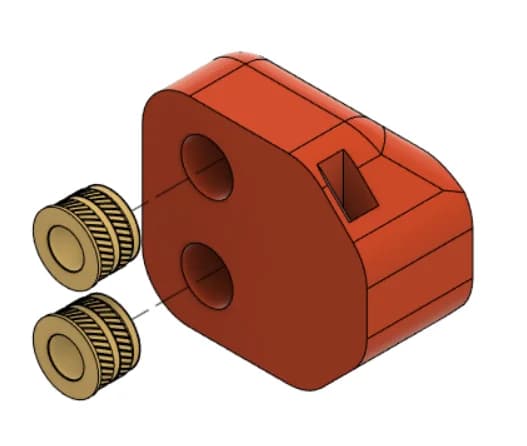

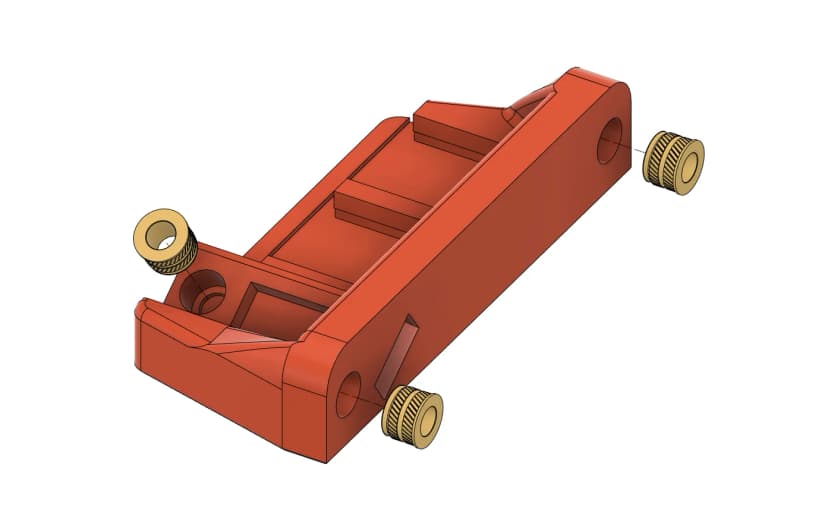

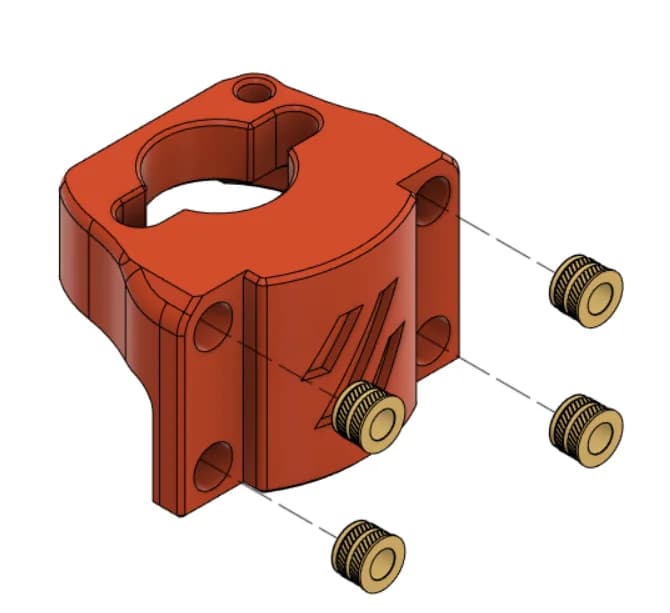

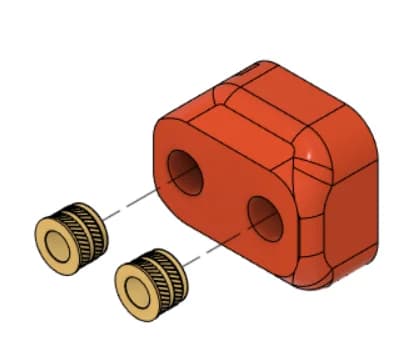

Heatset Inserts
Add Heat Inserts using the Heat Insert tool for your soldering Iron
Recommend you set your soldering Iron to ~300C
As the Heat Insert heats up, apply perpendicular pressure until the Heat Insert is flush with the surface of the printed parts.
If you have never worked with heat set inserts, we recommend you watch this guide Heat Set Insert
Step Images

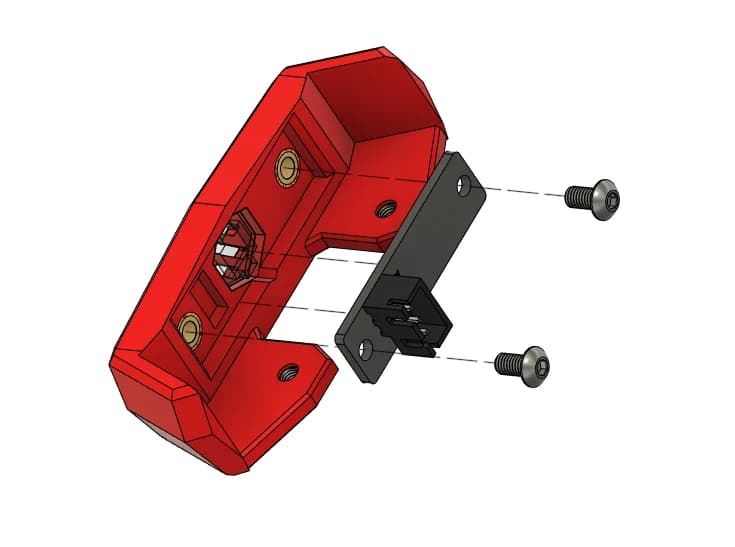

PCB install on Front End for Kirigami Bed
Install Neopixel PCB to Front End using 2 - M3x6 BHCS screws
Step Images

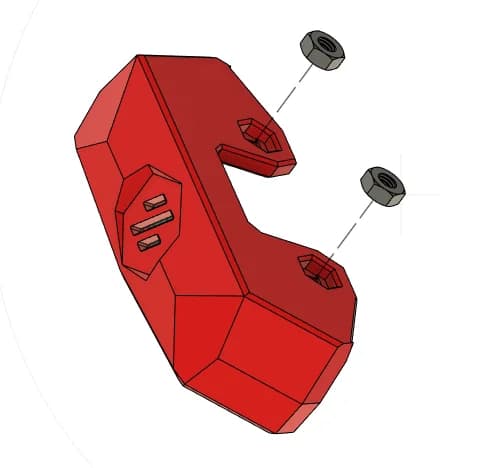

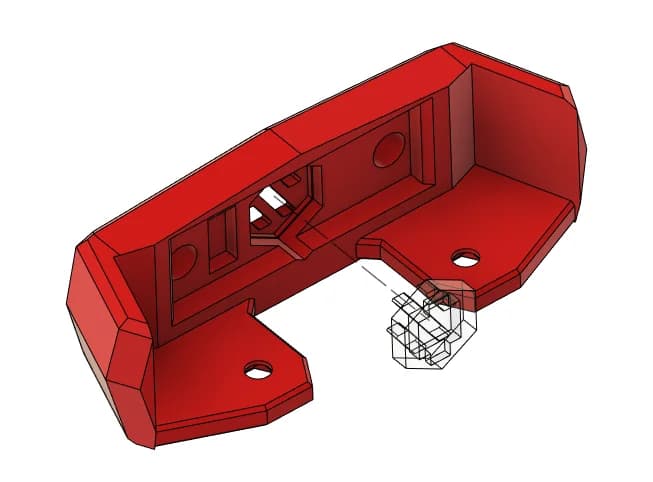

Front End Mounting Nuts
Press in 2 -Black-oxide steel Hex Nuts
Step Images

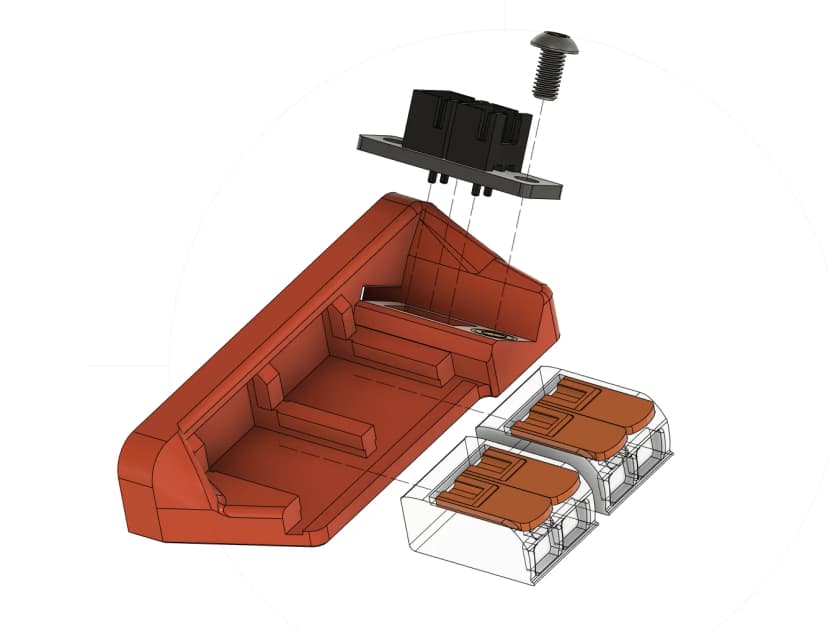

Breakout Mount Setup
Slide in Joiner PCB base into opening in Breakout Mount. Install Joiner PCB onto Breakout Mount using 1 - M3x6 BHCS screw.
Snap in 2 - WAGO 221-412 into the Breakout Mount
Step Images
3. Kirigami Bed Assembly
After preparing all parts, these following steps will guide you through the assembly of the Kirigami Bed

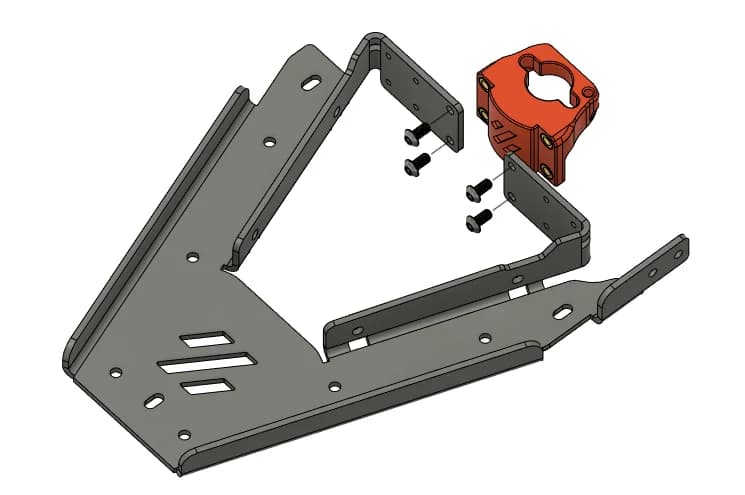

Install Nutblock
Install Nutblock to Kirigami Frame using 4 - M3x6 BHCS screws
Step Images
Install Chain Mount

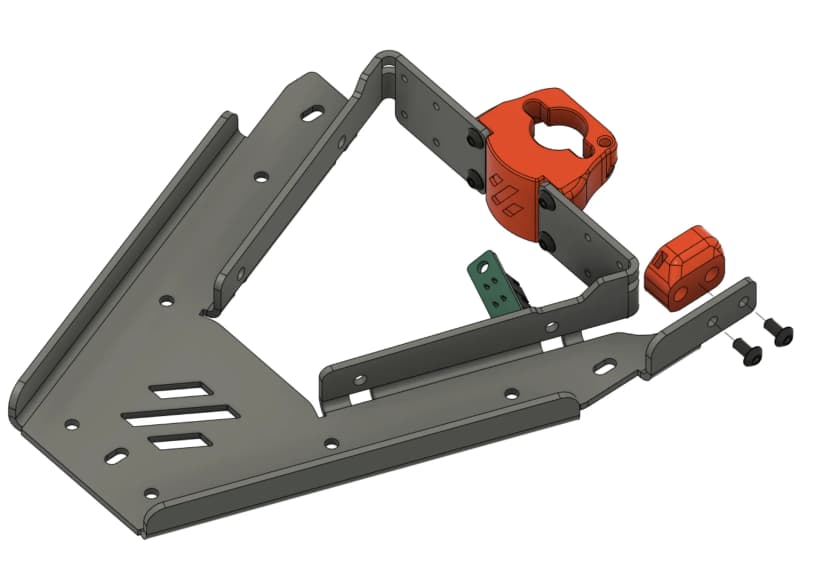

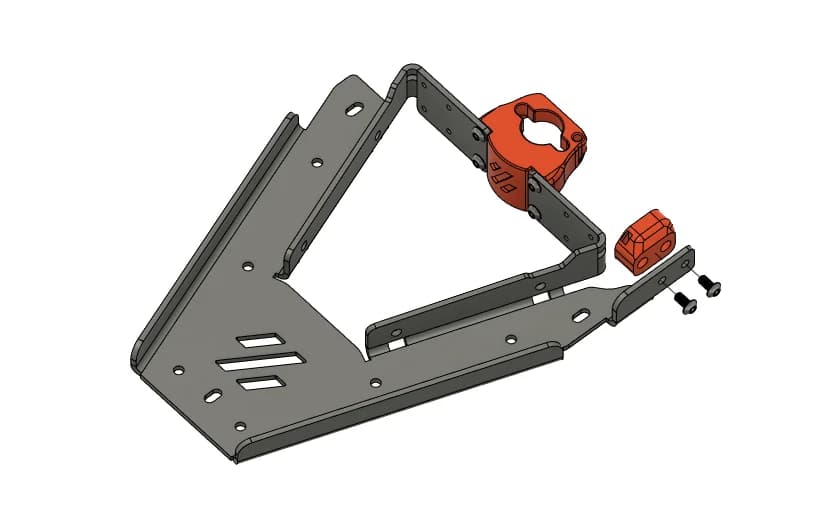

Install Chain Mount to Kirigami Frame using 2 - M3x6 BHCS screws For V0.1 attach the mount as shown.
For V0.2 attach the mount on the outside. All following images will show the mount in the position for V0.1
Step Images
Referenced by step 2

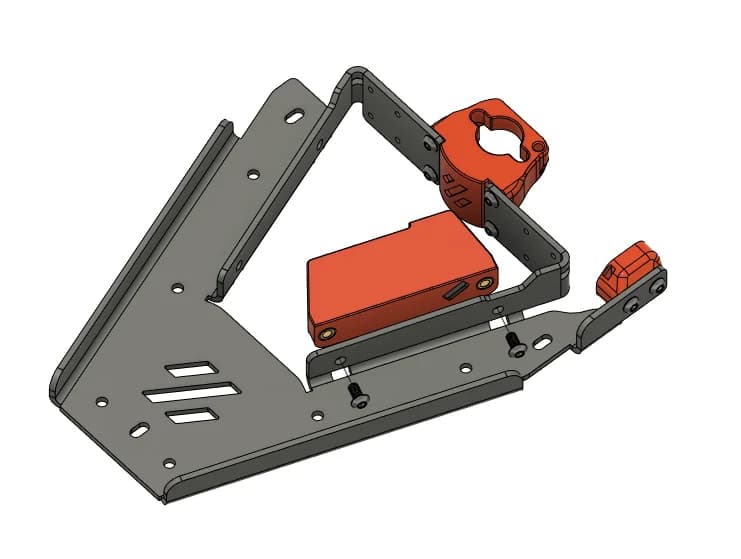

Install Breakout Mount
Install Breakout Mount using 2 - M3x6 BHCS screws
Step Images

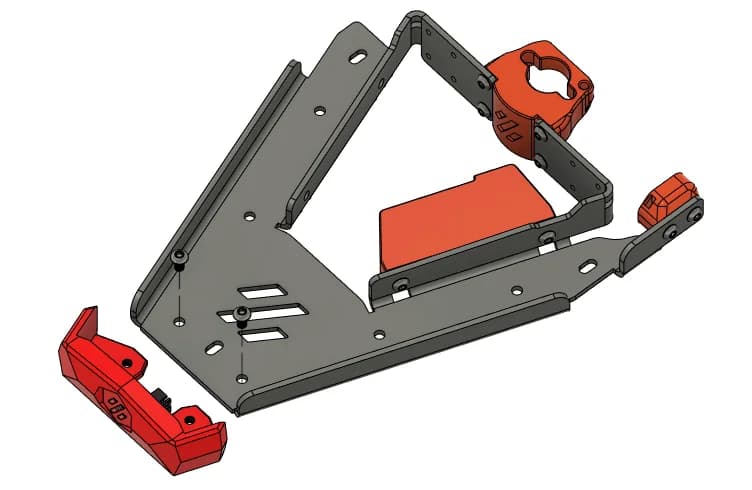

Install Front End
Install Front end to Kirigami frame using 2 - M3x6 BHCS screws
Step Images

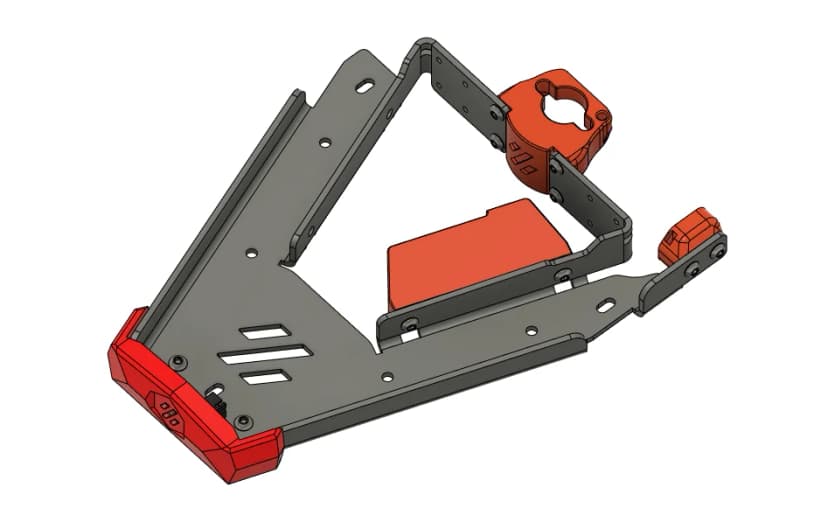

Final Product
Ready for wiring!
If this is a new build. Return to the Voron Assembly Manual until you are ready for wiring.
Step Images
4. Kirigami Bed Wiring

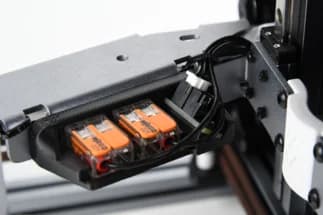

Heater & Thermistor extension cable connections
Attach the heater lead extension to each WAGO 221-412
The thermistor extension cable should be attached to any connection on the Joiner PCB
Step Images

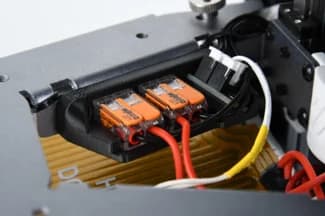

Heater & Thermistor Lead connections
Connect the heater wire from the bed to the remaining open connections on the WAGO 221-412
Connect the thermistor lead from the bed to the remaining open connection on the Joiner PCB
Step Images

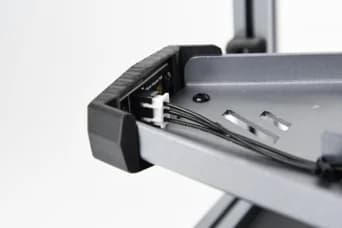

Neopixel Cable connection
Run the Neopixel cable towards the Front end PCB and attach to the Neopixel PCB on Front end.
Be sure that the cables will not make any contact with the heater, use zip ties as necessary to fasten the cable along the Kirigami Frame.
Step Images
