5 - Positron V3.2 - Touch Panel

This guide contains instructions for building the touch panel for the Positron V3.2.

1. Parts to Print

Before you start to assemble the touch panel, please make sure you have these parts printed.

Printed Parts

Step 1 of 2 in this section

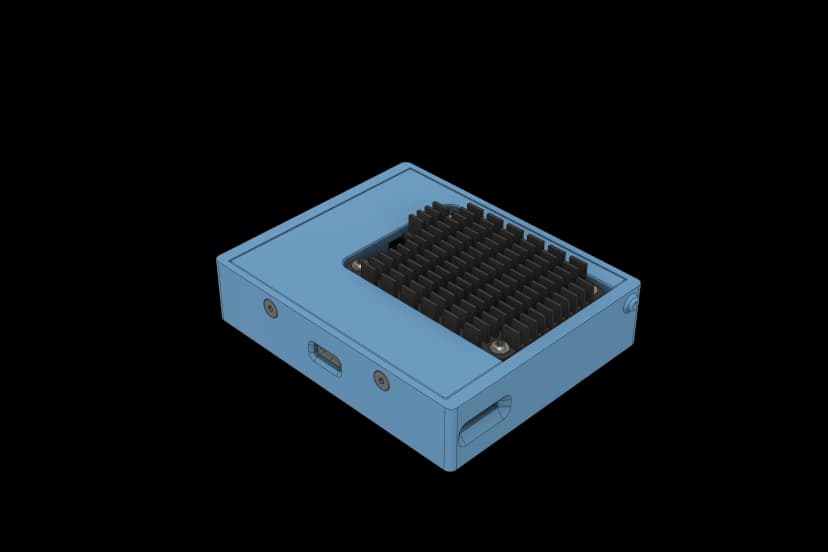

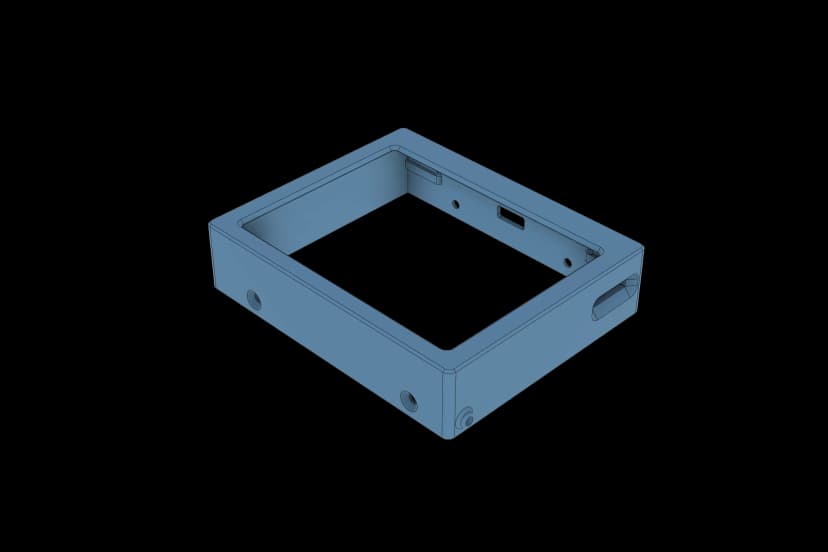

Touch Enclosure x1

1 image(s) - Click to view

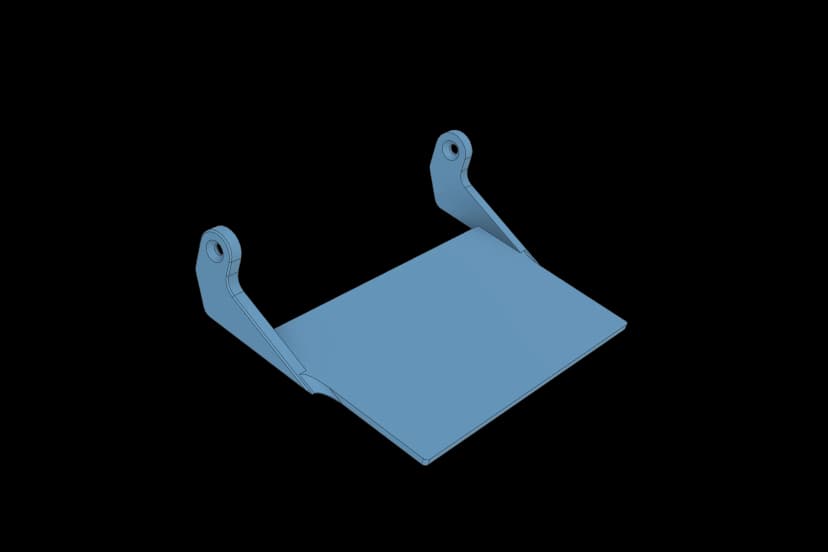

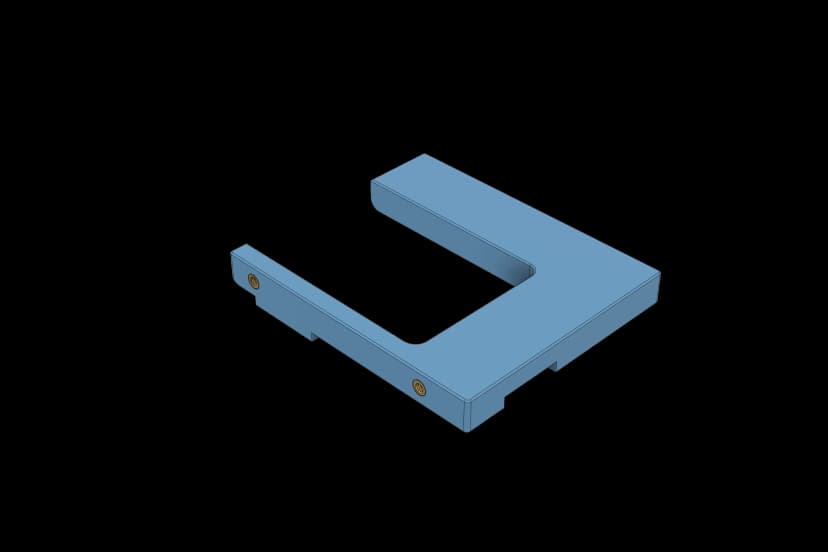

Cover Stand x1

1 image(s) - Click to view

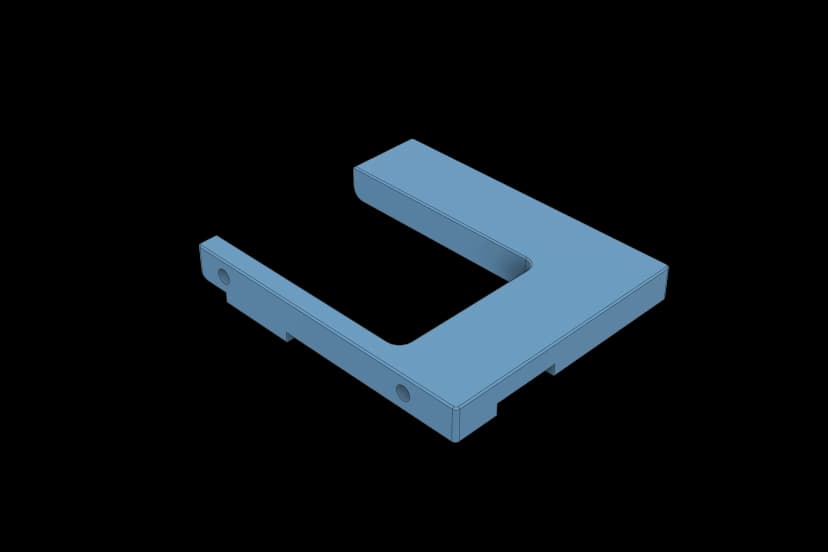

Back Plate x1

1 image(s) - Click to view

Step Images

Referenced by step 1

Referenced by step 2

Referenced by step 3

Preparation for the Printed Part

Step 2 of 2 in this section

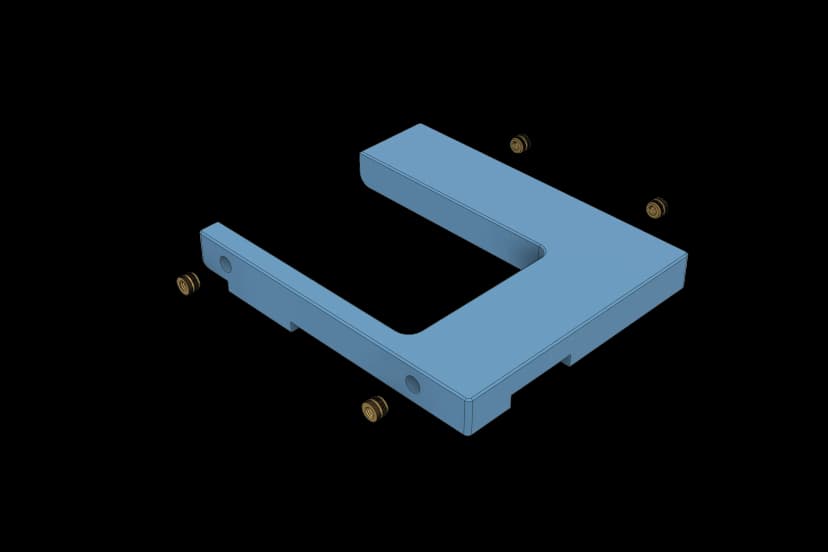

Install M2.5x3x4 heatset inserts into holes of the printed back plate.

1 image(s) - Click to view

Step Images

Referenced by step 1

2. Installation

For all the M2.5 screws, please use our screwdriver included in the kit.

Install the Wifi Antenna

Step 1 of 5 in this section

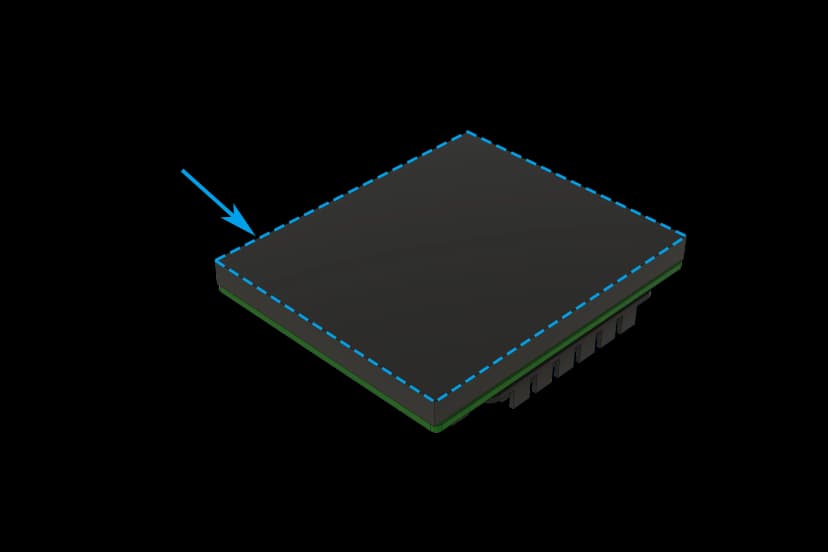

Remove the film on the screen.

1 image(s) - Click to view

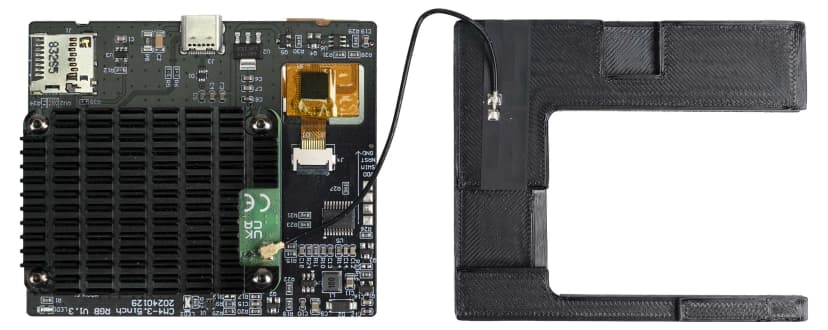

Then remove the adhesive on the surface of the wifi antenna and stick it to the printed back plate.

1 image(s) - Click to view

Step Images

Referenced by step 1

Referenced by step 2

Install the Touch Control

Step 2 of 5 in this section

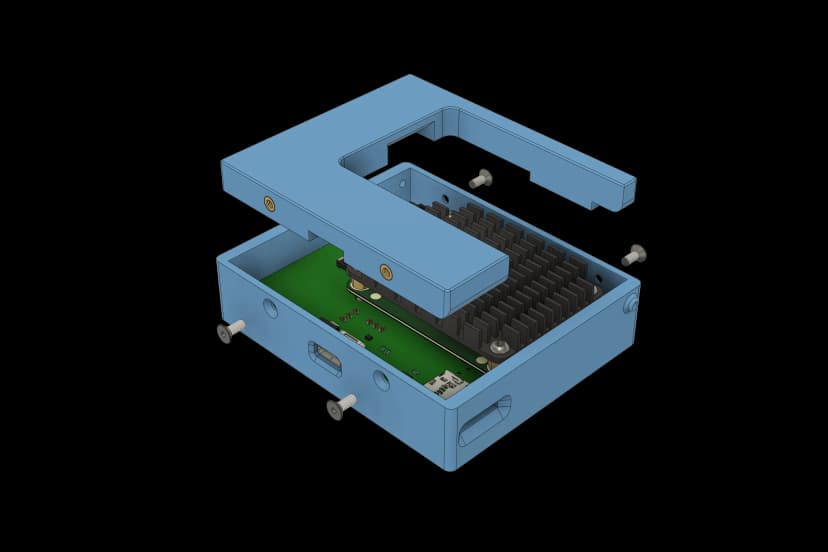

Put the touch control into the touch enclosure and cover the back plate.

1 image(s) - Click to view

Secure the cover with M2.5x6 FHCS screws.

1 image(s) - Click to view

Step Images

Referenced by step 1, 2

Assemble the Cover Stand

Step 3 of 5 in this section

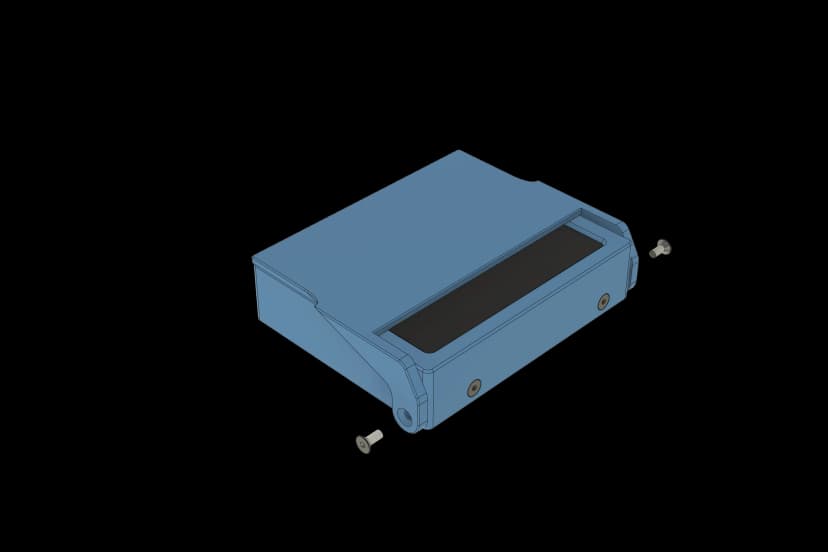

Attach the printed touch enclosure and cover stand together and then secure with M2.5x6 FHCS screws.

1 image(s) - Click to view

Step Images

Referenced by step 1

Install SD Card

Step 4 of 5 in this section

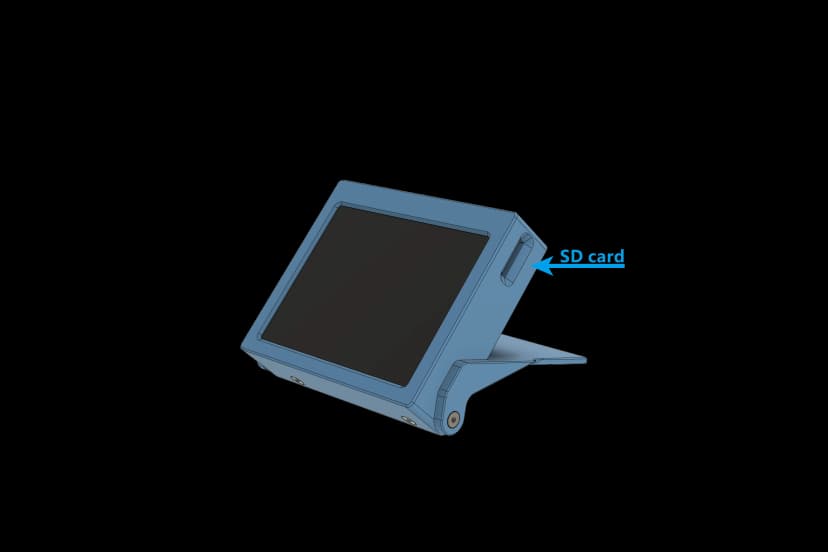

Put the SD card into the touch panel.

1 image(s) - Click to view

The SD card has been flashed.

Step Images

Referenced by step 1

Assembly Complete

Step 5 of 5 in this section

Now you have completed the assembly of the touch panel.

1 image(s) - Click to view

Step Images

Referenced by step 1
