4 - Positron V3.2 - Bed V Holder

This guide contains instructions for building the bed V holder for the Positron V3.2.

1. Parts to print

Before you start to assemble, please make sure that you have these parts printed.

Step 1 of 1 in this section

Bed Spring Retainer Ring x2 (Remember to remove the printed support.)

1 image(s) - Click to view

Referenced by step 1

Step 1 of 4 in this section

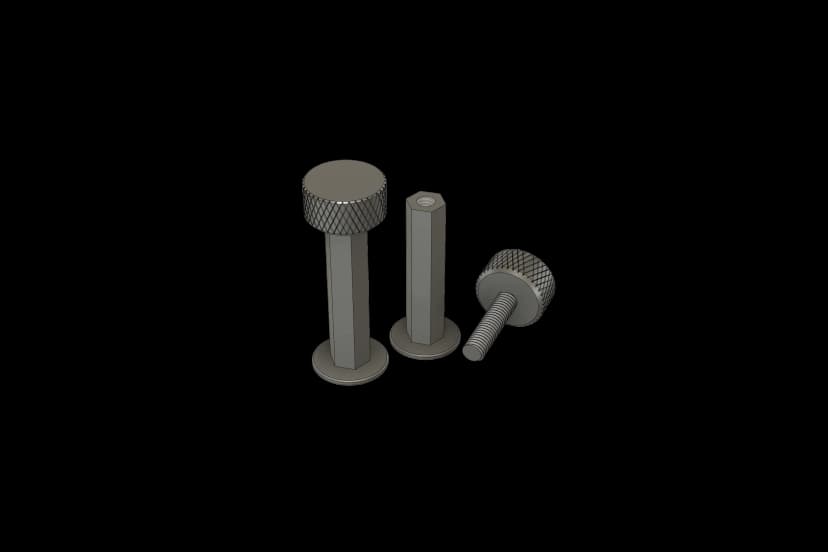

When you receive the parts, they are pre-assembled as shown in the picture. Please unscrew the M3x12 thumbscrews first.

1 image(s) - Click to view

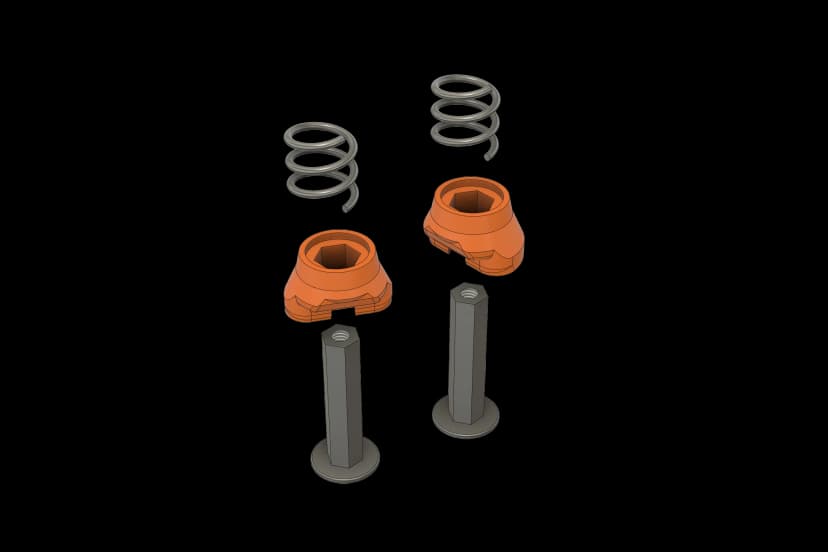

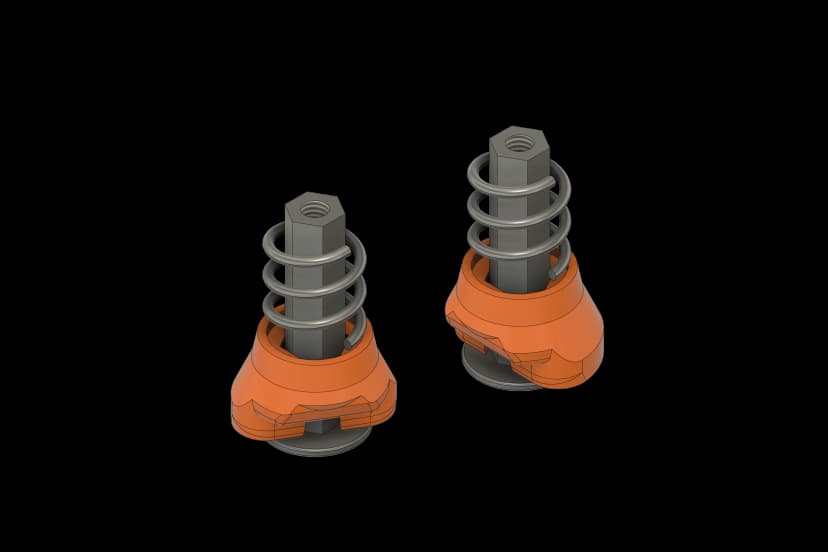

Install the bed spring retainer rings and the springs onto the standoffs.

1 image(s) - Click to view

Referenced by step 1

Referenced by step 2

Step 2 of 4 in this section

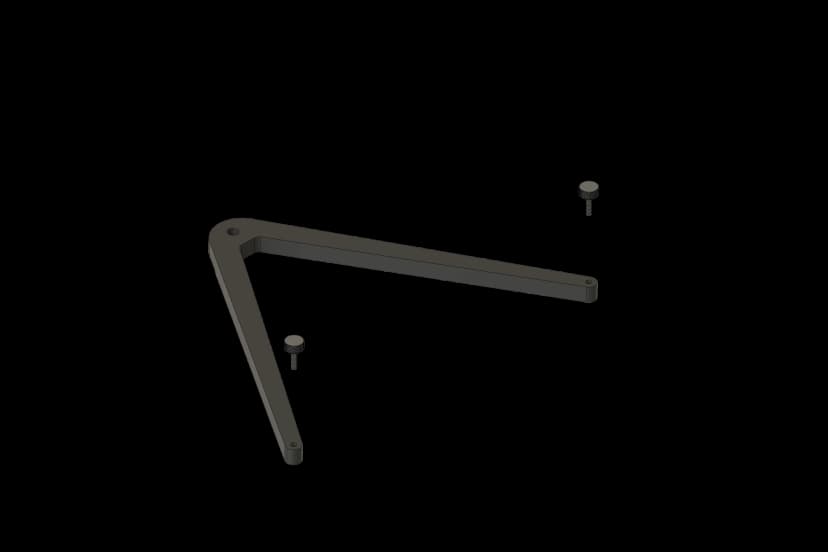

Insert M3x12 thumbscrews into the holes of the bed V holder.

1 image(s) - Click to view

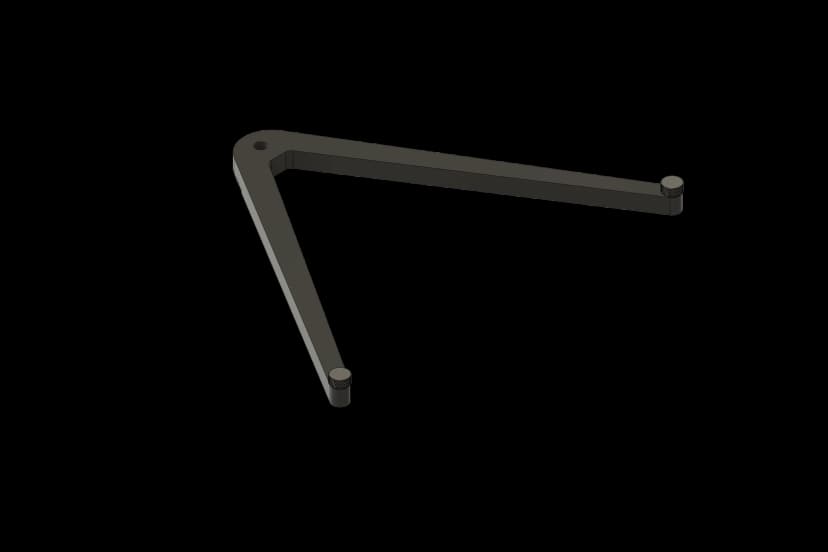

Check the orientation of the V holder so that the side with the ridges should face down.

Referenced by step 1

Step 3 of 4 in this section

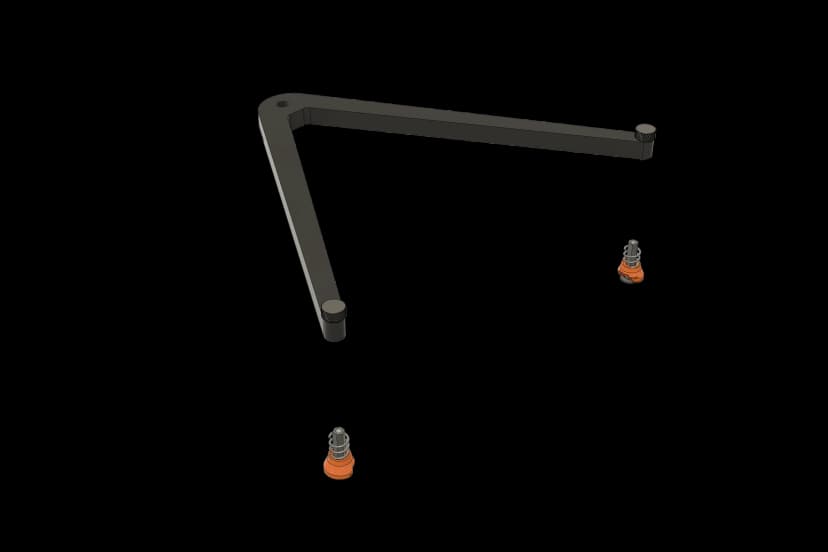

Attach the assembled standoffs to the thumb screws and tighten the thumbscrews.

1 image(s) - Click to view

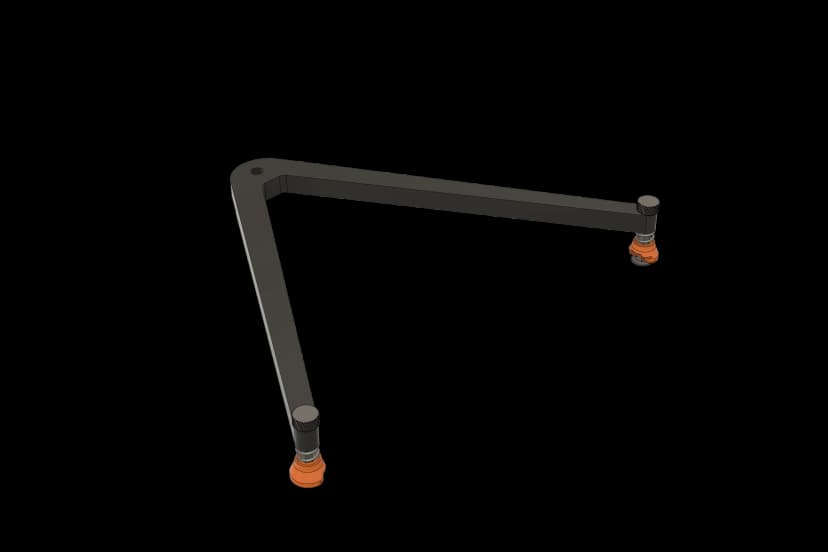

Leave the opening of the retainer ring inward facing each other.

1 image(s) - Click to view

Referenced by step 1

Referenced by step 2

Step 4 of 4 in this section

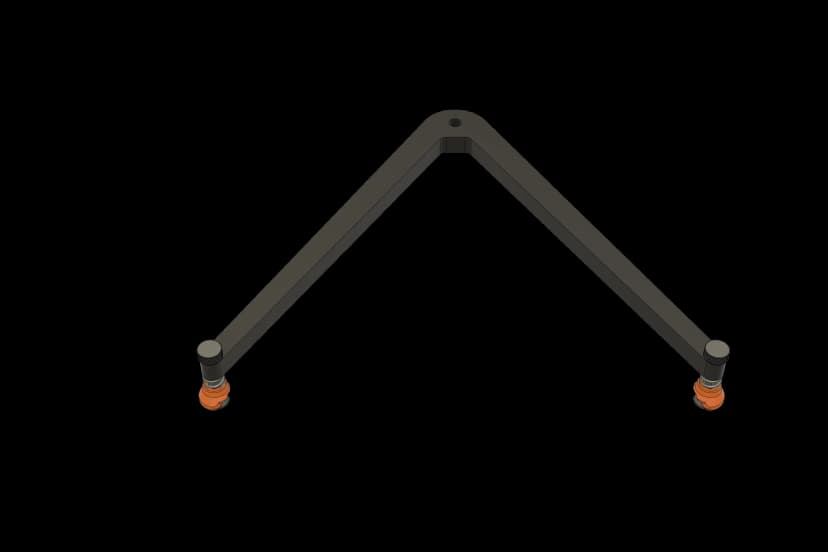

Now you have completed the assembly of the bed V holder.

1 image(s) - Click to view

Referenced by step 1
