3 - Positron V3.2 - Z Drive

This guide contains instructions for building the Z drive for the Positron V3.2.

1. Parts to Print

Before you start to assemble, please make sure you have these parts printed.

1

Printed Parts

Step 1 of 2 in this section

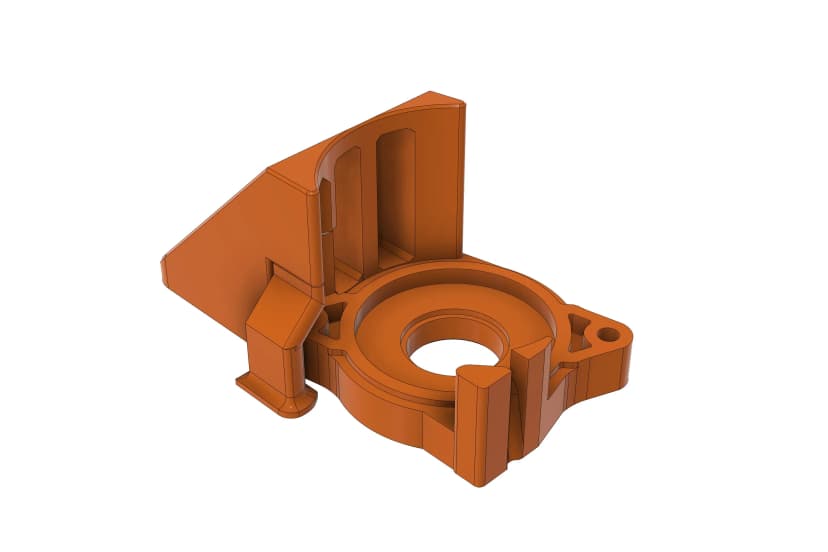

Z Drive Main Body x1 (Remember to remove the printed support.)

1 image(s) - Click to view

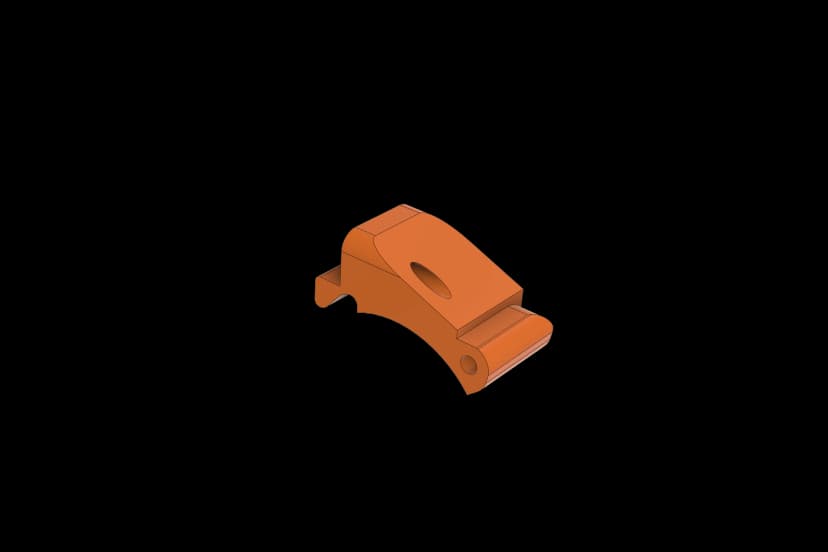

Z Drive Outer Housing x1

1 image(s) - Click to view

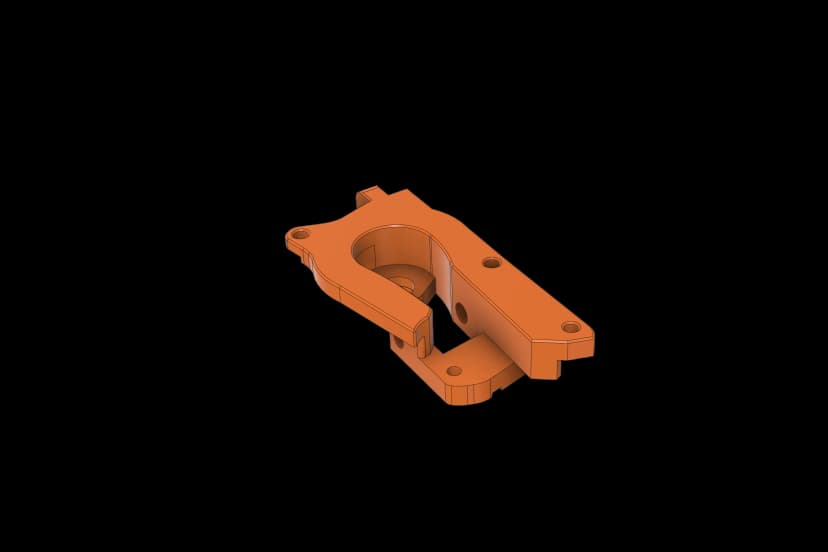

Z Motor Bracket x1

1 image(s) - Click to view

Step Images


Referenced by step 1

printed part.jpg

Referenced by step 2


Referenced by step 3

18

Preparation for the Printed Parts

Step 2 of 2 in this section

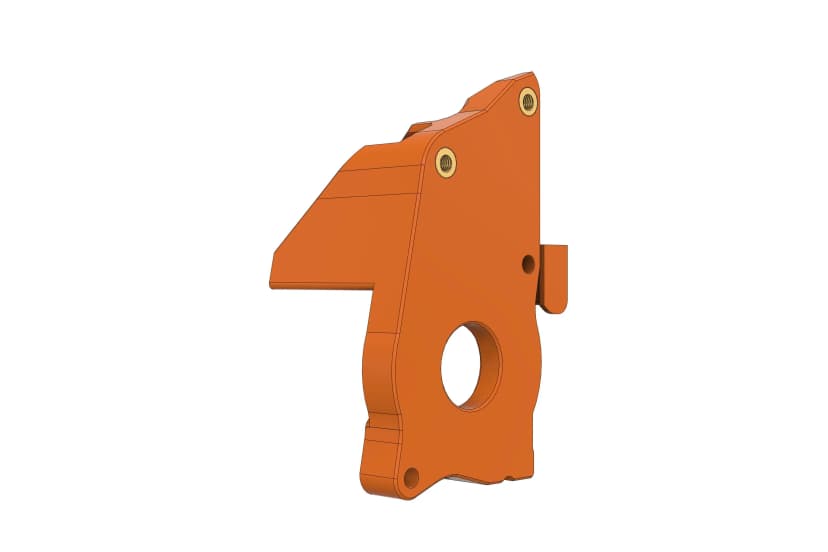

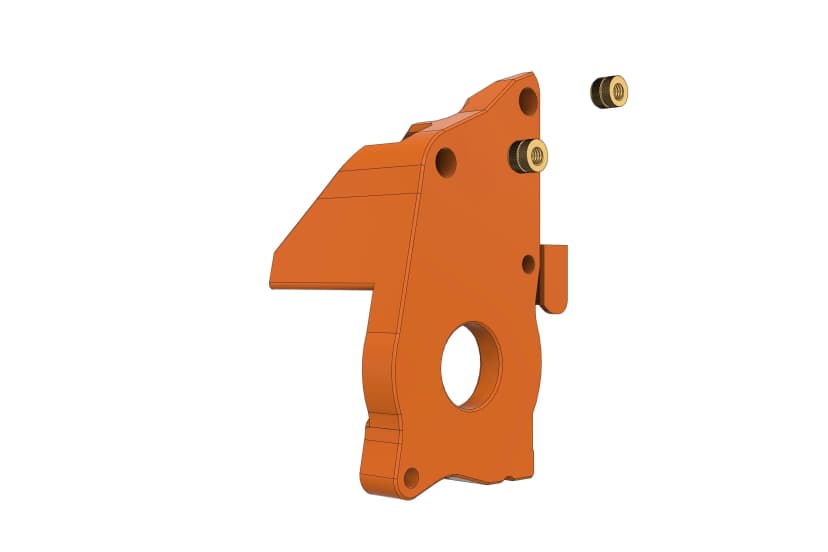

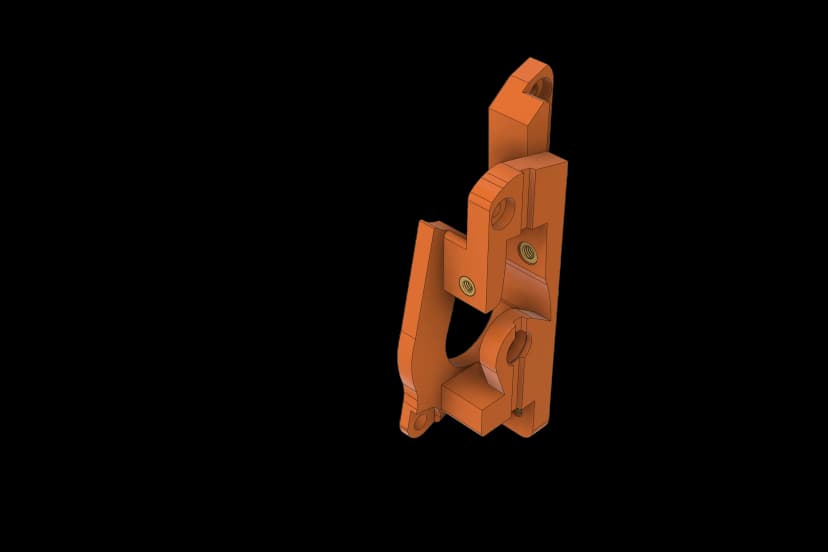

Install M3x4x5 heatset inserts into the indicated holes of the printed part.

1 image(s) - Click to view

Install one M2.5x3x4 heatset into the hole of the main body as shown in the picture.

1 image(s) - Click to view

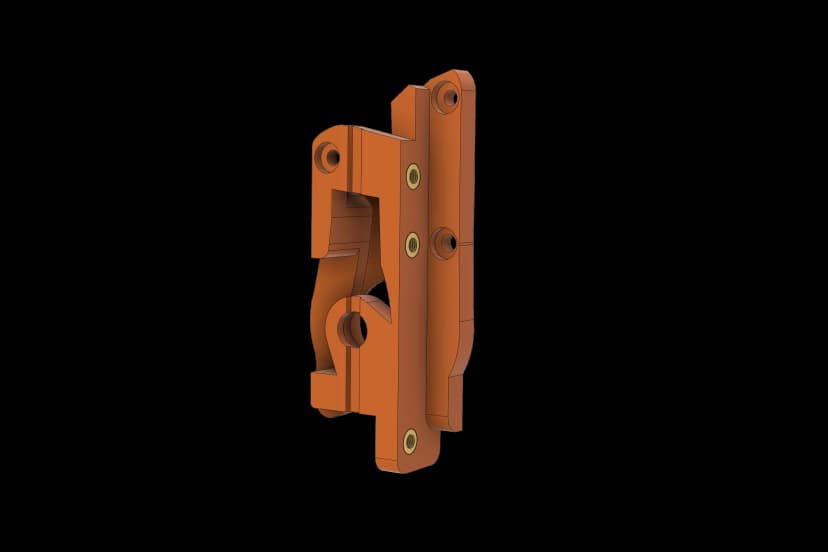

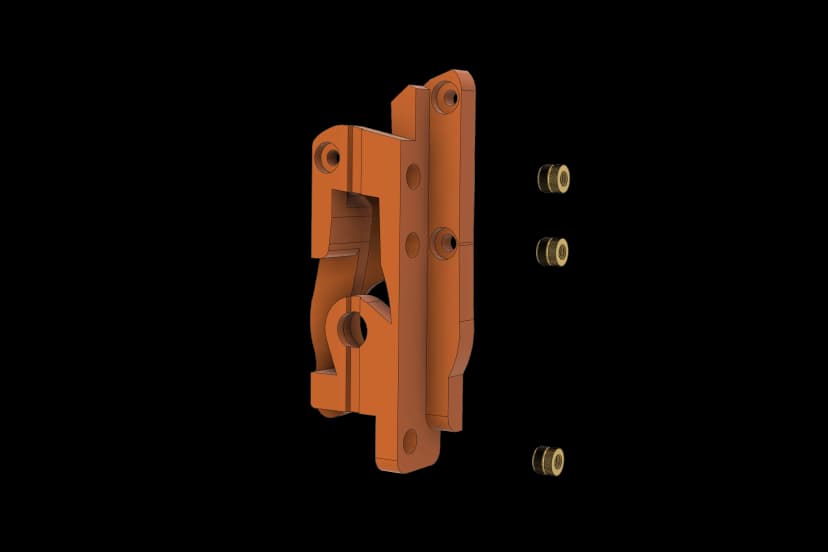

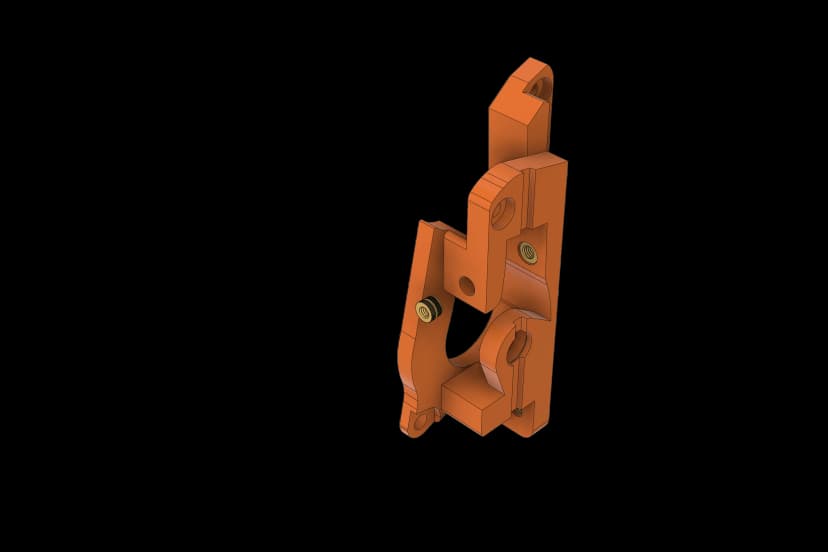

Install M3x4x5 heatset inserts into the holes as indicated in the picture.

1 image(s) - Click to view

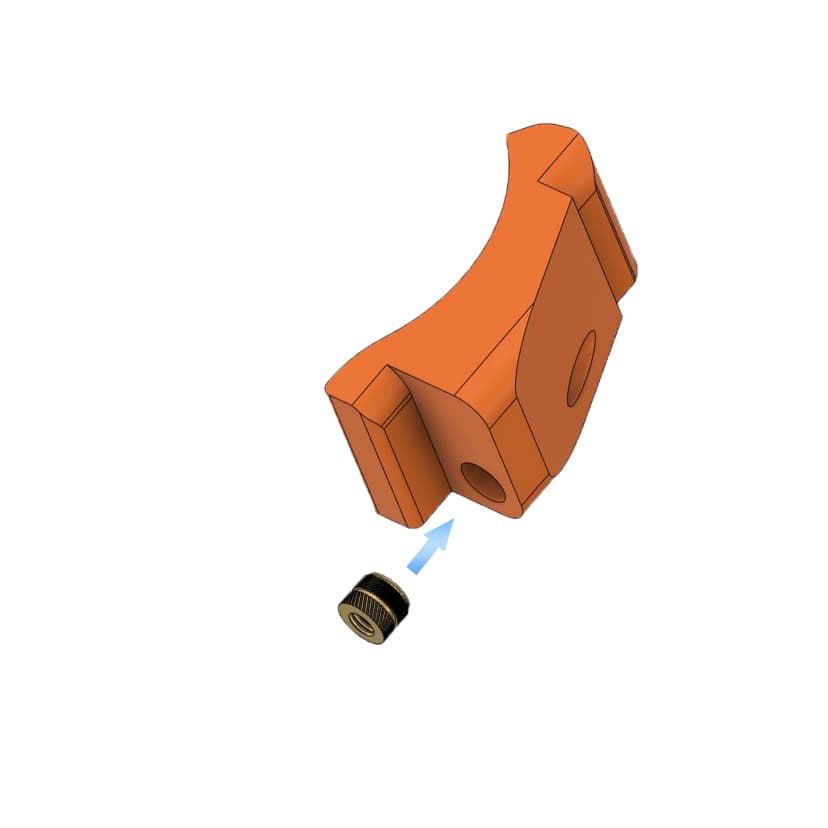

Install one M3x4x5 heatset insert into the hole of the motor bracket.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

insert 1.jpg

Referenced by step 3

insert 2.jpg

Referenced by step 4

2. Installation

2

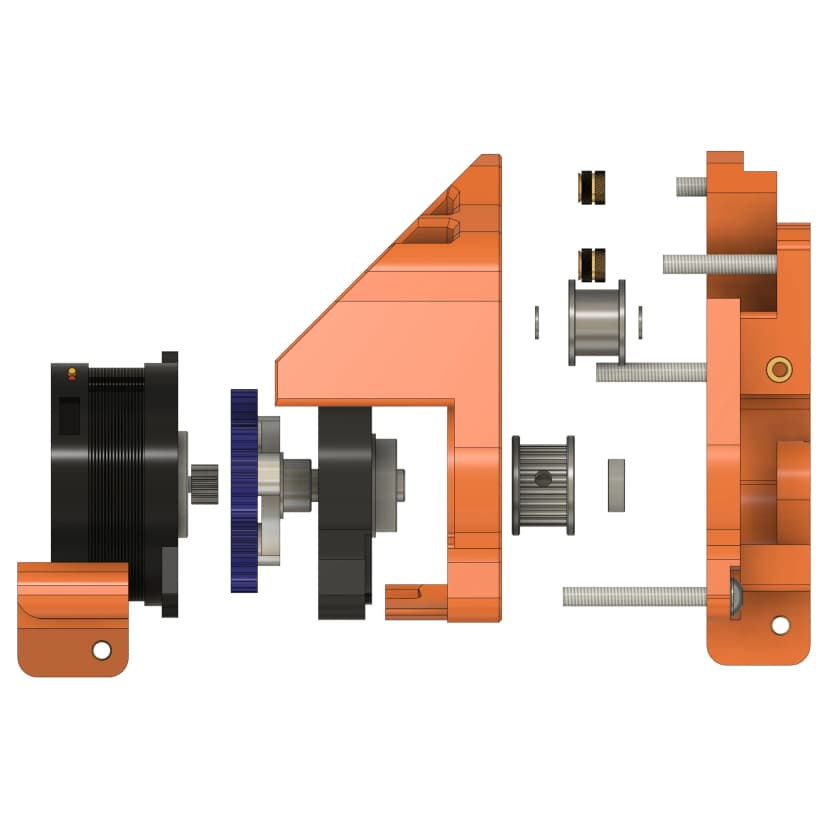

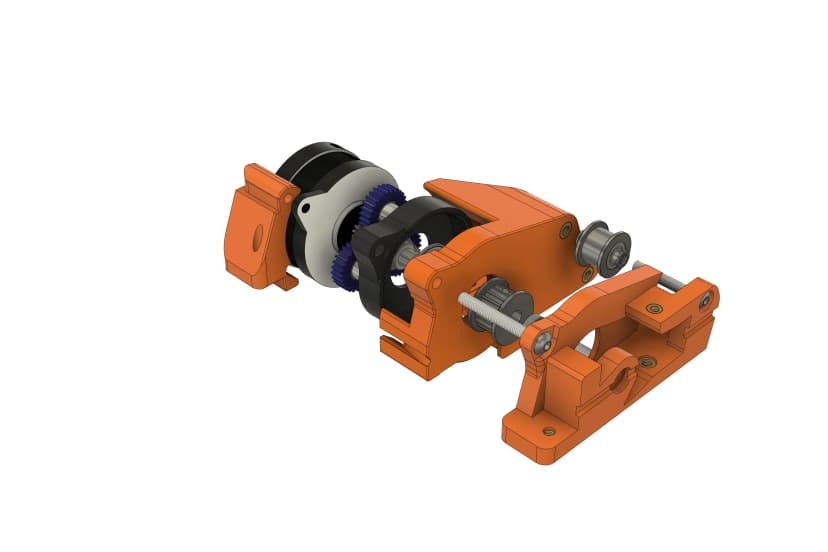

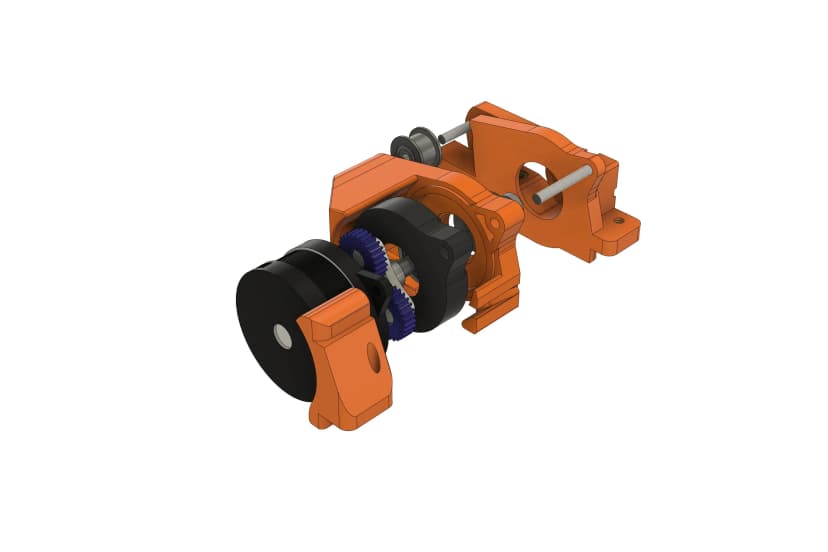

Assembly Schematic Diagram

Step 1 of 8 in this section

Step Images

diagram 1.jpg
diagram 2.jpg
7

Install the Planetary Shaft and Gears

Step 2 of 8 in this section

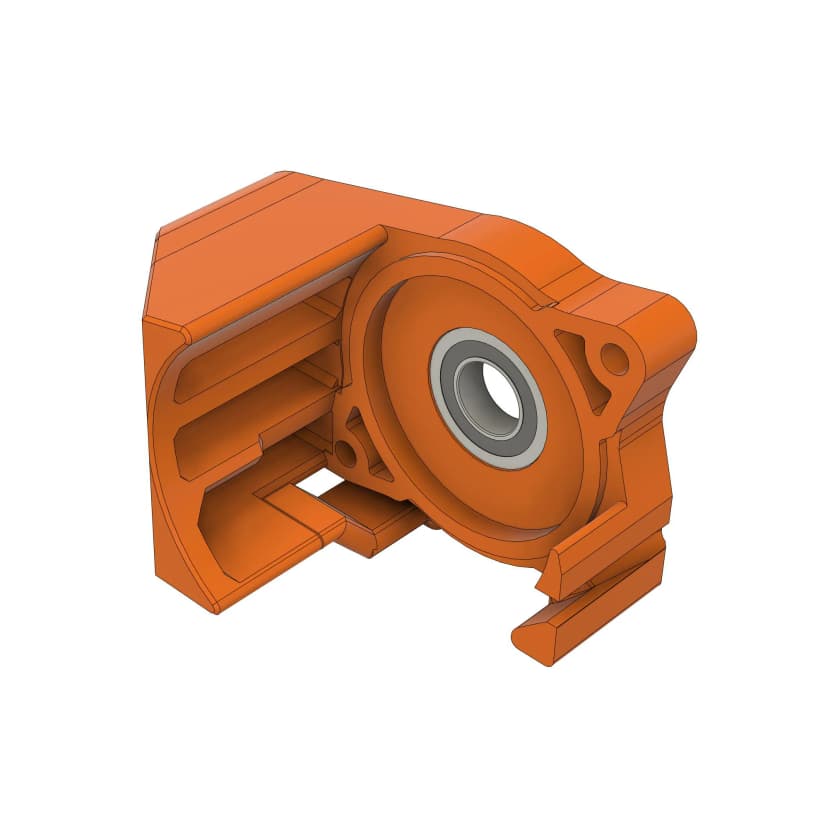

Install an MF148ZZ bearing into the hole of the main body.

1 image(s) - Click to view

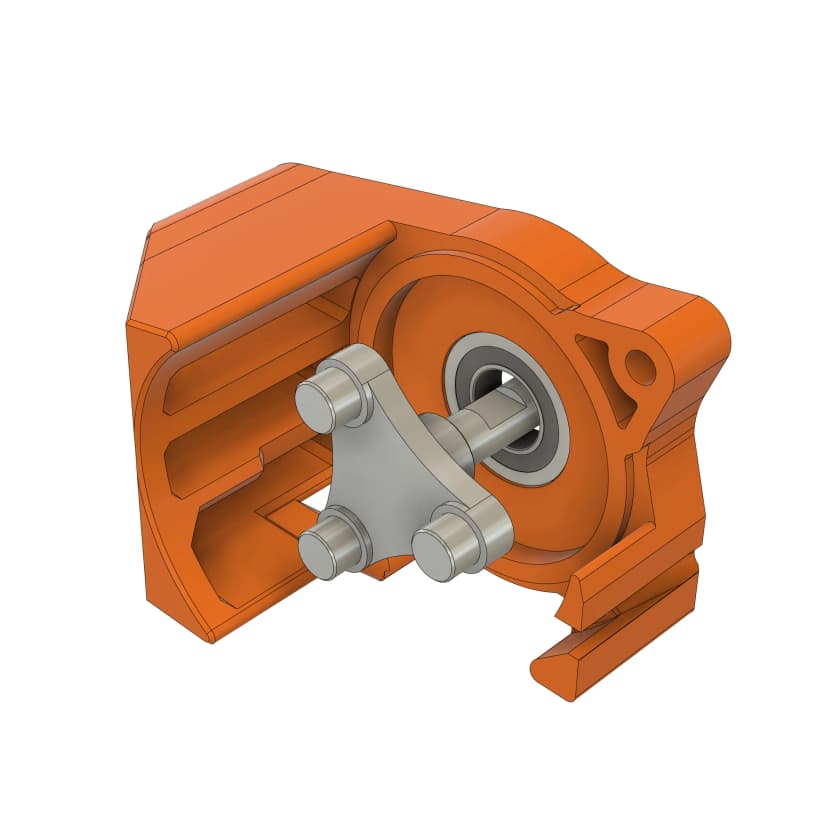

Insert the planetary carrier shaft into the hole.

1 image(s) - Click to view

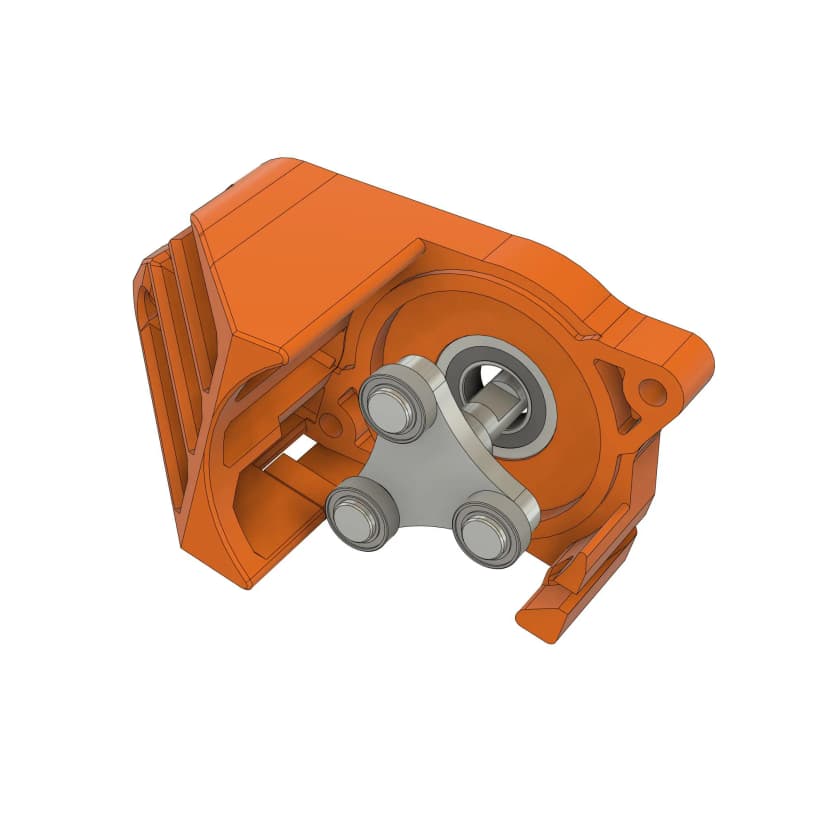

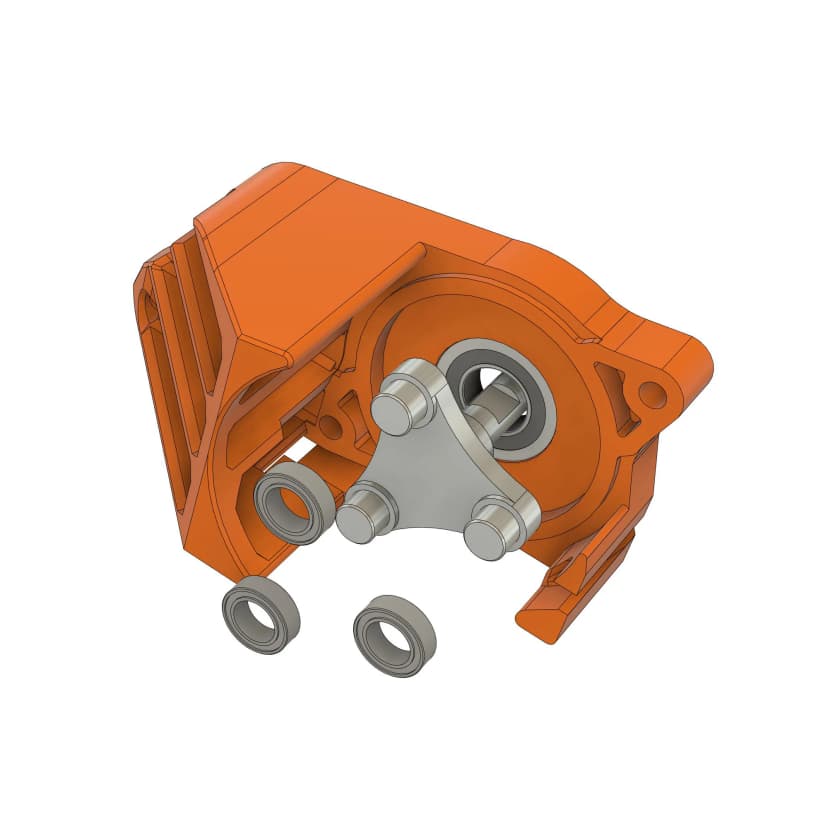

Place MR85ZZ bearings onto the feet of the planetary carrier shaft.

1 image(s) - Click to view

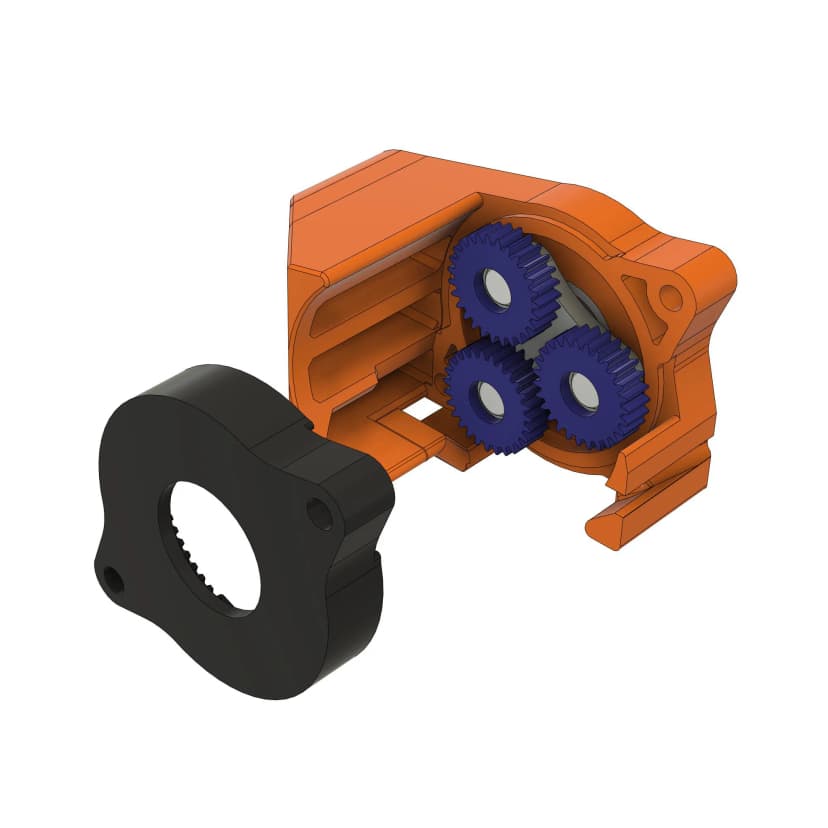

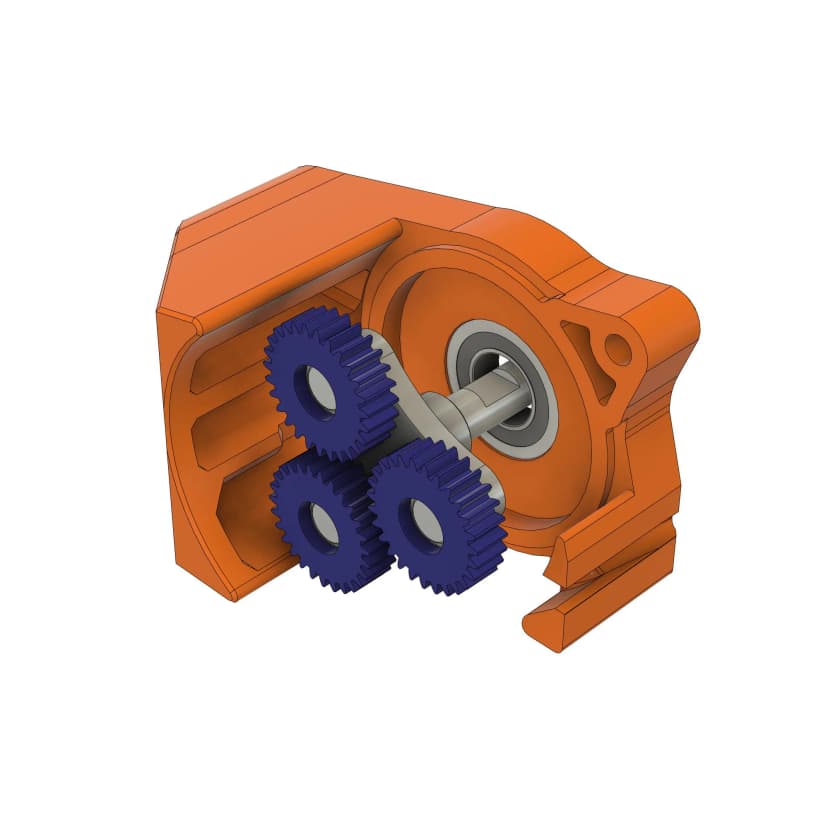

Add a planetary gear onto each bearing.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3


Referenced by step 4

8

Cover the Planeraty Gearbox Cover

Step 3 of 8 in this section

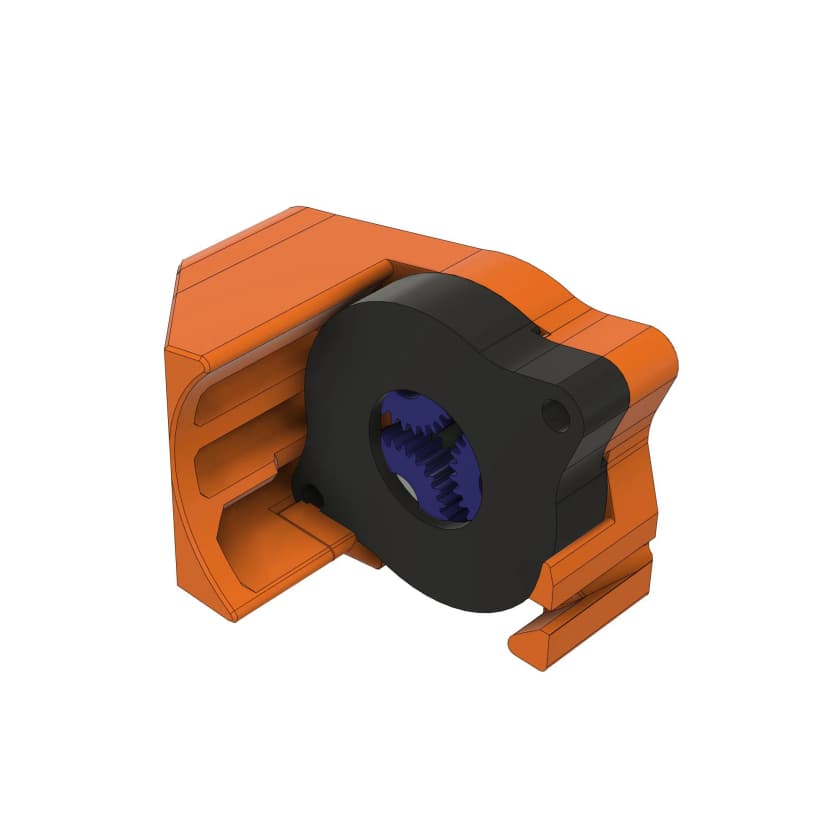

Put the planetary gearbox cover on.

1 image(s) - Click to view

Be carefull when placing the cover. You need to slightly twist the cover to make the cover and gears fit. Please twist the shaft two full rotations after finishing placing the cover. If it moves smoothly, this means a successful installation.

Step Images


Referenced by step 1

9

Add the Z Motor

Step 4 of 8 in this section

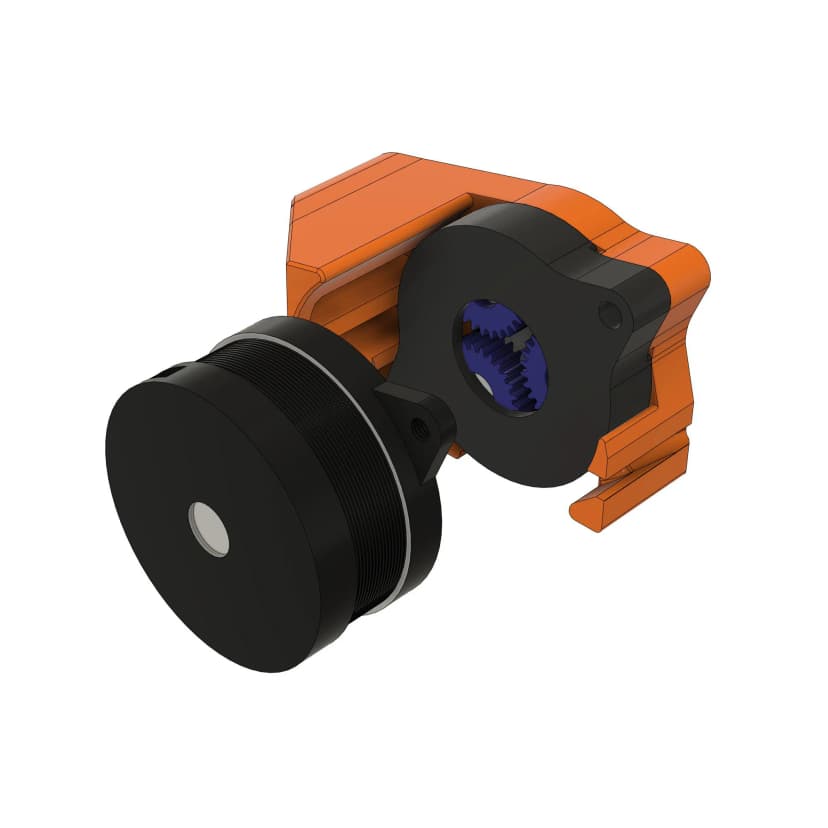

Attach the Z motor to the planetary gearbox cover.

1 image(s) - Click to view

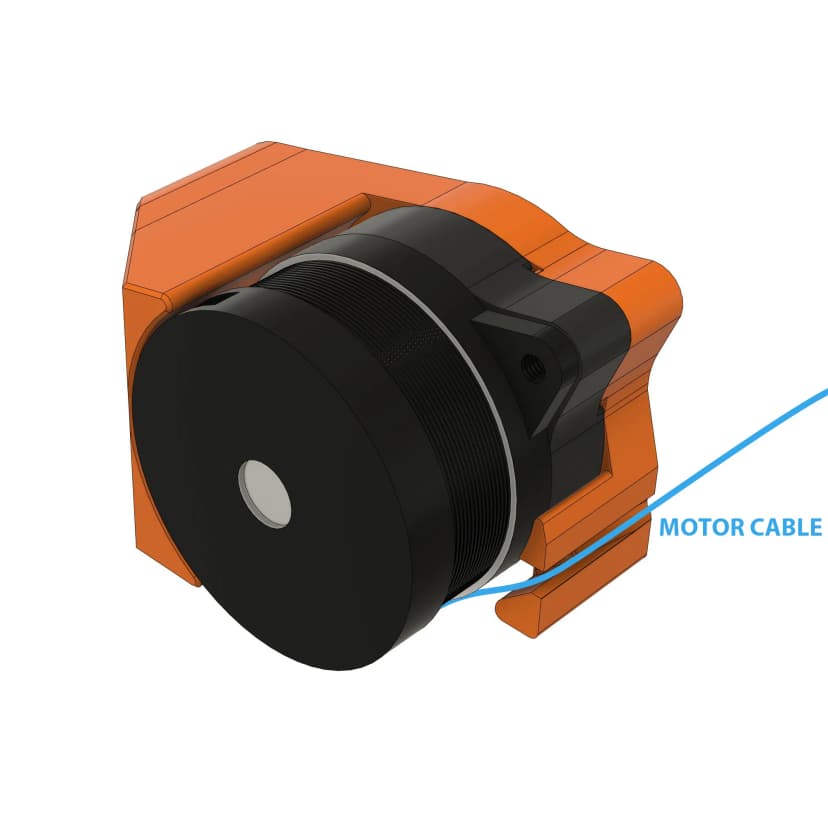

The motor cable should go through the slot.

1 image(s) - Click to view

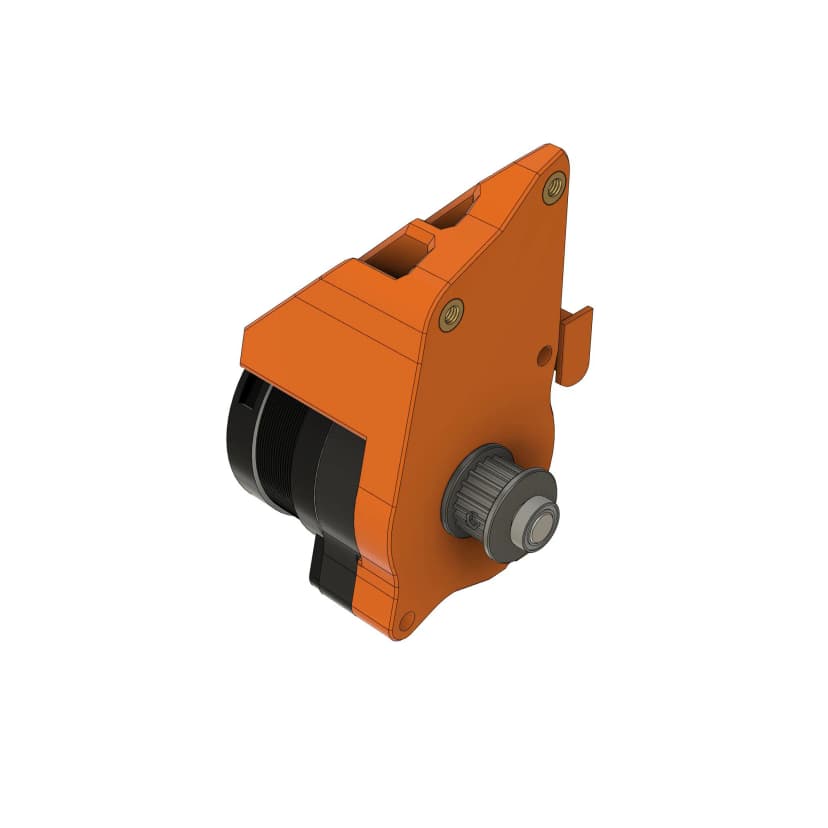

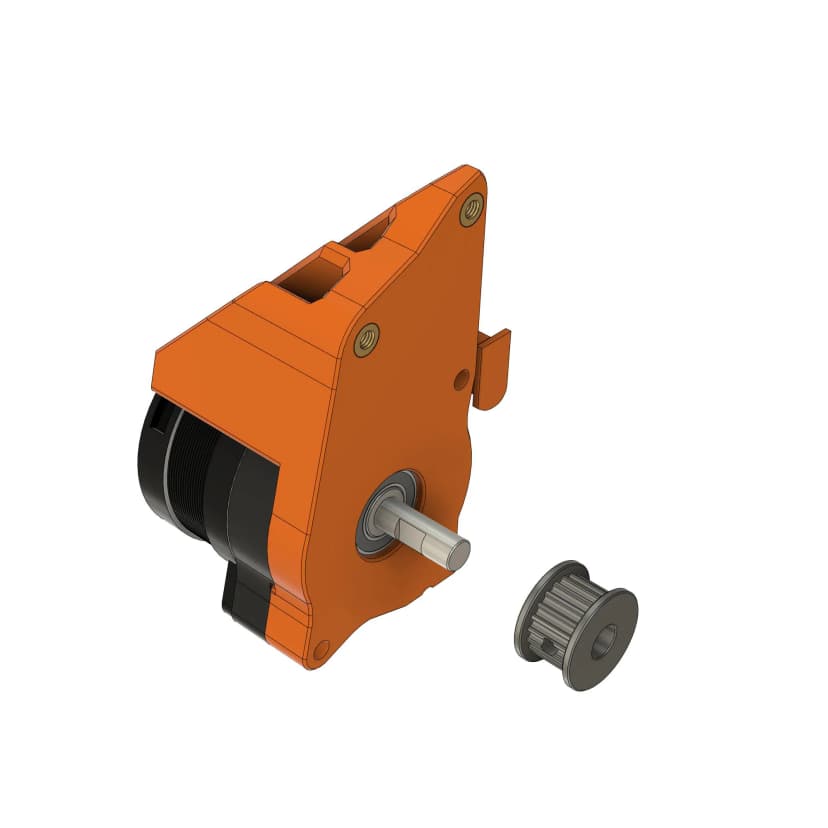

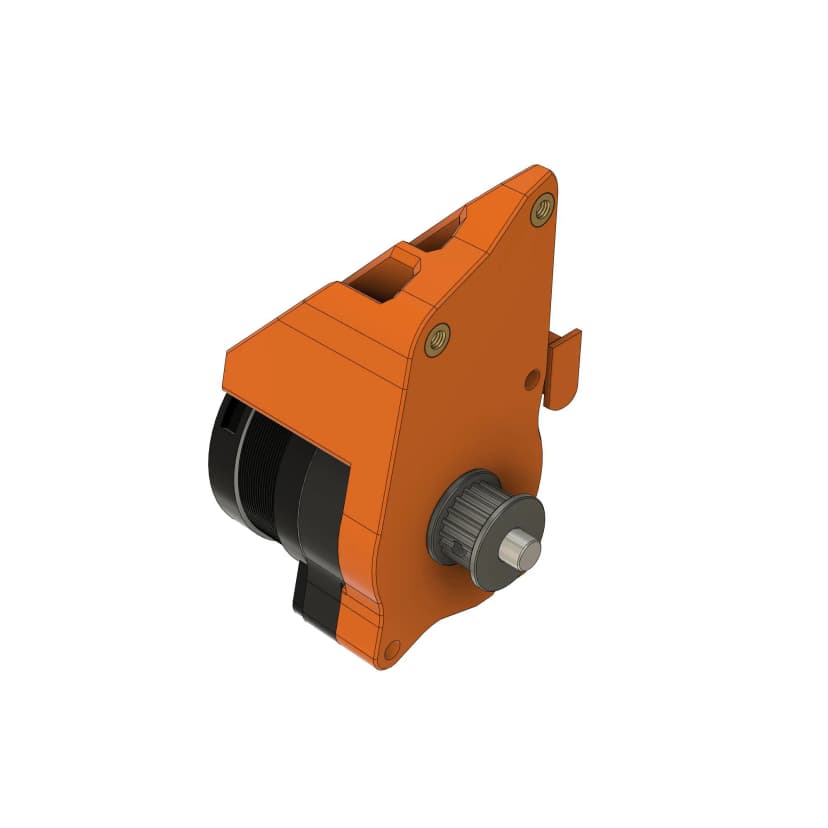

Install the 5x6mm pulley into the shaft. Please remember to leave a small gap so that the pulley doesn't rub on the printed part.

1 image(s) - Click to view

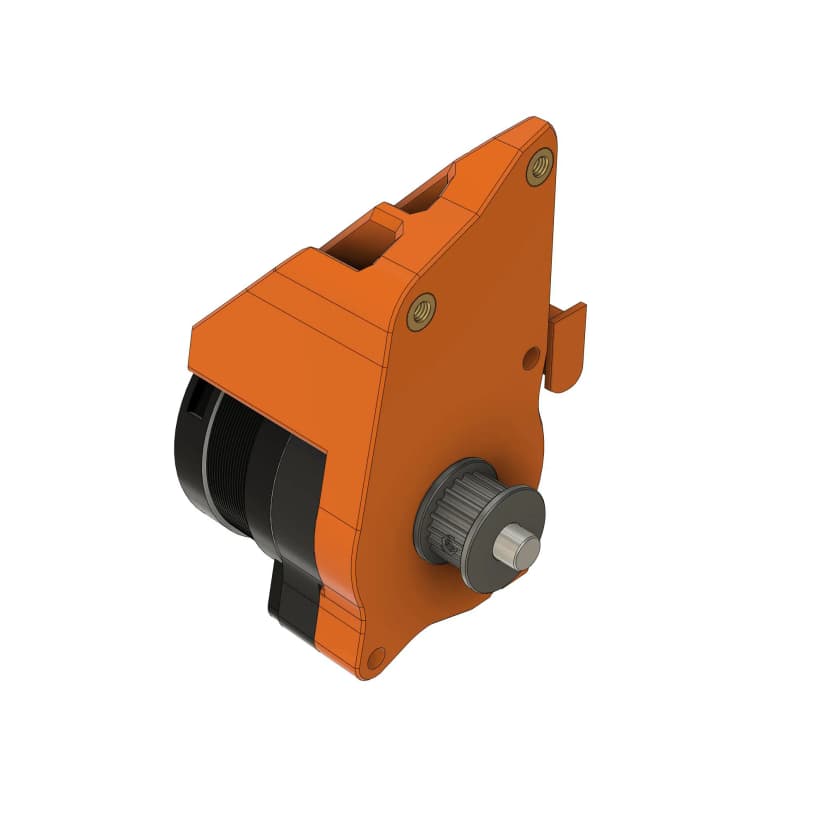

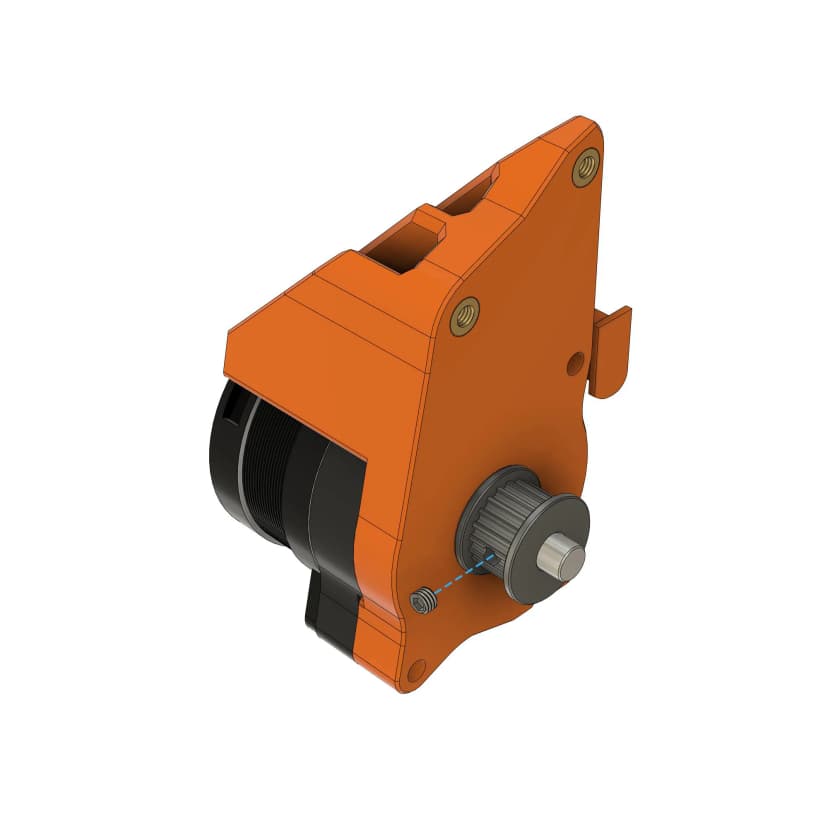

Install one M3x3 set screw to the shaft on the flat side and install one set screw into another hole of the pulley. (The set screws should be pre-applied with Threadlocker.)

1 image(s) - Click to view

Please twist the pulley two full rotations after installing the set screw. If it moves smoothly, this means a successful installation.

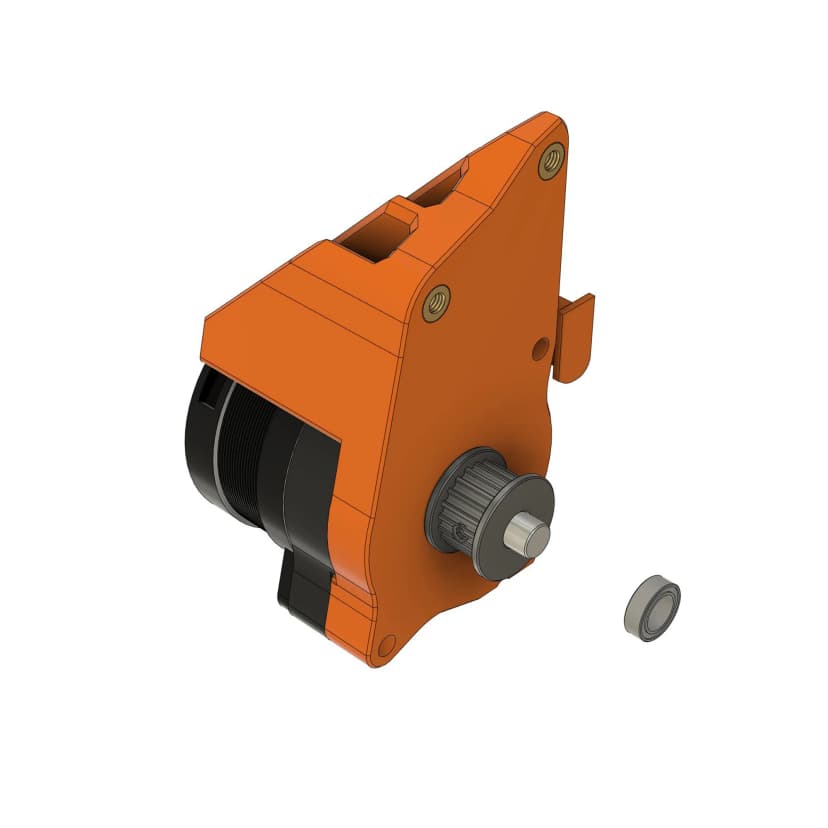

Add an MR85ZZ bearing onto the pulley.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3


Referenced by step 4


Referenced by step 6

11

Prepare the Main Body

Step 5 of 8 in this section

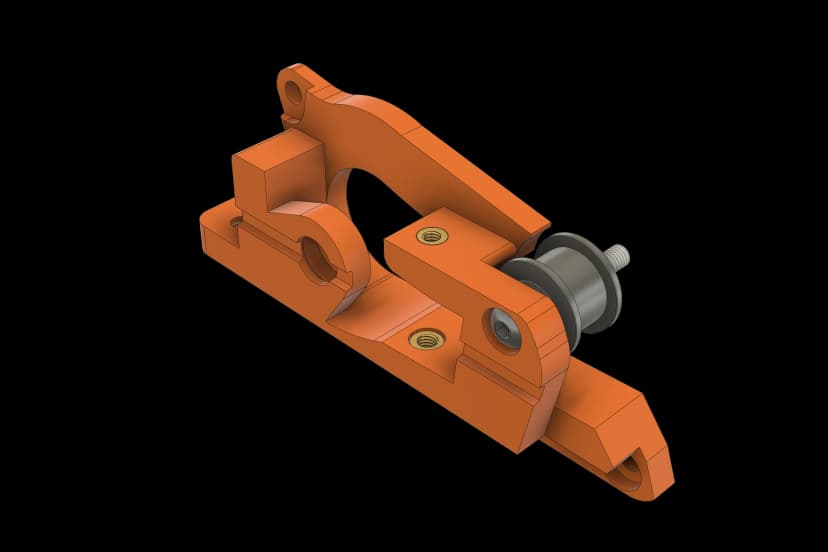

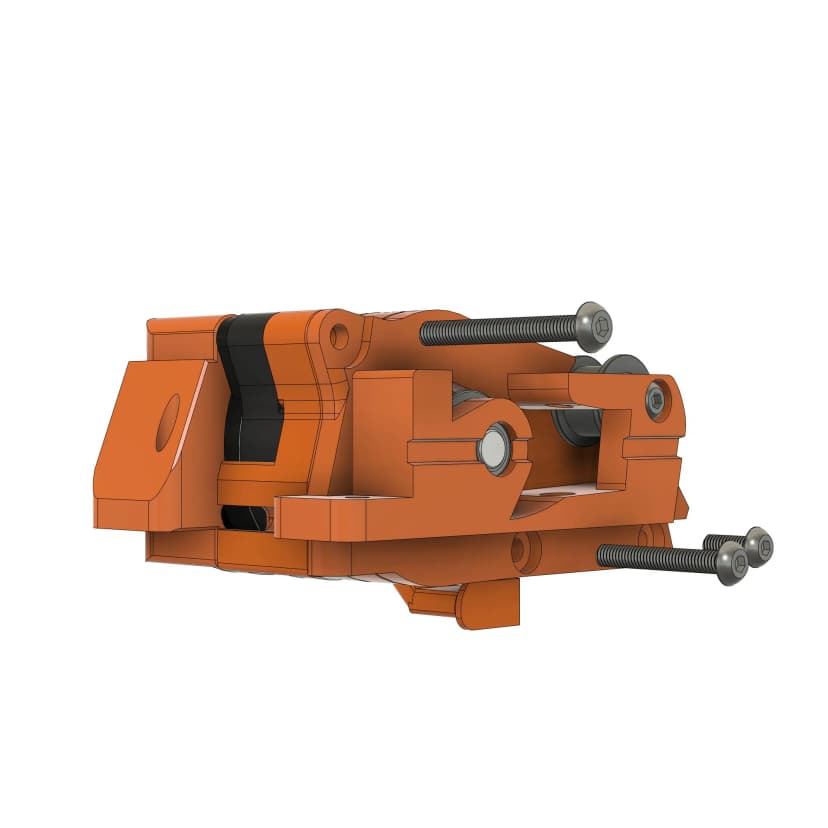

Insert an M3x20 BHCS screw through the hole of the main body and thread two washers and an idler in the indicated order.

1 image(s) - Click to view

Step Images


Referenced by step 1

13

Route the Belt & Connect the Main Body

Step 6 of 8 in this section

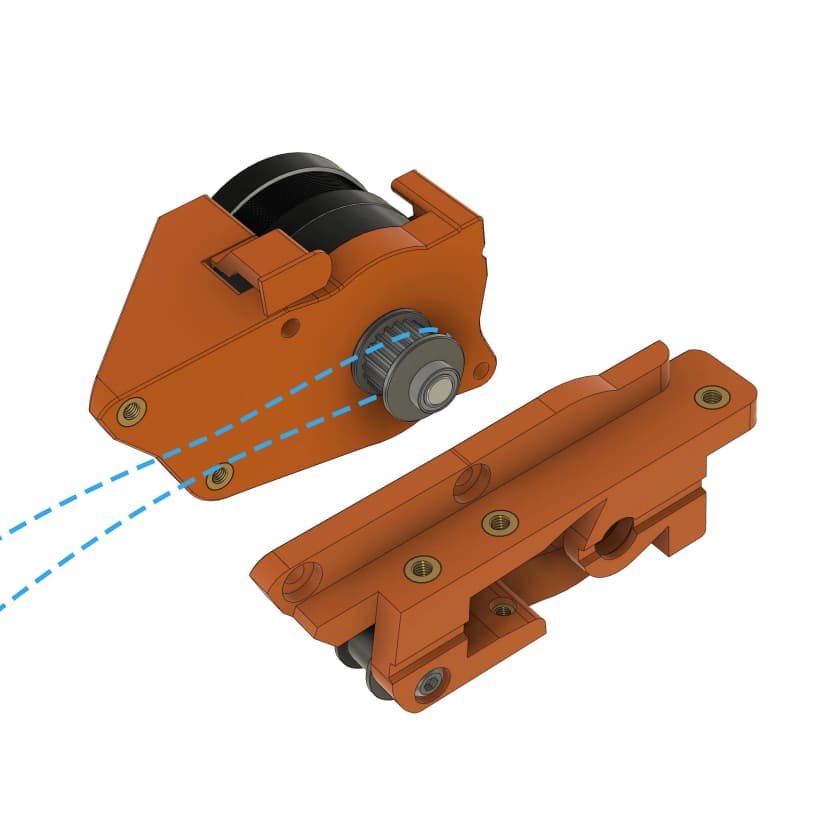

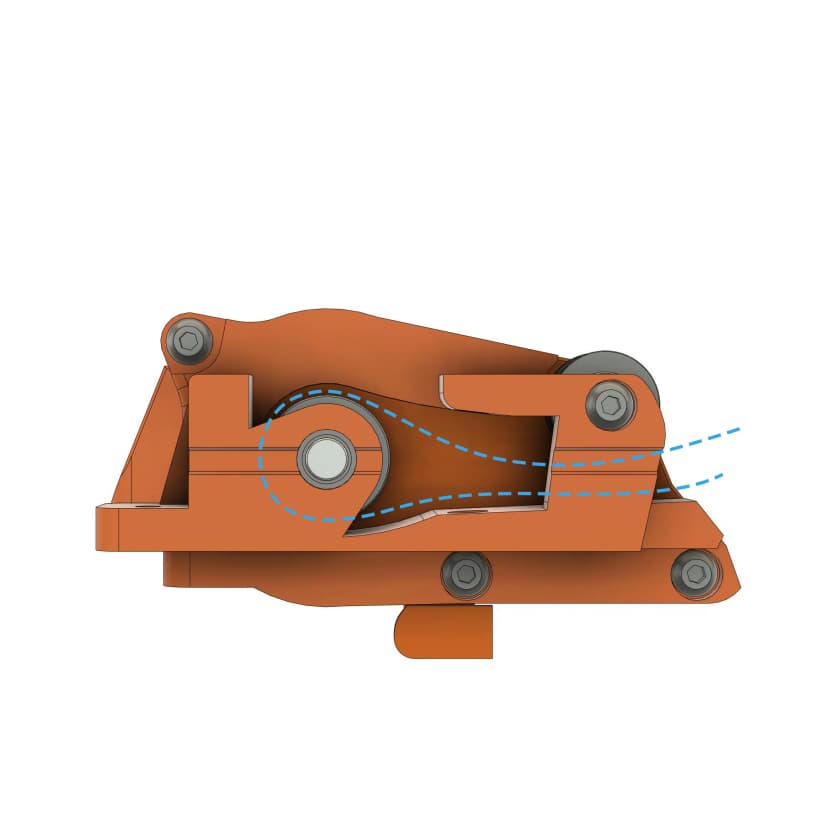

Route the 6mm belt as shown in the pictures. We will wire the belt to the Z column in a later step.

1 image(s) - Click to view

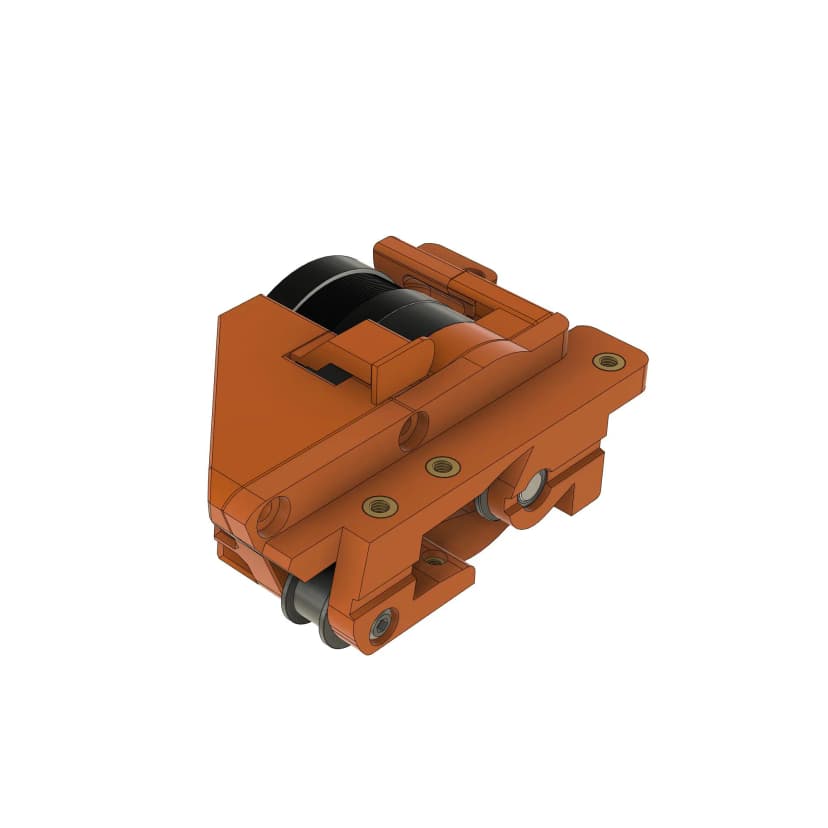

Attach the outer housing to the main body and fasten the M3x20 BHCS screw.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

16

Install Motor Bracket

Step 7 of 8 in this section

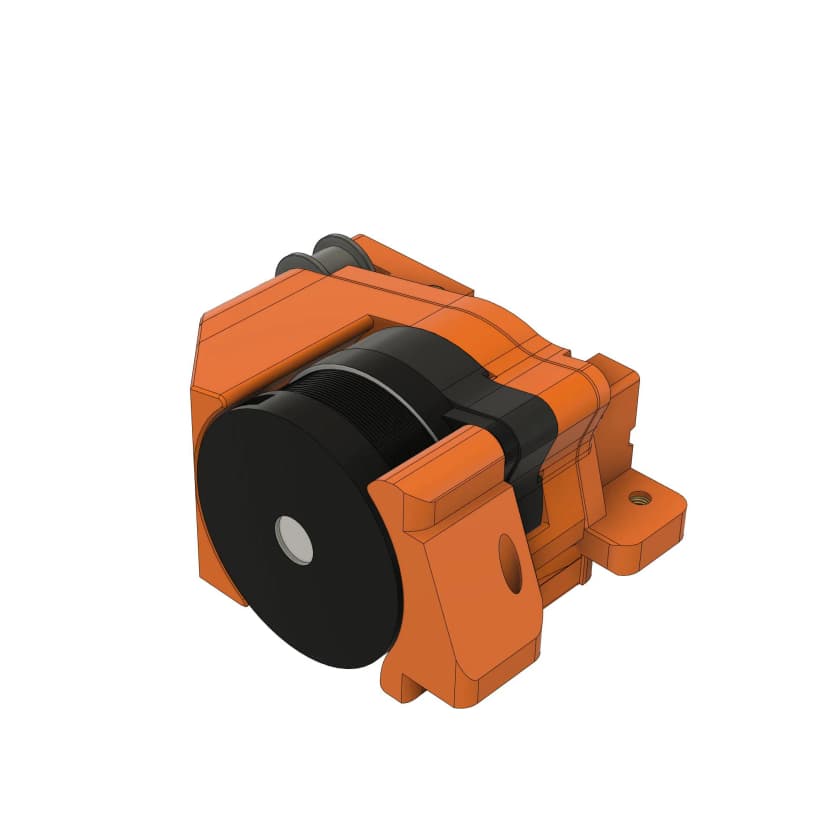

Attach the motor bracket to the motor as shown in the picture.

1 image(s) - Click to view

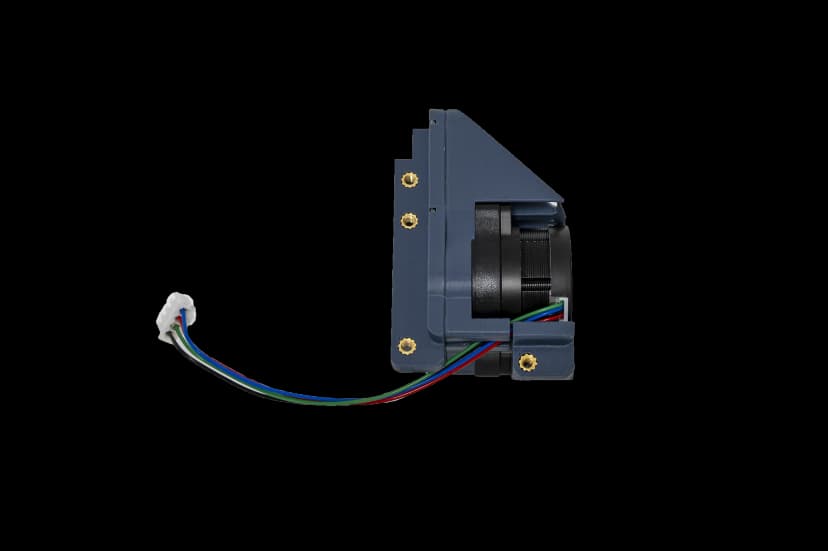

The motor cable should go as shown in the picture. Route it before you secure the whole part with screws. (This picture is just to show how the wire goes. The printed part is not the most up-to-date one.)

1 image(s) - Click to view

Secure the printed parts with below screws. Use an M3x25 BHCS screw in the upper left hole (tapped directly into the hole). Use an M3x20 BHCS screw in the bottom middle hole (tapped directly into the hole. Use an M3x8 BHCS screw in the bottom right hole.

1 image(s) - Click to view

Step Images


Referenced by step 1

z drive wiring.png

Referenced by step 2


Referenced by step 3

17

Assembly Complete

Step 8 of 8 in this section

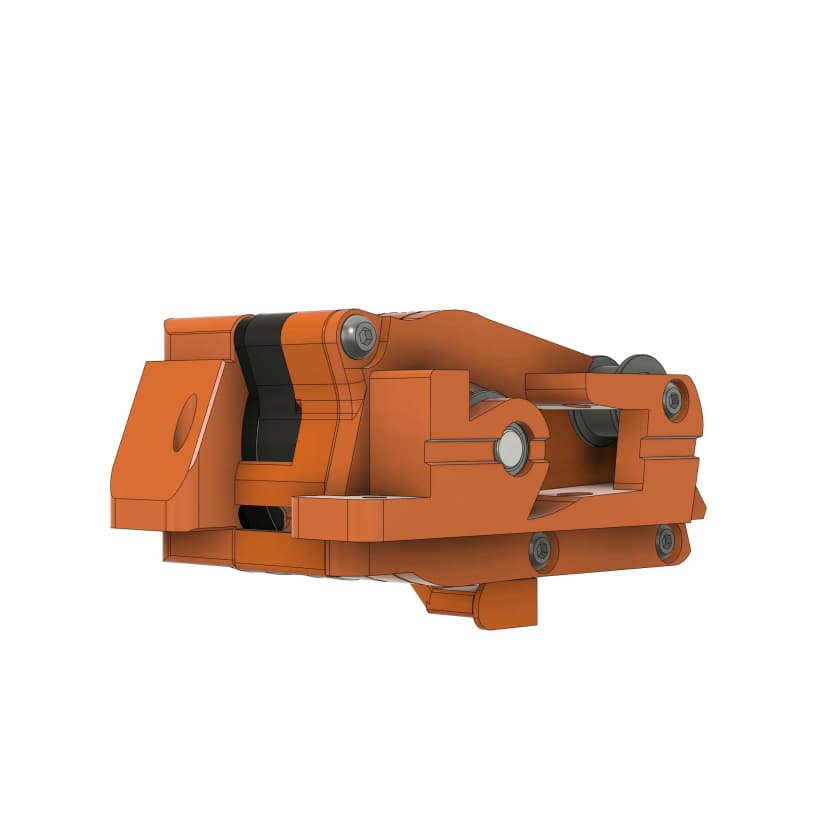

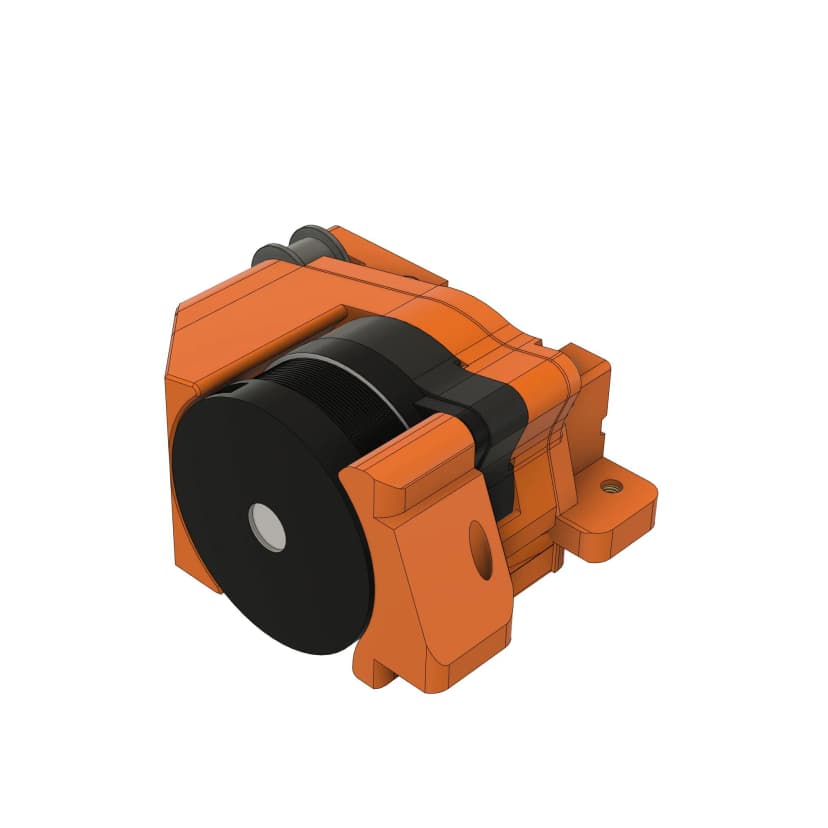

You have completed the assembly of the Z drive.
