1 - Positron V3.2 - Extruder

This guide walks your through the assembly of the bowden extruder for the Positron V3.2. We also recommend you checking wiki.positron3d.com during the whole build as there are many helpful information.

1. Parts to Print

Before you start to assemble, please make sure you have these parts printed.

2

Printed Parts

Step 1 of 2 in this section

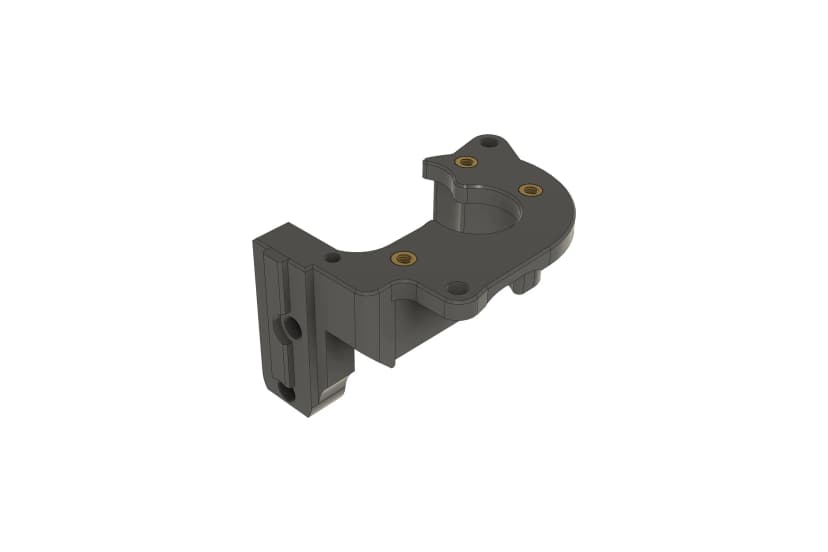

Extruder Main Body x1

1 image(s) - Click to view

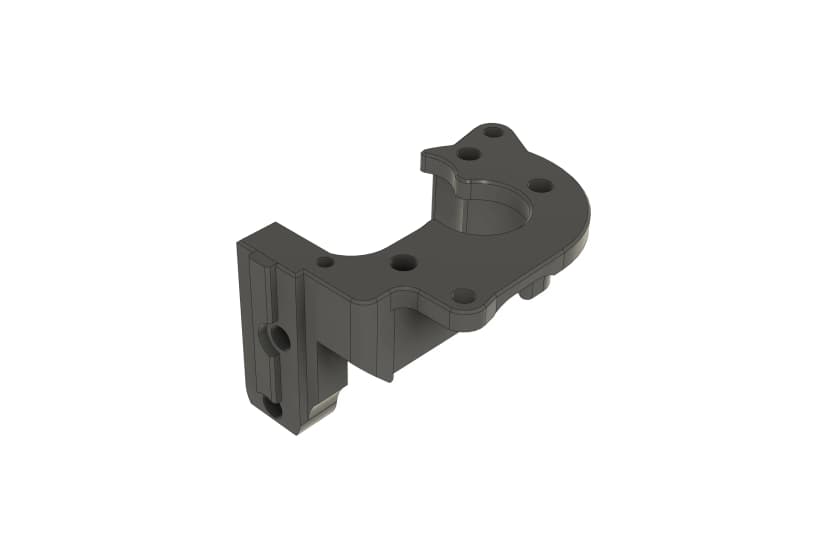

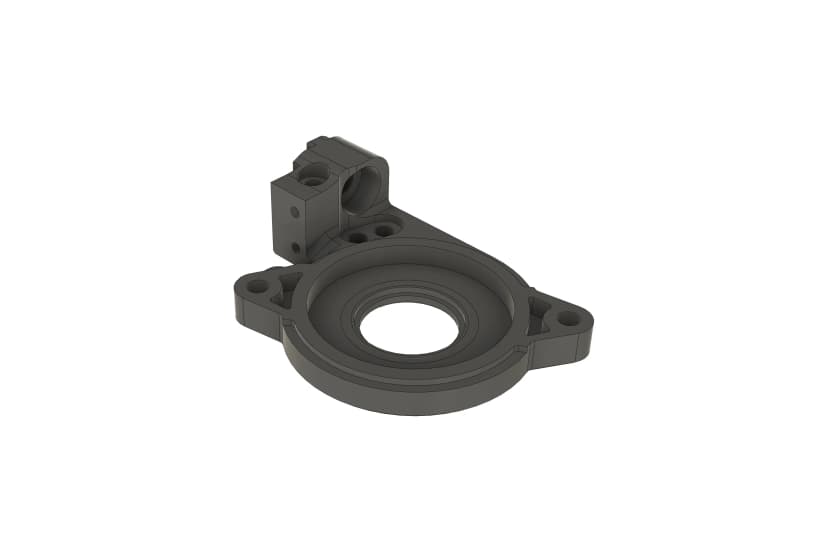

Extruder Motor Plate x1

1 image(s) - Click to view

Extruder Bottom Plate x1

1 image(s) - Click to view

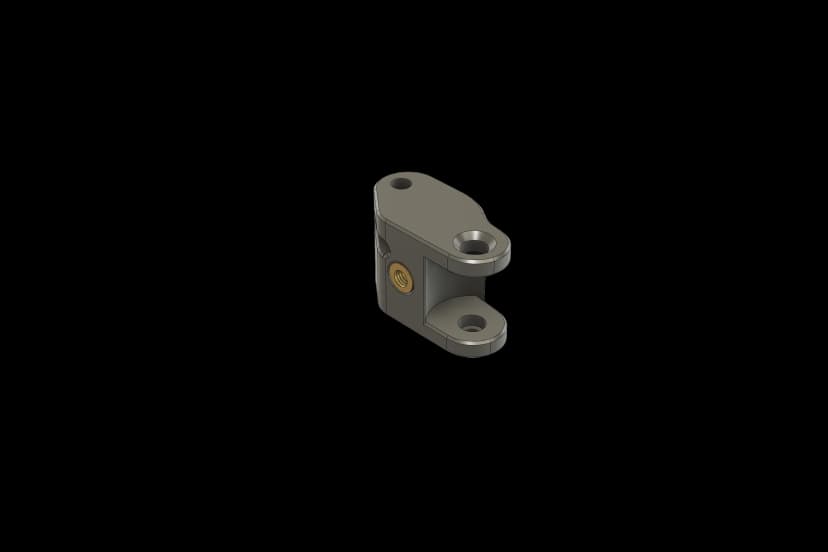

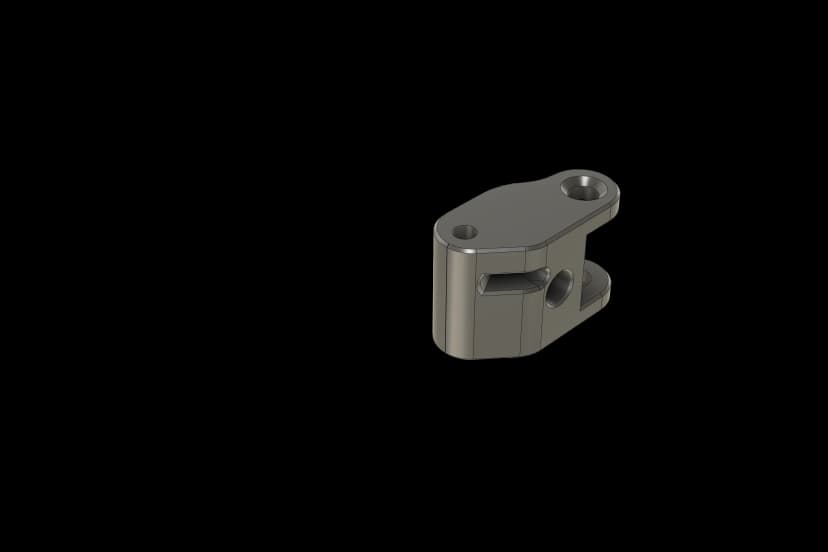

Extruder Guidler x1

1 image(s) - Click to view

Step Images

Extruder Main Body.jpg

Referenced by step 1

Extruder Motor Plate.jpg

Referenced by step 2


Referenced by step 3


Referenced by step 4

15

Preparation for the Printed Part

Step 2 of 2 in this section

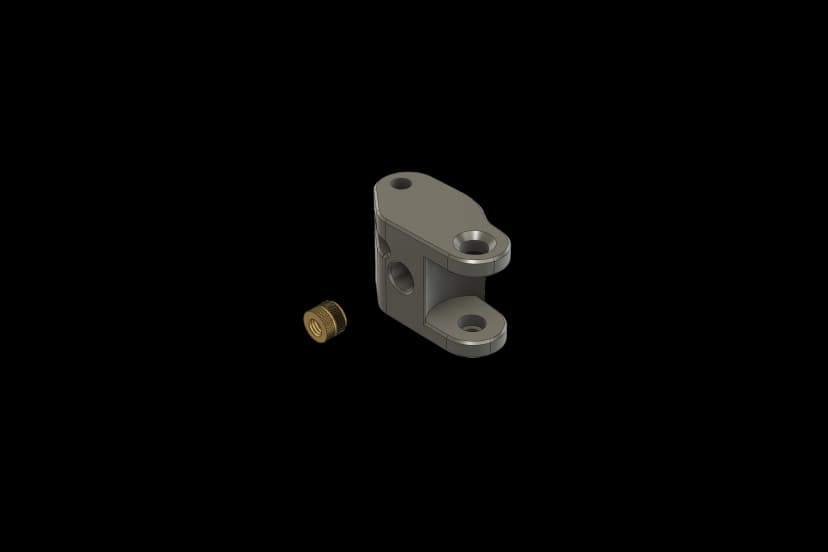

Install an M3x6x5 heatset insert into the printed guidler.

1 image(s) - Click to view

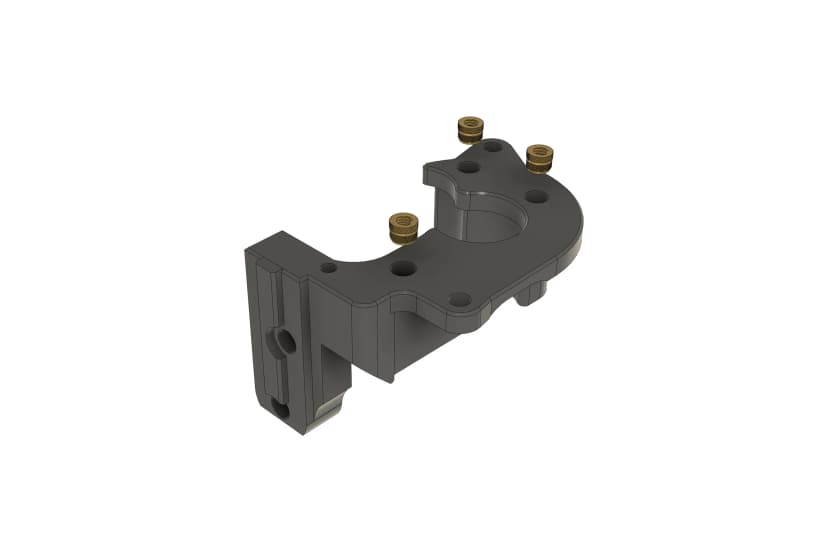

Install M2.5x3x4 heatset inserts into the printed extruder main body.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


2. Installation

For all the M2.5 screws, please use our screwdriver included in the kit.

1

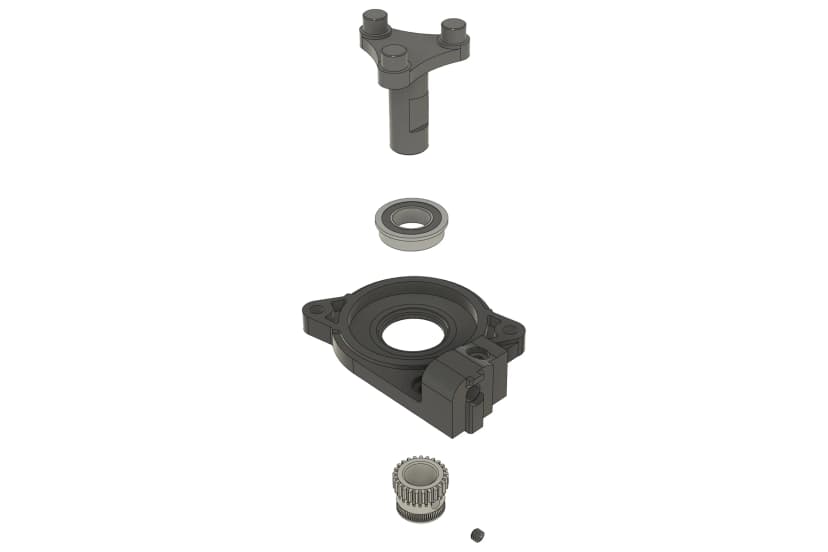

Install the Shaft and Primary Gear

Step 1 of 9 in this section

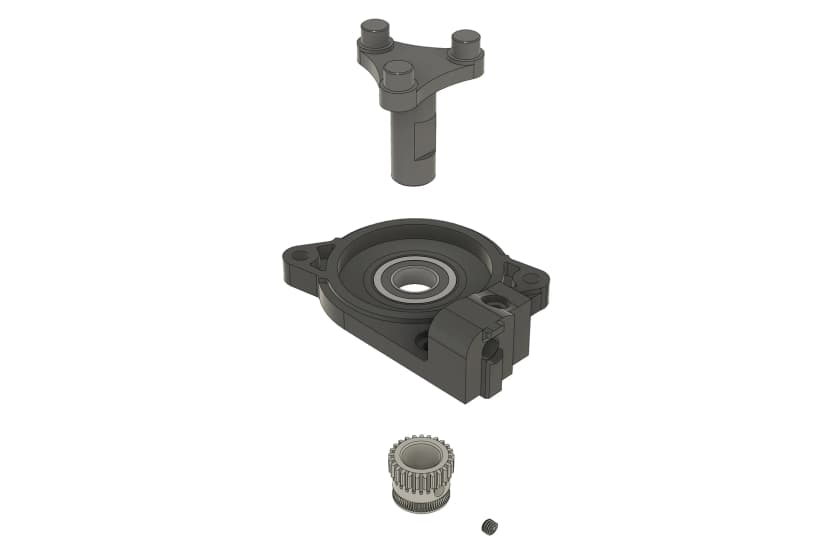

Place an MF148ZZ bearing into the hole of the printed motor plate.

1 image(s) - Click to view

Insert the shaft through the hole of the bearing.

1 image(s) - Click to view

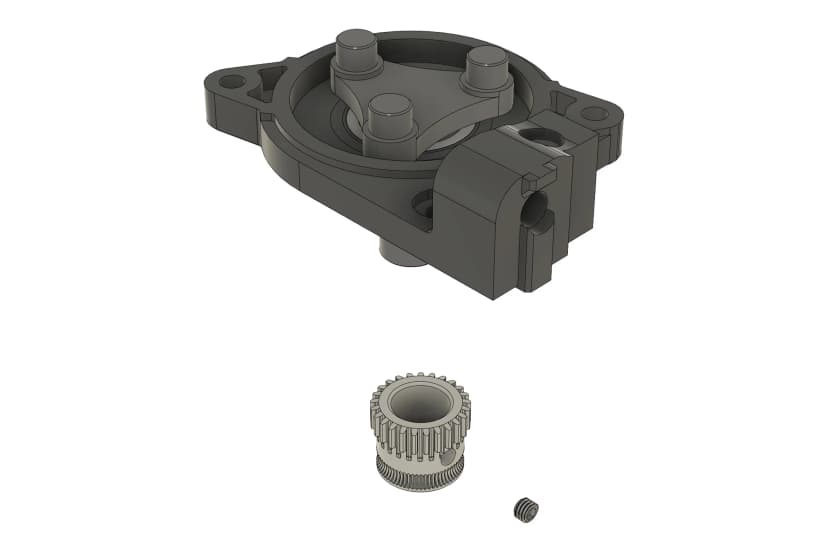

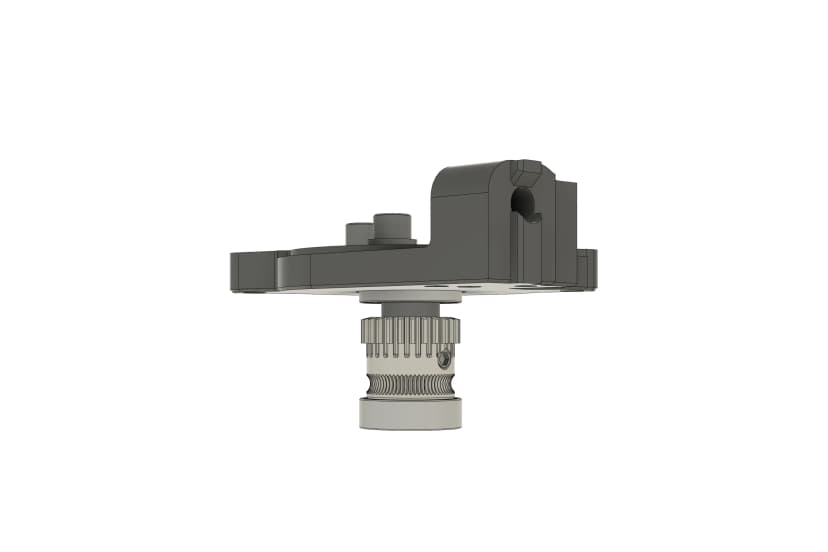

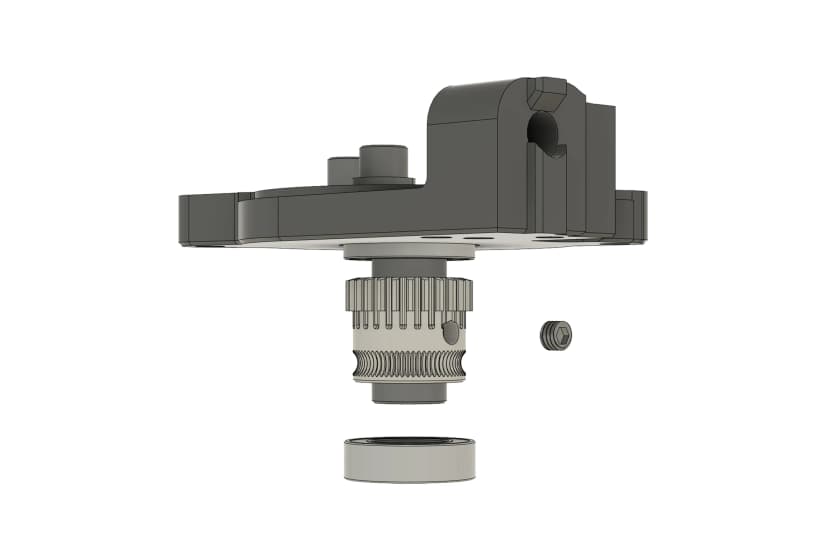

Place the primary gear onto the shaft. Install an M3x3 set screw to the shaft on the flat side. (The set screw should be pre-applied with Threadlocker.)

1 image(s) - Click to view

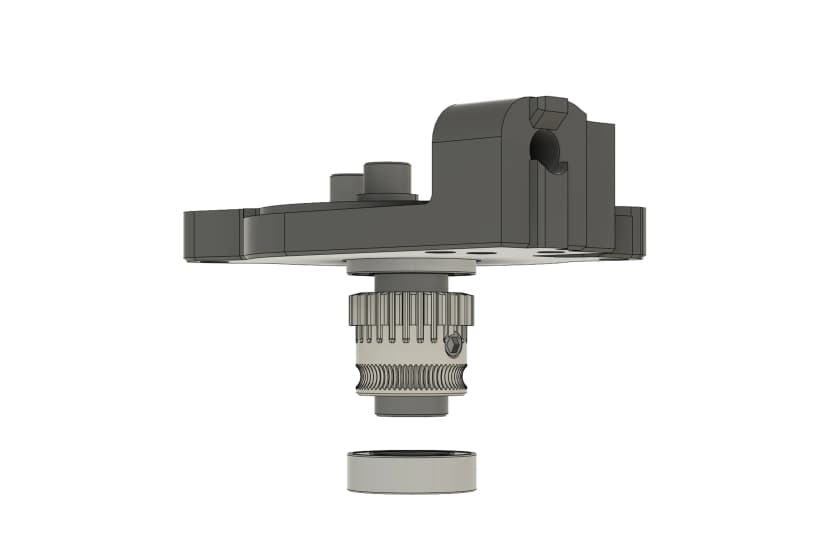

Put an MR148ZZ bearing on top of the gear. Pay attention that the top of the shaft and the bearing should be flush.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2


Referenced by step 3


Referenced by step 4

3

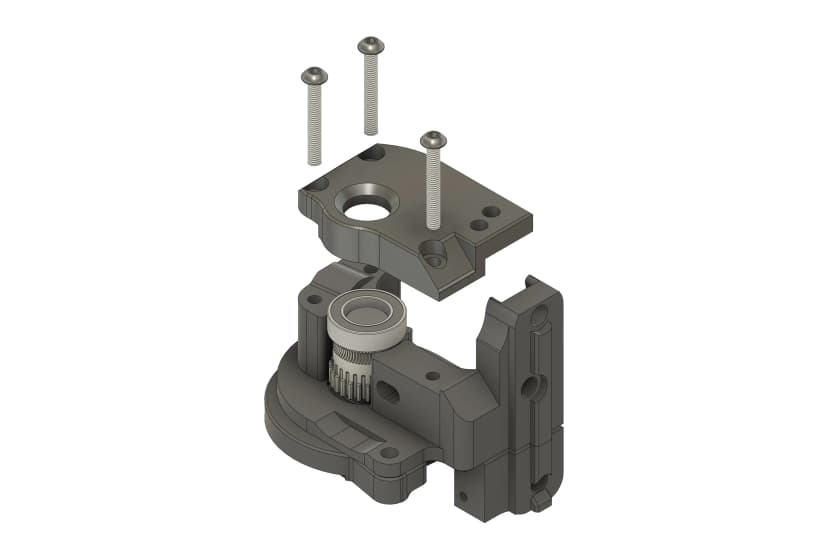

Install the Bottom Plate

Step 2 of 9 in this section

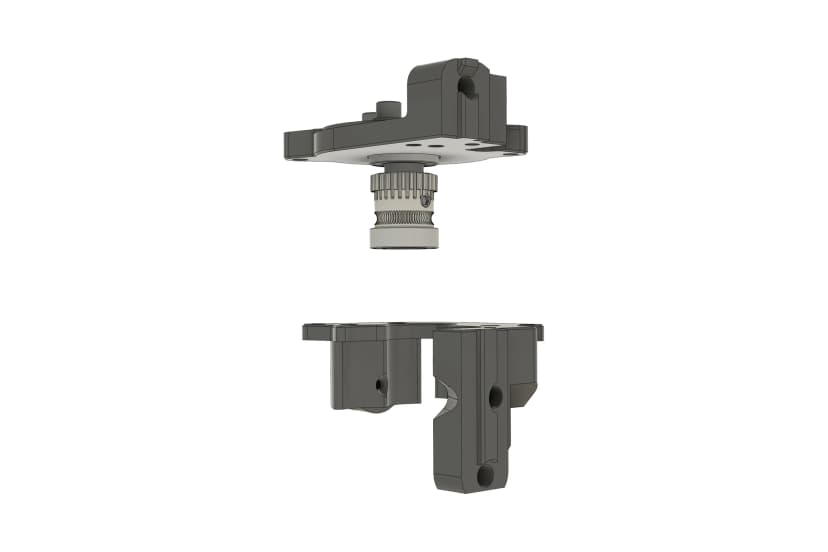

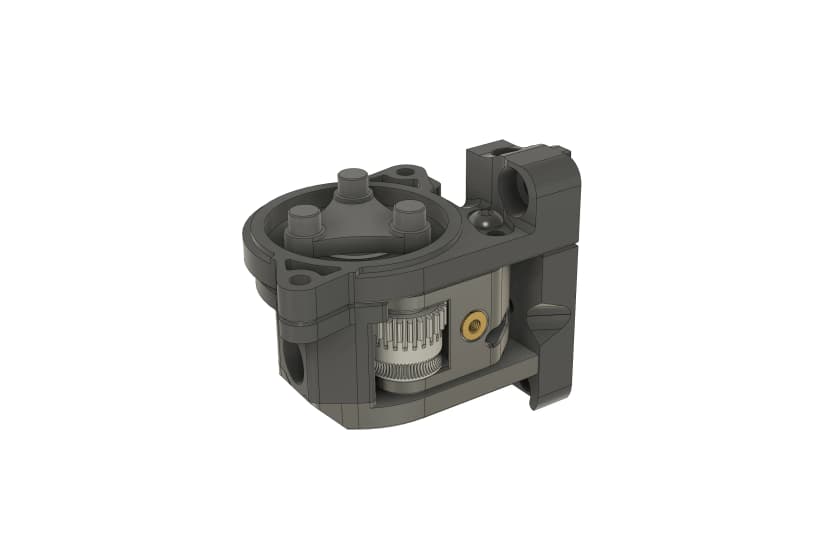

Combine the extruder motor plate and main body.

1 image(s) - Click to view

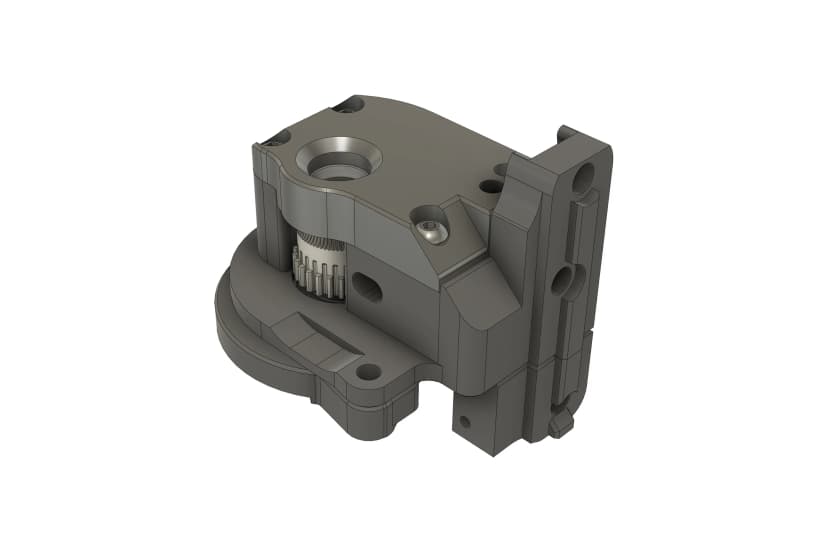

Cover the main body with the bottom plate and secure with M2.5x18 BHCS screws (tap directly into the holes).

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

5

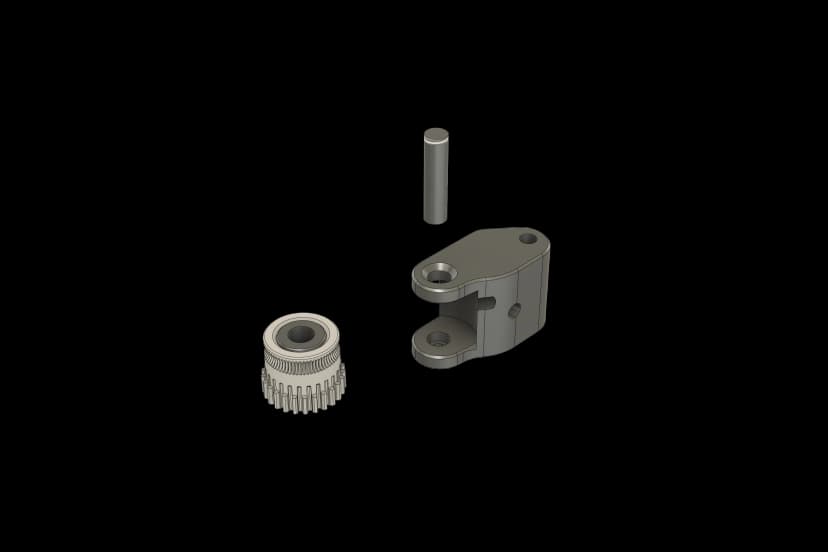

Prepare the Extruder Guidler

Step 3 of 9 in this section

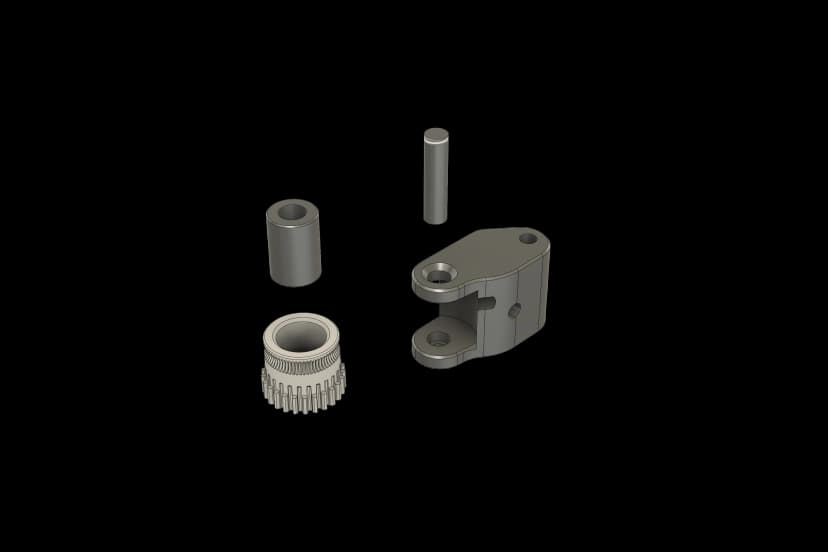

Place the bushing into idler gear.

1 image(s) - Click to view

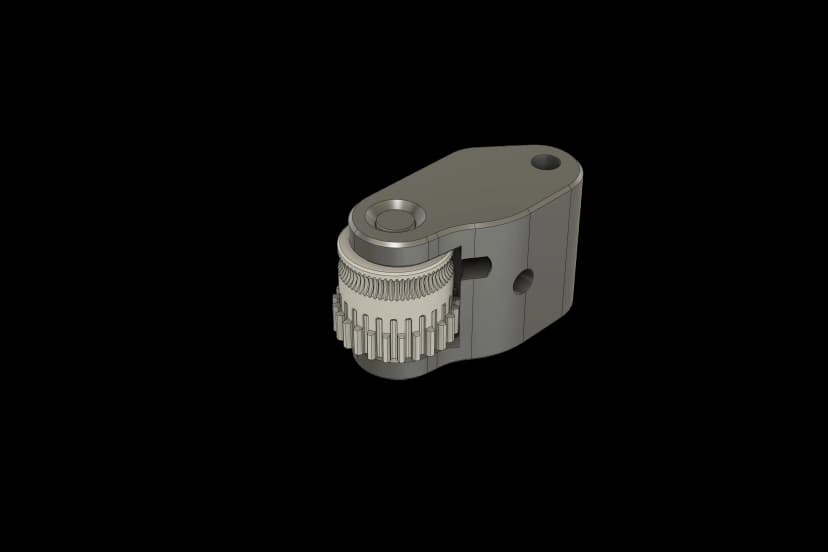

Position the idler gear into the guidler and secure with the 4x16 shaft.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

8

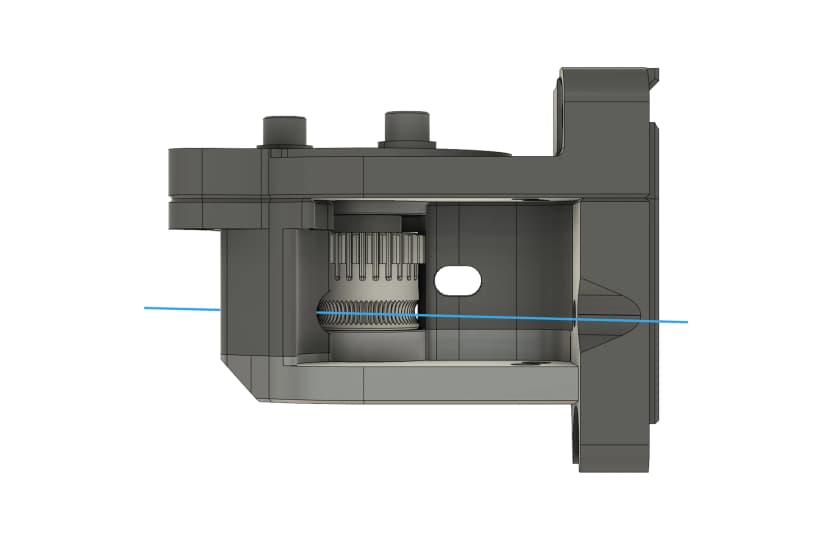

Check the Filament Path

Step 4 of 9 in this section

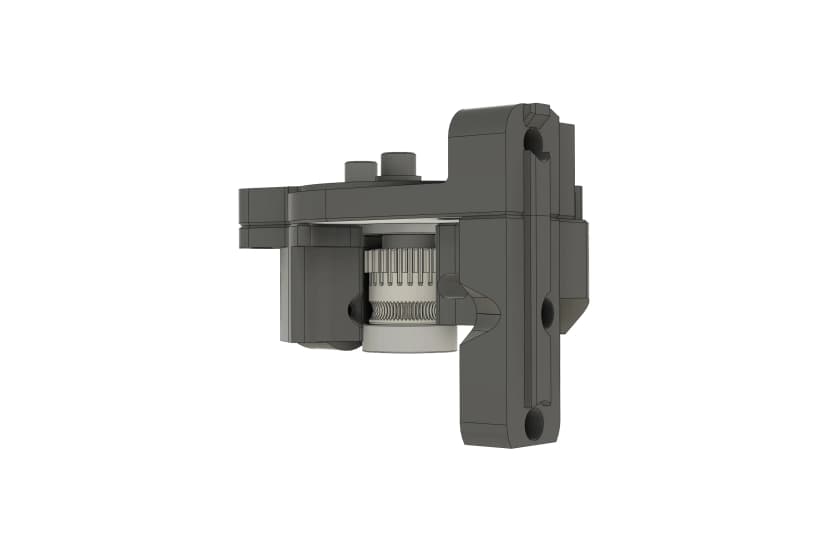

Use a piece of filament to check if the holes and the primary gear line up.

1 image(s) - Click to view

Step Images


Referenced by step 1

10

Install the Extruder Guidler

Step 5 of 9 in this section

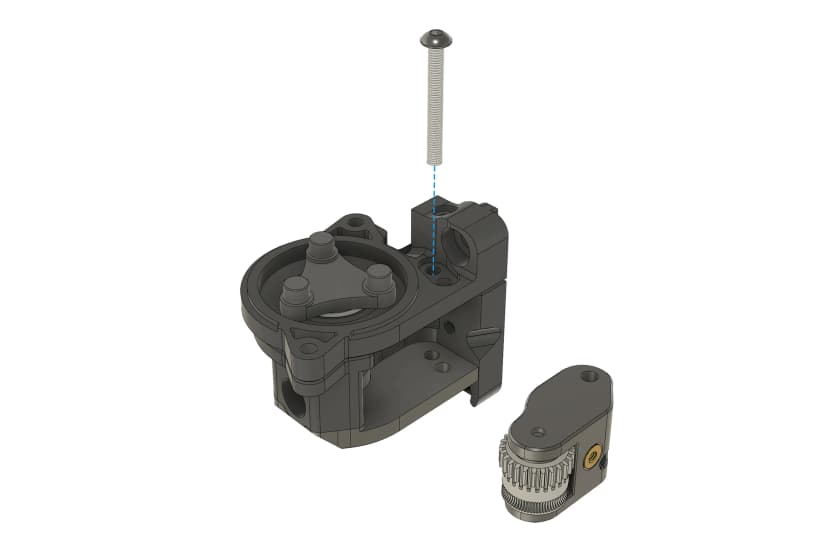

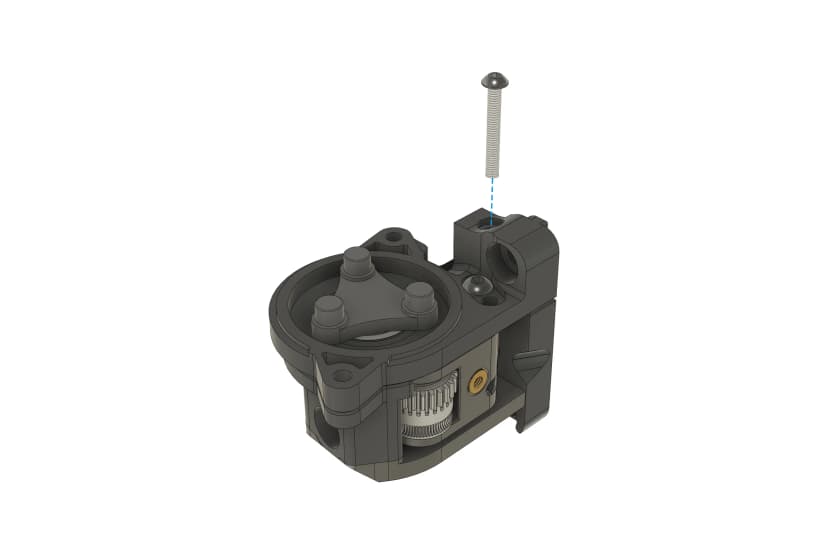

Position the guidler into the main body. Secure with an M3x25 BHCS screw (tapped directly into the hole) as shown in the picture.

1 image(s) - Click to view

Use an M2.5x18 BHCS screw (tapped directly into the hole) as shown in the picture.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

11

Install the Bowden Coupler

Step 6 of 9 in this section

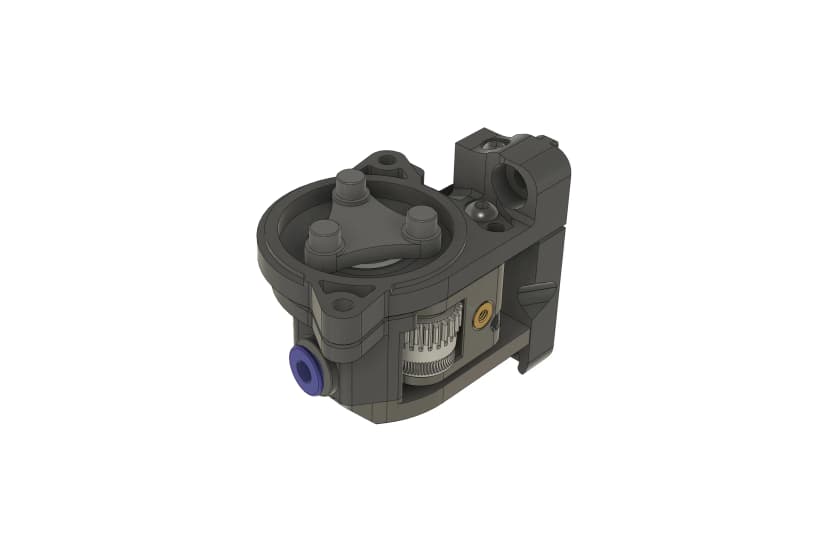

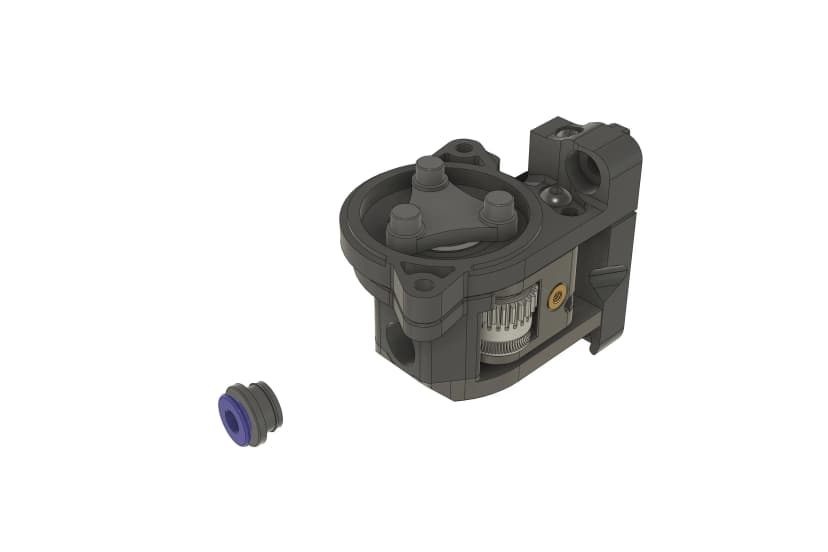

Remove any rubber from the Bowden Coupler and then Install it into the extruder. The coupler flange should be flush with the extruder body

1 image(s) - Click to view

Step Images

bowden coupler.jpg

Referenced by step 1

13

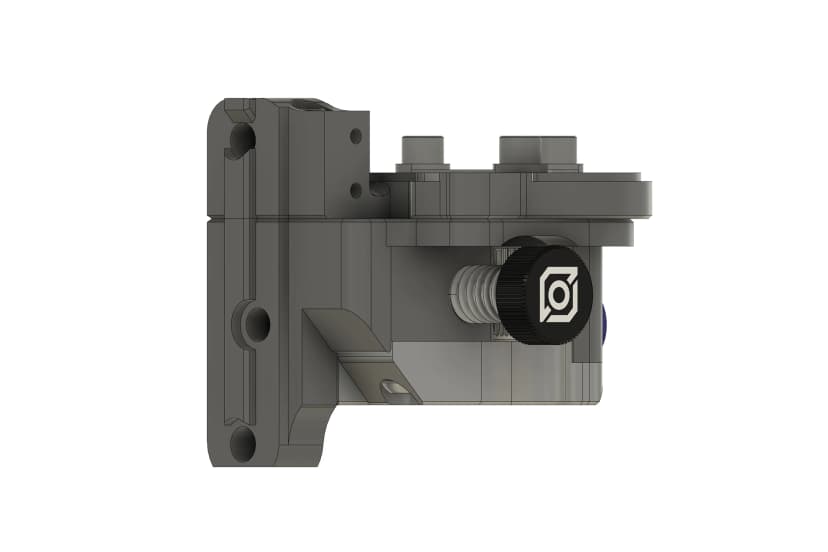

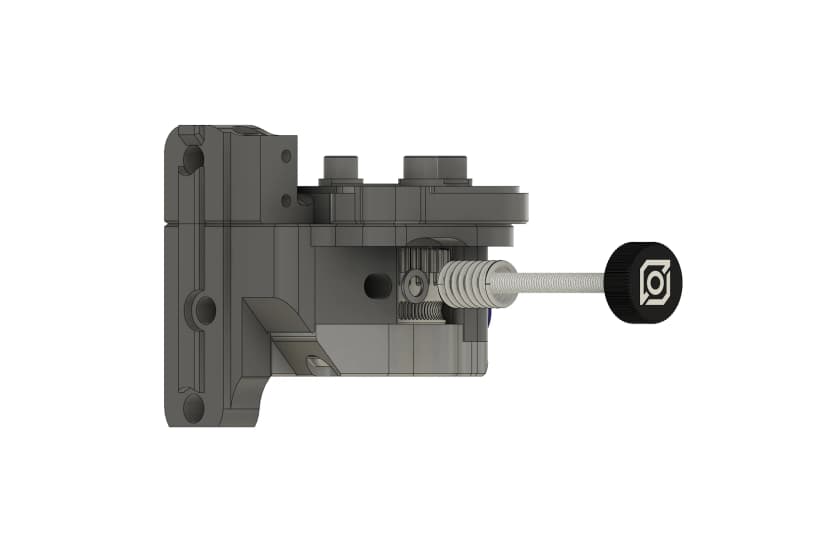

Install the Thumbscrew

Step 7 of 9 in this section

Thread a washer (in fastener kit) and a 1x5.9x11.3 spring through the M3x30 thumbscrew and install the thumbscrew into the printed part.

1 image(s) - Click to view

Step Images


Referenced by step 1

14

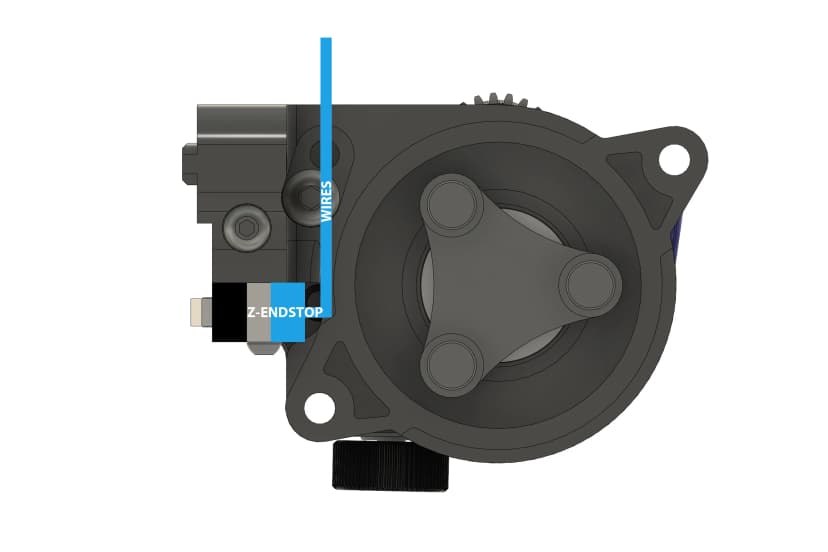

Install the Endstop

Step 8 of 9 in this section

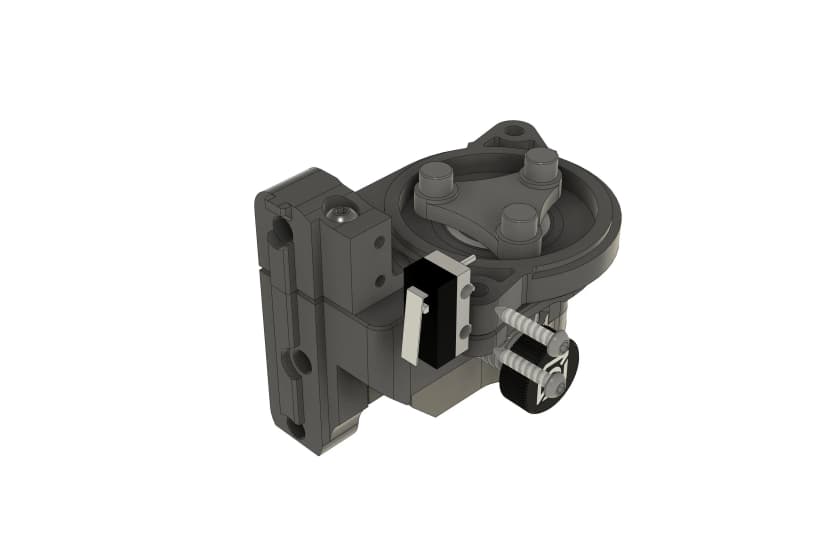

Secure the endstop to the printed part using two M2x10 self-taping screws.

1 image(s) - Click to view

Wires should go between the motor. You may have to bend the wires as they are soldered straight which makes this a bit difficult.

1 image(s) - Click to view

Step Images


Referenced by step 1


Referenced by step 2

16

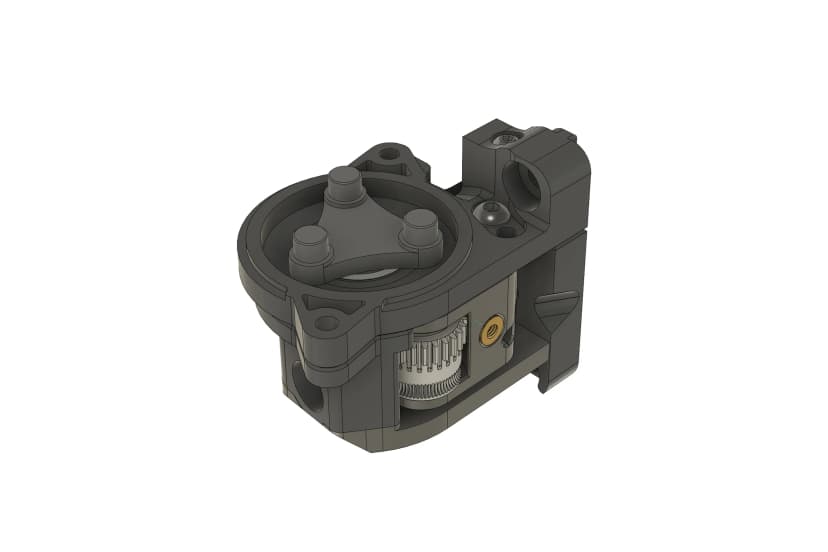

Assembly Complete

Step 9 of 9 in this section

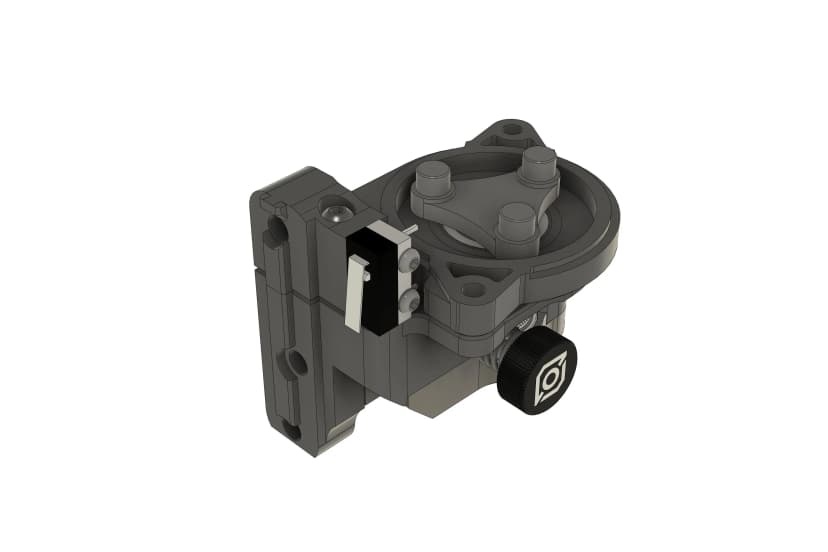

You now have completed the assembly of the extruder.

1 image(s) - Click to view

We will install the motor and the rest of the planetary gearbox in a later step.
